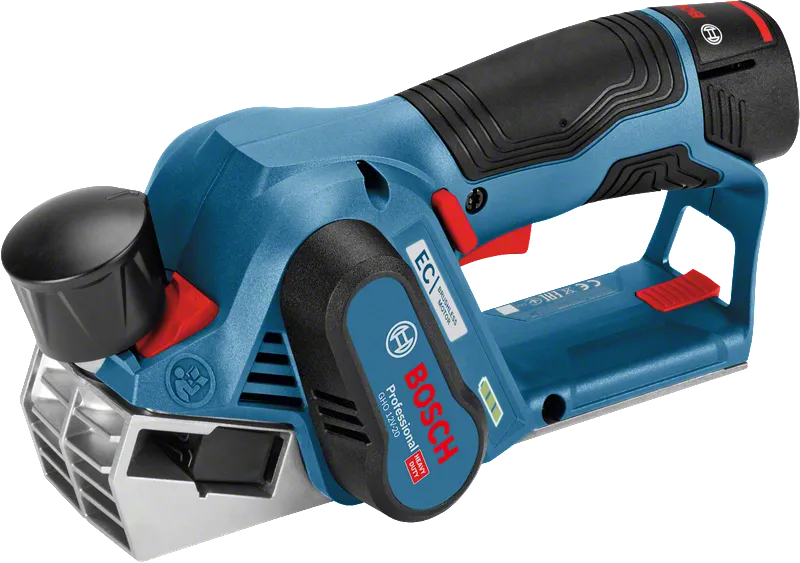

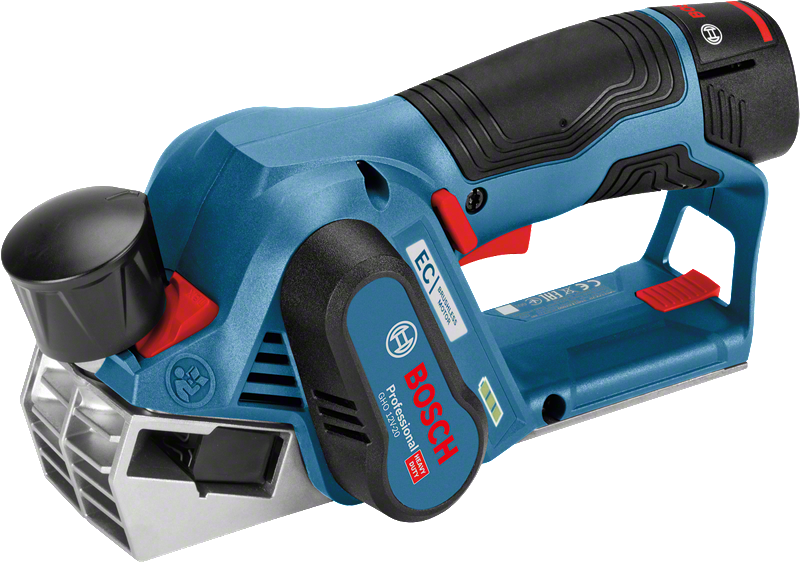

GHO 12V-20 Professional
Cordless Planer
First professional 12 V planer for a new level of tool control
- Optimized balance point for comfortable and ergonomic handling
- EC-brushless motor and 12 V system make for compact tool design
- Cordless freedom of movement delivers best operability in every working position
Functions & key features
Your Selection

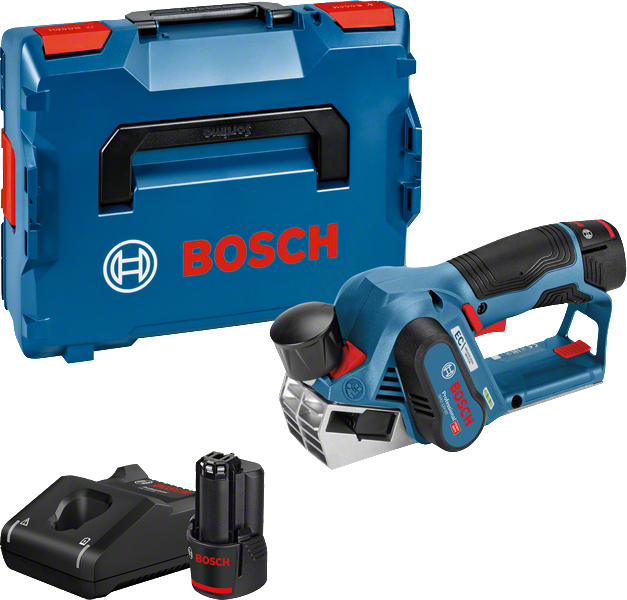

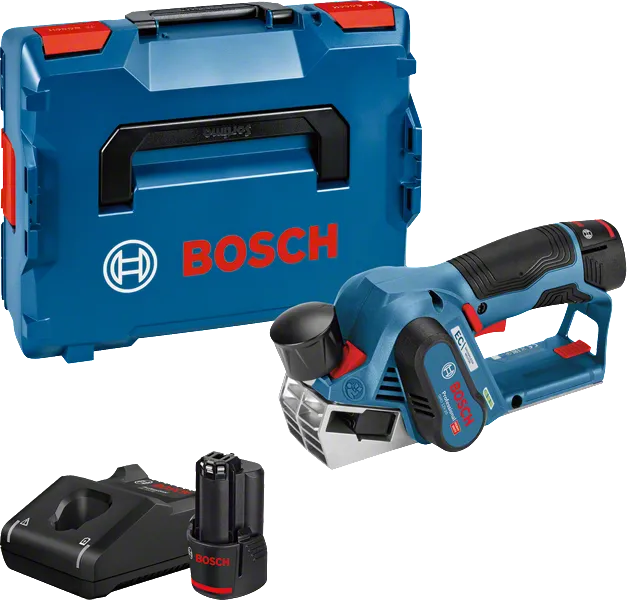

- in L-BOXX 136 with 2 x 3.0 Ah battery, Quick charger GAL 1230 CV
available at Bosch Partner
Available from our partners
Select a variant
Your Selection
Part Number: 0 601 5A7 071
available at Bosch Partner
Available from our partnersIncluded in all variants
-
2 x planer blade, 56 x 5.5 x 1.1 mmPart Number: 2 608 000 672
Additional in this variant
-
L-BOXX 136Part Number: 1 600 A01 2G0
-
Quick charger GAL 12V-40 ProfessionalPart Number: 1 600 A01 9R4
-
Quick charger GAL 1230 CVPart Number: 1 600 A00 R44
-
2 x battery GBA 12V 3.0AhPart Number: 1 600 A00 X79
Your Selection
Part Number: 0 601 5A7 070
in stock
Included in all variants
-
2 x planer blade, 56 x 5.5 x 1.1 mmPart Number: 2 608 000 672
Your Selection
Part Number: 0 601 5A7 072
in stock
Included in all variants
-
2 x planer blade, 56 x 5.5 x 1.1 mmPart Number: 2 608 000 672
Additional in this variant
-
L-BOXX 136Part Number: 1 600 A01 2G0
Technical data
The most important data |
|
|---|---|
| No-load speed* | 14,500 rpm |
| Planing depth | 0 – 2 mm |
| Rebating depth | 0 – 17 mm |
| Planing width, max. | 56 mm |
| Weight excl. battery* | 1.5 kg |
| Packaging dimensions (width x length x height) | 360 x 443 x 155 mm |
| Battery capacity* | 3 Ah |
The A-rated noise level of the power tool is typically as follows: Sound pressure level dB(A); Sound power level dB(A). Uncertainty K= dB.
* You can find more information about the deviations in the following link:
GHO 12V-20 Professional: Further information
Product Highlights
The GHO 12V-20 Professional 12 V planer is the first of its kind in offering a new level of tool control and guidance. Its optimized balance point provides comfortable and ergonomic handling. The planer’s EC-brushless motor and 12 V system make for a compact tool design. This, combined with its cordless freedom of movement, delivers the best operability in every working position.
Equipment & Application
This tool is intended for wood planing. It is compatible with all Bosch Professional 12 V batteries and chargers (Professional 12V System), as well as dustbags and the Bosch Click & Clean dust extraction system.
Additional Information
The GHO 12V-20 Professional also features a Wood Razor blade.
