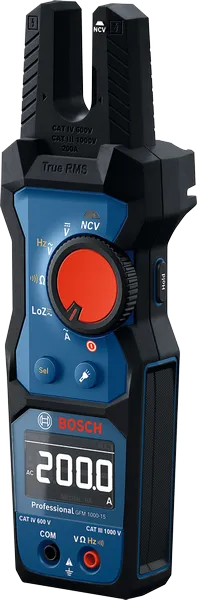

GFM 1000-15 Professional

Electrical Tester

Reliable and robust True RMS Fork meter with inverted LCD screen for quick AC current checks

  • Enhanced durability with IP54 protection and a comfortable grip for tough jobsites
  • Measures up to 200 A AC with an open jaw design for faster work
  • Compact design with a compatible magnet hanger solution (MH 1 Professional) for work in tight spaces

Functions & key features

Your Selection

  • with 2 x battery (AA), Pouch
Change variant

not available

Find a local dealer

with 2 x battery (AA), Pouch 0 601 077 400

Select a variant

Your Selection

GFM 1000-15

New

with 2 x battery (AA), Pouch

Part Number: 0 601 077 400

not available

Find a local dealer

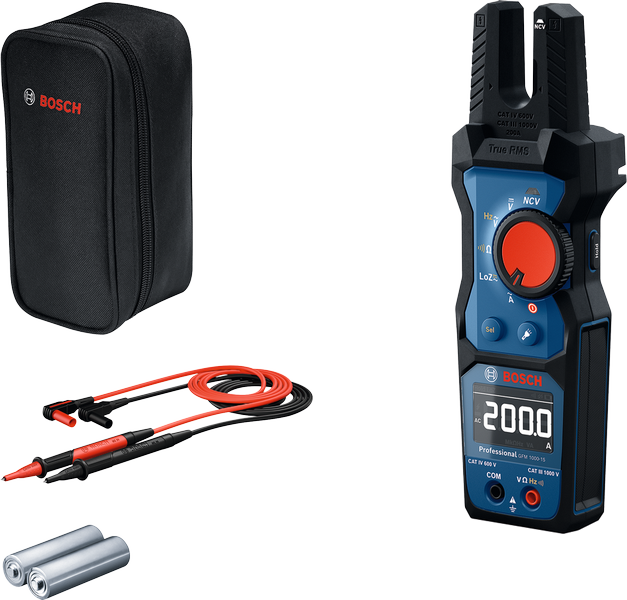

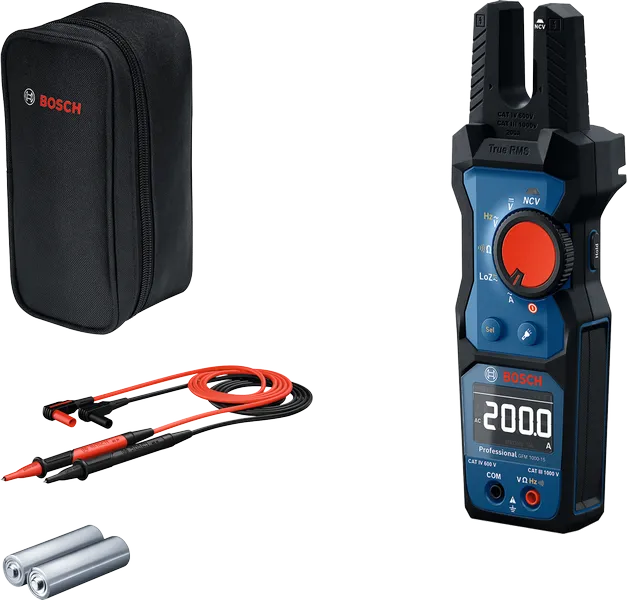

Included in all variants

  • Pouch
  • MS 90 Professional
    Part Number: 1 600 A03 8D2
  • 2 x 1.5 V LR6 battery (AA)

Your Selection

GFM 1000-15 + MH 1

New

with 2 x battery (AA), Pouch, MH 1

Part Number: 0 601 077 401

not available

Find a local dealer

Included in all variants

  • Pouch
  • MS 90 Professional
    Part Number: 1 600 A03 8D2
  • 2 x 1.5 V LR6 battery (AA)

Additional in this variant

  • MH 1 Professional
    Part Number: 1 600 A03 8CY

Technical data

The most important data

IP-Protection
IP54
Display type
LCD Inverted
NCV measurement
yes
Torch light function
yes
Acoustic feedback
yes
AC voltage
1,000 V
AC voltage resolution
1 V
AC voltage accuracy
± 1.5 % + 5
Low input impedance (LoZ)
1,000 V
AC current
200 A
AC current resolution
0.1 A
AC current accuracy
± 3.0% + 3
Measuring range for frequency
10 Hz to 50 kHz
Frequency resolution
0.01 kHz
Frequency accuracy
± 0.1 % + 2
DC voltage
1,000 V
DC voltage resolution
1 V
DC voltage acccuracy
± 1.0 % + 2
Measuring range for resistance
60 MΩ
Resistance resolution
0.01 MOhm
Resistance accuracy
± 2.0 % + 5
Continuity
yes
True RMS
yes
Safety class
CAT IV 600 V / CAT III 1000 V
Continuity resolution
0.1 Ohm
Continuity accuracy
± 1.0 % + 5
Continuity range
0 Ω
Frequency measuring range ACV
10 Hz to 50 kHz
Packaging dimensions (width x length x height)
103 x 264 x 82 mm
GFM 1000-15

GFM 1000-15 Professional: Further information

Product Highlights

The GFM 1000-15 Professional Fork meter is designed for professionals who need quick and efficient AC current and AC/DC voltage checks. With its open clamp design, you can measure current up to 200 A AC without test leads to save time and effort. This all-in-one tool measures current AC, voltage AC/DC up to 1000 V, continuity, resistance, and has LoZ V AC/DC integrated. With IP54 protection, its robust build ensures resistance to accidental drops and harsh conditions. Also, a comfortable grip reduces fatigue during extended use - making it a must have for electricians and HVAC technicians.

Equipment & Application

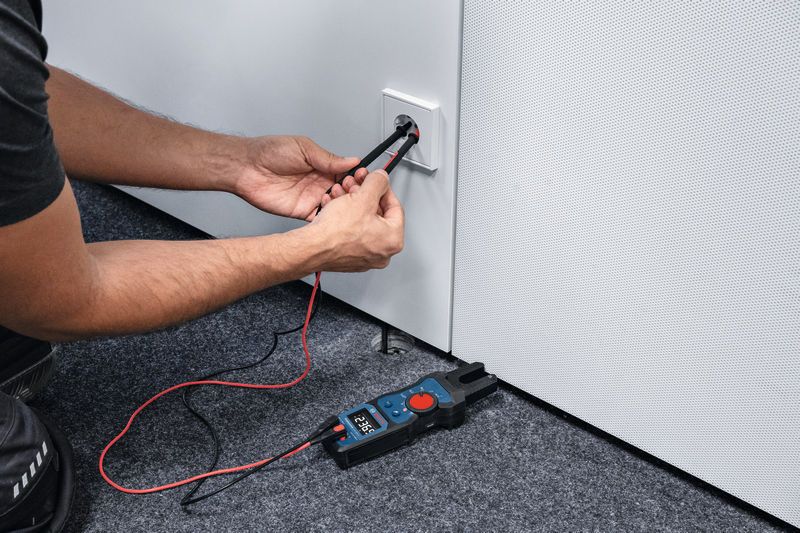

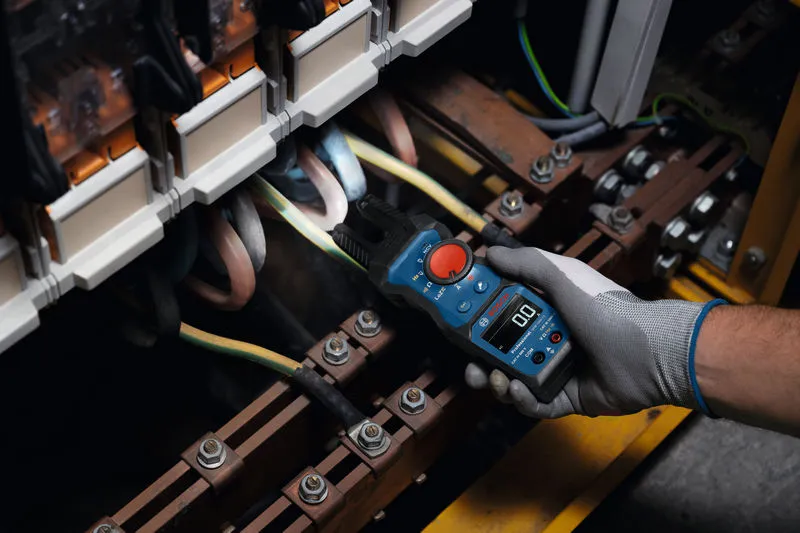

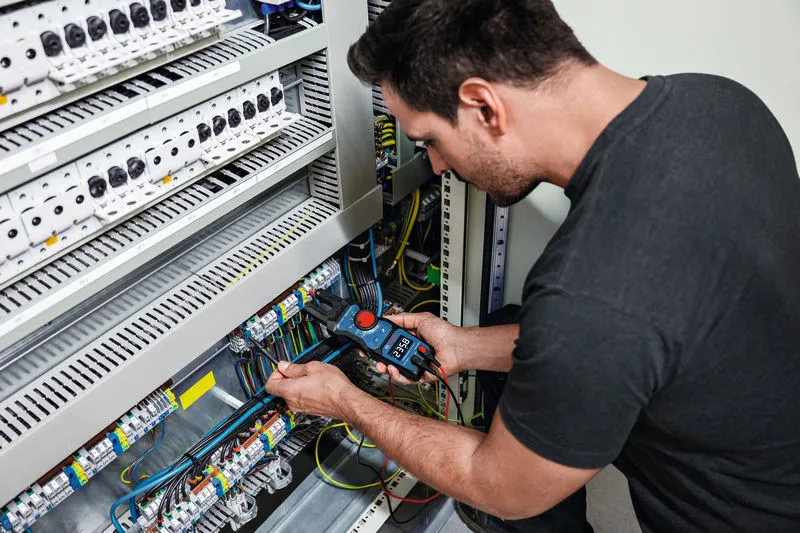

Ideal for electricians and HVAC technicians, the GFM 1000-15 Professional offers non-invasive AC current measurement, allowing you to work faster without breaking circuits. Its compact design makes it easy to use in tight spaces, such as cramped electrical panels, as well as other challenging environments. The integrated non-contact voltage detector (NCV) and flashlight enhance safety and convenience, making it a reliable choice for electrical installations, maintenance, and repairs.

Additional Information

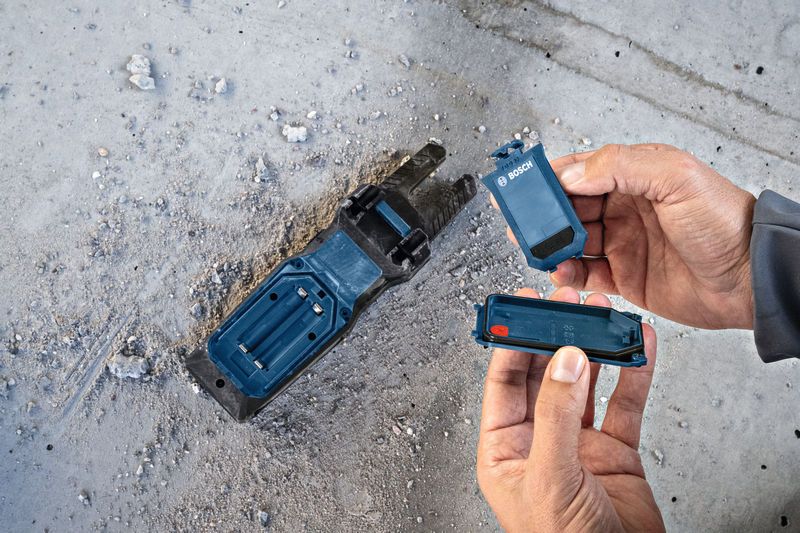

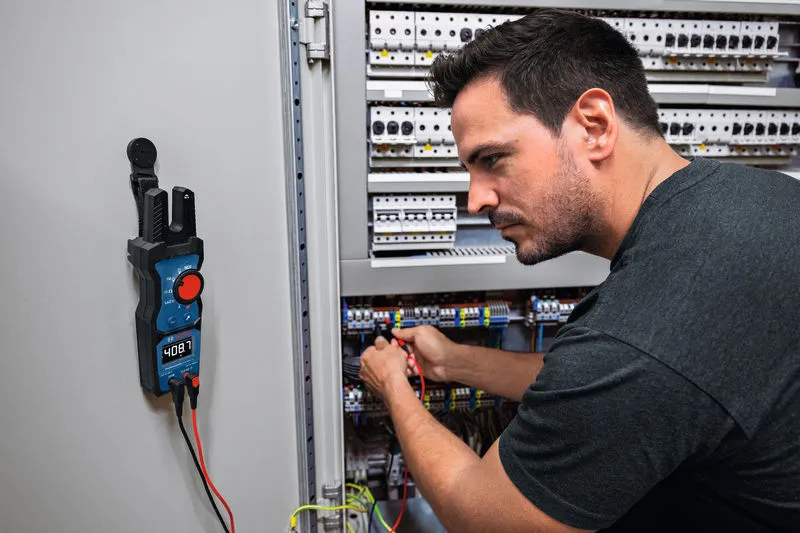

Compatible with the Li-ion battery pack for long-lasting power, the GFM 1000-15 Professional features an inverted LCD display, True RMS for accurate readings and a hold function to easily capture readings. Compatibility with the versatile magnet hanging solution, MH 1 Professional, allows for hands-free operation, while the tool's outstanding user protection is backed by CAT IV 600V and CAT III 1000V ratings. High-quality measuring strips made of flexible, long-lasting silicone provide durability you can rely on, while convenient storage for measuring tips and a compact design make it easy to carry and use on any jobsite.
