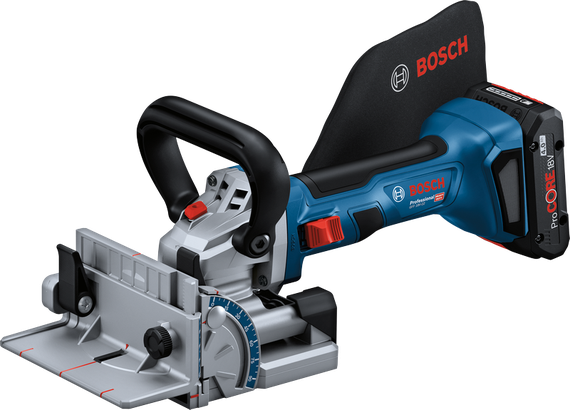

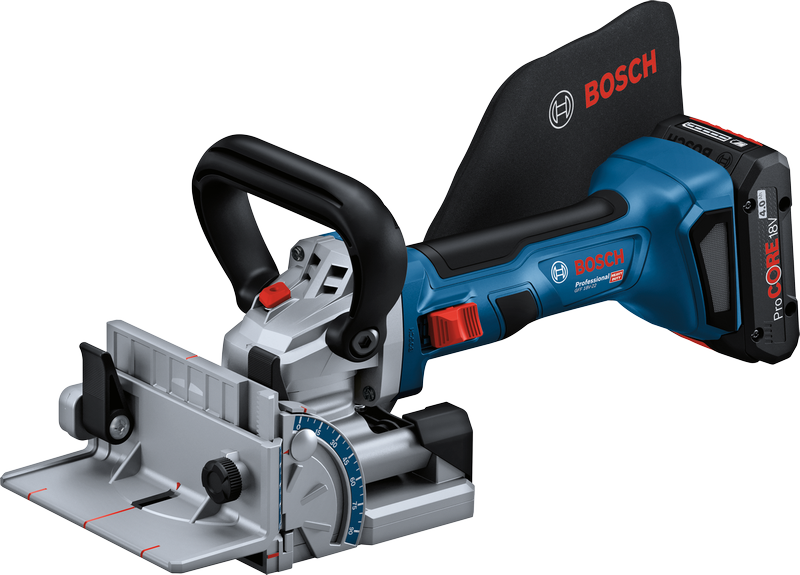

GFF 18V-22 Professional
Biscuit Joiner
Cordless biscuit joiner with outstanding precision for professional work results
- Maximum mobility while cutting thanks to cordless design

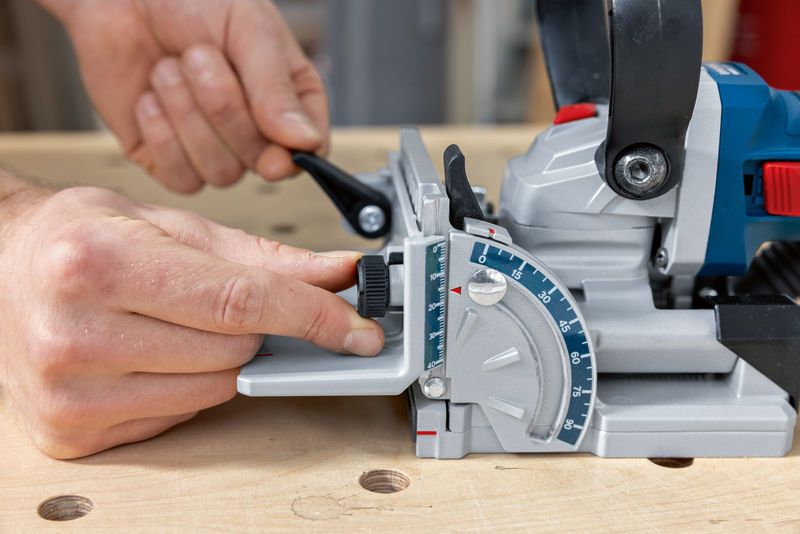

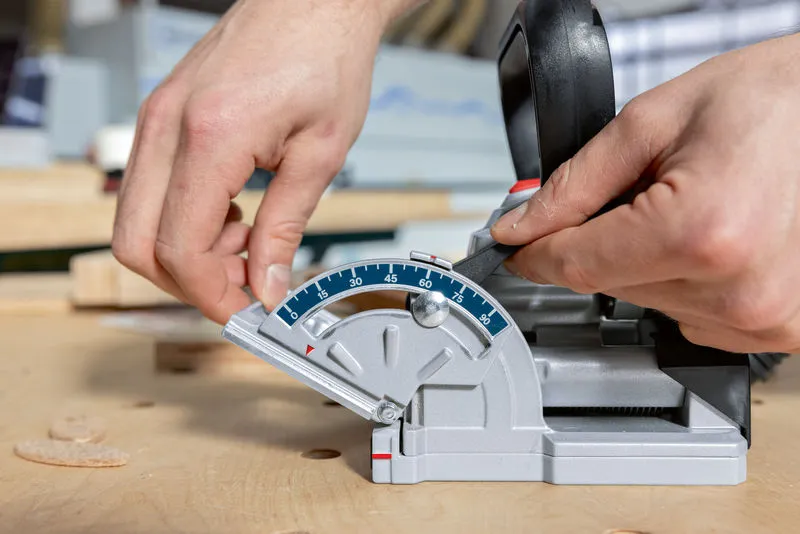

- Convenient and precise thanks to variable adjustment of cutting depth, height and angle, smooth plunge function, aluminium angle guides, and indication of cutting position

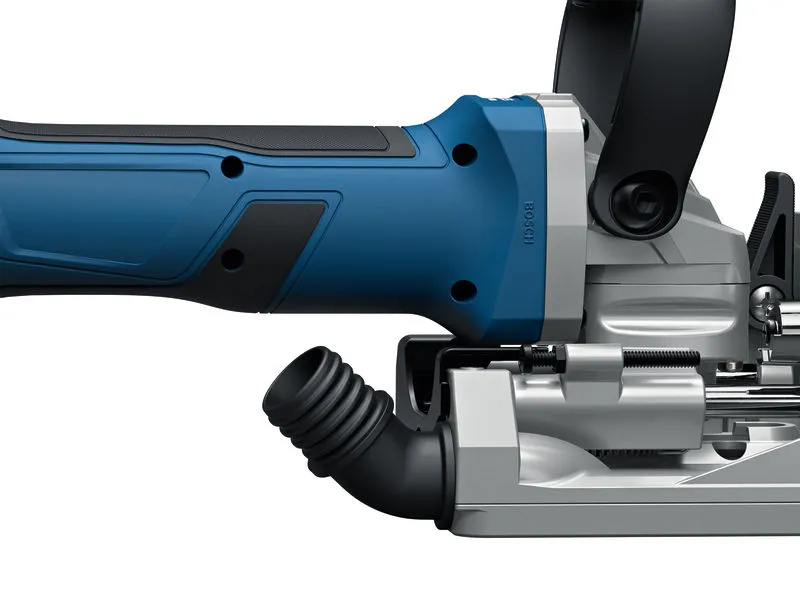

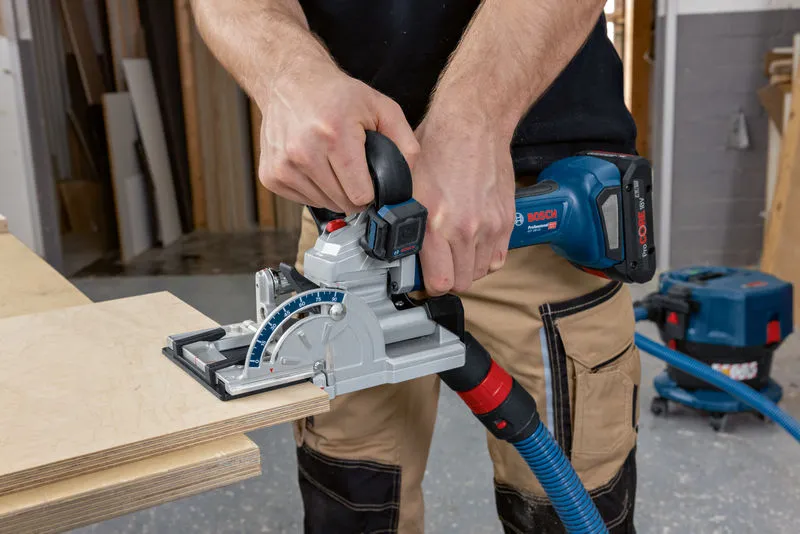

- Increased workplace protection with less dust thanks to direct interface of dust port to dust bag or dust extractor
Functions & key features
Your Selection
- with side milling cutter, 105 x 22 mm, 8 (3 608 641 013)
Select a variant
Your Selection
New
Part Number: 0 601 620 100
not available

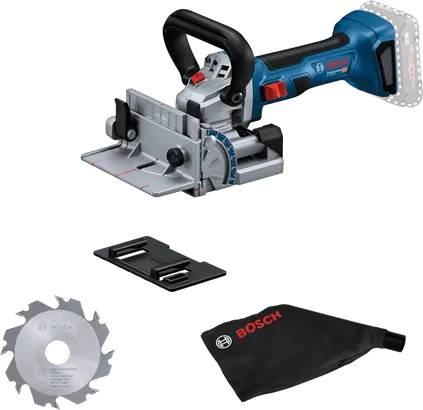

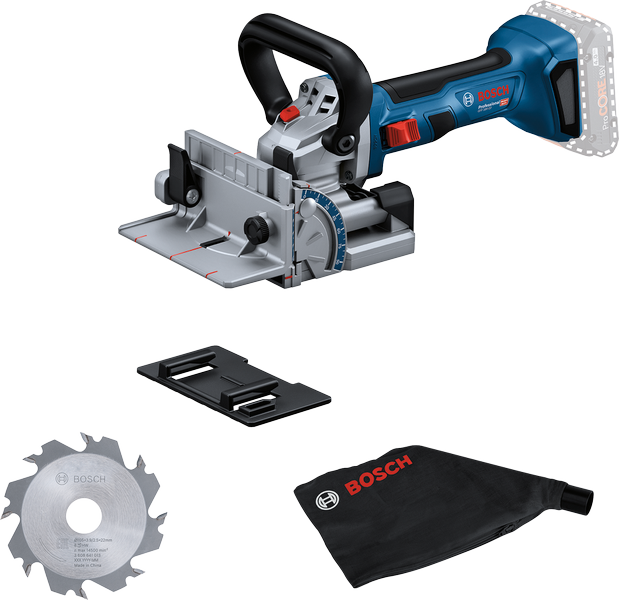

Find a local dealerIncluded in all variants
-
side milling cutter, 105 x 22 mm, 8Part Number: 3 608 641 013
-
Dust bagPart Number: 1 600 A02 UW6
-
Clip-on platePart Number: 1 600 A02 LR1
-
Pin-type face-wrenchPart Number: 1 607 950 052
Additional in this variant
-
Carton box w/carton insert
Your Selection
New
Part Number: 0 601 620 101
not available
Find a local dealerIncluded in all variants
-
side milling cutter, 105 x 22 mm, 8Part Number: 3 608 641 013
-
Dust bagPart Number: 1 600 A02 UW6
-
Clip-on platePart Number: 1 600 A02 LR1
-
Pin-type face-wrenchPart Number: 1 607 950 052
Additional in this variant
-

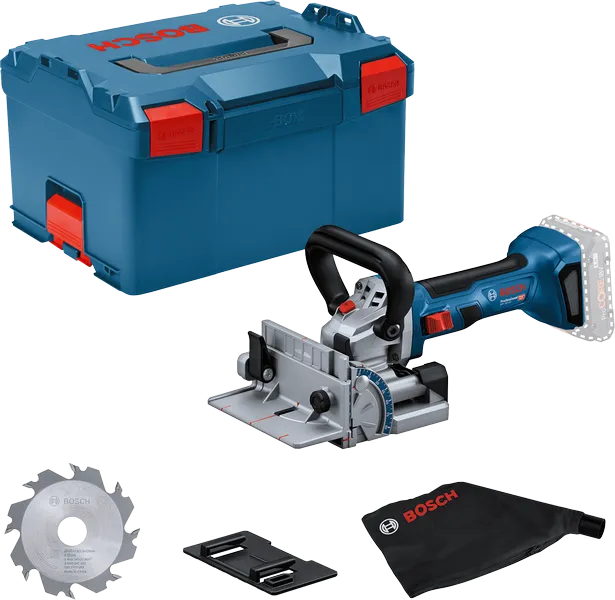

L-BOXX 238Part Number: 1 600 A01 2G2
Technical data
The most important data |
|
|---|---|

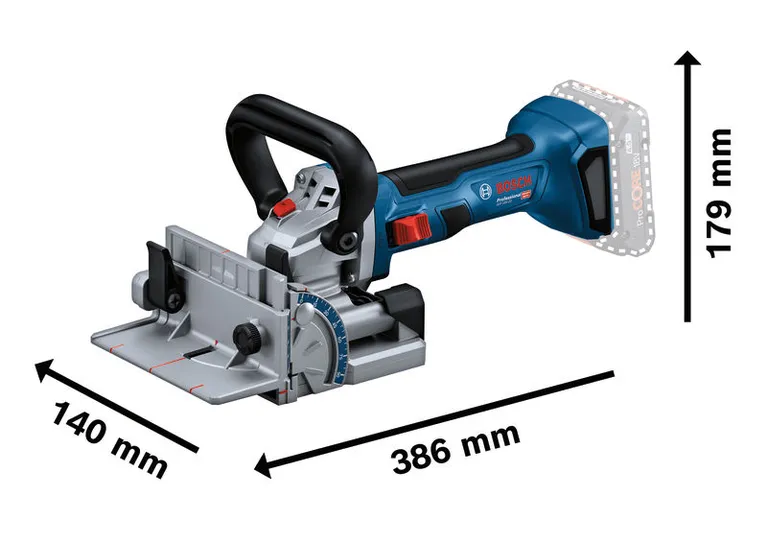

| Packaging dimensions (width x length x height) | 150 x 416 x 188 mm |
| Battery voltage | 18.0 V |
| Max. cutting depth | 22 mm |
| No-load speed* | 11,000 rpm |
| Router bit diameter bore | 22 mm |
| Router bit diameter | 105 mm |
| Weight excl. battery* | 2.6 kg |
| BITURBO | No |
The A-rated noise level of the power tool is typically as follows: Sound pressure level 80 dB(A); Sound power level 91 dB(A). Uncertainty K= 3 dB.
* You can find more information about the deviations in the following link:
GFF 18V-22 Professional: Further information
Product Highlights

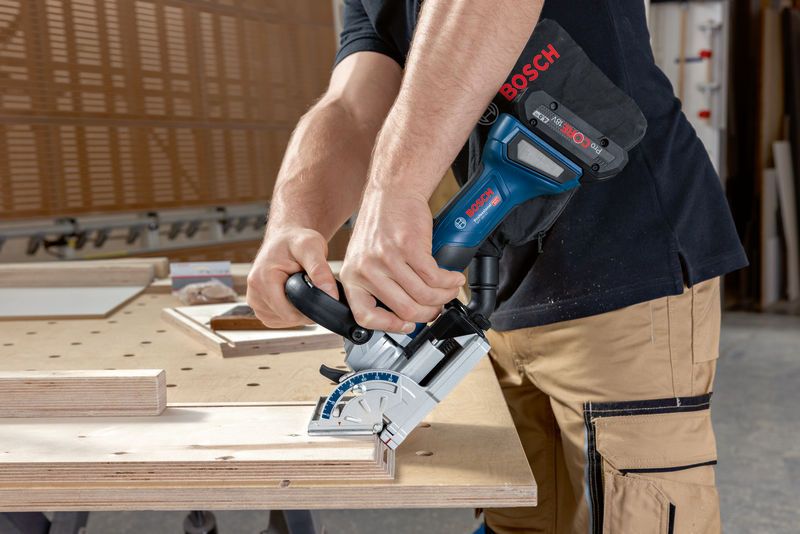

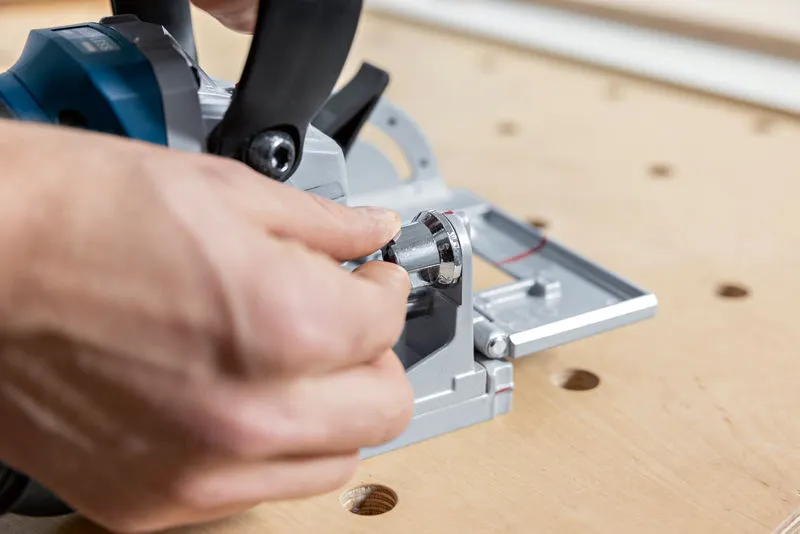

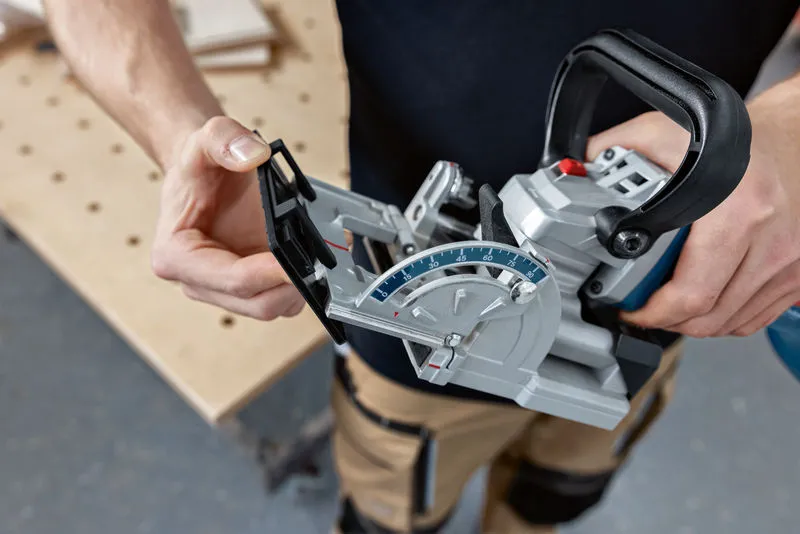

Your mobility is limited when you use a corded biscuit joiner to cut slots. That’s inconvenient. With our cordless GFF 18V-22 Professional with dust bag, not only do you get maximum freedom, but also superior precision. The tool allows you to move around workbenches without restriction while joining wooden workpieces. You can count on outstanding professional work results and convenience thanks to the smooth plunge function, robust aluminium angle guides, and multiple features and settings. Variably adjust the routing depth, height, and angle with no need for an additional tool. There are distinct markings so you can see your horizontal and vertical cutting position. For your protection and a cleaner work area, there’s an integrated dust port that can be connected to the dust bag or a dust extractor – no adapter required within the Bosch system – for dustless cutting.
Equipment & Application

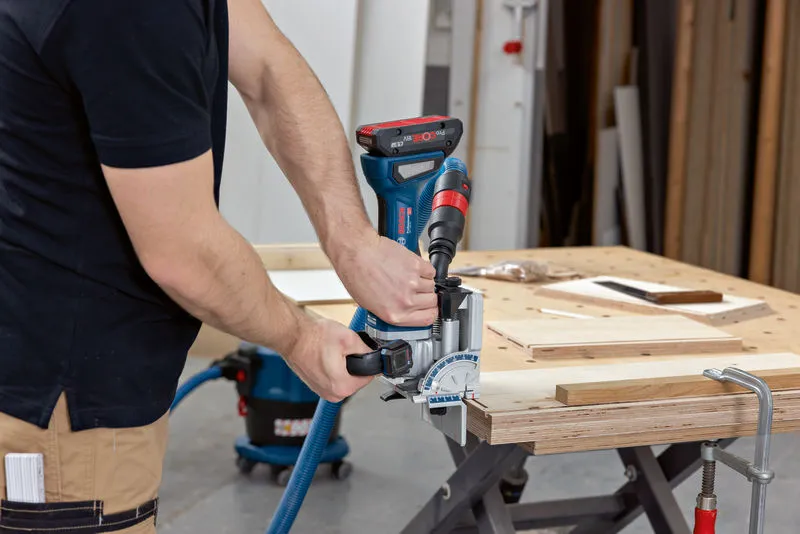

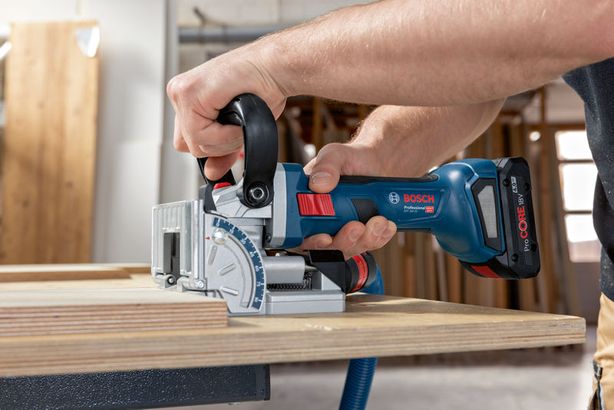

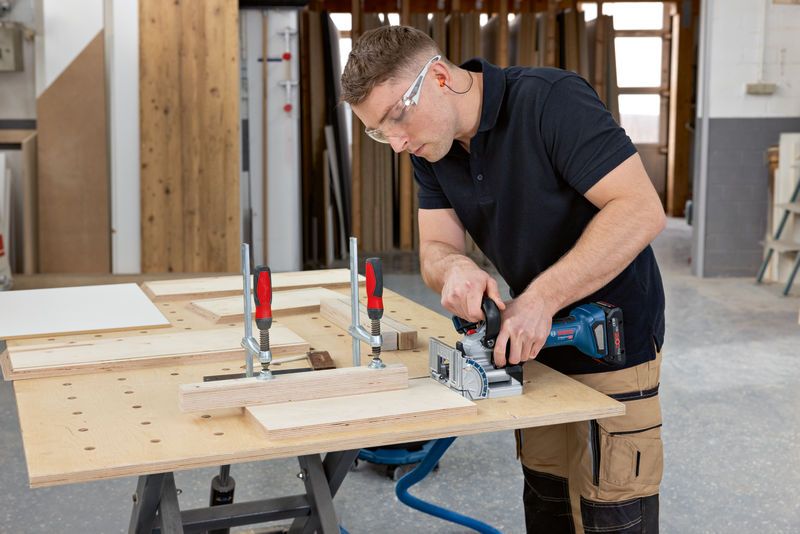

Get top results when plunge cutting crescent-shaped slots into wooden pieces for the placement of biscuits. Use this tool to create multiple joint types including corner, mitre or bevel, longitudinal, transverse, frame and mid-wall, on wooden pieces made of chipboard, hardwood, softwood, plywood, and fibreboard. This tool works with all side milling cutters with diameters up to 105 mm. Compatible with the Bosch Professional 18V System and with the multi-brand battery alliance AMPShare.
Additional Information
Brushless technology enhances the efficiency and durability of your professional biscuit joiner. This tool comes with restart protection and overload protection as well as soft start.
