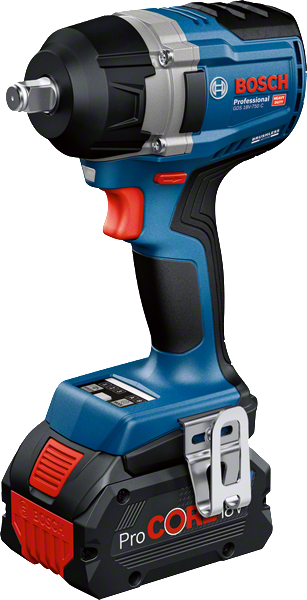

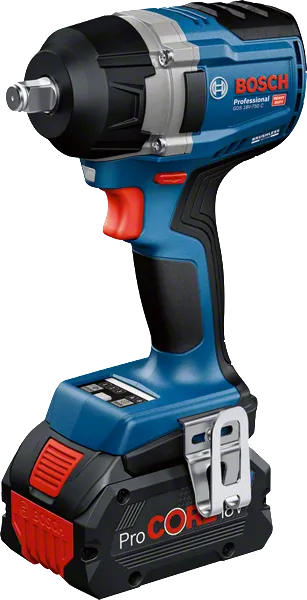

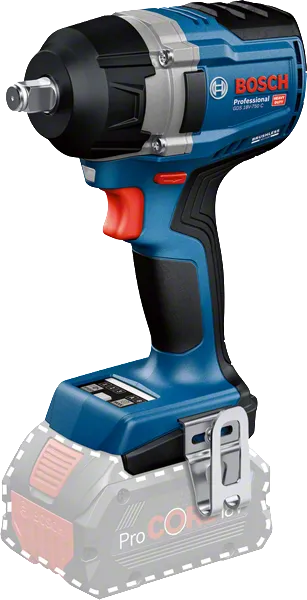

GDS 18V-750 C Professional
Cordless Impact Driver/Wrench
High-powered 1/2" cordless impact wrench combines performance with compactness

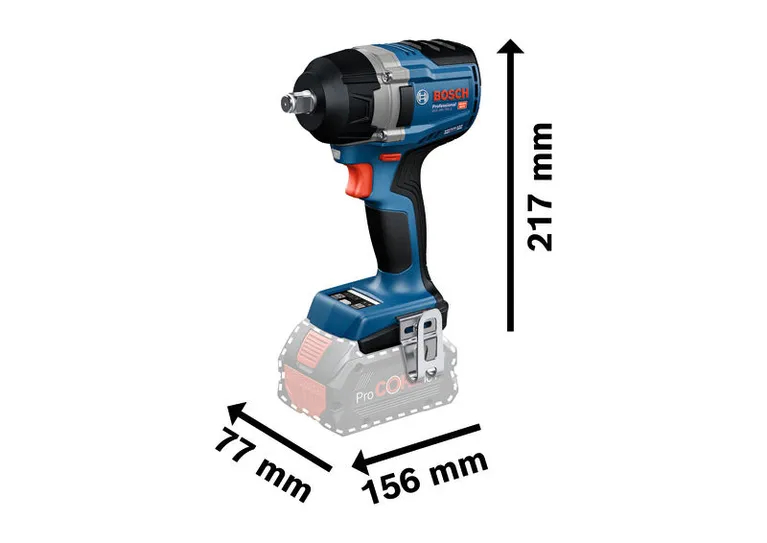

- 750 Nm tightening torque and 1000 Nm breakaway torque combined with a head length of only 156 mm
- Ideal for metal workshops/locksmiths, industrial metal fabrication, vehicle maintenance, and general construction
- Innovative Secure Socket Release (activation via App) prevents the socket to get stuck on the bolt/nut
Functions & key features
Select a variant
Your Selection
New
Part Number: 0 601 9L9 000
not available
Find a local dealerIncluded in this variant
-
Cardboard box
Your Selection
New

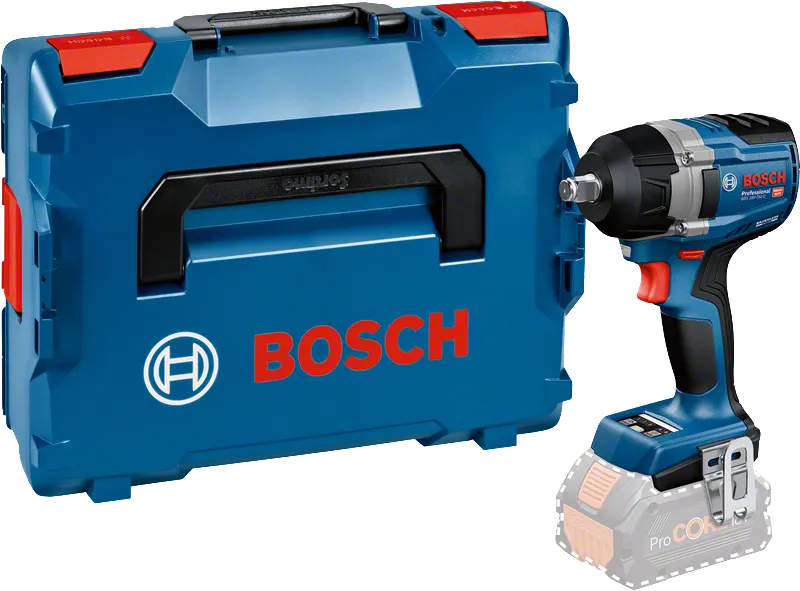

Part Number: 0 601 9L9 001
not available
Find a local dealerIncluded in this variant
-
L-BOXX 136Part Number: 1 600 A01 2G0
-
1 x Bluetooth Low Energy module GCY 42 ProfessionalPart Number: 1 600 A01 3WF
-
L-BOXX inlayPart Number: 1 600 A03 2GZ
Technical data
The most important data |
|
|---|---|
| Torque adjustment range, min./max., 1st level | 270 Nm |
| Torque adjustment range, min./max., 2nd level | 380 Nm |
| Torque adjustment range, min./max., 3rd level | 750 Nm |
| No-load speed* | 0-800 rpm |
| No-load speed (1st level)* | 0-800 rpm |
| No-load speed (2nd level)* | 0-1,500 rpm |
| No-load speed (3rd level)* | 0-2,400 rpm |
| Torque settings | 3 |
| Weight excl. battery* | 1.7 kg |
| Torque, max.* | 750 Nm |
| Impact rate | 1,500-3,000 bpm |
| Impact rate (1st level)* | 0-1,500 bpm |
| Impact rate (2nd level)* | 0-2,300 bpm |
| Impact rate (3rd level)* | 0-3,000 bpm |
| Battery voltage | 18.0 V |
| Tool holder | 1/2'' Square |
| Breakaway torque, max. | 1,000 Nm |
| Packaging dimensions (width x length x height) | 226 x 240 x 100 mm |
| BITURBO | No |
The A-rated noise level of the power tool is typically as follows: Sound pressure level 101 dB(A); Sound power level 109 dB(A). Uncertainty K= 3 dB.
* You can find more information about the deviations in the following link:
GDS 18V-750 C Professional: Further information
Product Highlights
The compact impact wrench GDS 18V-750 C Professional is the perfect tool to cover a wide range of applications. It delivers up to 750 Nm tightening and 1000 Nm breakaway torque and has a head length of only 156 mm. You gain perfect control and high versatility thanks to its 3 speed/torque settings. The user interface offers direct access to two default modes: metal bolt/nut (A) and wood screw (B). Both ensure controlled applications preventing broken screwheads in forward direction and to avoid bolt/nuts from falling in reverse using the auto bolt release (ABR). Each mode can be adjusted and customized individually for repeatable applications via the Bosch PRO360 App. The Secure Socket Release prevents the socket wrench from getting stuck on the bolt/nut. This feature can be activated via the App only.
Equipment & Application

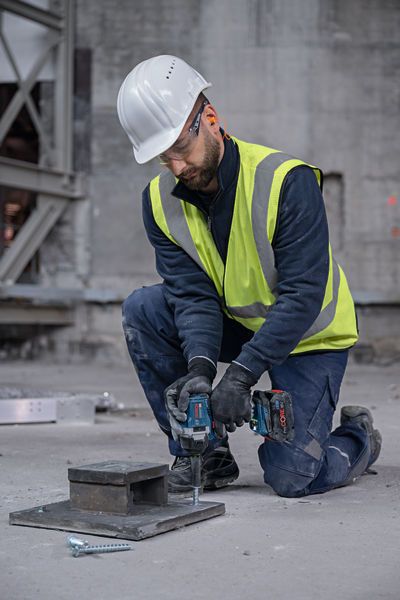

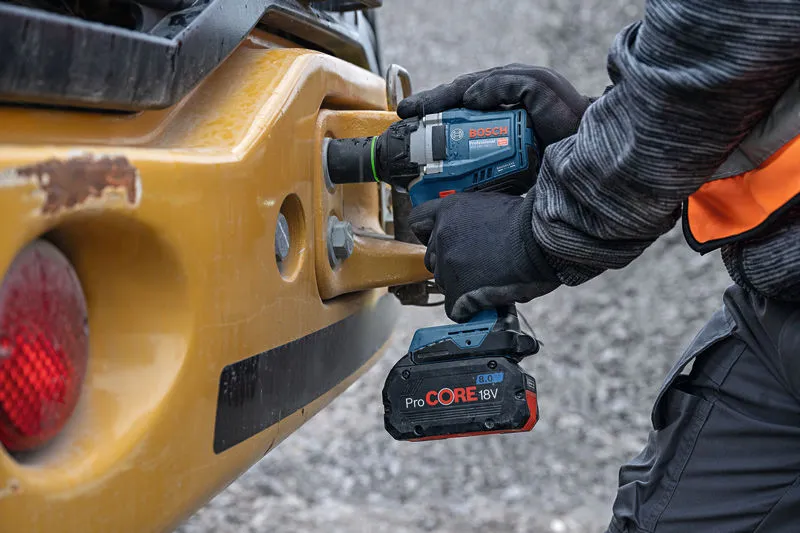

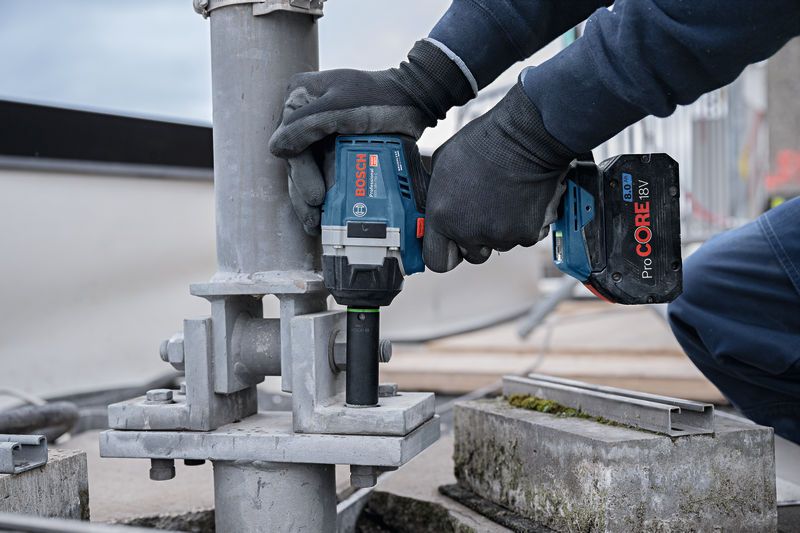

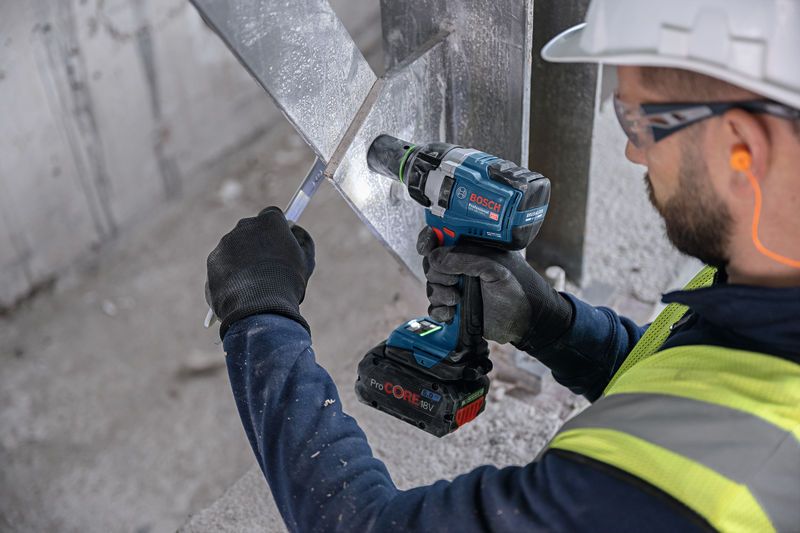

The impact wrench is ideal for metal workshops/locksmiths, industrial metal fabrication and vehicle maintenance using metal bolts/nuts from M12 to M22. It covers a wide range of concrete screws up to 16mm for applications in general construction and is also suitable for wood screws. Compatible with the Bosch Professional 18V System and with the multi-brand battery alliance AMPShare.
Additional Information
Comes with two LED lights to ensure best-in-class workplace illumination. The impact wrench also has a status indicator and a belt clip for increased convenience.
