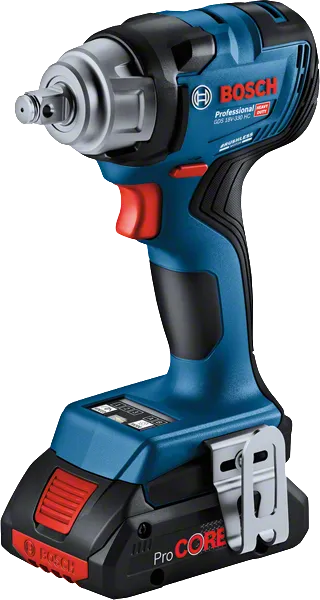

GDS 18V-330 HC Professional
Cordless Impact Wrench
Compact and lightweight impact wrench with adjustable modes for multi-purpose use
- Two default screw modes for multi-purpose use. Each mode can be adjusted and individualised via the Bosch Toolbox App
- Powerful 330 Nm tightening and 560 Nm breakaway torque performance
- Versatile three-speed/torque settings for more flexibility and control
Functions & key features
Your Selection

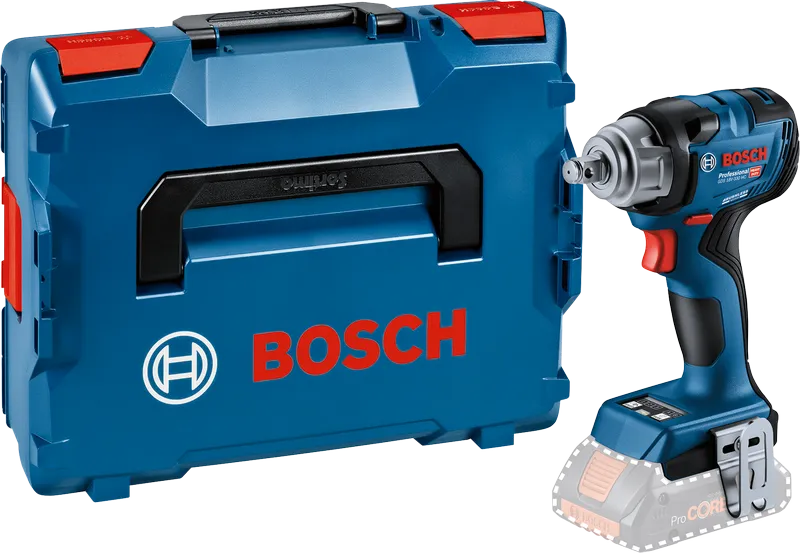

- in L-BOXX 136 with Bluetooth module
Select a variant
Your Selection
Part Number: 0 601 9L5 001
available at Bosch Partner
Available from our partnersIncluded in this variant
-
L-BOXX 136Part Number: 1 600 A01 2G0
-
1/1 L-BOXX inlayPart Number: 1 600 A02 DG5
-
1 x Bluetooth Low Energy module GCY 42 ProfessionalPart Number: 1 600 A01 3WF
Your Selection

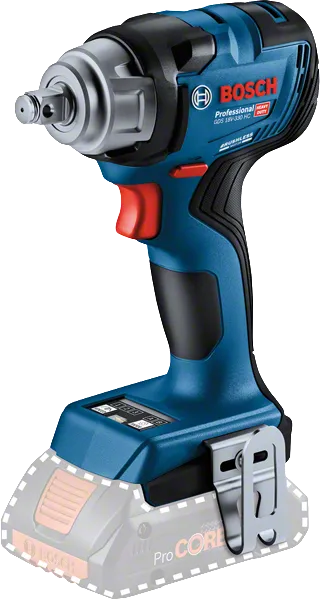

Part Number: 0 601 9L5 000
available at Bosch Partner
Available from our partnersIncluded in this variant
-
Cardboard box
Your Selection

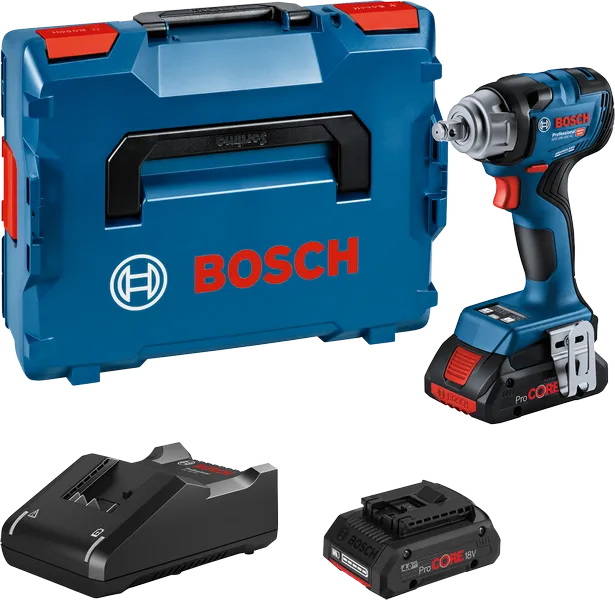

Part Number: 0 601 9L5 071
available at Bosch Partner
Available from our partnersIncluded in this variant
-
L-BOXX 136Part Number: 1 600 A01 2G0
-
1/1 L-BOXX inlayPart Number: 1 600 A02 DG5
-
1 x Bluetooth Low Energy module GCY 42 ProfessionalPart Number: 1 600 A01 3WF
-
Quick charger GAL 18V-40 ProfessionalPart Number: 1 600 A01 9RK
-
2 x battery ProCORE18V 4.0AhPart Number: 1 600 A01 6GB
Technical data
The most important data |
|
|---|---|
| Torque adjustment range, min./max., 1st level | 0/200 Nm |
| Torque adjustment range, min./max., 2nd level | 0/260 Nm |
| Torque adjustment range, min./max., 3rd level | 0/330 Nm |
| No-load speed* | 0-2,800 rpm |
| No-load speed (1st level)* | 0-1,200 rpm |
| No-load speed (2nd level)* | 0-1,900 rpm |
| No-load speed (3rd level)* | 0-2,800 rpm |
| Weight excl. battery* | 1.2 kg |
| Torque, max.* | 330 Nm |
| Impact rate | 2,800 bpm |
| Impact rate (1st level)* | 0-2,400 bpm |
| Impact rate (2nd level)* | 0-3,100 bpm |
| Impact rate (3rd level)* | 0-3,800 bpm |
| Battery voltage | 18.0 V |
| Tool holder | 1/2" square friction ring and thru hole |
| Breakaway torque, max. | 560 Nm |
| Packaging dimensions (width x length x height) | 360 x 440 x 155 mm |
The A-rated noise level of the power tool is typically as follows: Sound pressure level 98 dB(A); Sound power level 109 dB(A). Uncertainty K= 3 dB.
* You can find more information about the deviations in the following link:
GDS 18V-330 HC Professional: Further information
Product Highlights
The compact and lightweight GDS 18V-330 HC Professional cordless impact wrench makes work easier. Its two default modes on the user interface, metal bolt/nut (A) and wood screw (B), ensure controlled application to prevent broken screwheads and the loss of metal bolts or nuts by slowing down or shutting off the impact wrench. Each mode can be adjusted conveniently to a specific application via the Bosch Toolbox App. 330 Nm tightening and 560 Nm breakaway torque deliver top performance. Greater flexibility and control are provided thanks to three different speed/torque settings.
Equipment & Application
The impact wrench is ideal for metal workshops/locksmiths, industrial assembly, framing, and vehicle maintenance using metal bolts/nuts from M8-M18. It is compatible with all Bosch Professional 18V batteries and chargers (Professional 18V System). Also compatible with AMPShare, the multi-brand battery alliance.
Additional Information
The GDS 18V-330 HC Professional comes with tool status indicator, LED light, and belt clip for added convenience.
