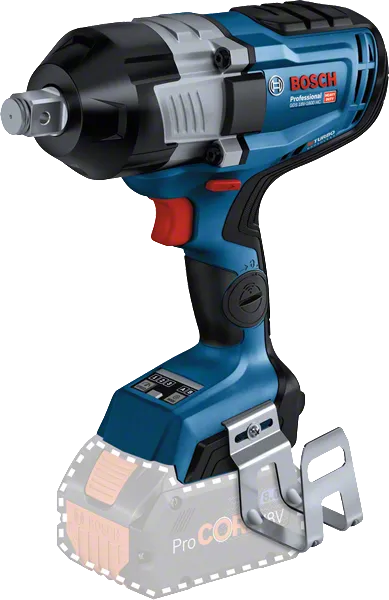

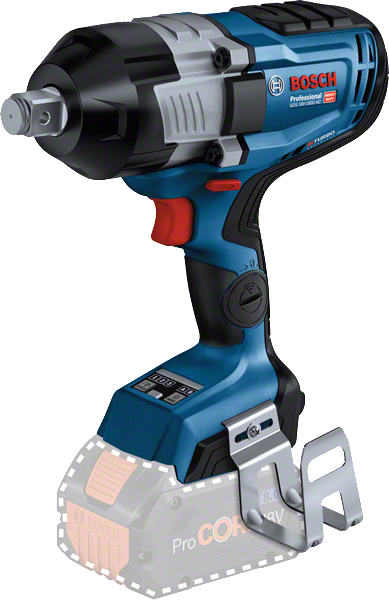

GDS 18V-1600 HC Professional
Cordless Impact Wrench
Exceptional cordless power: 3/4" high-torque impact wrench with BITURBO Brushless technology
- Maximised power with cordless freedom thanks to BITURBO Brushless technology and ProCORE18V batteries
- Exceptionally powerful impact wrench with a 1,600 Nm tightening and 2,200 Nm breakaway torque
- Auto Bolt Release (ABR) mode ensures comfortable handling by avoiding the loss or drop-down of metal bolts or nuts
Functions & key features
Select a variant
Your Selection
Part Number: 0 601 9M1 000
in stock
Included in this variant
-
Ladder clip (1600 A02 3G7)
-
Carton box
Your Selection
Part Number: 0 601 9M1 001
in stock
Included in this variant
-

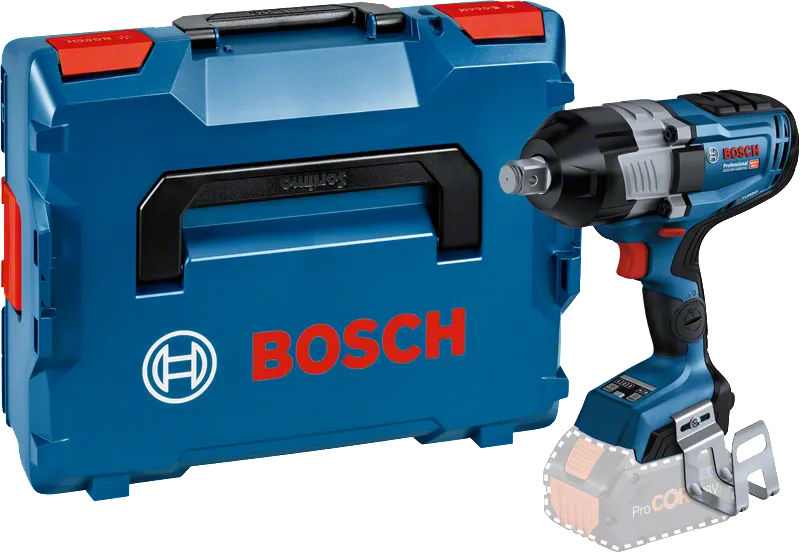

L-BOXX 136Part Number: 1 600 A01 2G0
-
1 x Bluetooth Low Energy module GCY 42 ProfessionalPart Number: 1 600 A01 6NH
-
1/1 L-BOXX inlay for tool and chargerPart Number: 1 600 A02 58Y

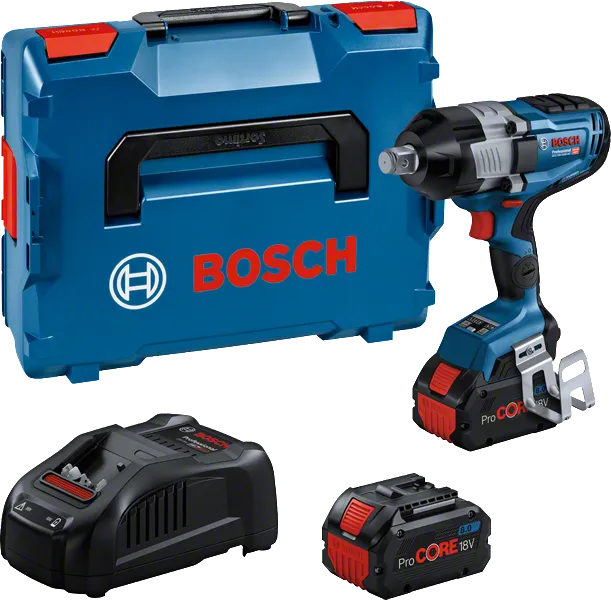

Your Selection
Part Number: 0 601 9M1 070
in stock
Included in this variant
-
L-BOXX 136Part Number: 1 600 A01 2G0
-
1 x Bluetooth Low Energy module GCY 42 ProfessionalPart Number: 1 600 A01 6NH
-
1/1 L-BOXX inlay for tool and chargerPart Number: 1 600 A02 58Y
-
Quick charger GAL 1880 CVPart Number: 1 600 A00 B8H
-
2 x battery ProCORE18V 8.0AhPart Number: 1 600 A01 6GK
Technical data
The most important data |
|
|---|---|
| Torque adjustment range, min./max., 1st level | 0/600 Nm |
| Torque adjustment range, min./max., 2nd level | 0/1100 Nm |
| Torque adjustment range, min./max., 3rd level | 0/1600 Nm |
| No-load speed* | 0-800 rpm |
| No-load speed (1st level)* | 0-800 rpm |
| No-load speed (2nd level)* | 0-1,300 rpm |
| No-load speed (3rd level)* | 0-1,750 rpm |
| Torque settings | 3 |
| Weight excl. battery* | 3.2 kg |
| Torque, max.* | 1,600 Nm |
| Impact rate (1st level)* | 0-1,550 bpm |
| Impact rate (2nd level)* | 0-2,200 bpm |
| Impact rate (3rd level)* | 0-2,350 bpm |
| Battery voltage | 18.0 V |
| Tool holder | 3/4'' Square |
| Breakaway torque, max. | 2,200 Nm |
| Packaging dimensions (width x length x height) | 270 x 288 x 109 mm |
| BITURBO | Yes |
The A-rated noise level of the power tool is typically as follows: Sound pressure level 104 dB(A); Sound power level 112 dB(A). Uncertainty K= 3 dB.
* You can find more information about the deviations in the following link:
GDS 18V-1600 HC Professional: Further information
Product Highlights
The GDS 18V-1600 HC Professional is the exceptionally powerful 3/4" impact wrench with BITURBO Brushless technology for the toughest, heavy-duty applications. The built-in brushless motor combines corded power with cordless freedom and is fully optimised for ProCORE18V batteries, delivering a strong 1,600 Nm tightening and 2,200 Nm breakaway torque. Thanks to the adjustable Auto Bolt Release (ABR) mode, you can avoid the loss or drop-down of metal bolts or nuts when loosening them, ensuring comfortable handling. High versatility in power control is provided by the 3-speed/torque settings that allow adjustments to the respective work requirements. All tool settings can be conveniently adjusted and customised via the Bosch Toolbox App.
Equipment & Application

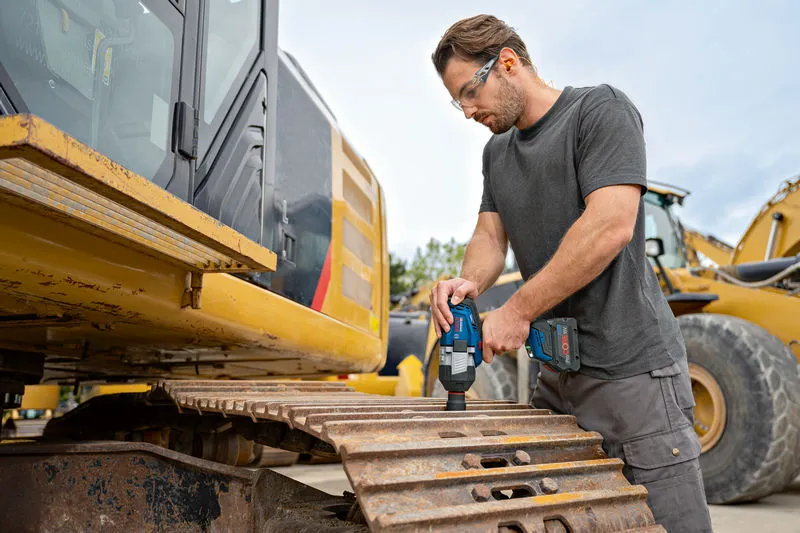

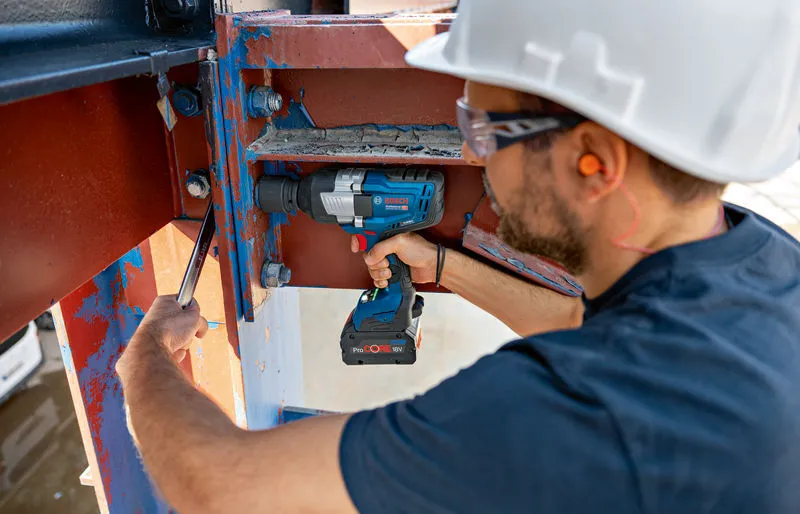

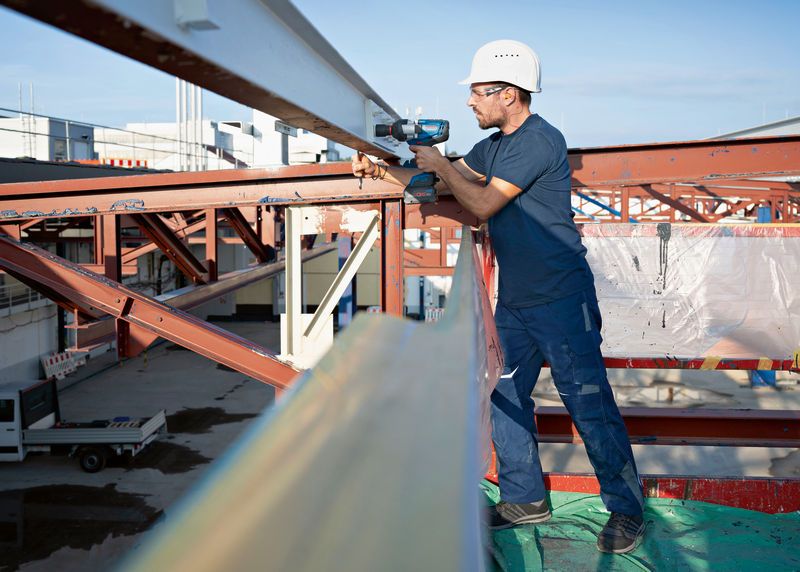

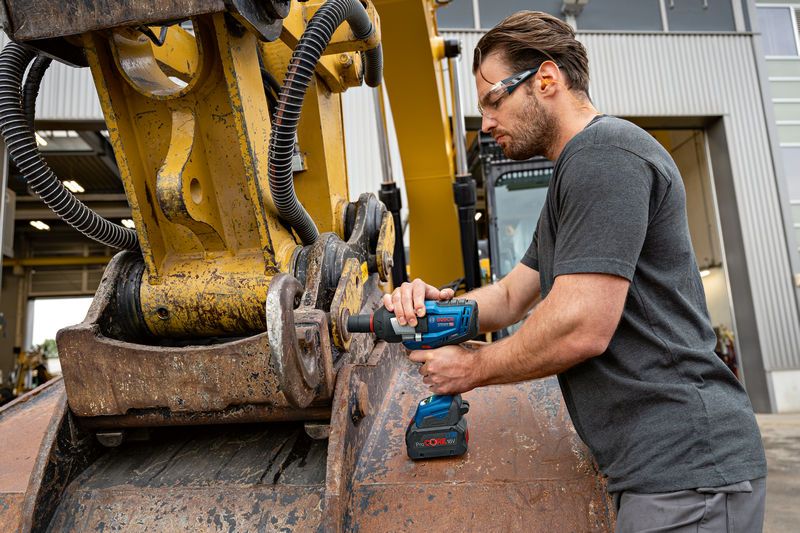

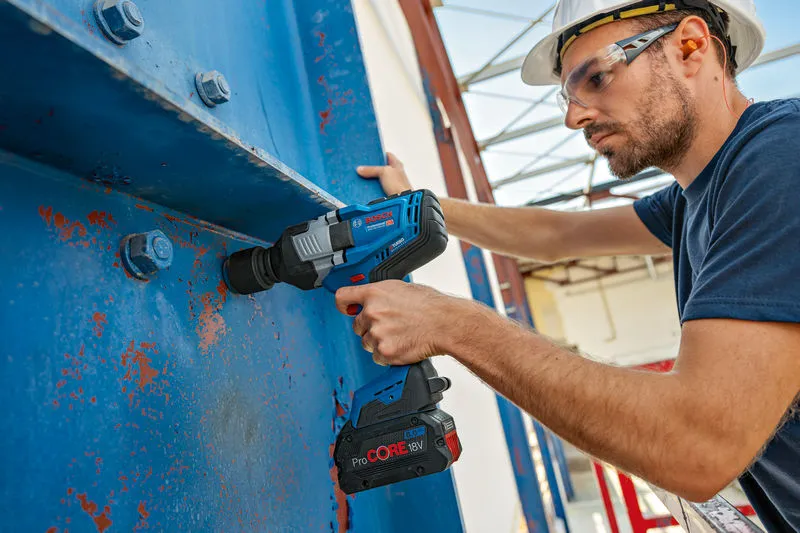

The exceptionally strong GDS 18V-1600 HC Professional is suitable for all metal applications from M16 to M33 such as structural steel construction, pipe fitting, and maintenance of industrial machinery and construction vehicles. This impact wrench is ideal, whenever utmost power is required to remove rusted and painted bolts and nuts. The tool is compatible with all batteries and chargers in the AMPShare Battery Alliance including all batteries and chargers in the Bosch Professional 18V System. For maximum power, use ProCORE18V ≥ 5.5 Ah.
Additional Information
The impact wrench is equipped with Electronic Cell Protection (ECP), Electronic Motor Protection (EMP), a tool status indicator with LED light, a 3/4" tool holder with a friction ring and through hole, and a ladder clip.
