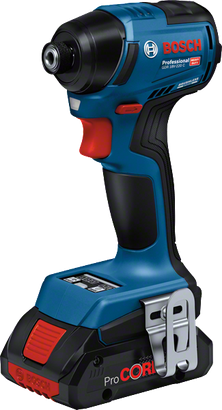

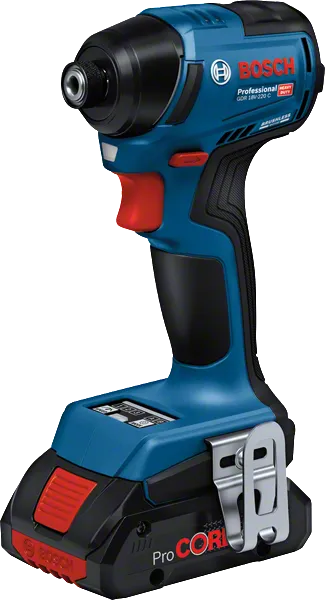

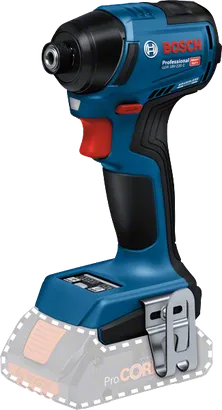

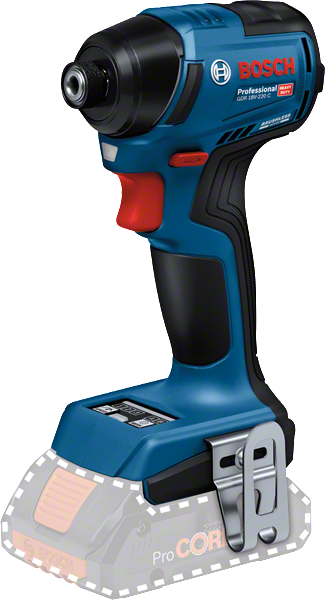

GDR 18V-220 C Professional
Impact Wrench
The most compact Bosch Professional 18V impact driver
- Faster work progress thanks to powerful motor
- Optimised for convenience with one-handed bit insertion and two LED lights

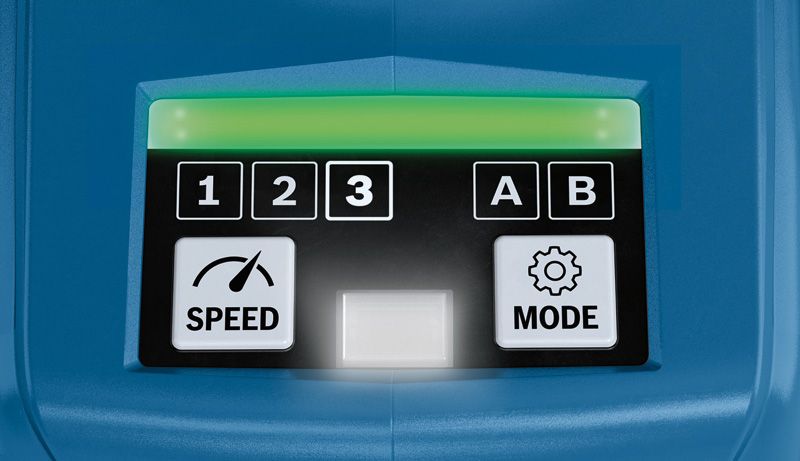

- More control and versatility via three-speed/torque settings and adjustable screw modes
Functions & key features
Select a variant
Your Selection
Part Number: 0 601 9L6 000
in stock
Included in all variants
-
1 x belt clip, 1 x bit holder
Additional in this variant
-
Cardboard box
Your Selection
Part Number: 0 601 9L6 001
available at Bosch Partner
Available from our partnersIncluded in all variants
-
1 x belt clip, 1 x bit holder
Additional in this variant
-
L-BOXX 136Part Number: 1 600 A01 2G0
-
1 x Bluetooth Low Energy module GCY 42 ProfessionalPart Number: 1 600 A01 6NH
-
1/1 L-BOXX Inlay for toolPart Number: 1 600 A03 2H0
Technical data
The most important data |
|
|---|---|
| Torque adjustment range, min./max., 1st level | 0/100 Nm |
| Torque adjustment range, min./max., 2nd level | 0/140 Nm |
| Torque adjustment range, min./max., 3rd level | 0/220 Nm |
| No-load speed* | 0-3,400 rpm |
| No-load speed (1st level)* | 0-800 rpm |
| No-load speed (2nd level)* | 0-2,300 rpm |
| No-load speed (3rd level)* | 0-3,400 rpm |
| Torque settings | 3 |
| Weight excl. battery* | 1 kg |
| Torque, max.* | 220 Nm |
| Impact rate | 4,000 bpm |
| Impact rate (1st level)* | 0-1,500 bpm |
| Impact rate (2nd level)* | 0-3,400 bpm |
| Impact rate (3rd level)* | 0-4,000 bpm |
| Battery voltage | 18.0 V |
| Tool holder | 1/4'' Hex Uni |
| Packaging dimensions (width x length x height) | 185 x 220 x 95 mm |
The A-rated noise level of the power tool is typically as follows: Sound pressure level dB(A); Sound power level dB(A). Uncertainty K= dB.
* You can find more information about the deviations in the following link:
GDR 18V-220 C Professional: Further information
Product Highlights

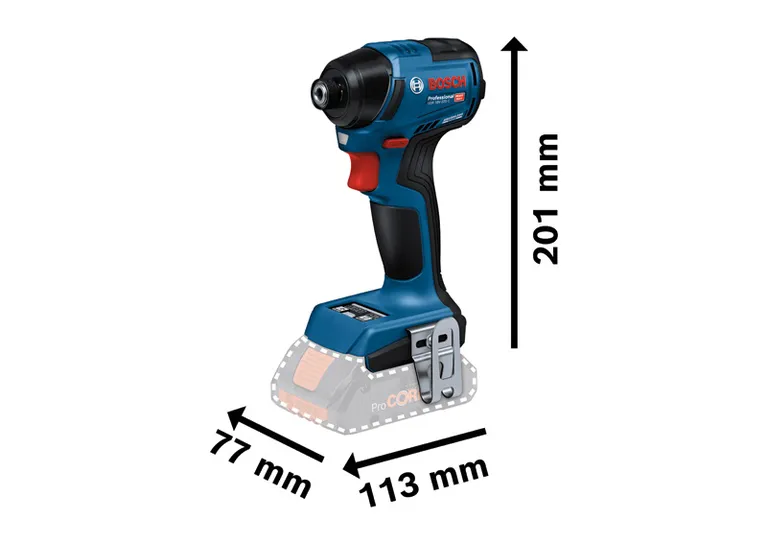

For smooth fastening of screws in wood and sheet metal, you need a tool that combines power with control. The GDR 18V-220 C Professional with ¼” hex drive is a high-torque, compact impact driver with additional features. With a head length of 113 mm, it is easier to handle especially when working in tight spots. Thanks to a powerful brushless motor with up to 3,400 RPM, three-speed settings, and a high torque of 220 Nm, you will get your work done faster and with more control. The tool’s adjustable screw modes ensure controlled application to prevent broken screwheads and damaged work pieces by slowing down (A) or shutting off (B) the impact driver. Additional modes can be accessed and adapted via the Bosch Toolbox App. You only need one hand to insert bits – just push the bit in to lock it. The double ball bearing ensures a firm hold of the bit and increases precision. With its two LED lights, one at the head and one at the foot of the driver, you get best-in-class workplace illumination. The tool’s all-metal gear housing is what professionals ask for. The tool has a status indicator and a belt clip. It is compatible with the Bosch Professional 18V System and with the multi-brand battery alliance AMPShare.
Equipment & Application
Use this powerful and compact impact driver for top results on HVAC projects, electrical work, or carpentry.
