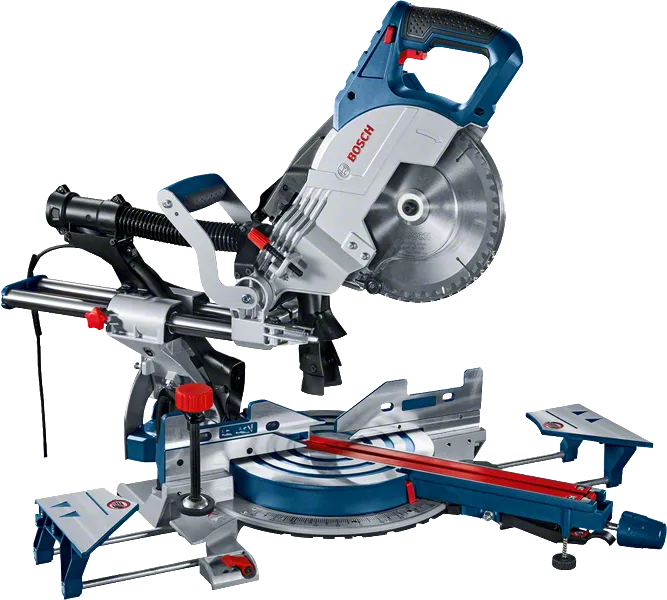

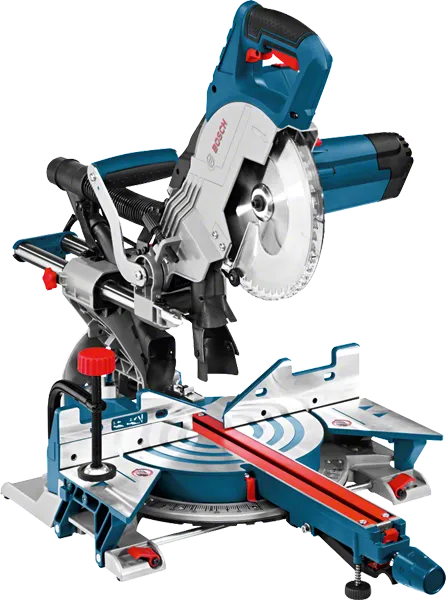

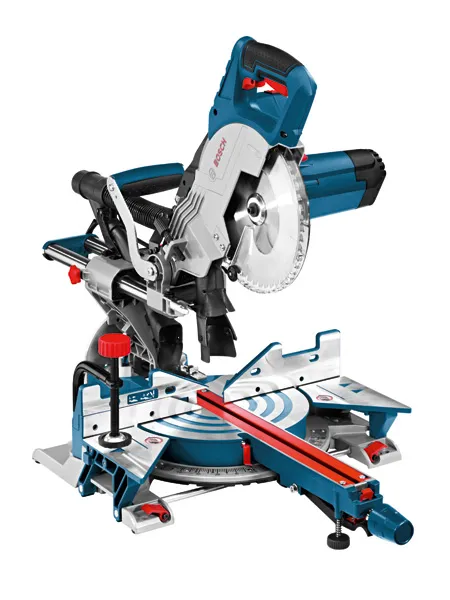

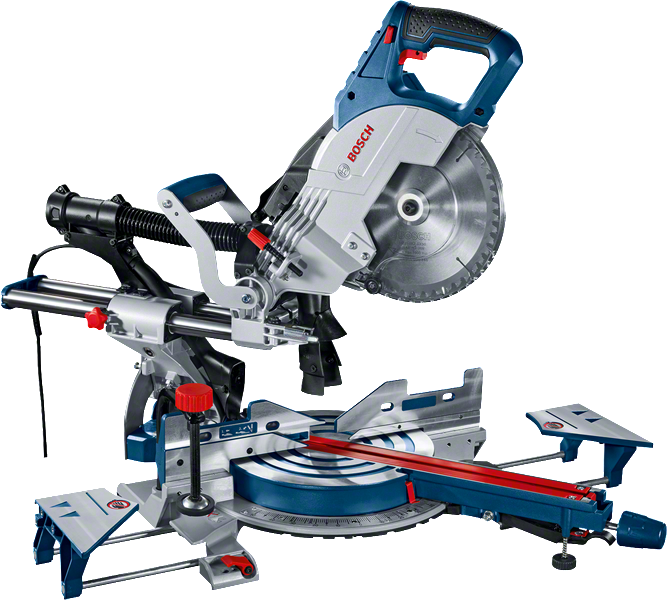

GCM 8 SJL Professional
Sliding Mitre Saw
Powerful and compact mitre saw offers nearly dustless work in various applications
- Cutting capacity of 70 mm vertical and 312 mm horizontal for sawing large workpieces

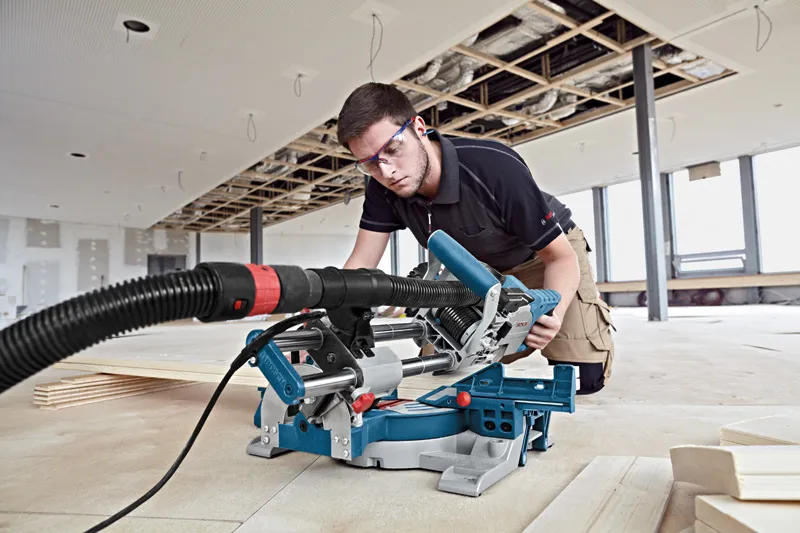

- 2-point dust extraction system provides optimized dust management
- Light and compact design amd one-handed transportation handle provide an easy transport
Functions & key features
Your Selection
- with Clamp (1 609 B04 224), Accessory
in stock
Select a variant
Your Selection
Part Number: 0 601 B19 160
in stock
Included in all variants
-
ClampPart Number: 1 609 B04 224
-
1 x circular saw blade, Optiline Wood, 216 x 2.0/1.4 x 30 mm, 48Part Number: 2 608 640 432
Additional in this variant
-
Voltage 110 V
Your Selection
Part Number: 0 601 B19 170
in stock
Included in all variants
-
ClampPart Number: 1 609 B04 224
-
1 x circular saw blade, Optiline Wood, 216 x 2.0/1.4 x 30 mm, 48Part Number: 2 608 640 432
Additional in this variant
-
Voltage 240 V
Technical data
The most important data |
|
|---|---|
| Cutting capacity, 0° | 70 x 312 mm |
| Cutting capacity, 45° mitre | 70 x 225 mm |
| Cutting capacity, 45° bevel | 45 x 312 mm |
| Mitre setting | 52 ° L / 60 ° R |
| Bevel setting | 47 ° L / 2 ° R |

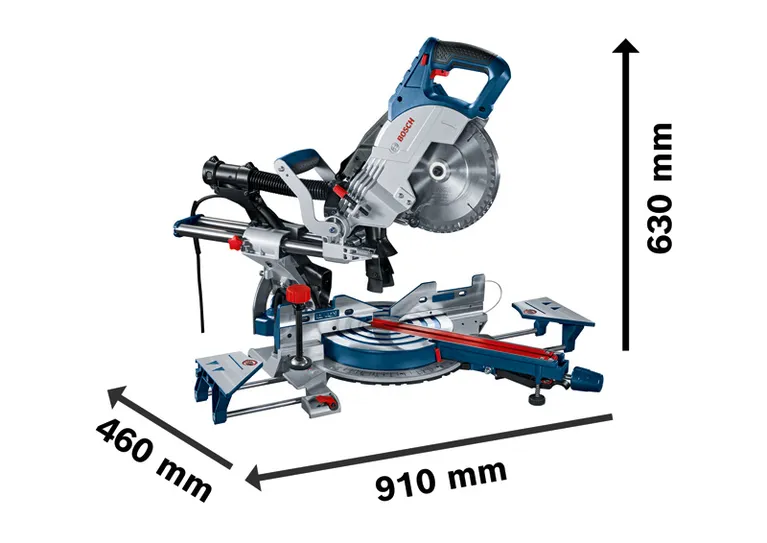

| Tool dimensions (width x length x height) | 910 x460 x630 mm |
| No-load speed* | 5,500 rpm |
| Saw blade diameter | 216 mm |
| Saw blade bore diameter | 30 mm |
| Weight* | 17.3 kg |
| Rated input power | 1,400 W |
| Voltage | 110 – 110 V |
| Packaging dimensions (width x length x height) | 470 x 850 x 435 mm |
The A-rated noise level of the power tool is typically as follows: Sound pressure level 99 dB(A); Sound power level 112 dB(A). Uncertainty K= 3 dB.
* You can find more information about the deviations in the following link:
GCM 8 SJL Professional: Further information
Product Highlights
Less weight, less dust, more performance: the compact GCM 8 SJL Professional offers cleaner solutions when it comes to cutting through large workpieces. Its cutting capacity of 70 mm vertical and 312 mm horizontal makes it ideal for sawing large workpieces. With a 2-point dust extraction system, the mitre saw provides optimised dust management, allowing for a clean work area during operation. Its light, compact design and one-handed transportation handle ensure an easy transport.
Equipment & Application

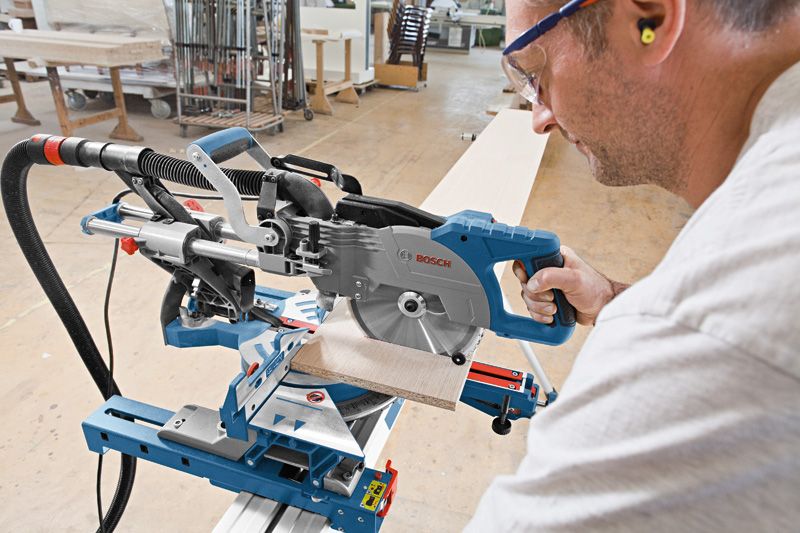

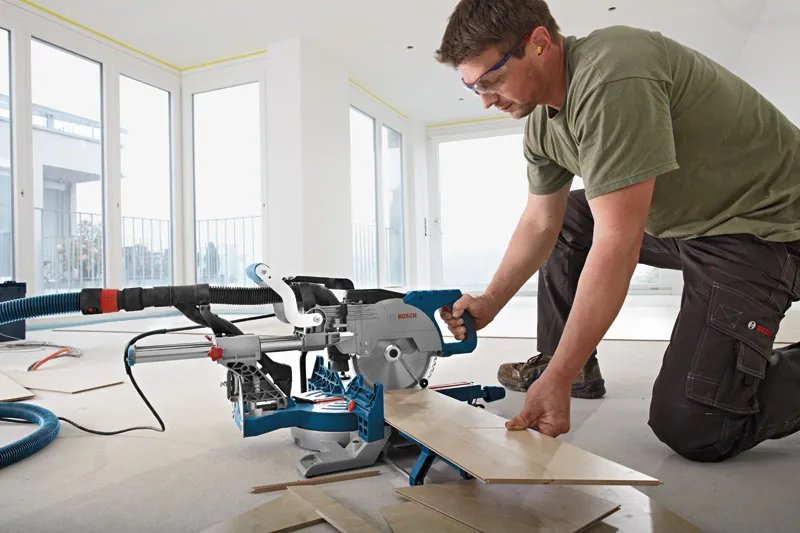

The GCM 8 SJL Professional is intended for cross, mitre, bevel and groove cuts in wood, timber beams, and wood composites as well as board materials and floor panels. It is compatible with the Bosch Click & Clean dust extraction system as well as various stands.
Additional Information
The GCM 8 SJL Professional also includes features such as precision laser and soft start.
