Mitre saws & work benches

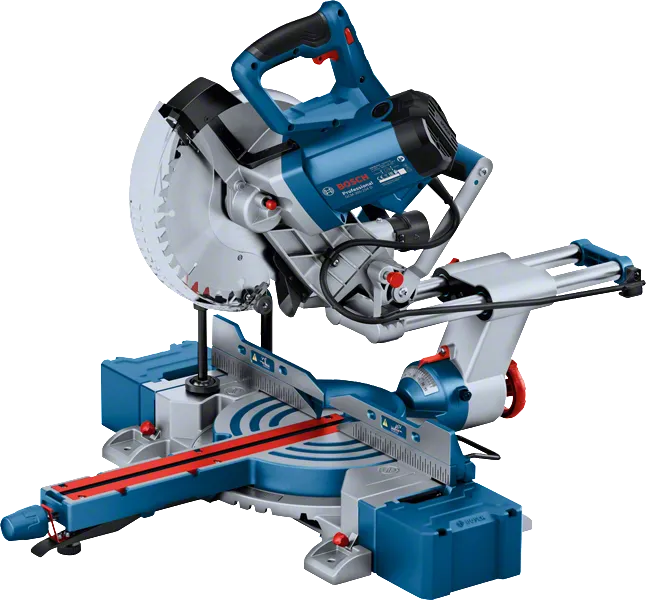

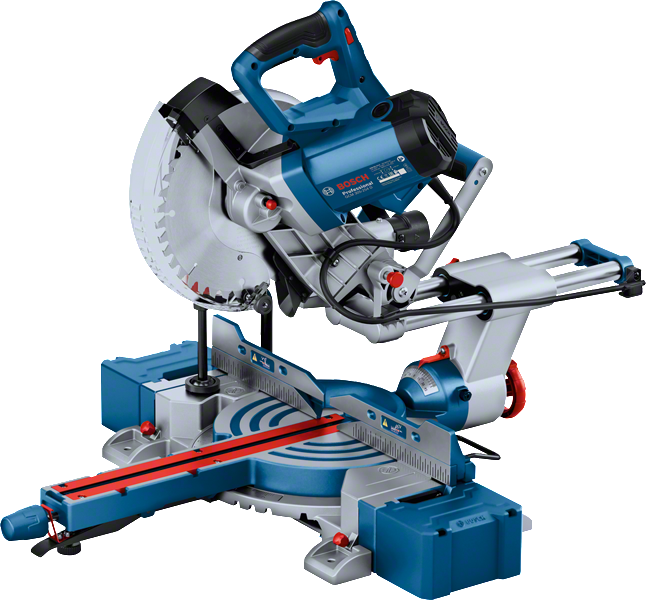

GCM 305-254 D Professional

Mitre Saw

Cuts up to 90 x 305 mm: the mobile, lightweight, and ergonomic miter saw

  • Strong cutting performance for toughest cuts

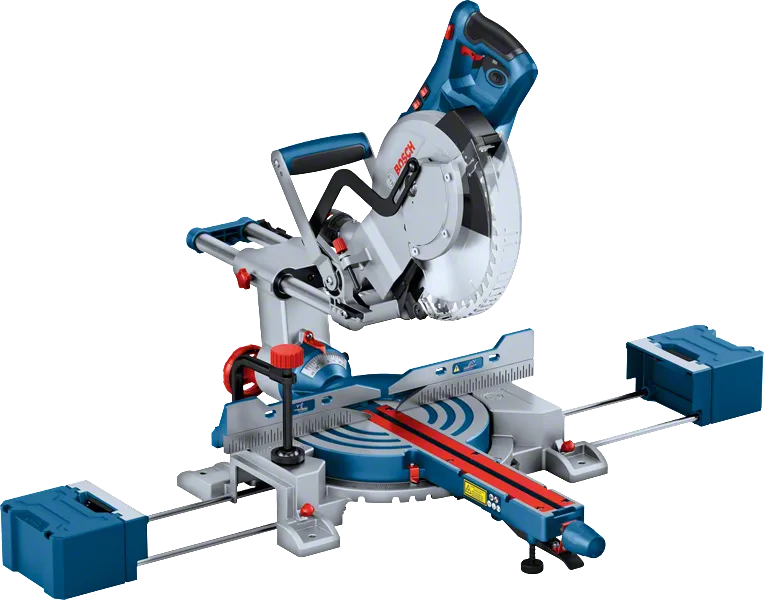

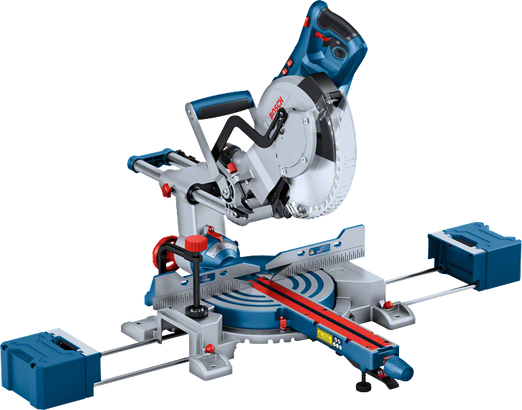

  • Easy controlling of long materials during cutting by detachable workpiece supports and long table extensions

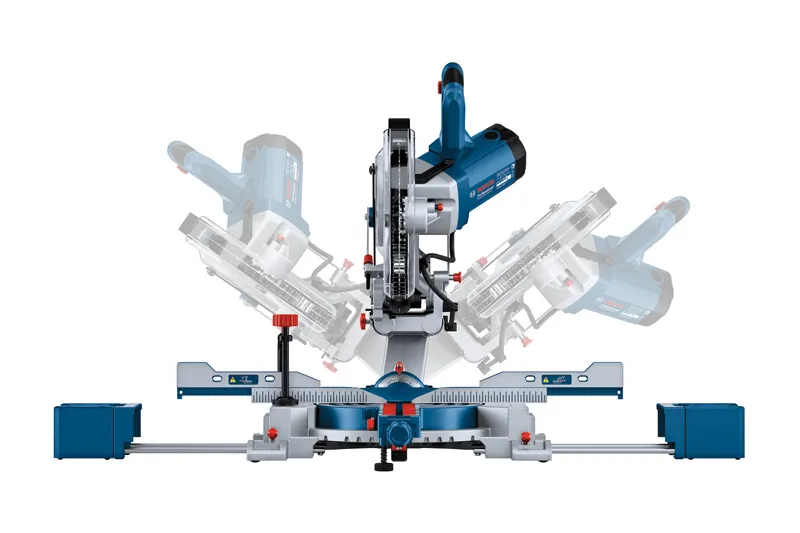

  • Dual bevel function for convenient cutting

Functions & key features

 Precision Dual Laser; precise and intuitive thanks to laser projection of cutting line left and right of the saw blade
 Illuminating of the work area
Click & Clean System – 3 great benefits A clear view of the work surface: You work more precisely and faster
Harmful dust is extracted immediately: Protects your health
Less dust: Longer lifetime of tool and accessories

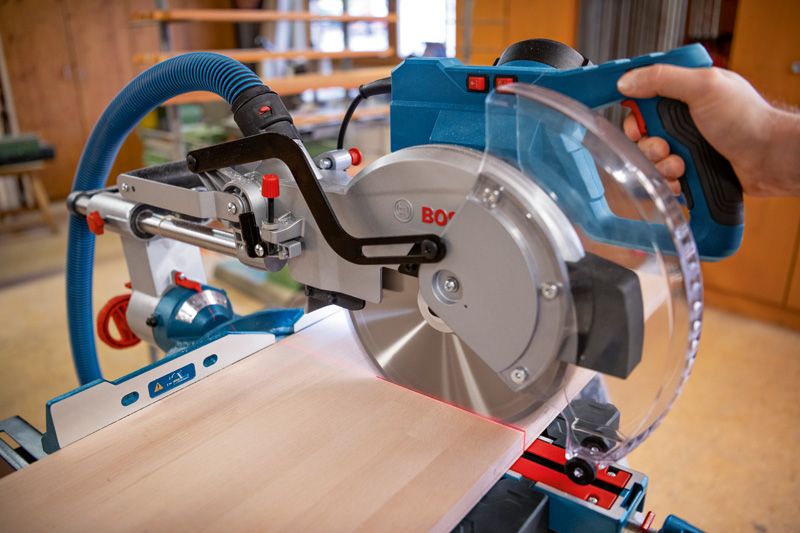

Dust extraction directly into the integral dust bag on the tool and/or using an all-purpose dust extractor
 Soft start as the load and torque of the motor are temporarily reduced during start-up.
Show variant
608.00 GBP
Including VAT

in stock

Estimated delivery time 2-5 working days


GCM 305-254 D Professional 0 601 B49 170
608.00 GBP
Including VAT

GCM 305-254 D Professional

Your Selection

GCM 305-254 D

Part Number: 0 601 B49 170

608.00 GBP
Including VAT

in stock

Included in this variant

  • 2 x Workpiece support (flexibly pluggable)
    Part Number: 1 609 B07 675
  • 1 x circular saw blade, Standard for Wood, 254 x 30 x 2 mm, 40
    Part Number: 2 608 640 435
  • Clamp
    Part Number: 1 609 B06 932
  • Dust bag
    Part Number: 2 608 000 841

Technical data

The most important data

Cutting capacity, 0° 90 x 305 mm
Cutting capacity, 45° mitre 90 x 215 mm
Cutting capacity, 45° bevel 55 x 305 mm
Mitre setting 48 ° L / 48 ° R
Bevel setting 47 ° L / 47 ° R

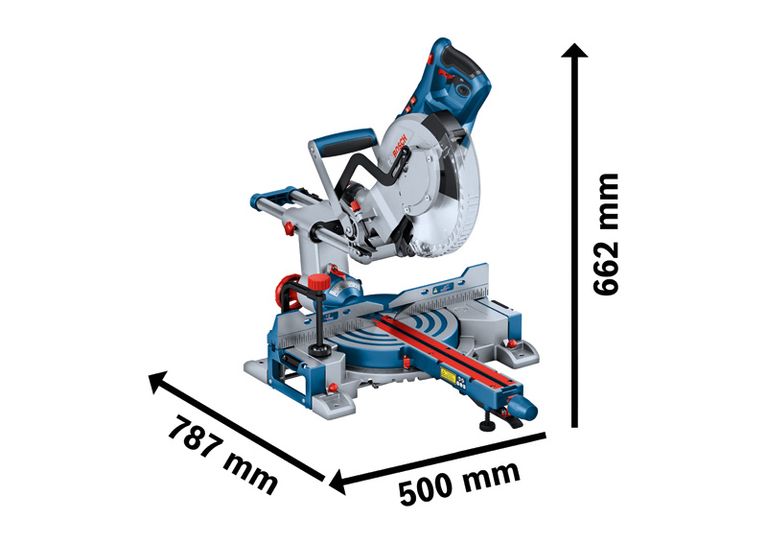

Tool dimensions (width x length x height) 500 x787 x662 mm
No-load speed* 4,500 rpm
Saw blade diameter 254 mm
Saw blade bore diameter 30 mm
Weight* 19.8 kg
Rated input power 1,500 W
Packaging dimensions (width x length x height) 575 x 845 x 365 mm

The A-rated noise level of the power tool is typically as follows: Sound pressure level 88 dB(A); Sound power level 101 dB(A). Uncertainty K= 3 dB.

GCM 305-254 D

* You can find more information about the deviations in the following link: Technical features of products

GCM 305-254 D Professional: Further information

Product Highlights

With its powerful motor, the GCM 305-254 D Professional offers enough cutting performance even for ambitious cuts. The mobile miter saw uses detachable workpiece supports and long table extensions to make cutting long materials easy and simple. Higher comfort and flexibility in demanding cuts are ensured by its dual bevel settings with ergonomic bevel lock wheel.

Equipment & Application

Cross cuts, miter cuts, and bevel cuts in wood, aluminium, and PVC plastic can be done perfectly with the GCM 305‐254 D Professional. The mitre saw is compatible with all Bosch dust extractors, GTA saw stands, and saw blades for corded miter saws.

Additional Information

The mobile miter saw comes up with higher precision due to the dual laser lines display to the left and right of the saw blade. It is light and compact and the various one- or two-handed carrying options make transport easy.
