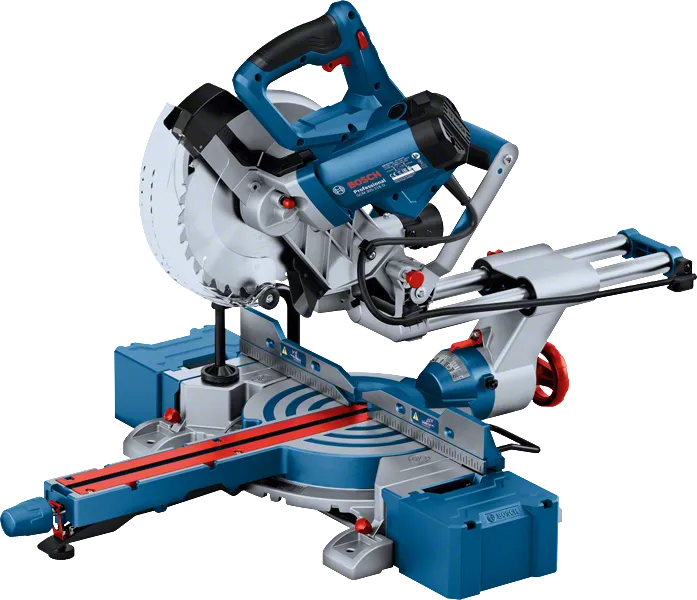

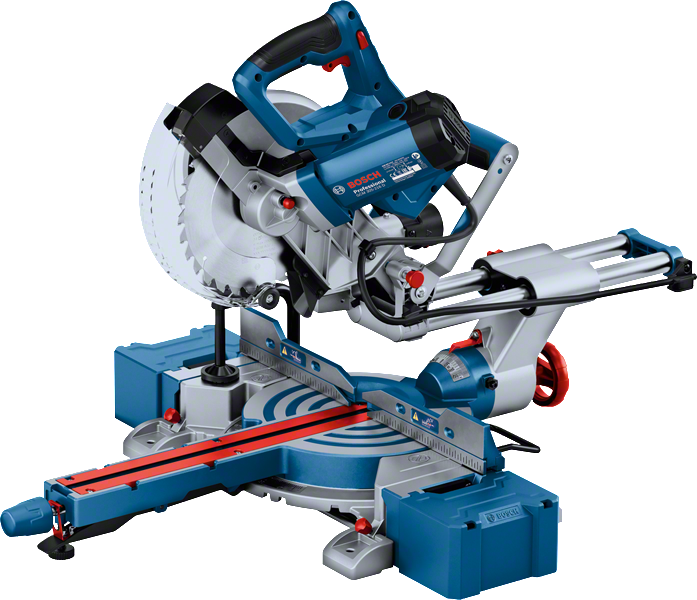

GCM 305-216 D Professional
Mitre Saw
Impressive ergonomics: mobile miter saw with 70 x 305 mm cutting capacity
- Enough cutting performance for toughest cuts

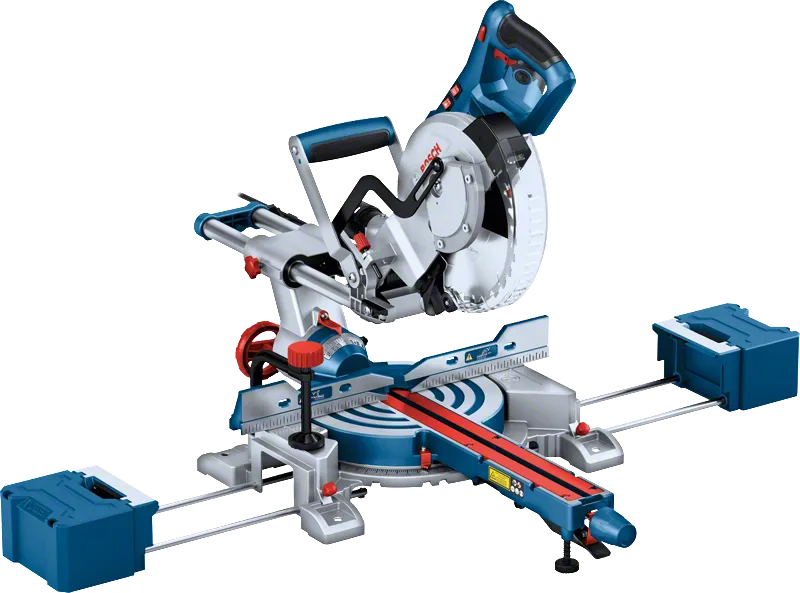

- Detachable workpiece supports and long table extensions for easy control of long materials during cutting

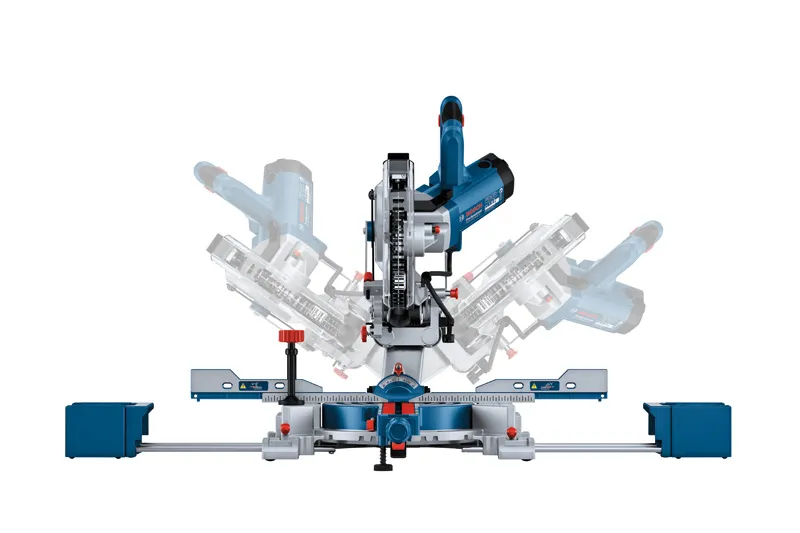

- Convenient and flexible at challenging cuts thanks to the dual bevel function
Functions & key features
Your Selection
- with 1 x circular saw blade, Optiline Wood, 216 x 30 x 2.8 mm, 24 (2 608 640 431)
in stock
GCM 305-216 D Professional
Your Selection
Part Number: 0 601 B49 070
in stock
Included in this variant
-
1 x circular saw blade, Optiline Wood, 216 x 30 x 2.8 mm, 24Part Number: 2 608 640 431
-
2 x Workpiece support (flexibly pluggable)Part Number: 1 609 B07 675
-
Dust bagPart Number: 2 608 000 841
-
ClampPart Number: 1 609 B06 930
Technical data
The most important data |
|
|---|---|
| Cutting capacity, 0° | 70 x 305 mm |
| Cutting capacity, 45° mitre | 70 x 215 mm |
| Cutting capacity, 45° bevel | 42 x 305 mm |
| Mitre setting | 48 ° L / 48 ° R |
| Bevel setting | 47 ° L / 47 ° R |

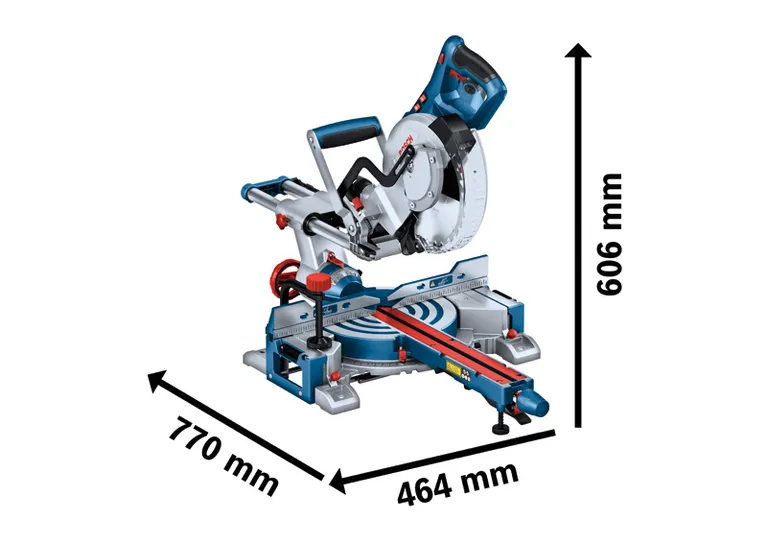

| Tool dimensions (width x length x height) | 464 x770 x606 mm |
| No-load speed* | 5,200 rpm |
| Saw blade diameter | 216 mm |
| Saw blade bore diameter | 30 mm |
| Weight* | 16.8 kg |
| Rated input power | 1,200 W |
| Voltage | 220 – 240 V |
| Packaging dimensions (width x length x height) | 575 x 790 x 355 mm |
The A-rated noise level of the power tool is typically as follows: Sound pressure level 95 dB(A); Sound power level 109 dB(A). Uncertainty K= 3 dB.
* You can find more information about the deviations in the following link:
GCM 305-216 D Professional: Further information
Product Highlights
The GCM 305-216 D Professional delivers strong cutting performance for the toughest cuts due to its powerful motor. The mobile miter saw is a reliable performer, ready to control even long materials while cutting thanks to detachable workpiece supports and long table extensions. Because of its dual bevel function with ergonomic bevel lock wheel, it opens a higher comfort and more flexibility even in demanding cuts.
Equipment & Application

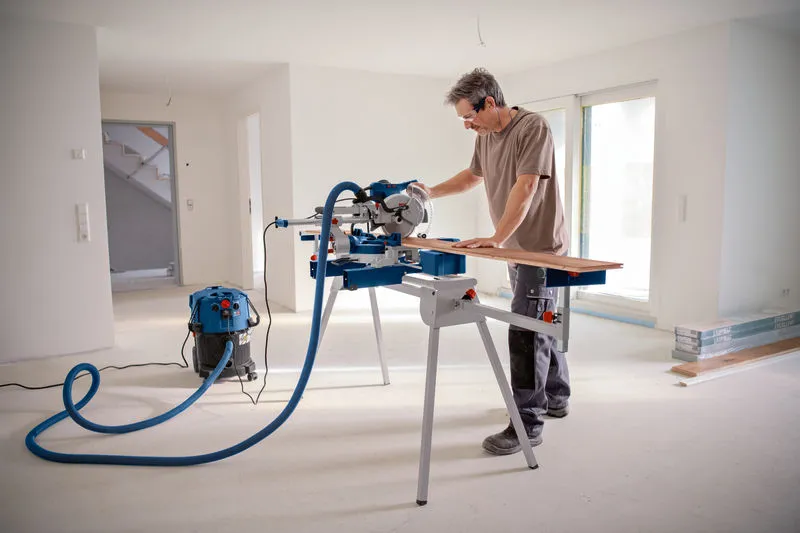

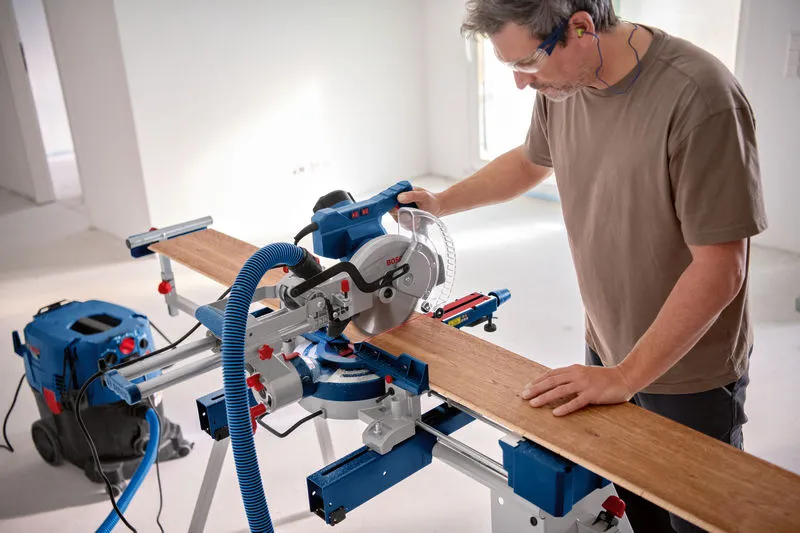

Whenever it comes to cross cuts, miter cuts, and bevel cuts in wood, aluminium, and PVC plastic, the GCM 305-216 D Professional is a good choice. The mitre saw is compatible with all Bosch dust extractors, GTA saw stands, and saw blades for corded miter saws.
Additional Information

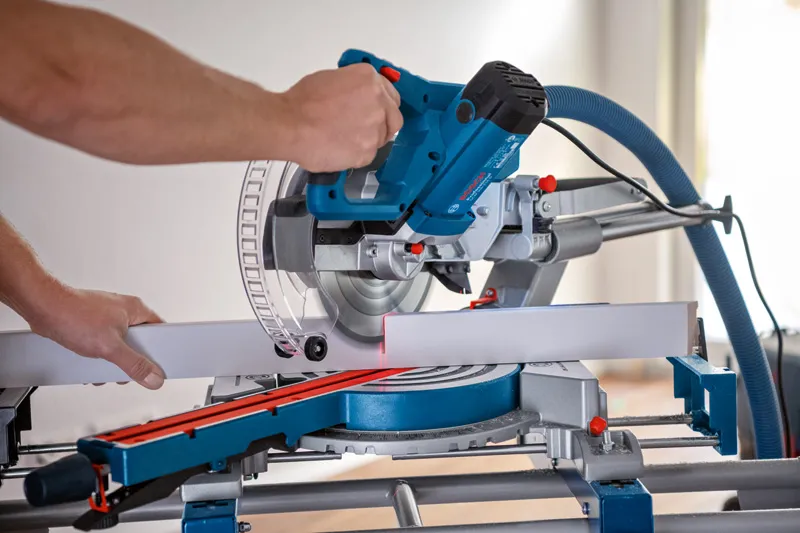

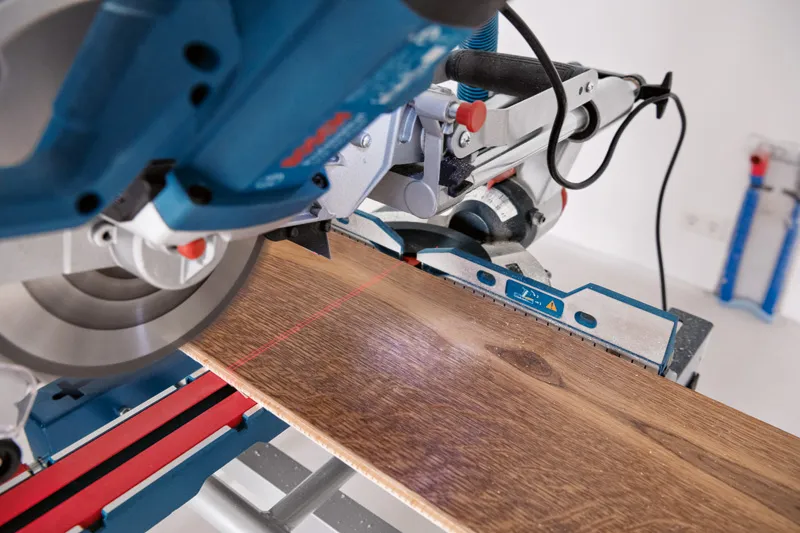

The mobile miter saw features a higher precision due to the dual laser lines displayed on the left and right of the saw blade. The various one- or two-handed carrying options and its compactness make it easy to transport.
