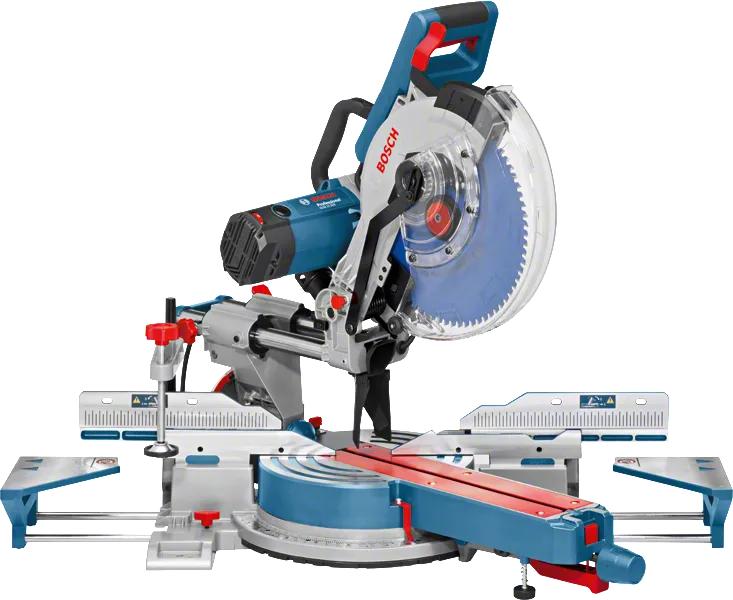

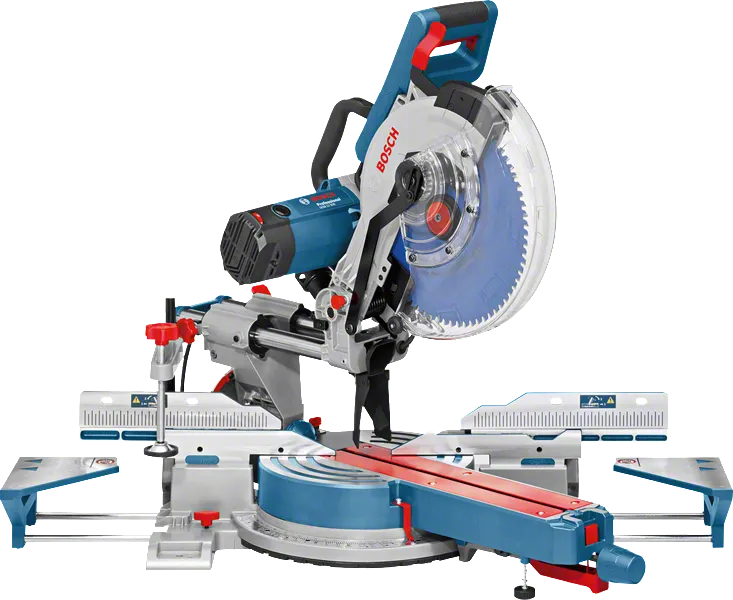

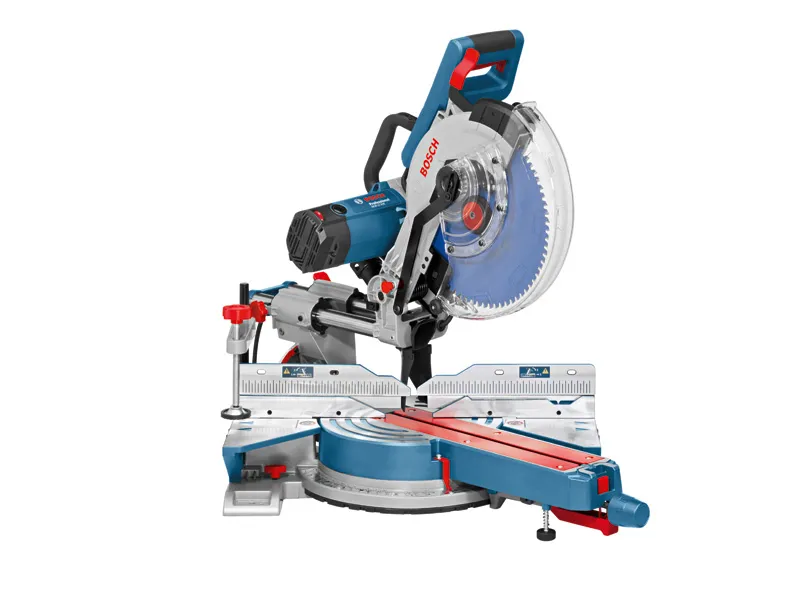

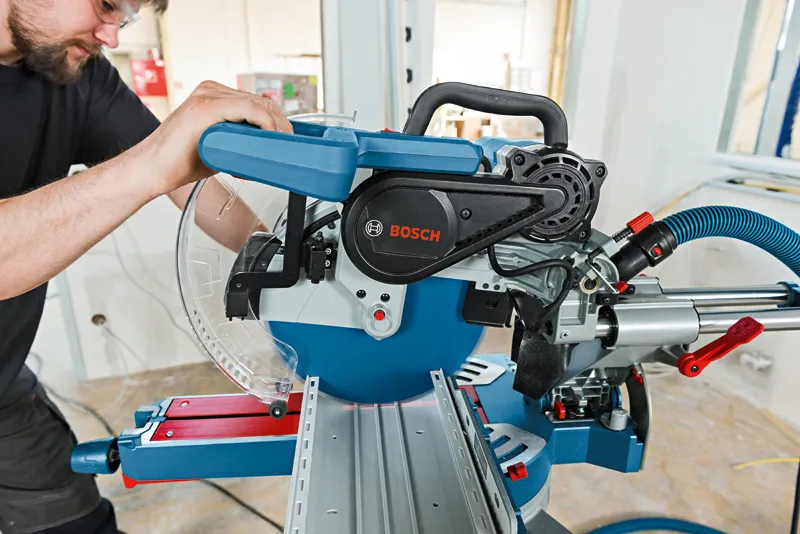

GCM 12 SDE Professional
Sliding Mitre Saw
High cutting capacity and variable speed for various applications
- Extremely high cutting capacity 120 mm vertical and 400 mm horizontal enables cuts in very large workpieces
- Variable cutting speed ensures high versatility in various materials
- Fast, tool-free saw blade change ensures easy and convenient handling
Functions & key features
Select a variant
Your Selection
Part Number: 0 601 B23 170
in stock
Included in all variants
-
1 x circular saw blade, Expert for Wood, 305 x 30 x 2.4 mm, 72Part Number: 2 608 642 531
Additional in this variant
-
Voltage 240 V
Your Selection
Part Number: 0 601 B23 160
in stock
Included in all variants
-
1 x circular saw blade, Expert for Wood, 305 x 30 x 2.4 mm, 72Part Number: 2 608 642 531
Additional in this variant
-
Voltage 110 V
Technical data
The most important data |
|
|---|---|
| Cutting capacity, 0° | 85 x 370 mm |
| Cutting capacity 0° with spacer (max. vertical) | 120 x 200 mm |
| Cutting capacity 0° with spacer (max. horizontal) | 70 x 400 mm |
| Cutting capacity, 45° mitre | 85 x 250 mm |
| Cutting capacity, 45° bevel | 60 x 360 mm |
| Mitre setting | 52 ° L / 60 ° R |
| Bevel setting | 47 ° L / 47 ° R |

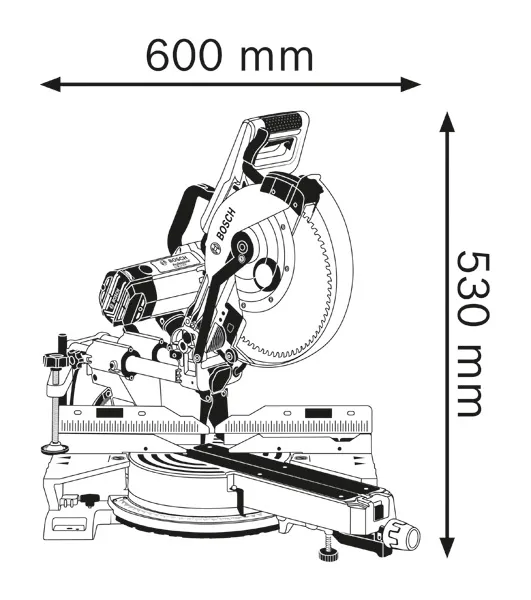

| Tool dimensions (width x length x height) | 600 x860 x530 mm |
| No-load speed* | 3,100 – 4,000 rpm |
| Saw blade diameter | 305 mm |
| Saw blade bore diameter | 30 mm |
| Weight* | 28.6 kg |
| Rated input power | 1,800 W |
| Voltage | 220 – 240 V |
| Packaging dimensions (width x length x height) | 604 x 870 x 560 mm |
The A-rated noise level of the power tool is typically as follows: Sound pressure level 92 dB(A); Sound power level 105 dB(A). Uncertainty K= 3 dB.
* You can find more information about the deviations in the following link:
GCM 12 SDE Professional: Further information
Product Highlights

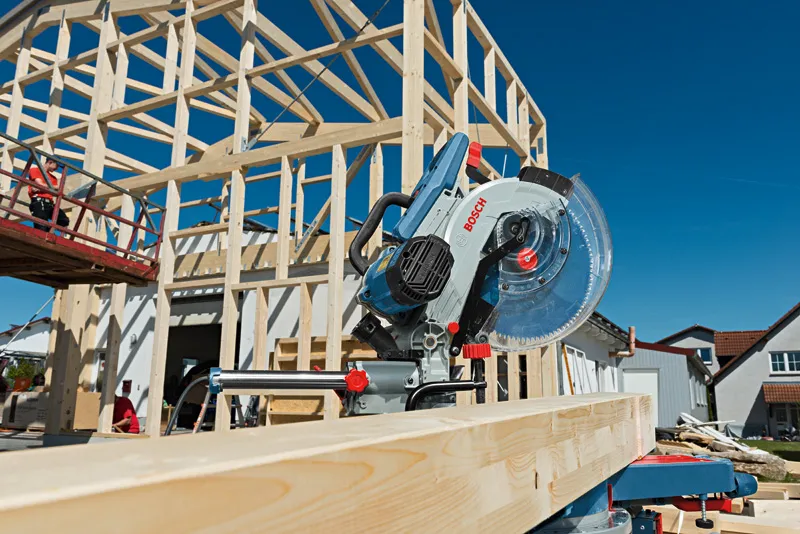

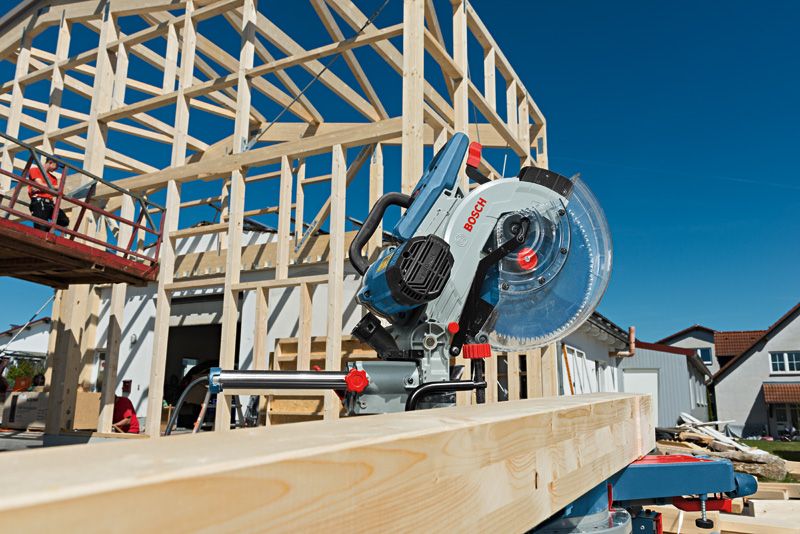

Make light work of large workpieces with th GCM 12 SDE Professional. Its extremely high cutting capacity of 120 mm vertical and 400 mm horizontal enables cuts in very large and bulky objects. The mitre saw´s variable cutting speed makes the GCM 12 SDE Professional highly versatile for use in various materials. For highest convenience, it ensures quick and tool-less saw blade changes.
Equipment & Application

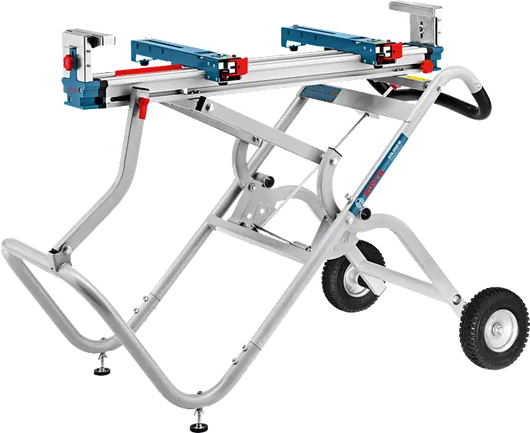

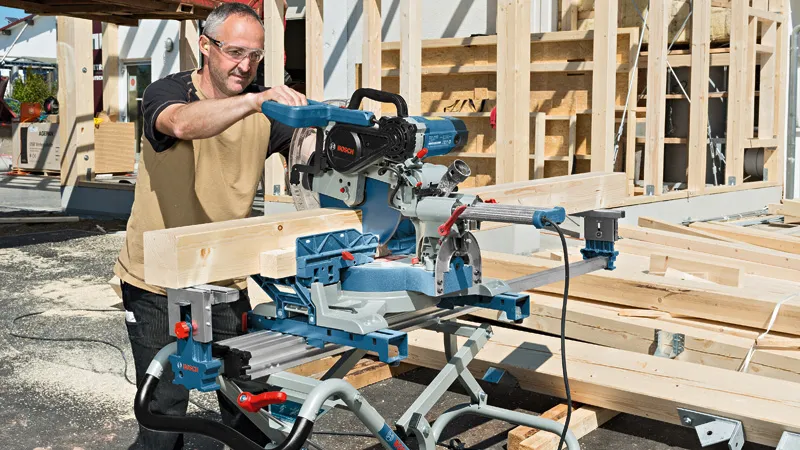

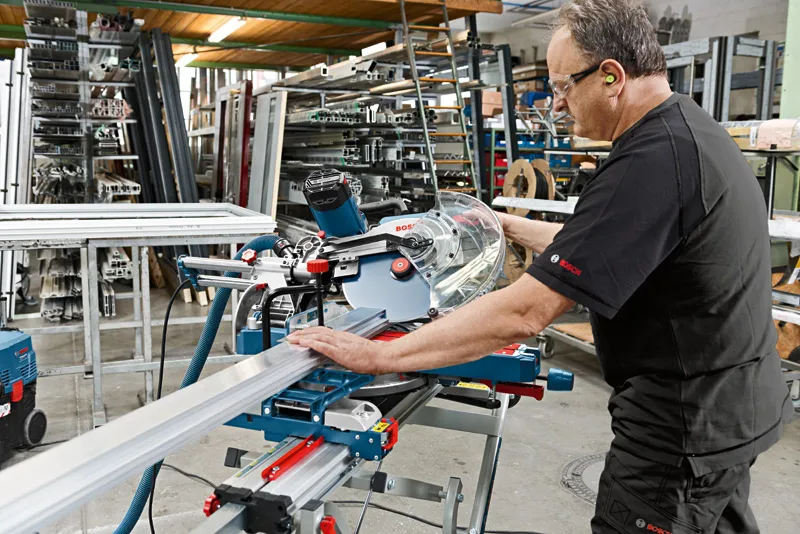

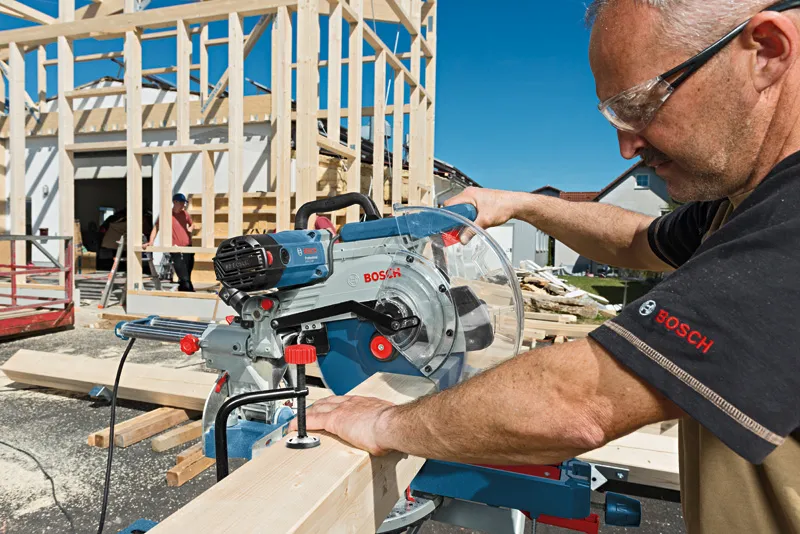

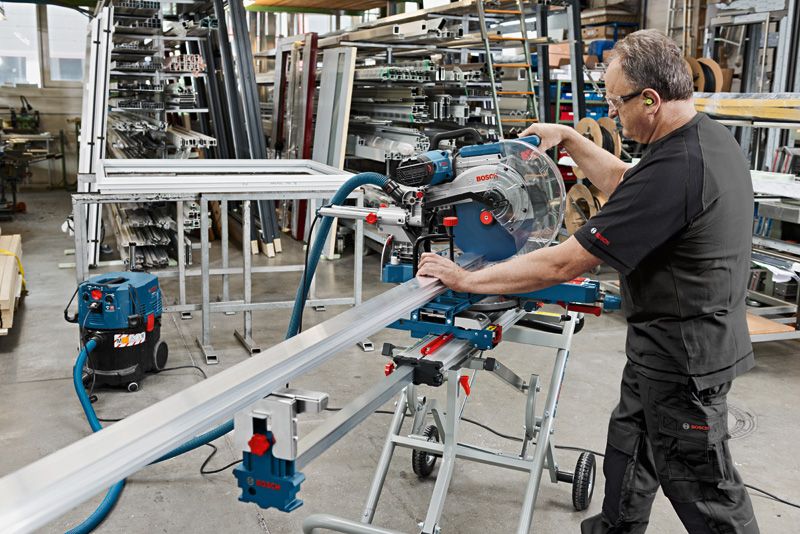

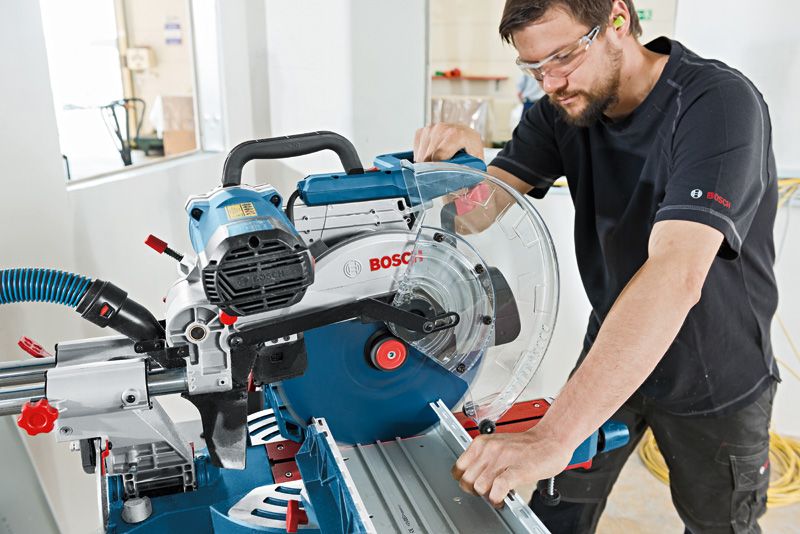

This mitre saw is intended for cross, mitre, bevel, and groove cuts in wood, timber beams, and wood composites as well as board materials, floor panels, aluminium, and plastic. It is compatible with the Bosch Click & Clean dust extraction system as well as various stands.
Additional Information
The GCM 12 SDE Professional also includes features such as bevel detent turrent, intelligent brake system, precision laser, soft start, and speed selection.
