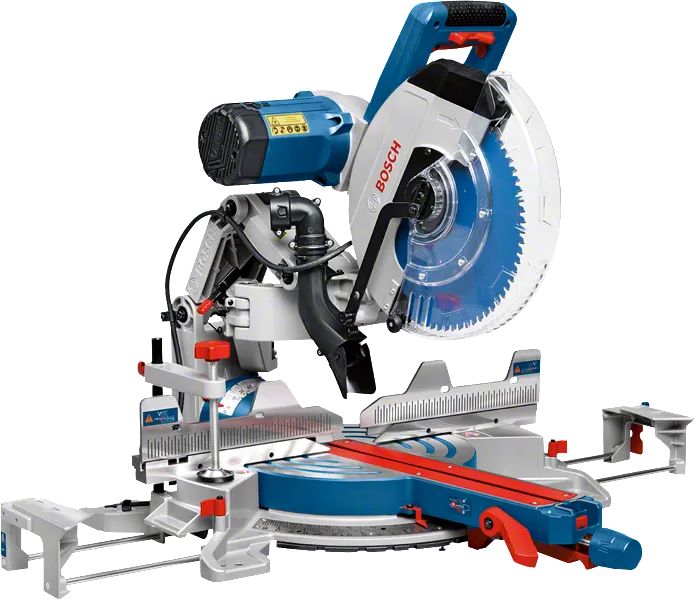

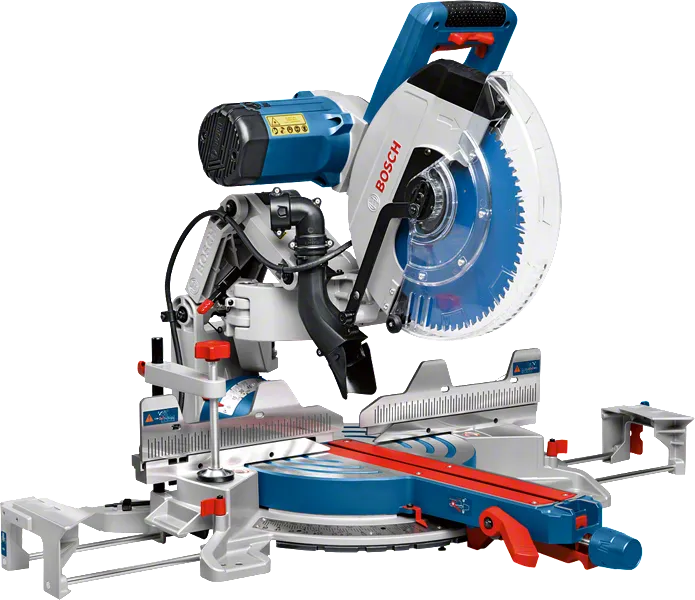

GCM 12 GDL Professional
Mitre Saw
Highest-precision sawing: mitre saw with Bosch´s patented glide arm design
- Innovative, maintenance-free glide arm is extremely robust for precision that lasts
- Glide arm´s hinge design makes the mitre saw compact from front to back
- Double line laser and top-quality saw blade ensure highly accurate cuts
Functions & key features
GCM 12 GDL Professional
Your Selection
Part Number: 0 601 B23 670
available at Bosch Partner
Available from our partnersIncluded in this variant
-
Voltage 240 V
-
Stop platePart Number: 1 609 B02 365
-
1 x circular saw blade, Expert for Wood, 305 x 30 x 2.4 mm, 72Part Number: 2 608 642 531
-
Collet (spare part number 1 609 B02 585)
-
Hex key (spare part number 1 609 B00 256)
-
Insert platePart Number: 1 609 B02 375
-
ScrewPart Number: 1 609 B00 263
Technical data
The most important data |
|
|---|---|
| Cutting capacity, 0° | 104 x 341 mm |
| Cutting capacity, 45° mitre | 104 x 240 mm |
| Cutting capacity, 45° bevel | 51 x 341 mm |
| Mitre setting | 52 ° L / 60 ° R |
| Bevel setting | 47 ° L / 47 ° R |

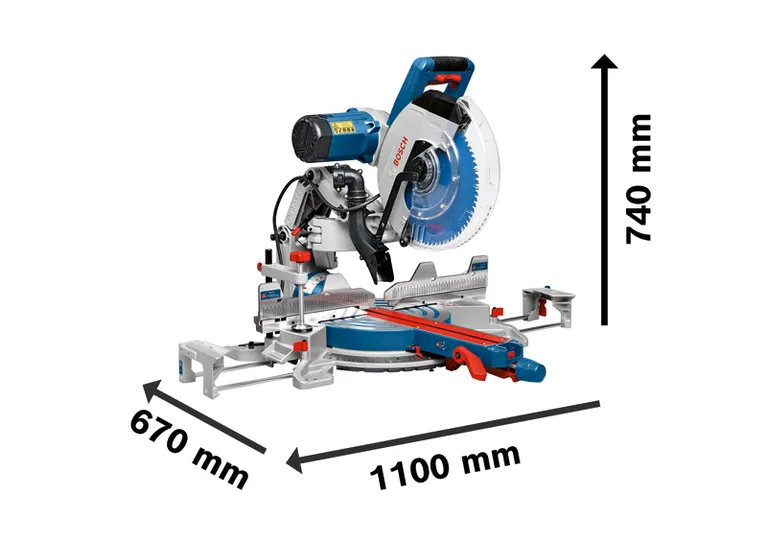

| Tool dimensions (width x length x height) | 670 x1100 x740 mm |
| No-load speed* | 4,000 rpm |
| Saw blade diameter | 305 mm |
| Saw blade bore diameter | 30 mm |
| Weight* | 29.4 kg |
| Rated input power | 2,000 W |
| Voltage | 230 V |
| Packaging dimensions (width x length x height) | 620 x 790 x 570 mm |
The A-rated noise level of the power tool is typically as follows: Sound pressure level 93 dB(A); Sound power level 106 dB(A). Uncertainty K= 3 dB.
* You can find more information about the deviations in the following link:
GCM 12 GDL Professional: Further information
Product Highlights
With the most accurate cutting results in the Bosch range, the GCM 12 GDL Professional is the top choice for jobs that demand highest precision. The mitre saw´s innovative, maintenance-free glide arm is extremely robust and offers high endurance. Thanks to the glide arm´s hinge design, the GCM 12 GDL Professional is compact from front to back. Equipped with a double line laser and top-quality saw blade, this mitre saw ensures highly accurate cuts reaching a cutting depth of up to 170 x140mm for L-profile (max thickness should be 36mm).
Equipment & Application

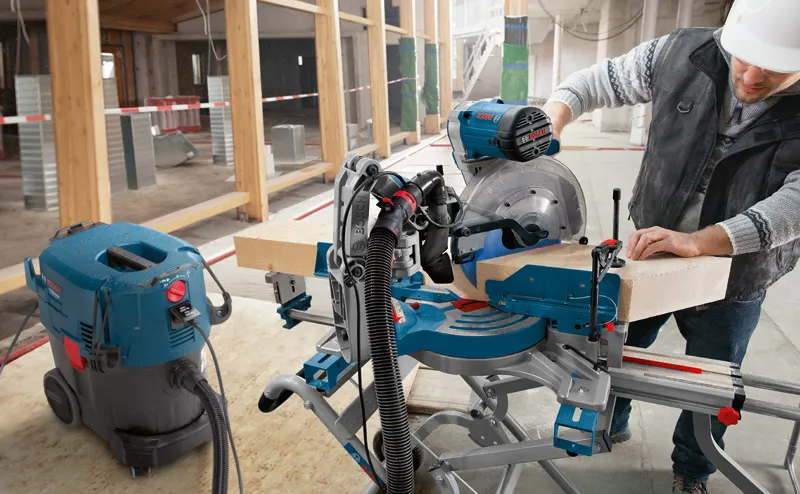

The GCM 12 GDL Professional is intended for cross, mitre bevel and groove cuts in wood, timber beams, and wood composites as well as in board materials and floor panels. It is compatible with the Bosch Click & Clean dust extraction system as well as various stands.
Additional Information
The GCM 12 GDL Professional also includes features such as intelligent brake system, precision double line laser, and soft start.
