Measuring technology
![GCL 2-50 CG]( "GCL 2-50 CG")
![GCL 2-50 CG]( "GCL 2-50 CG")
![GCL 2-50 CG]( "GCL 2-50 CG")
![GCL 2-50 CG]( "GCL 2-50 CG")

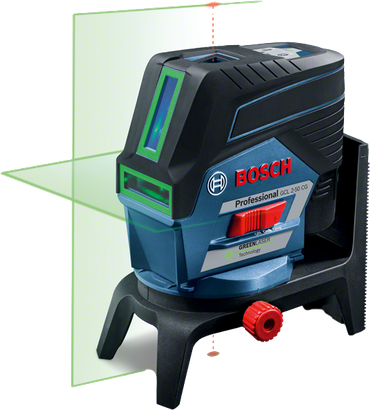

GCL 2-50 CG Professional
Combi Laser
Supreme visibility connected with smart functions
- Bright green horizontal and vertical laser lines and two centred plumb points offer optimal visibility
- Bluetooth®-connection paired with Levelling Remote App offers remote-control adjustment of the tool via a smartphone
- Dual Power Source allows for the use of 12 V Li-ion battery or standard alkaline batteries
Functions & key features
Your Selection
- in L-BOXX 136 with 1 x battery GBA 12V 2.0Ah, clamp
439.00 GBP
Including VAT
in stock
in L-BOXX 136 with 1 x battery GBA 12V 2.0Ah, clamp
0 601 066 H70
GCL 2-50 CG Professional
Your Selection
in L-BOXX 136 with 1 x battery GBA 12V 2.0Ah, clamp
Part Number: 0 601 066 H70
439.00 GBP
Including VAT
in stock

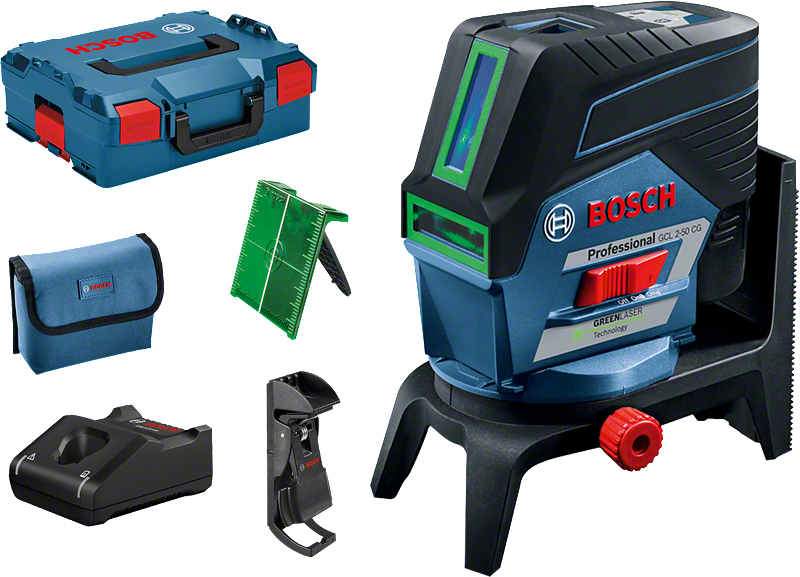

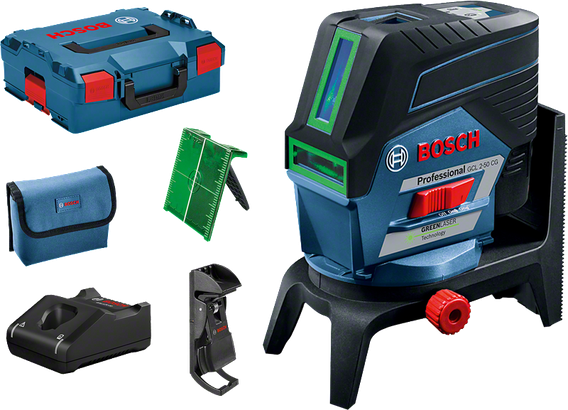

Included in this variant
-
L-BOXX 136Part Number: 1 600 A01 2G0
-
Protective Bag
-
Quick charger GAL 12V-40 ProfessionalPart Number: 1 600 A01 9R4
-
Ceiling clamp
-
1 x battery GBA 12V 2.0AhPart Number: 1 600 Z00 02X
-
Rotating mount RM 2 ProfessionalPart Number: 0 601 092 700
-
Laser target plate
Technical data
The most important data |
|
|---|---|
| Battery voltage | 12.0 V |
| Laser diode | 500 – 540 nm, < 10 mW, 630 – 650 nm, < 1mW |
| Operating temperature | -10 – 50 °C |
| Storage temperature | -20 – 70 °C |
| Laser class | 2 |
| Working range* | 20 m |
| Working range with receiver* | 50 m |
| Accuracy* | ± 0.3 mm/m* (*plus use-dependent deviation) |
| Working range of laser points, max.* | 10 m (top), 10 m (bottom) |
| Self-levelling range | ± 4° |
| Dust and splash protection | IP 54 *** (***except for the lithium-ion battery and AA1 battery adapter) |
| Operating time (max.) | 10 h (Li-Ion) and 4 h (4 x AA) in cross-line and point operation, 13 h (Li-Ion) and 6 h (4 x AA) in cross-line operation, 15 h (Li-Ion) and 12 h (4 x AA) in line operation, 60 h (Li-Ion) and 32 h (4 x AA) in point operation |
| Tripod thread | 1/4" |
| Weight, approx.** | 0.6 kg |
| Colour of laser line | green |
| Color of plumb points | red |
| Projection | 2 lines / 2 points |
| Plumb point accuracy*** | ± 0.7 mm/m* (*plus use-dependent deviation) |
| Compatible laser receivers | LR 7 |
* Plus use-dependent deviation. You can find more information about the deviations in the following link:
** You can find more information about the deviations in the following link:
*** Plus use-dependent deviation. You can find more information about the deviations in the following link:
GCL 2-50 CG Professional: Further information
Product Highlights

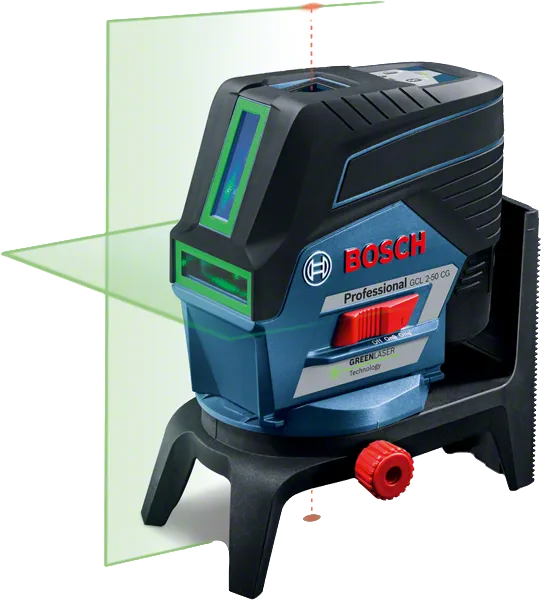

The combi laser GCL 2-50 CG Professional offers supreme visibility with a range of smart functions. Bright green horizontal and vertical laser lines and two centred plumb points offer optimal visibility, while its Bluetooth®-connection offers remote-control adjustment via a smartphone app. For increased flexibility, Dual Power Source allows 12 V Li-ion battery or standard alkaline batteries.
Equipment & Application

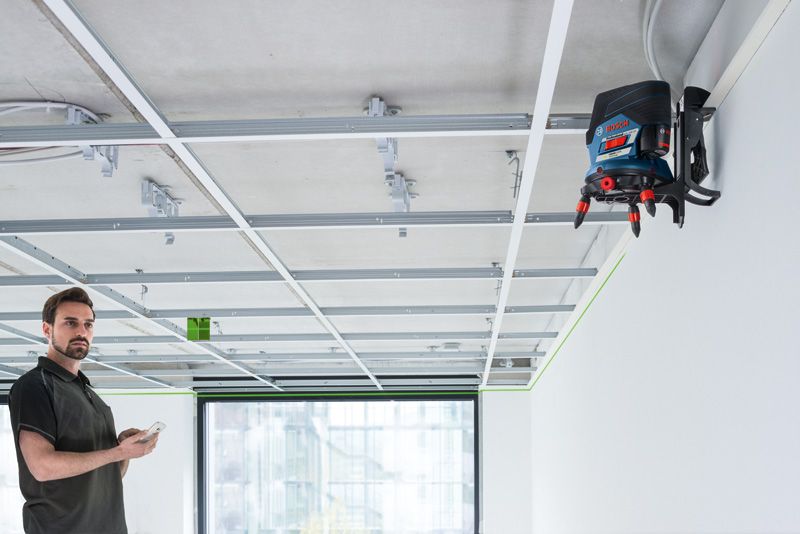

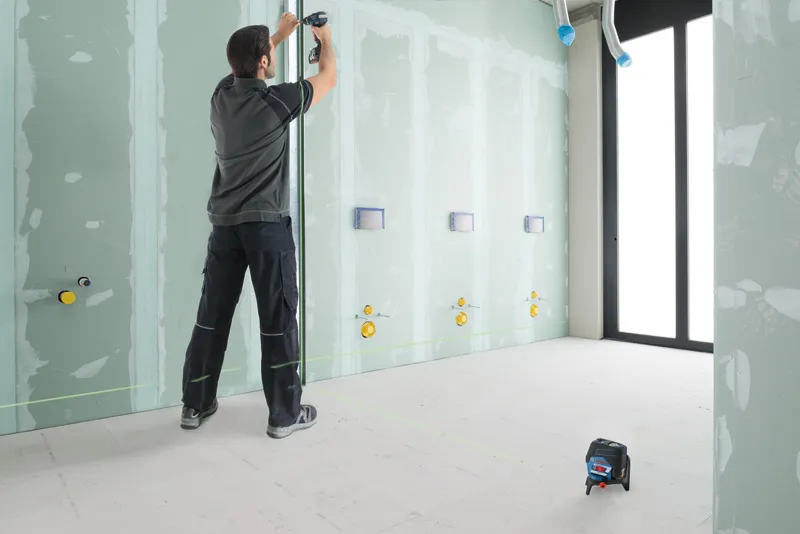

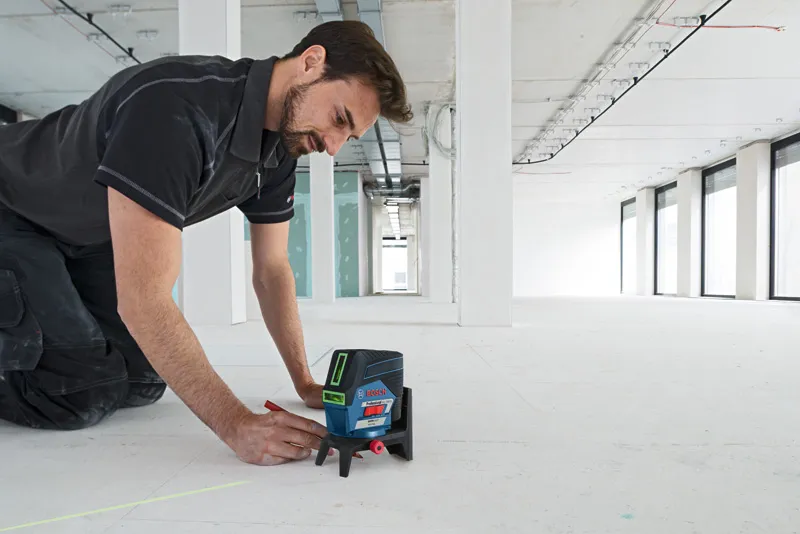

This combi laser is designed for horizontal and vertical alignments with a long overshoot of nearly 360° and is suitable for projects such as dry wall installation and interior finishing tasks.
Additional Information
The GCL 2-50 CG Professional delivers high visibility of up to 20 m without a receiver and 50 m with a receiver. For precise positioning around the plumb points, the RM 3 Professional offers motorised control, and RM 2 Professional allows for manual adjustments.
