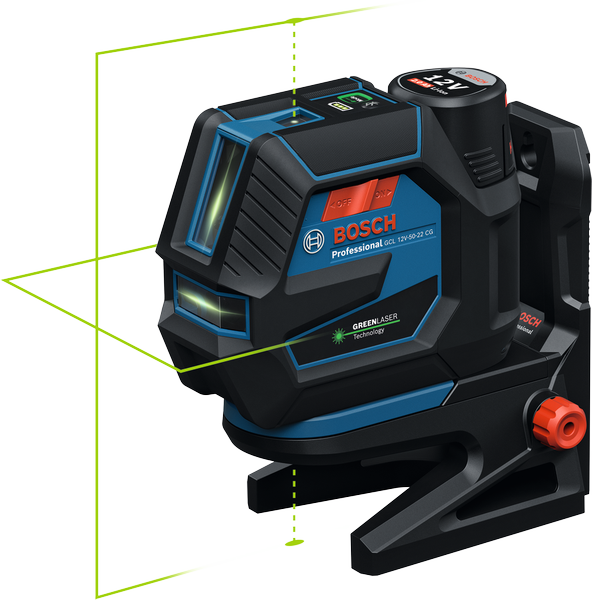

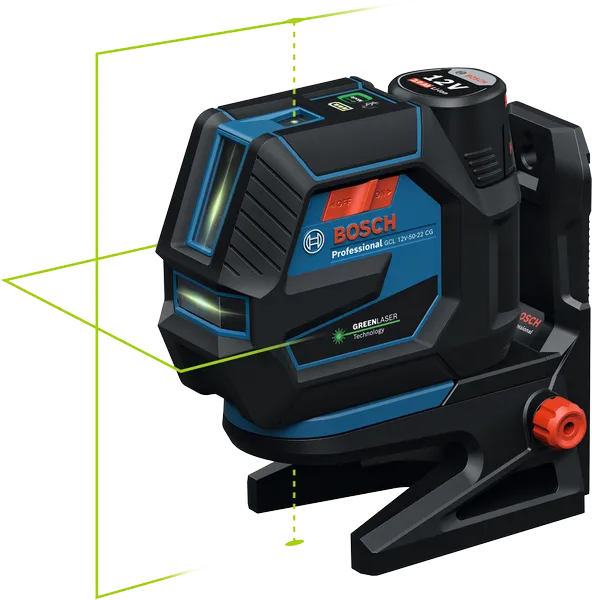

GCL 12V-50-22 CG Professional
Combi Laser
Robust 12V combi laser for reliable alignment
- Enjoy peace of mind with IP65 dust and water protection and a sturdy rubber housing
- Save time and increase preciseness with the Levelling Remote app for hands-free line control
- No downtime ensured by Dual Power Source, allowing to switch between 12V Li-Ion battery and AA alkaline batteries
Functions & key features
Your Selection

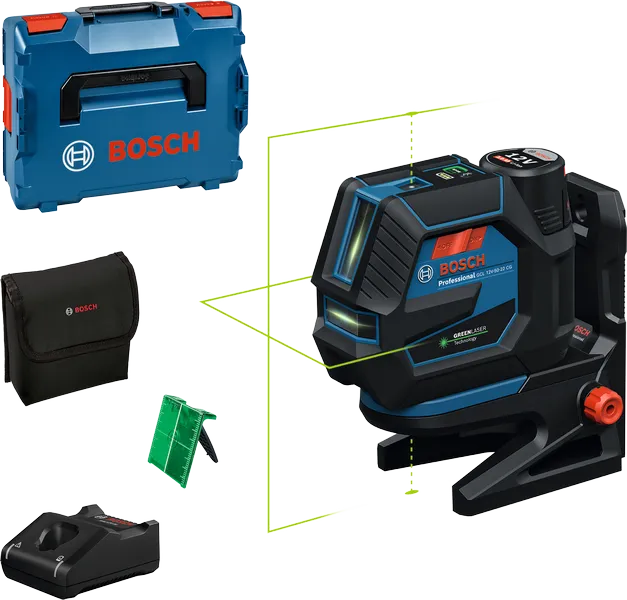

- in L-BOXX 136 with 1 x battery GBA 12V 2.0Ah, laser target plate
not available
Find a local dealer
Select a variant
Your Selection
New
Part Number: 0 601 066 S70
not available
Find a local dealerIncluded in all variants
-
Rotating mount RM 20 ProfessionalPart Number: 1 600 A03 1YN
-
Pouch
-
Laser target plate
Additional in this variant
-
L-BOXX 136Part Number: 1 600 A01 2G0
-
Quick charger GAL 12V-40 ProfessionalPart Number: 1 600 A01 9R4
-
1 x battery GBA 12V 2.0AhPart Number: 1 600 Z00 02X
Your Selection
New
Part Number: 0 601 066 S00
not available
Find a local dealerIncluded in all variants
-
Rotating mount RM 20 ProfessionalPart Number: 1 600 A03 1YN
-
Pouch
-
Laser target plate
Additional in this variant
-
AA1 alkaline battery adapterPart Number: 1 608 M00 C1B
-
4 x 1.5 V LR6 battery (AA)
Your Selection
New
Part Number: 0 601 066 S01
not available
Find a local dealerIncluded in all variants
-
Rotating mount RM 20 ProfessionalPart Number: 1 600 A03 1YN
-
Pouch
-
Laser target plate
Additional in this variant
-
AA1 alkaline battery adapterPart Number: 1 608 M00 C1B
-
4 x 1.5 V LR6 battery (AA)
-
Building tripod BT 150 ProfessionalPart Number: 0 601 096 B00
Technical data
The most important data |
|
|---|---|
| Battery voltage | 12.0 V |
| Laser diode | Line: 500 – 540 nm, < 10 mW, Point: 500 – 540 nm, < 1 mW |
| Operating temperature | -10 – 45 °C |
| Storage temperature | -20 – 70 °C |
| Laser class | 2 |
| Working range* | up to 25 m |
| Working range with receiver* | up to 50 m |
| Accuracy* | ± 0.3 mm/m* (*plus use-dependent deviation) |
| Working range of laser points, max.* | 10 m (top), 10 m (bottom) |
| Self-levelling range | ± 4° |
| Levelling time | 4 s |
| Dust and splash protection | IP65 (except for the battery or battery adapter) |
| Power supply | 12 V Li-Ion battery, 4 x 1.5 V LR6 (AA) |
| Operating time (max.) | 8 h (Li-Ion) and 4 h (4 x AA) in cross-line and point operation |
| Tripod thread | 1/4" |
| Weight, approx.** | 0.59 kg |
| Colour of laser line | green |
| Color of plumb points | green |
| Projection | 2 lines / 2 points |
| Plumb point accuracy*** | ± 0.7 mm/m* (*plus use-dependent deviation) |
| Compatible laser receivers | LR 7 |
* Plus use-dependent deviation. You can find more information about the deviations in the following link:
** You can find more information about the deviations in the following link:
*** Plus use-dependent deviation. You can find more information about the deviations in the following link:
GCL 12V-50-22 CG Professional: Further information
Product Highlights

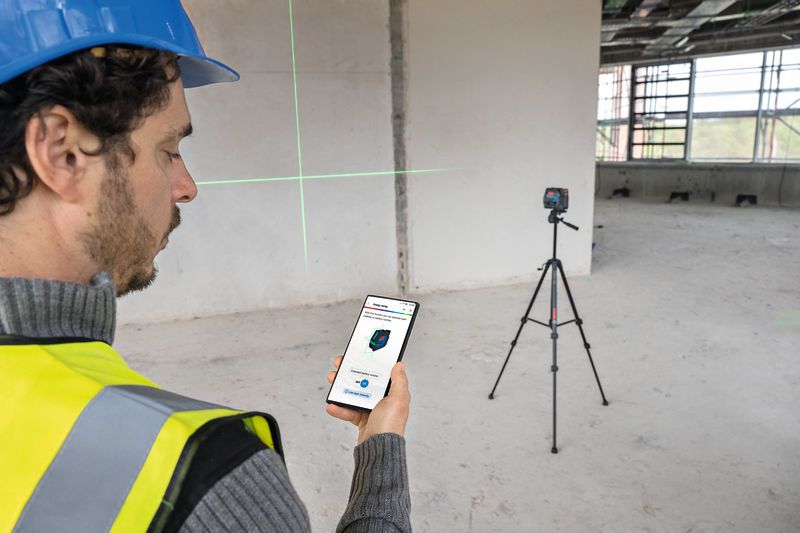

The GCL 12V-50-22 CG Professional is your reliable partner for precision tasks. With a robust rubber-enforced housing and an IP65 rating, it's built to withstand dust and water, so you can focus on the task at hand. The Levelling Remote app for remote control of the laser lines and points ensures less time adjusting and more time working. Plus, with the Dual Power Source, you can switch between the 12V Li-Ion battery and back-up power source AA alkaline batteries, ensuring no downtime due to an empty battery, keeping your work flowing seamlessly.
Equipment & Application

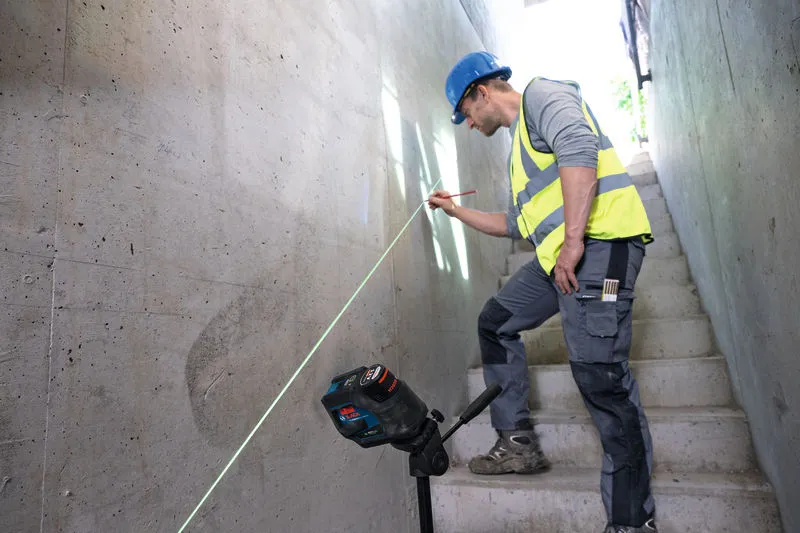

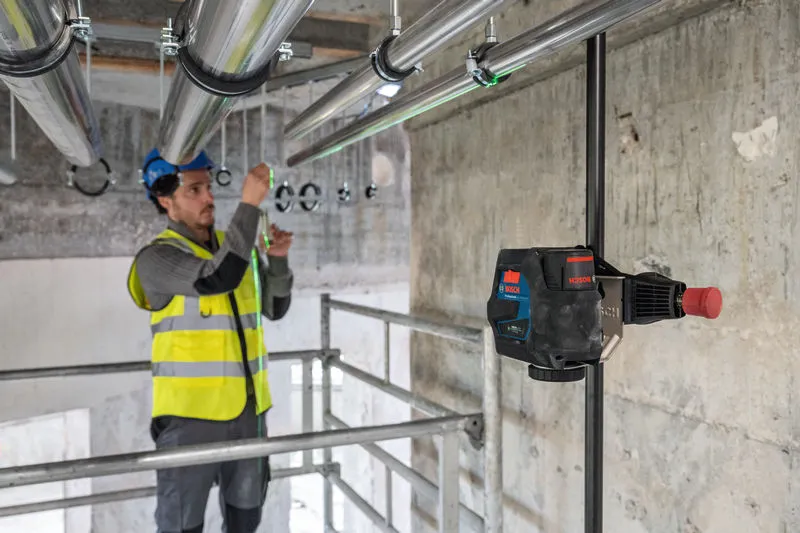

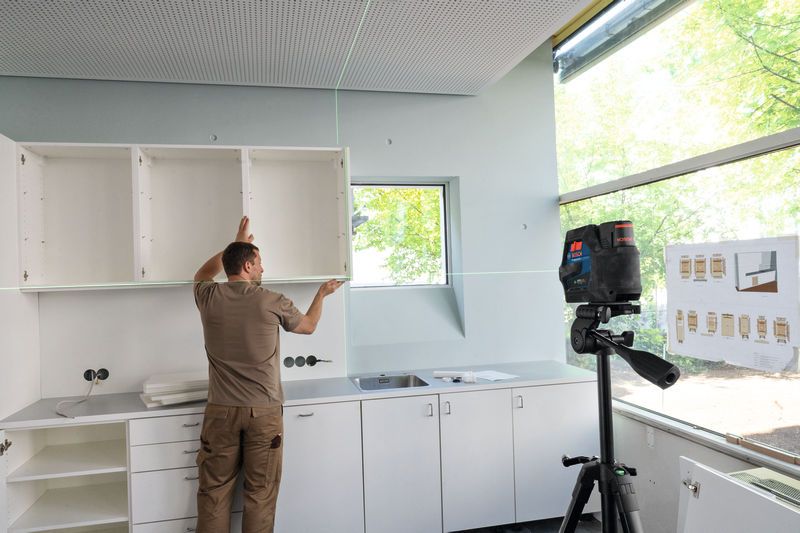

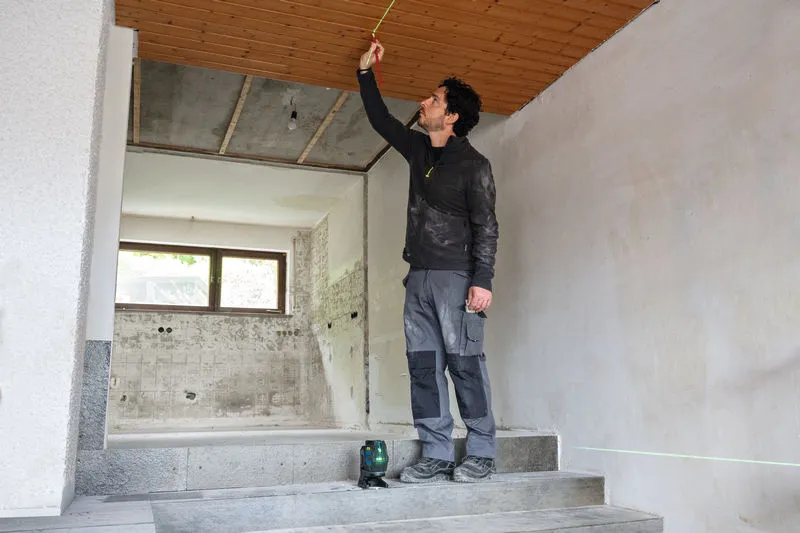

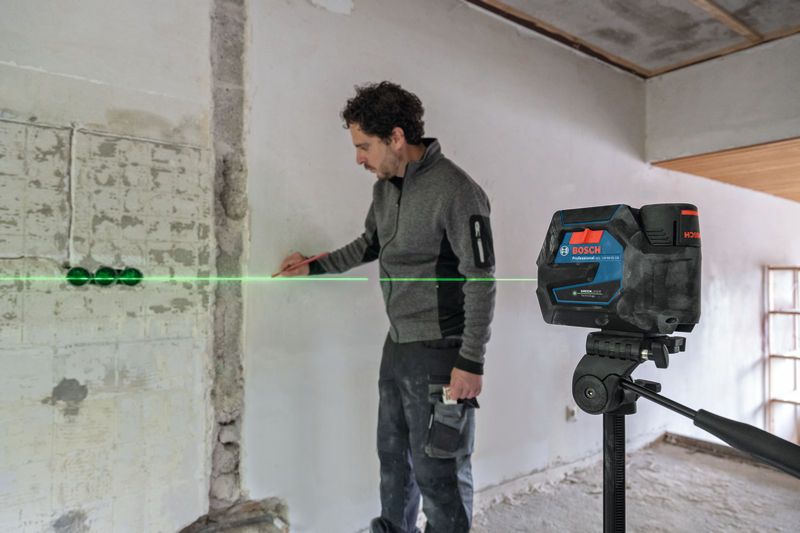

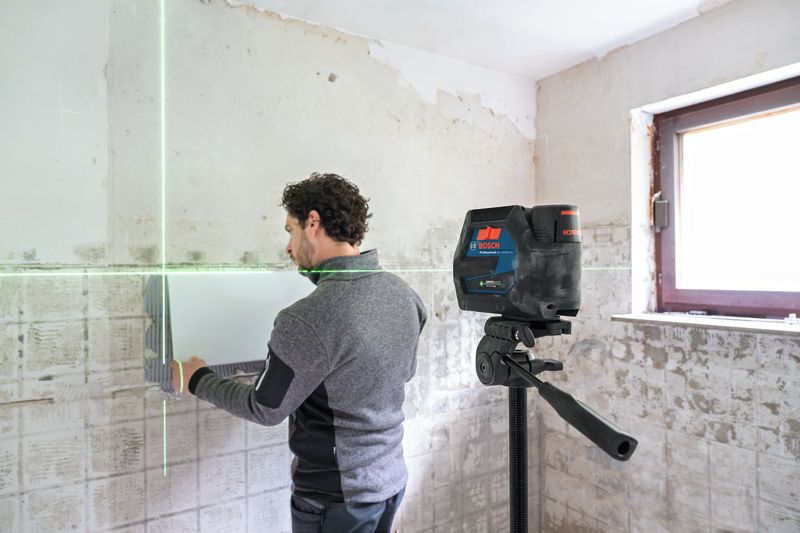

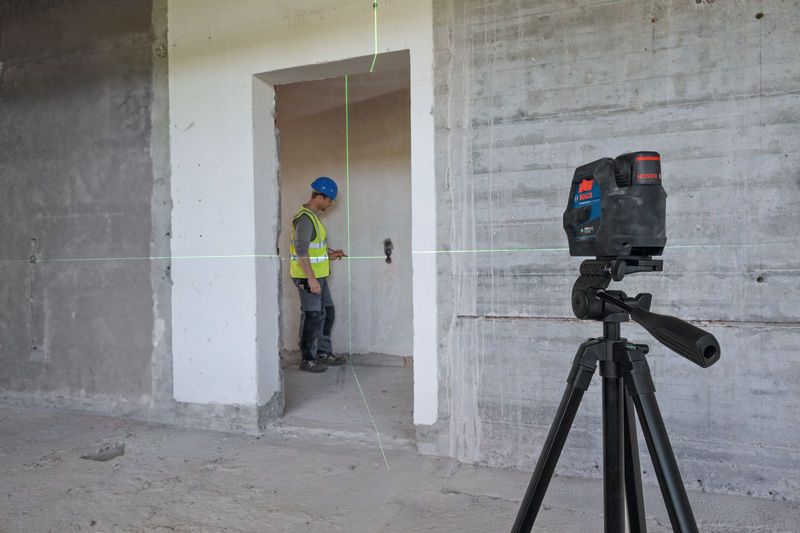

The GCL 12V-50-22 CG is designed for easy and intuitive operation, featuring a one-mode button, battery readout and a U-shaped laser window for a wider fan-angle of the horizontal line. It is perfect for professionals who need precise alignment. Whether you're aligning sockets, installing dry walls, or installing downlights by transferring points from floor to ceiling, the GCL 12V-50-22 CG Professional makes the job easier and more efficient.
Additional Information

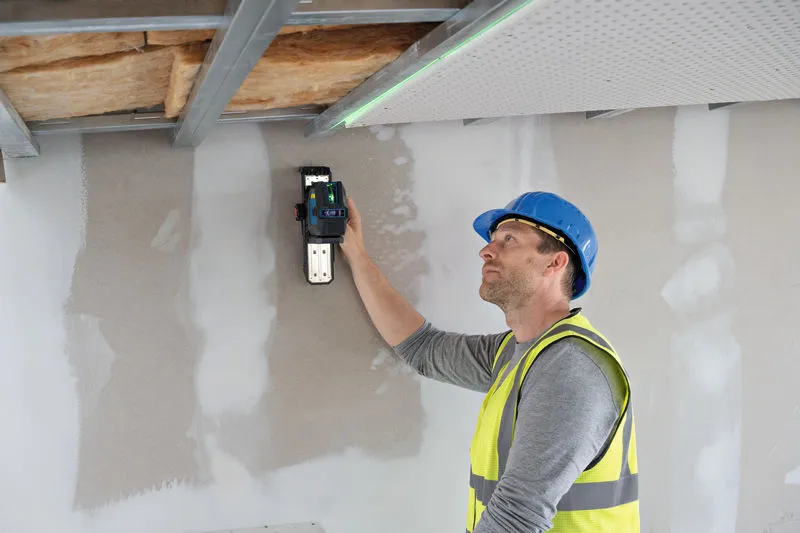

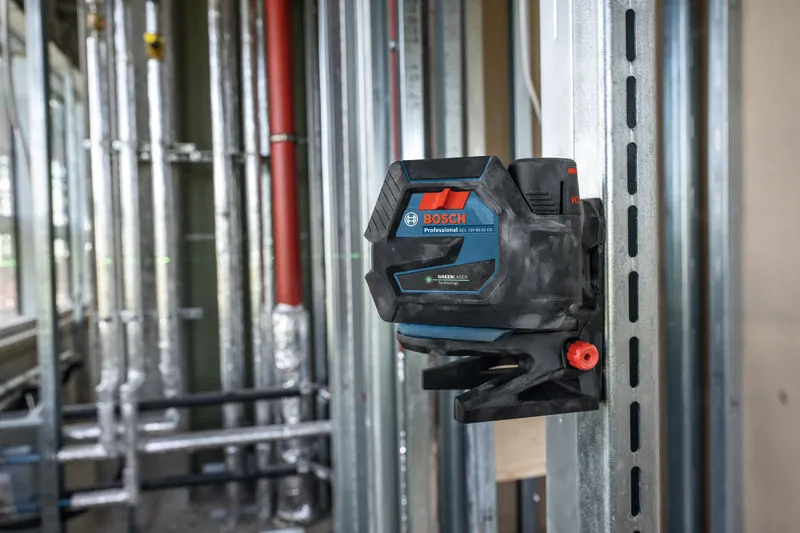

For starting right away, the GCL 12V-50-22 CG laser receiver mode is always activated. With the optional laser receiver LR 7 Professional you can extend the working range up to 50 meters. The green laser lines and points offer up to four times better visibility than red lines, ensuring your work is always spot-on. Precise positioning of laser lines around plumb points can be easily achieved with the mount RM 20 Professional.
