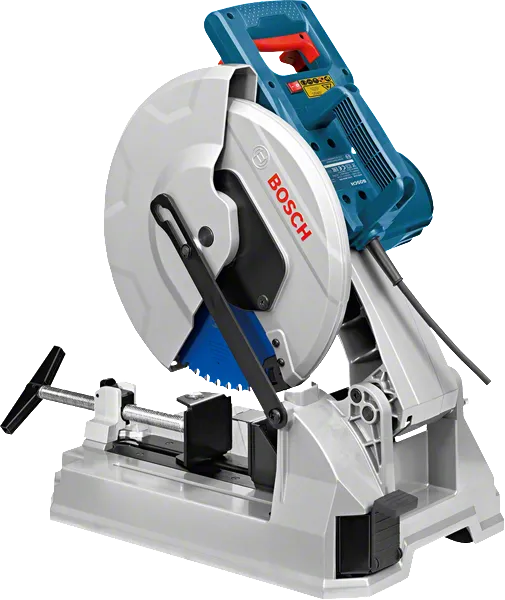

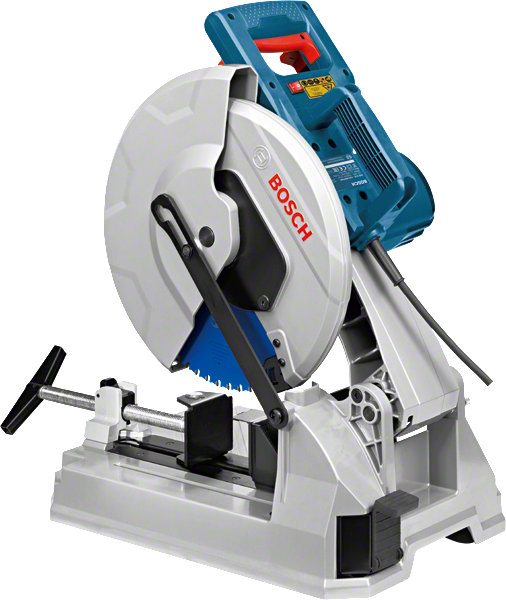

GCD 12 JL Professional
Metal Cut-off Saw
Precise results, less rework and up to 100% spark-free
- Precise results and little rework thanks to minimum discolouration and low levels of burr formation with “Expert for Steel” saw blades
- Integrated laser allows precise cutting guidance
- Up to 100% spark-free for a safe working environment
Functions & key features
Your Selection
- with 1 x circular saw blade, Expert for steel, 305 x 25.4 x 2.6 mm, 60 (2 608 643 060), Accessory
in stock
Select a variant
Your Selection
Part Number: 0 601 B28 070
in stock
Included in all variants
-
1 x circular saw blade, Expert for steel, 305 x 25.4 x 2.6 mm, 60Part Number: 2 608 643 060
Additional in this variant
-
Voltage 240 V
Your Selection
Part Number: 0 601 B28 060
available at Bosch Partner
Available from our partnersIncluded in all variants
-
1 x circular saw blade, Expert for steel, 305 x 25.4 x 2.6 mm, 60Part Number: 2 608 643 060
Additional in this variant
-
Voltage 110 V
Technical data
The most important data |
|
|---|---|
| Cutting capacity at rectangle 0º | 158 x 80 mm |
| Cutting capacity at square 0º | 100 x 100 mm |
| Cutting capacity at L-profile 0º | 110 x 110 mm |
| Cutting capacity at rectangle 45º mitre | 85 x 85 mm |
| Cutting capacity at square 45º mitre | 85 x 85 mm |
| Cutting capacity at L-profile 45º mitre | 85 x 85 mm |
| Tool dimensions (width x length x height) | 327 x 517 x 383 mm |
| No-load speed* | 1,500 rpm |
| Weight* | 20 kg |
| Rated input power | 2,000 W |
| Voltage | 240 V |
| Packaging dimensions (width x length x height) | 495 x 580 x 390 mm |
The A-rated noise level of the power tool is typically as follows: Sound pressure level 100 dB(A); Sound power level 113 dB(A). Uncertainty K= 3 dB.
