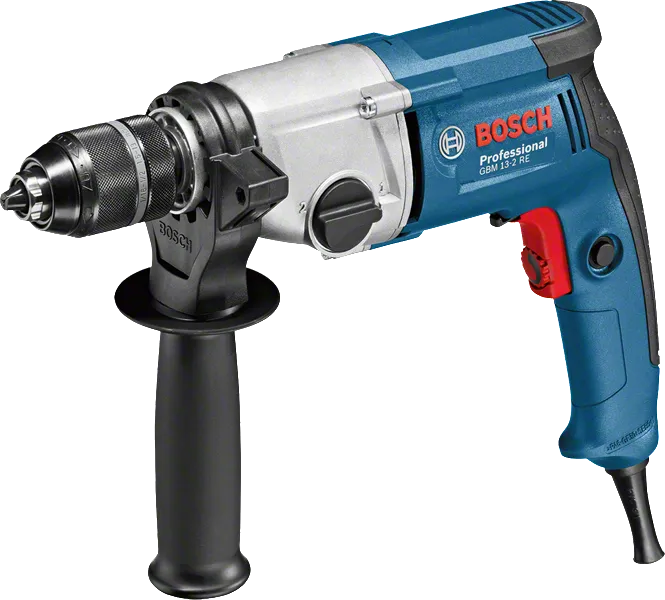

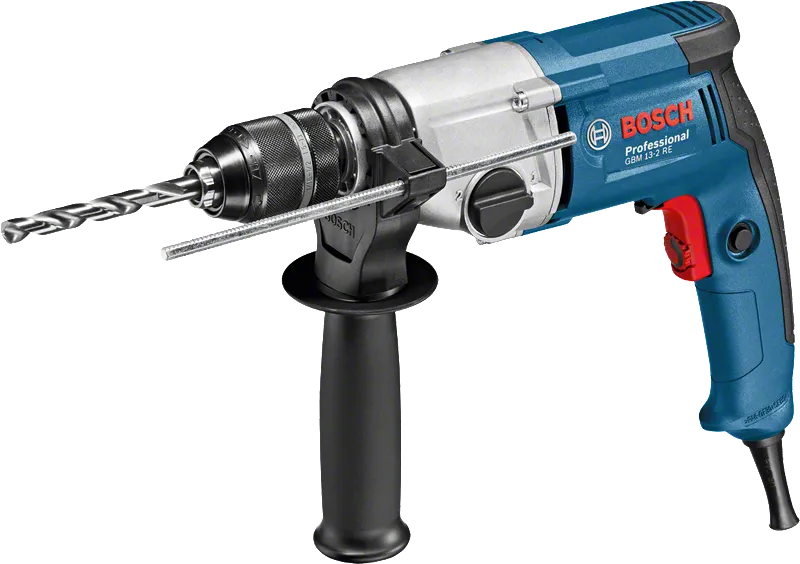

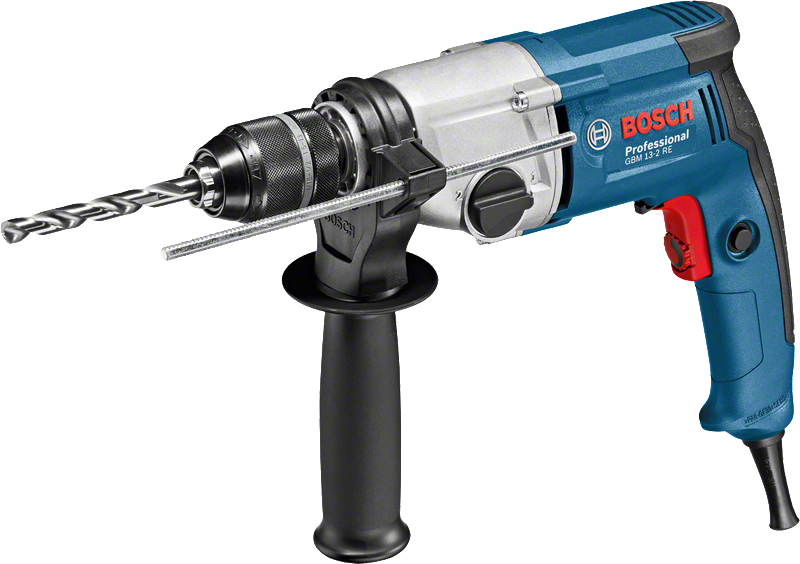

GBM 13-2 RE Professional
Drill
2-geared rotary drill for precision work
- Powerful 750 W motor and high torque for fast work progress, drilling holes in steel of up to 13 mm in diameter
- Compact and ergonomic design providing good tool handling for precise results
- 2-speed gearbox with speed preselection setting wheel for accurate performance in versatile applications
Functions & key features
Your Selection
- in cardboard box with chuck, Accessory
in stock
Select a variant
Your Selection
Part Number: 0 601 1B2 070
in stock
Included in all variants
-
Cardboard box
-

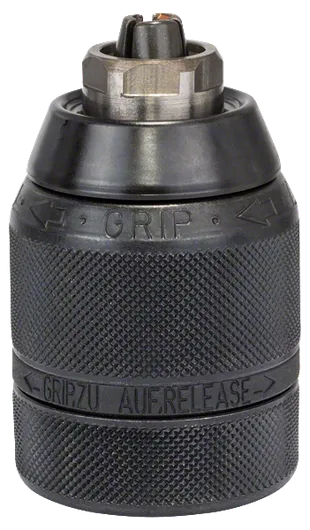

Keyless chuck 13 mmPart Number: 2 608 572 105
-

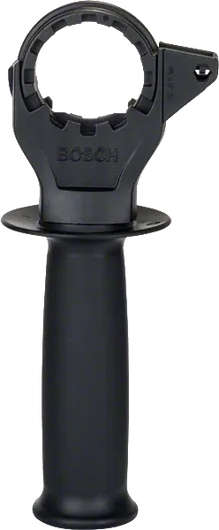

Auxiliary handlePart Number: 2 602 025 190
-
Depth stop 210 mmPart Number: 1 613 001 010
Additional in this variant
-
Voltage 240 V
Your Selection
Part Number: 0 601 1B2 060
in stock
Included in all variants
-
Cardboard box
-
Keyless chuck 13 mmPart Number: 2 608 572 105
-
Auxiliary handlePart Number: 2 602 025 190
-
Depth stop 210 mmPart Number: 1 613 001 010
Additional in this variant
-
Voltage 110 V
Technical data
The most important data |
|
|---|---|
| Rated input power | 710 W |
| No-load speed, 1st gear* | 0 – 1,000 rpm |
| No-load speed, 2nd gear* | 3,200 rpm |
| Power output* | 365 W |
| Weight* | 2.4 kg |
| Rated speed | 500 / 1,750 rpm |
| Rated torque | 6.8 / 2.5 Nm |
| Drill spindle connecting thread | 1/2"-20 UNF |
| Max. torque* | 39.5 / 12.5 Nm |
| Packaging dimensions (width x length x height) | 357 x 276 x 83 mm |
| Drill chuck, version | Keyless chuck |
| Voltage, electrical | 220–240 V |
| Bit holder | 1/2"-20 UNF |
| Spindle collar diameter | 43 mm |
The A-rated noise level of the power tool is typically as follows: Sound pressure level dB(A); Sound power level dB(A). Uncertainty K= dB.
* You can find more information about the deviations in the following link:
GBM 13-2 RE Professional: Further information
Product Highlights
The GBM 13-2 RE Professional is a corded 2-geared rotary drill designed for precision drilling. Its powerful 750 W motor and high torque deliver fast work progress, enabling the drilling of holes in steel of up to 13 mm in diameter. It features a compact and ergonomic design providing good tool handling for precise work. This rotary drill also features a 2-speed gearbox and a speed preselection setting wheel for accurate performance in versatile applications.
Equipment & Application

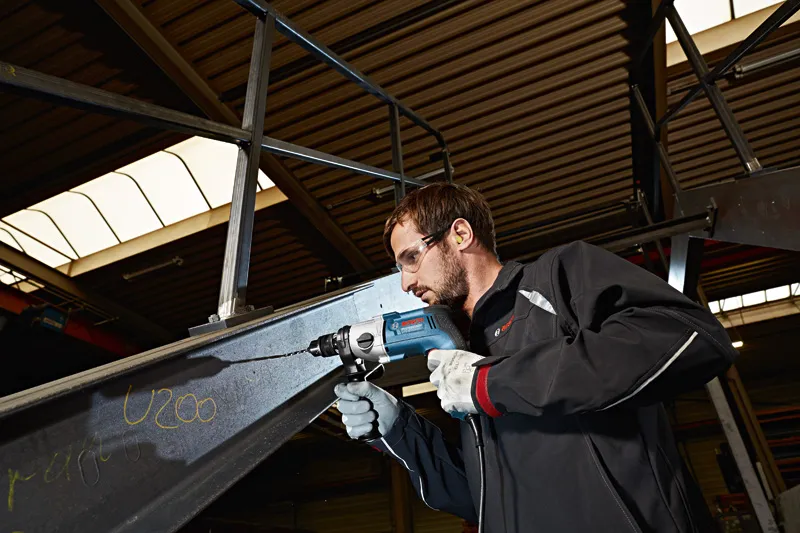

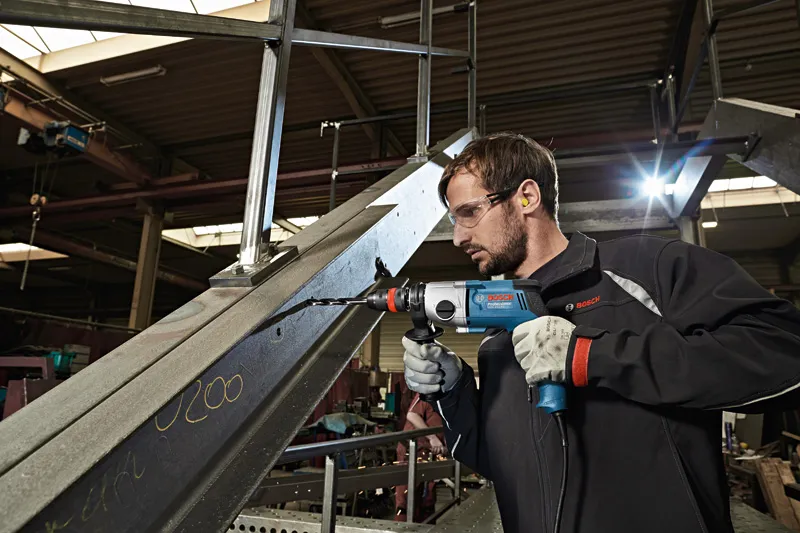

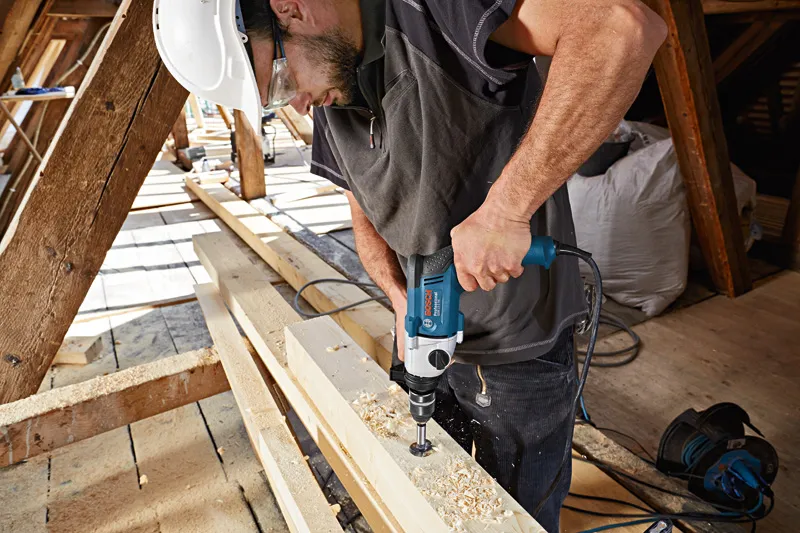

This tool is intended for drilling in metal and wood.
Additional Information

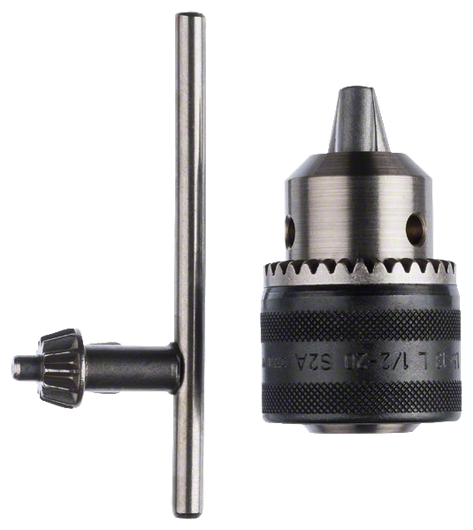

The GBM 13-2 RE Professional includes the option of selecting 1 out of 3 different chucks, and features right-left rotation, rotation control clutch, and speed selection, as well as variable speed.
