Cordless Rotary Hammer with SDS plus
Your Selection
available at Bosch Partner
Available from our partnersYour Selection
Part Number: 0 611 904 077
available at Bosch Partner
Available from our partnersIncluded in all variants
Additional in this variant
Your Selection
Part Number: 0 611 904 000
available at Bosch Partner
Available from our partnersIncluded in all variants
Additional in this variant
The most important data |
|
|---|---|
| Impact energy (according to EPTA 05/2016)* | 1.7 J |
| Impact rate at rated speed* | 0 – 4,550 bpm |
| Rated speed* | 0 – 1,400 rpm |
| Battery voltage* | 18.0 V |
| Tool holder | SDS plus |
| Packaging dimensions (width x length x height)** | 360 x 446 x 155 mm |
| Weight incl. battery* | 2.6 kg |
| Battery capacity* | 5 Ah |
* You can find more information about the deviations in the following link:
** May have small deviations because of variations during production process. You can find more information about the deviations in the following link:

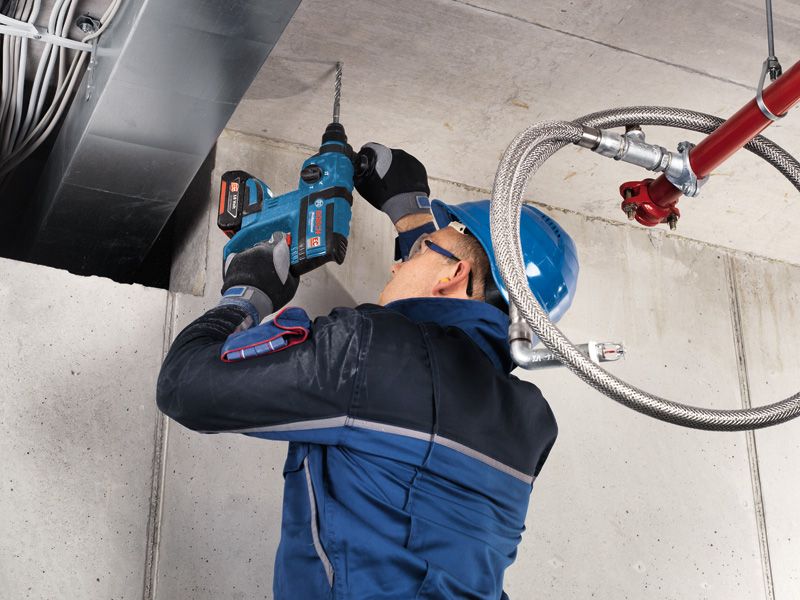

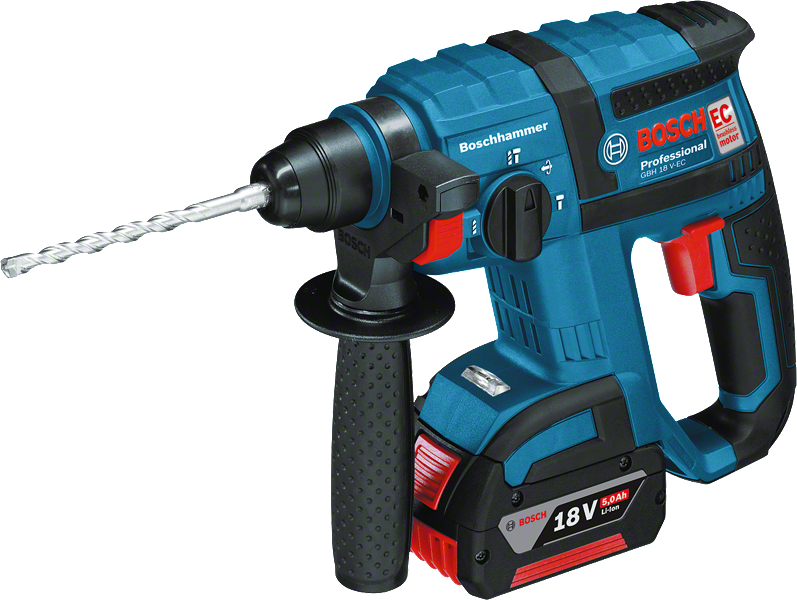

The GBH 18V-EC Professional is the most power-to-weight ratio optimised tool of the Bosch 18 V SDS plus cordless rotary hammer category. It features a balanced power-to-weight ratio, delivering 1.7 J of impact energy and weighing only 2.6 kg. The rotary hammer’s lightweight and compact design enables overhead drilling while its robust components and its brushless motor contribute to its durability.

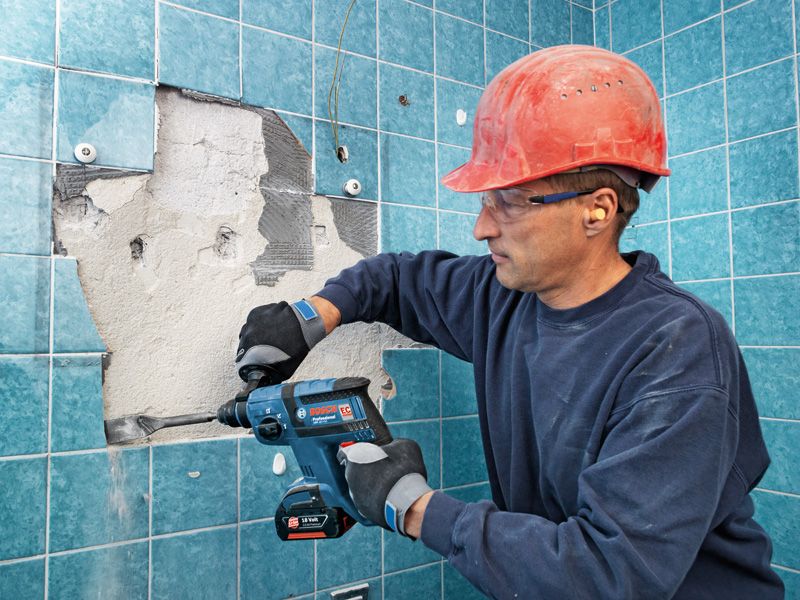

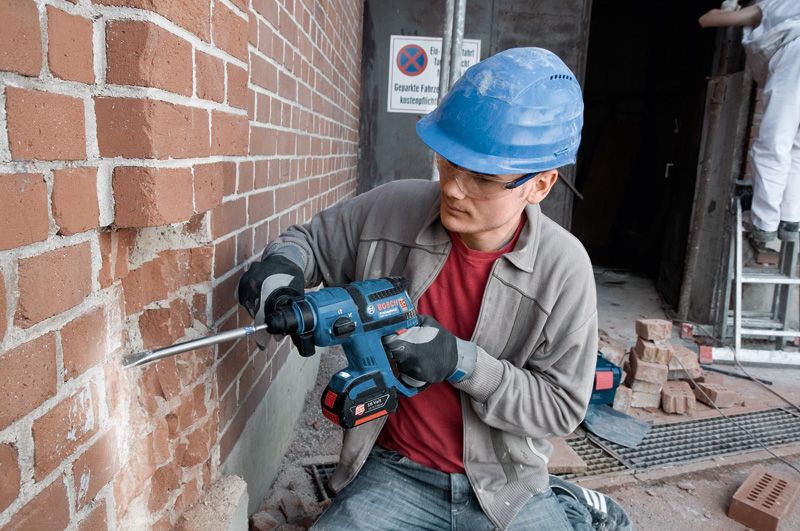

This tool is intended for drilling and chiselling work in concrete masonry, wood, and metal. It is compatible with various dust attachments as well as all Bosch Professional 18 V batteries and chargers (Professional 18V System).
The GBH 18V-EC Professional also includes various additional features such as a Brushless Motor, Electronic Motor Protection (EMP), LED light, Rotation Control Clutch, Variable Speed, and Vario Lock.
European Power Tool Association (EPTA) Procedure 05 provides a common method for the determination of the single impact energy for rotary hammers and breakers.
It defines a standardized measurement method, which ensures comparability between different tools and member companies.
The parameters defined in this procedure are standardized, whereas the real parameters can vary, e.g. due to different working conditions, bit dimensions, condition of work piece.
