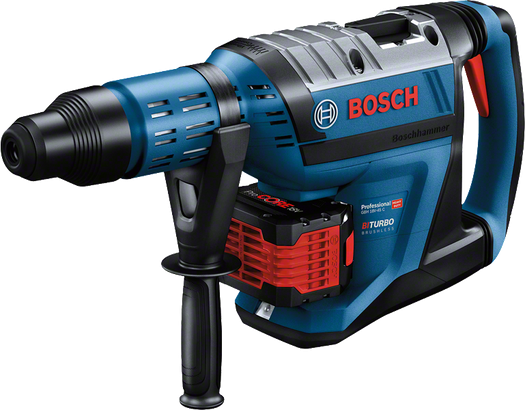

GBH 18V-45 C Professional
Cordless Rotary Hammer BITURBO with SDS max

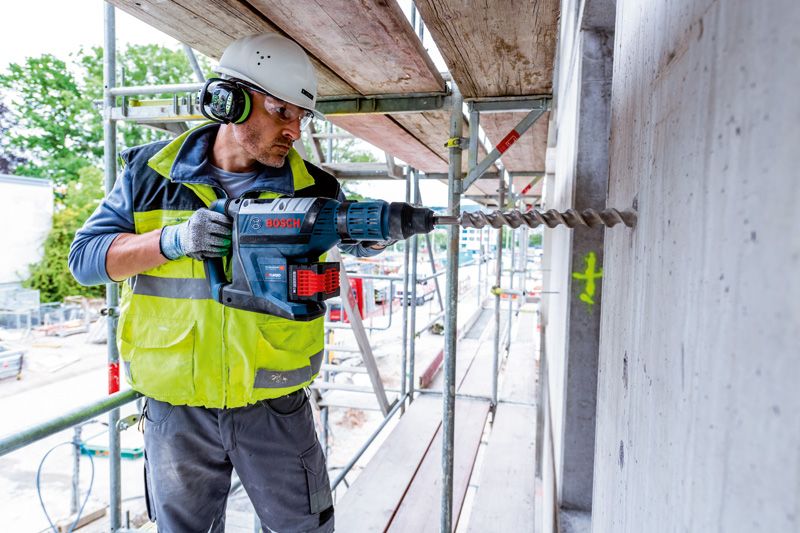

Cordless freedom with corded performance – the heavy-duty all-rounder for concrete drilling and chiselling up to 45 mm.
- Cordless freedom with corded performance thanks to BITURBO Brushless technology
- Lighter than comparable corded products thanks to a highly optimized drive train, even with attached ProCORE18V 12.0Ah battery
- KickBack Control for reduced hazard of sudden tool reactions and Soft Start EPC & ASC for a comfortable and precise work process
Functions & key features
Your Selection
- in carrying case with accessory set, Bluetooth module
879.00 GBP
Including VAT
in stock

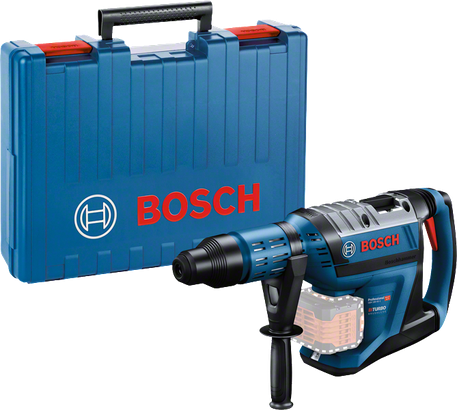

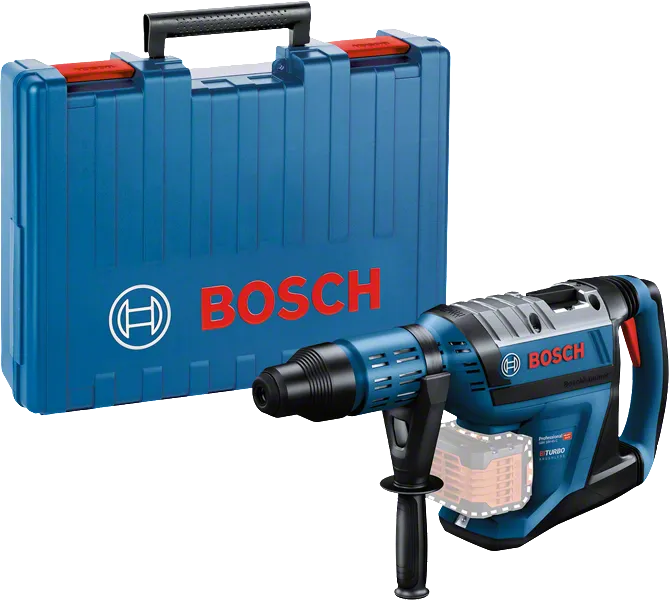

in carrying case with accessory set, Bluetooth module
0 611 913 000
Select a variant
Your Selection
in carrying case with accessory set, Bluetooth module
Part Number: 0 611 913 000
879.00 GBP
Including VAT
in stock
Included in all variants
-
1 x Bluetooth Low Energy module GCY 42 ProfessionalPart Number: 1 600 A01 6NH
-
Auxiliary handlePart Number: 1 607 031 2E7
-
Grease tube (spare part number 1 615 430 010)
-
Machine cloth
-
Carrying case
Your Selection
in carrying case with 2 x 12.0 Ah ProCORE18V Li-ion battery, accessory set
Part Number: 0 611 913 072
1,589.06 GBP
Including VAT
in stock
Included in all variants
-
1 x Bluetooth Low Energy module GCY 42 ProfessionalPart Number: 1 600 A01 6NH
-
Auxiliary handlePart Number: 1 607 031 2E7
-
Grease tube (spare part number 1 615 430 010)
-
Machine cloth
-
Carrying case
Additional in this variant
-
2 x battery ProCORE18V 12.0AhPart Number: 1 600 A01 6GU
-
Quick charger GAL 18V-160 C ProfessionalPart Number: 1 600 A01 9S7
Technical data
The most important data |
|
|---|---|
| Impact energy (according to EPTA 05/2016)* | 12.5 J |
| Impact rate at rated speed* | 0 – 2,740 bpm |
| Rated speed* | 0 – 300 rpm |
| Battery voltage* | 18.0 V |
| Weight excl. battery* | 8 kg |
| Tool holder | SDS max |

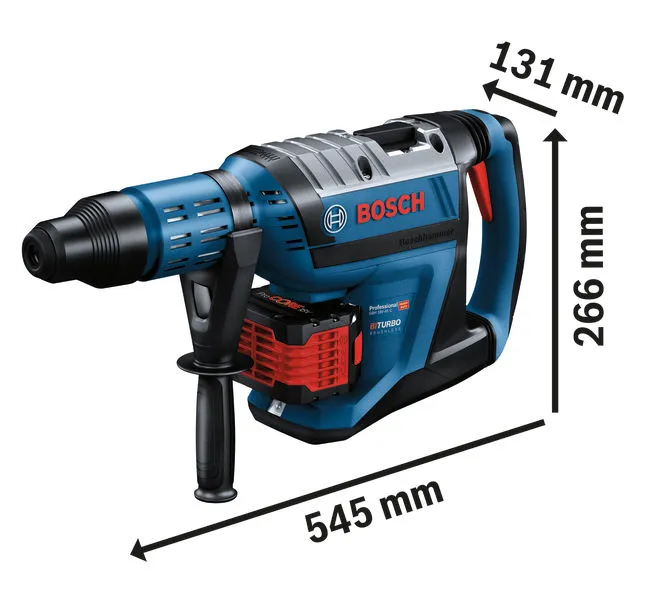

| Packaging dimensions (width x length x height)** | 411 x 618 x 149 mm |
| Battery capacity* | 12 Ah |
* You can find more information about the deviations in the following link:
** May have small deviations because of variations during production process. You can find more information about the deviations in the following link:
GBH 18V-45 C Professional: Further information
Product Highlights
The GBH 18V-45 C Professional rotary hammer delivers cordless freedom with corded performance. Its new high-performance brushless motor and the new ProCORE18V batteries provide 12.5 Joules of impact energy with enough power for even the most demanding SDS max applications. At the same time a highly optimised drive train leads to a significant reduction in the weight of the GBH 18V-45 C; this makes it lighter than comparable corded products, even with an attached ProCORE18V 12.0 Ah battery. In addition to the overload clutch, the GBH 18V-45 C offers KickBack Control, which senses sudden loss of tool control. In case of e.g. a canted drill it instantly shuts the cordless rotary hammer down in order to minimize hand and arm injuries.
Equipment & Application

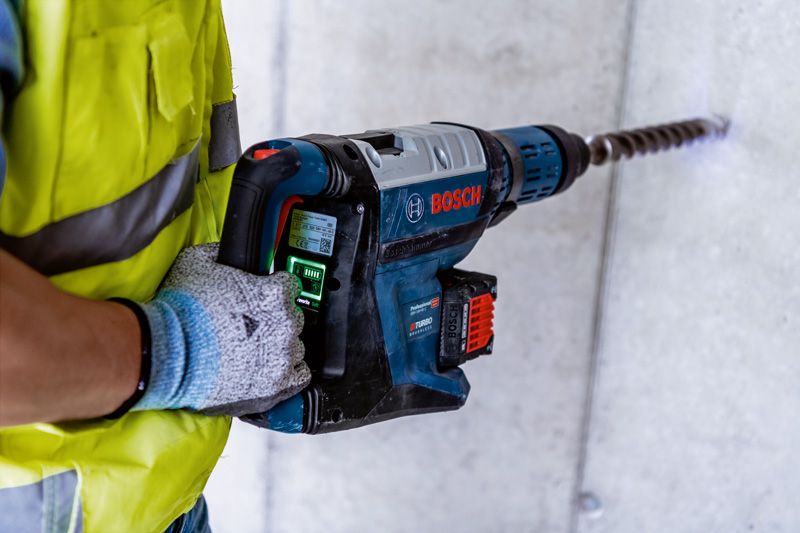

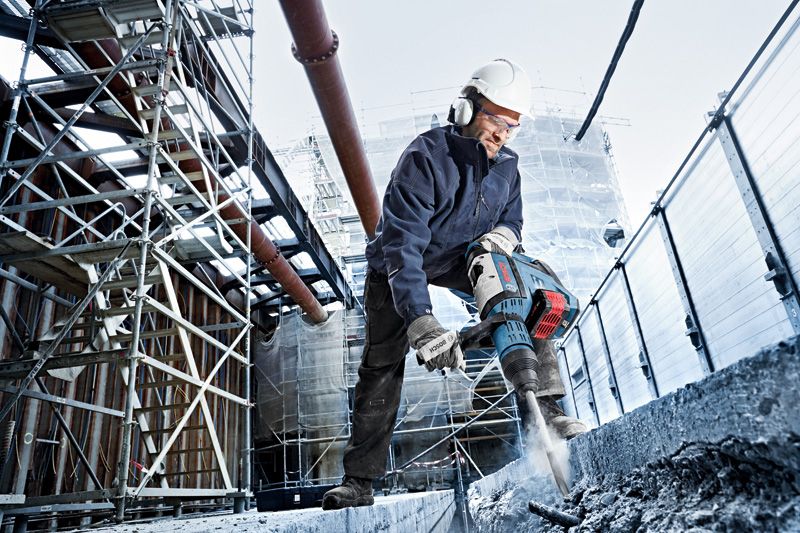

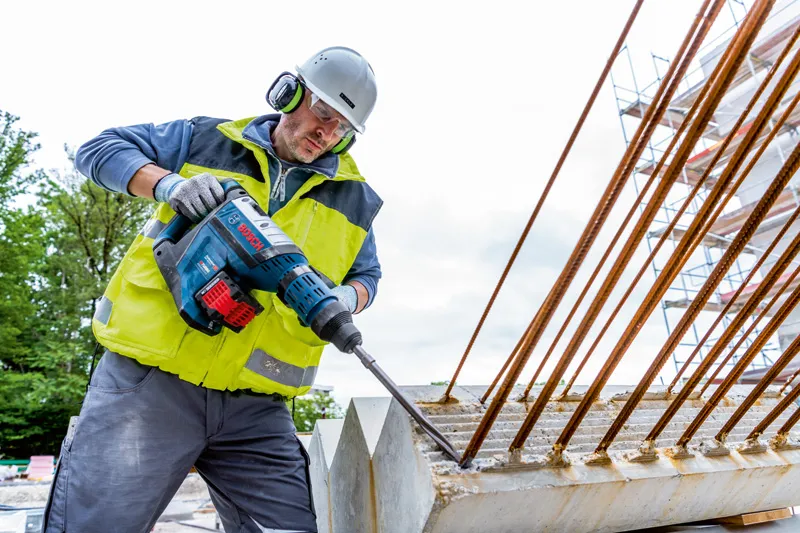

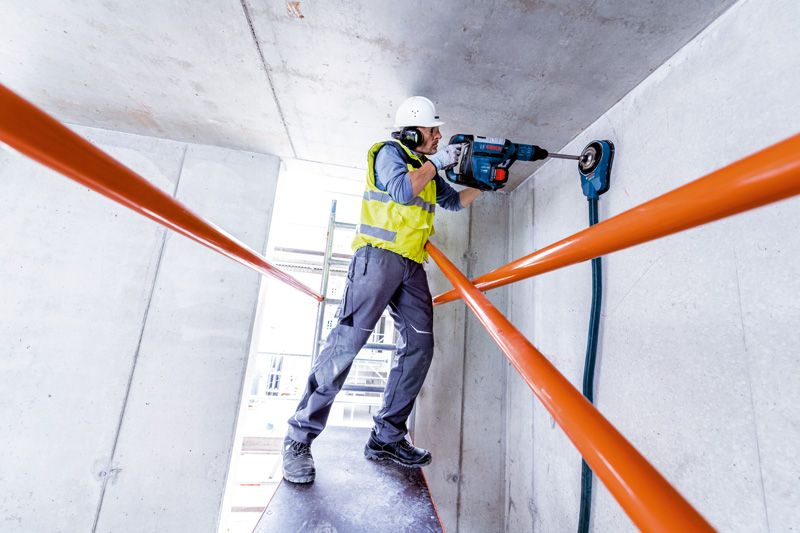

The rotary hammer is perfect for drilling and chiselling in concrete, stone, rock, and brickwork and is compatible with all Bosch Professional 18 V batteries and chargers (Professional 18V System). For maximum power use with a ProCORE18V ≥ 5.5 Ah battery. Also compatible with AMPShare, the multi-brand battery alliance.
Additional Information
It features KickBack Control to reduce the hazard of sudden tool reactions in binding conditions thanks to automatic shut-down of the tool in addition to Soft Start technologies Electronic Precision Control and Adaptive Speed Control for comfortable and precise work processes whilst drilling and chiselling. An intelligent user interface with Bluetooth connectivity helps to avoid unexpected work interruptions and allows instant updates and individualized tool settings.
Fits to GBH 18V-45 C Professional
Product Guidance
EPTA Procedure 05: Single Impact Energy
European Power Tool Association (EPTA) Procedure 05 provides a common method for the determination of the single impact energy for rotary hammers and breakers.
It defines a standardized measurement method, which ensures comparability between different tools and member companies.
The parameters defined in this procedure are standardized, whereas the real parameters can vary, e.g. due to different working conditions, bit dimensions, condition of work piece.
