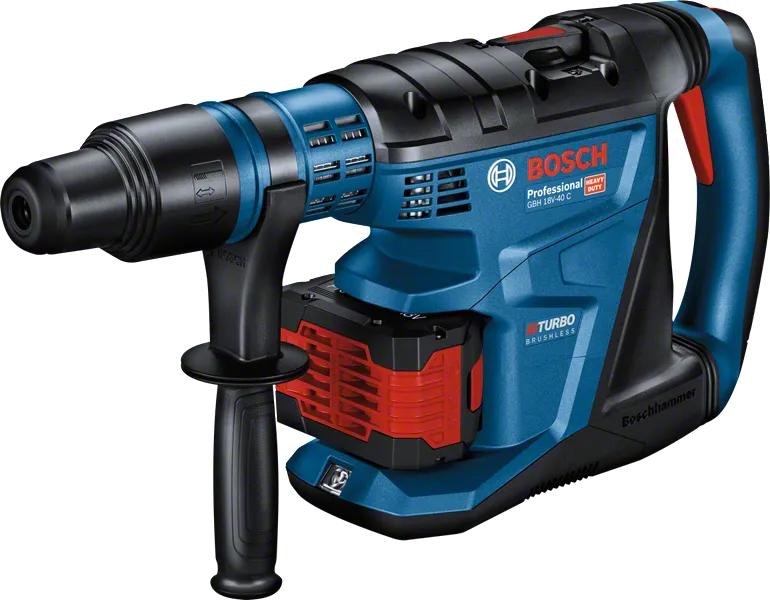

GBH 18V-40 C Professional
Cordless Rotary Hammer BITURBO with SDS max

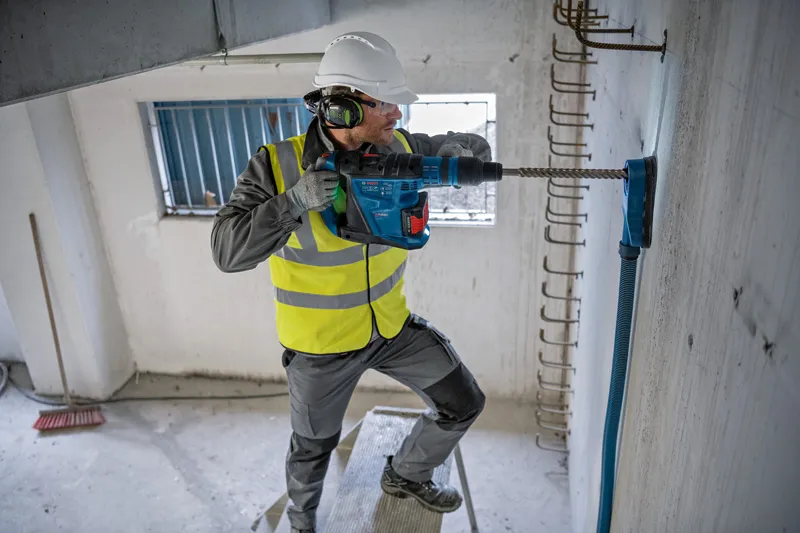

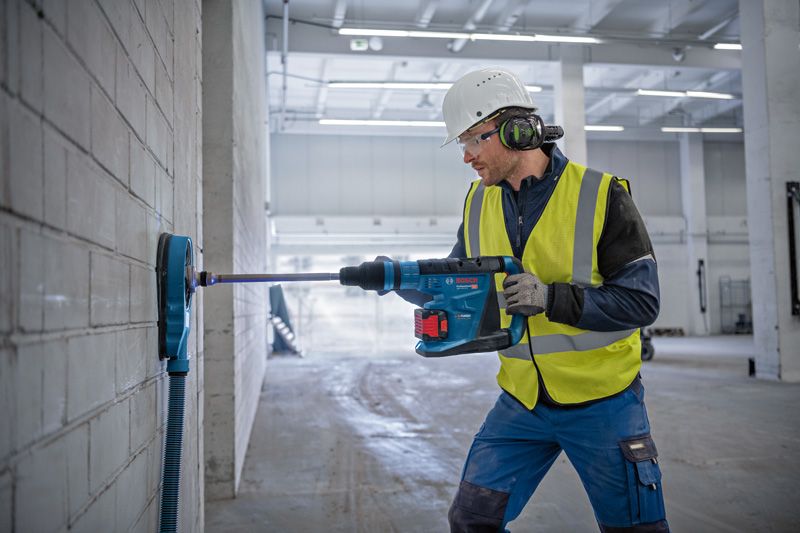

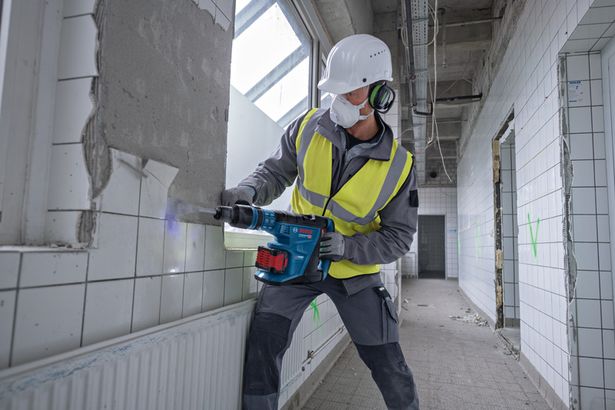

Cordless freedom with corded performance - SDS max all-rounder for concrete chiselling and drilling up to 40mm
- BITURBO Brushless technology with ProCORE18V for corded performance providing powerful 9.0 J impact energy
- Optimal power-to-weight ratio due to an improved impact mechanism and highly capable drive train
- Minimised hand and arm injuries by instantly shutting down the rotary hammer thanks to KickBack Control
Functions & key features
Your Selection

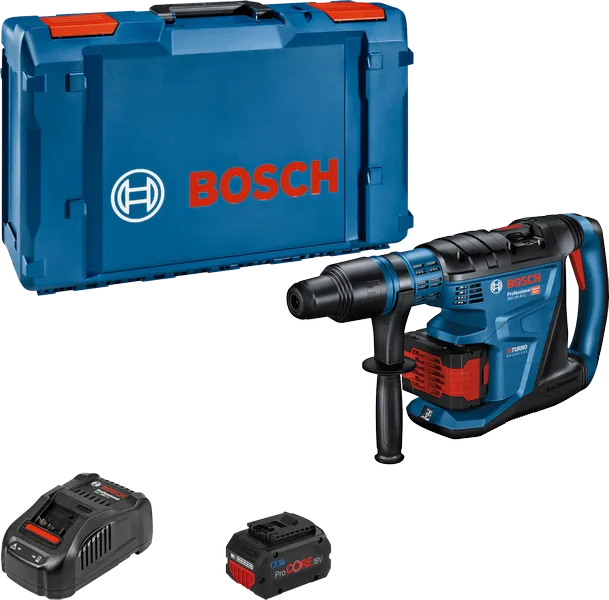

- with 2 x 8.0 Ah ProCORE18V Li-ion battery, accessory set, quick charger
with 2 x 8.0 Ah ProCORE18V Li-ion battery, accessory set, quick charger
0 611 917 172
Select a variant
Your Selection
with 2 x 8.0 Ah ProCORE18V Li-ion battery, accessory set, quick charger
Part Number: 0 611 917 172
available at Bosch Partner
Available from our partnersIncluded in all variants
-
1 x auxiliary handlePart Number: 1 607 000 E8T
-
XL-BOXXPart Number: 1 605 438 1JG
-
XL-BOXX inlay for GBH 18V-40/-45 CPart Number: 6 082 850 6ZJ
-
Grease tube (spare part number 1 615 430 010)
-
Machine cloth
Additional in this variant
-
Quick charger GAL 1880 CVPart Number: 1 600 A00 B8H
-
2 x battery ProCORE18V 8.0AhPart Number: 1 600 A01 6GK
Your Selection
with accessory set
Part Number: 0 611 917 100
634.00 GBP
Including VAT
in stock
Included in all variants
-
1 x auxiliary handlePart Number: 1 607 000 E8T
-
XL-BOXXPart Number: 1 605 438 1JG
-
XL-BOXX inlay for GBH 18V-40/-45 CPart Number: 6 082 850 6ZJ
-
Grease tube (spare part number 1 615 430 010)
-
Machine cloth
Technical data
The most important data |
|
|---|---|
| Impact energy (according to EPTA 05/2016)* | 9 J |
| Impact rate at rated speed* | 0 – 3,130 bpm |
| Rated speed* | 0 – 360 rpm |
| Battery voltage* | 18.0 V |
| Weight excl. battery* | 7 kg |
| Tool holder | SDS max |

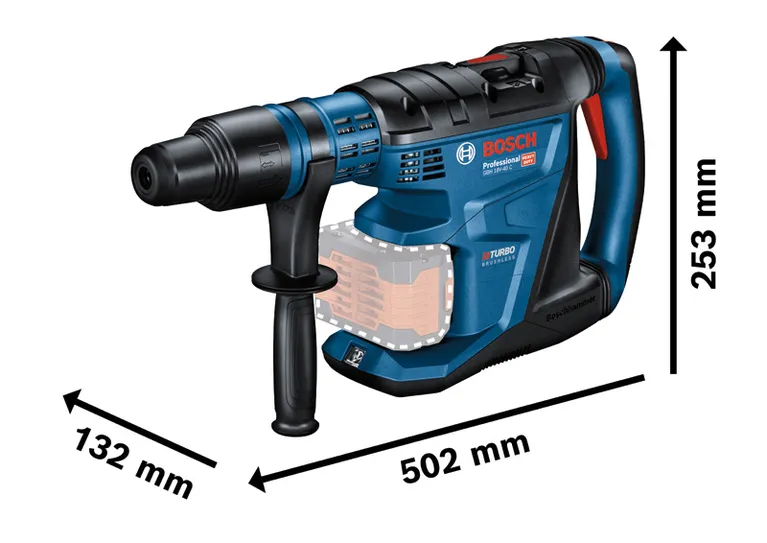

| Packaging dimensions (width x length x height)** | 395 x 607 x 179 mm |
* You can find more information about the deviations in the following link:
** May have small deviations because of variations during production process. You can find more information about the deviations in the following link:
GBH 18V-40 C Professional: Further information
Product Highlights

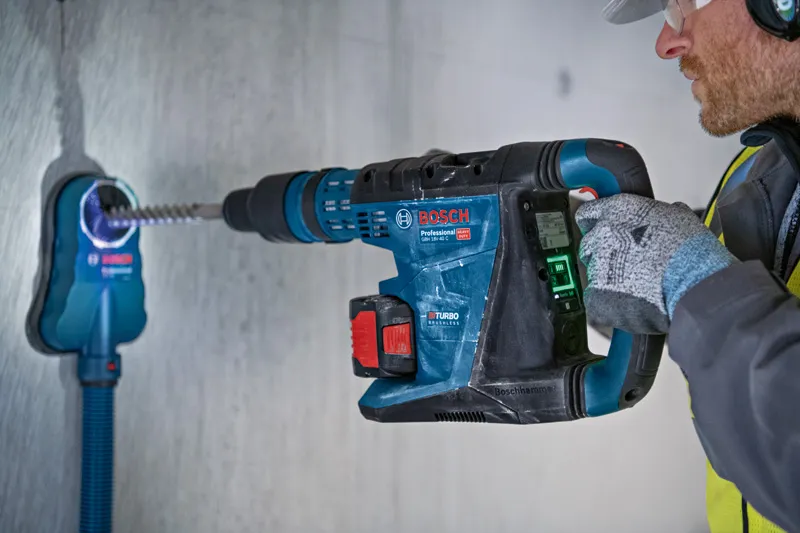

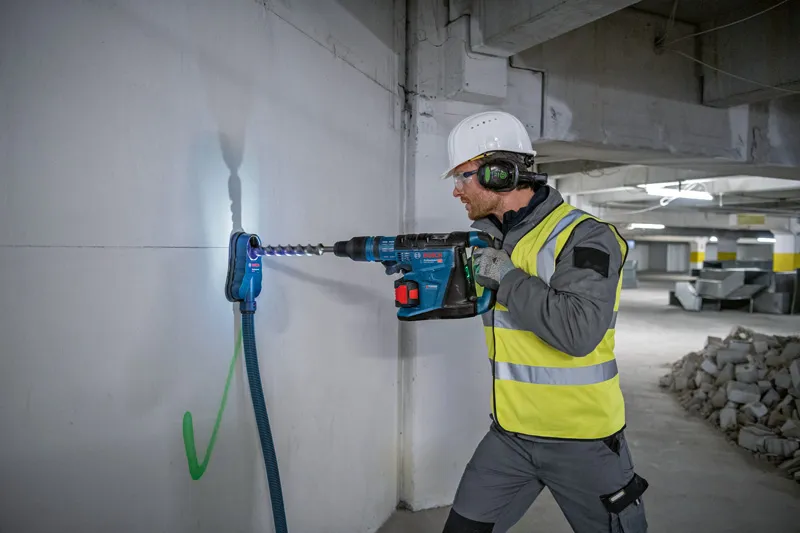

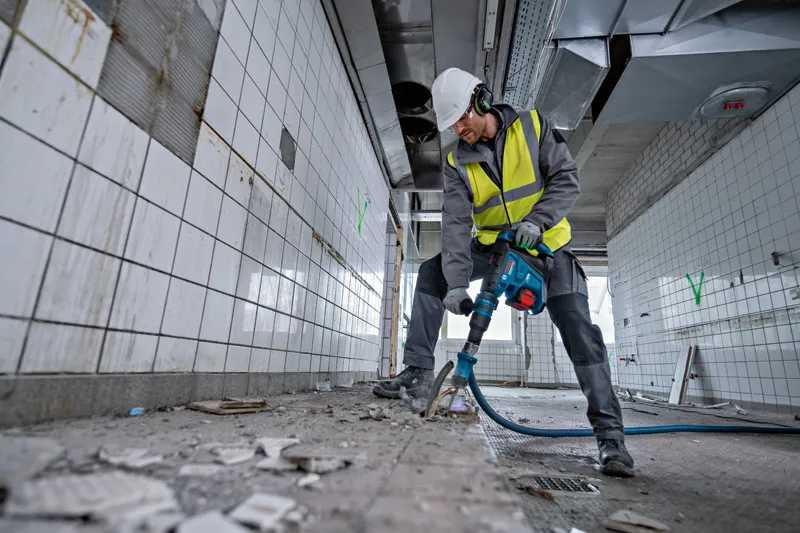

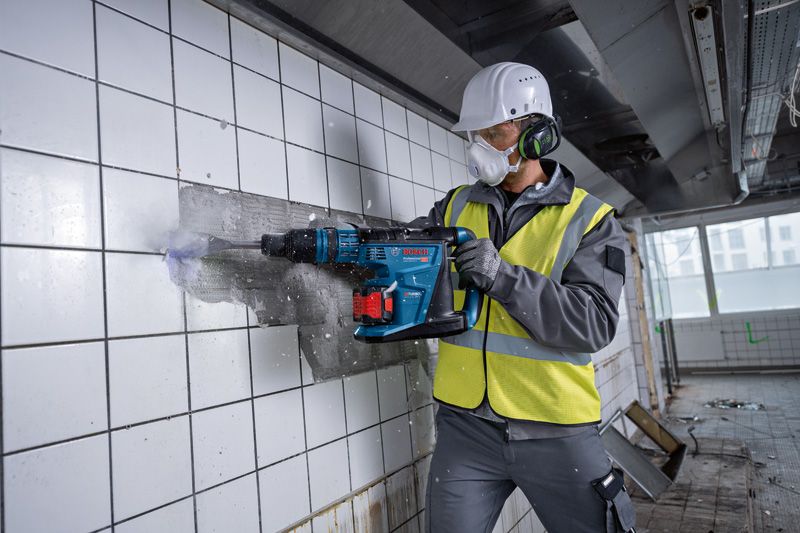

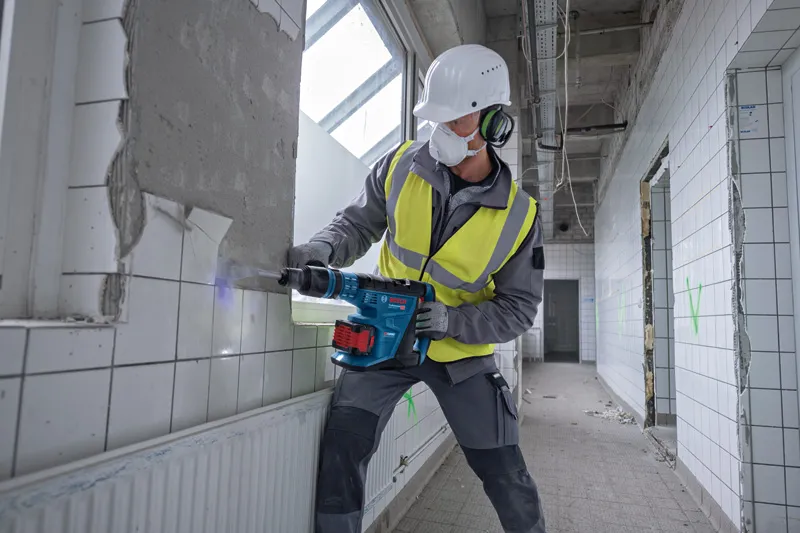

The GBH 18V-40 C Professional offers corded performance thanks to its BITURBO Brushless technology providing powerful 9.0 J impact energy. Cordless freedom with ProCORE18V batteries allows fast drilling up to 40 mm and chisel works even in tough environments. It provides an optimal power-to-weight ratio due to an improved impact mechanism and highly capable drive train. In addition to the overload clutch the GBH 18V-40 C offers KickBack Control, which senses sudden loss of tool control. In case of e.g. a canted drill it instantly shuts the cordless rotary hammer down in order to minimise hand and arm injuries.
Equipment & Application
The GBH 18V-40 C Professional is compatible with all Bosch Professional 18V batteries and chargers (Professional 18V system). To reach the maximum power in concrete, stone, and masonry, choose a ProCORE18V battery ≥ 5.5 Ah. Also compatible with AMPShare, the multi-brand battery alliance.
Additional Information
A user interface with Bluetooth connectivity displays the real-time status of the tool. Different working modes can be selected and optionally configured via Bosch Toolbox app. It also features Soft Start technologies as Electronic Precision Control (EPC) and Adaptive Speed Control (ASC) for comfortable and precise work processes when drilling and chiselling, an LED light, variable speed, lock-on button, and Vario-Lock.
Fits to GBH 18V-40 C Professional
Product Guidance
EPTA Procedure 05: Single Impact Energy
European Power Tool Association (EPTA) Procedure 05 provides a common method for the determination of the single impact energy for rotary hammers and breakers.
It defines a standardized measurement method, which ensures comparability between different tools and member companies.
The parameters defined in this procedure are standardized, whereas the real parameters can vary, e.g. due to different working conditions, bit dimensions, condition of work piece.
