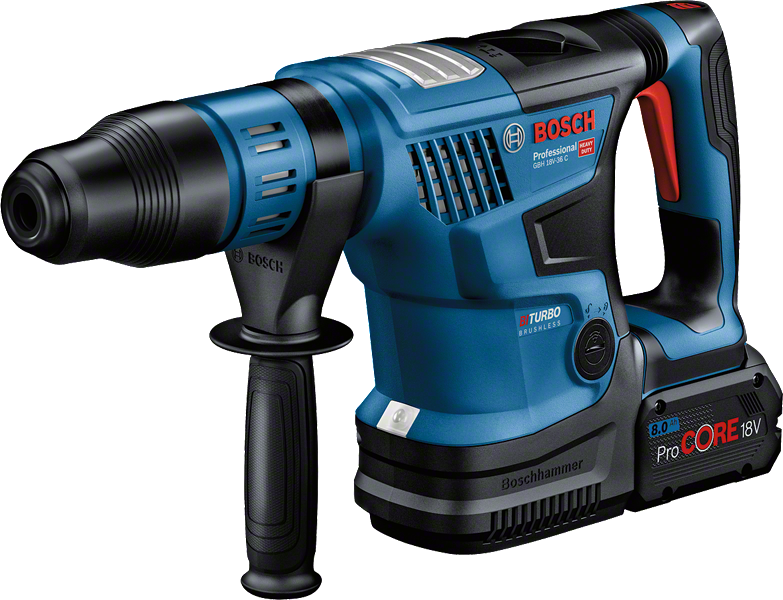

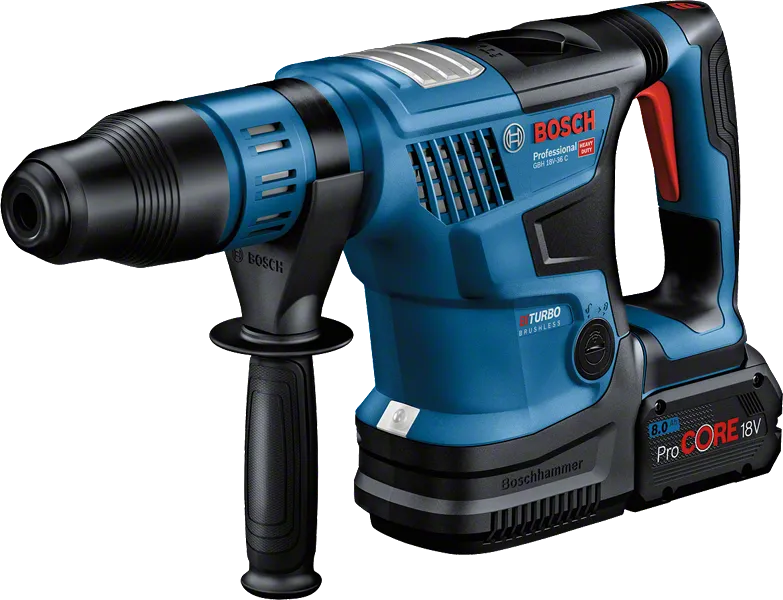

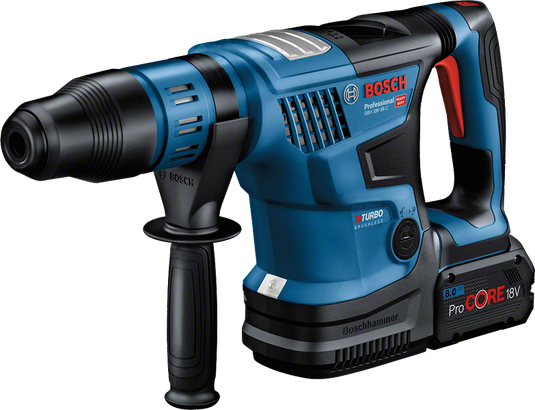

GBH 18V-36 C Professional
Cordless Rotary Hammer BITURBO with SDS max
Outstanding compactness and power – Bosch´s GBH 18V-36 C Professional cordless SDS max hammer
- Extremely compact – significantly more compact than any other cordless SDS max hammer on the market
- Maximum power with lightweight design – BITURBO Brushless hammer with ProCORE18V battery with top performance of 7.0 J max at 6.1 kg
- Highly intelligent – User Interface and Bluetooth connectivity combined with soft start and lock-on button for permanent chiselling
Functions & key features
Your Selection

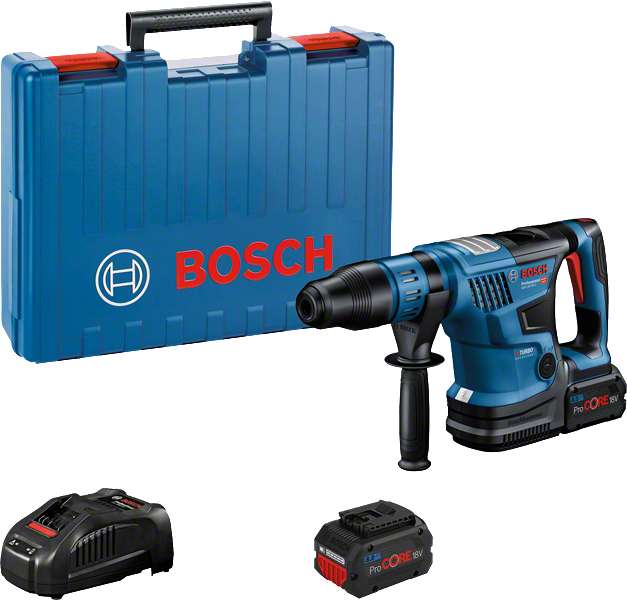

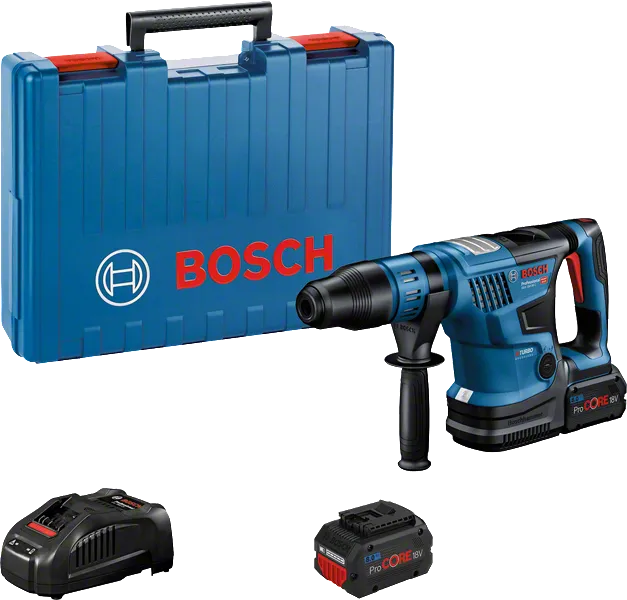

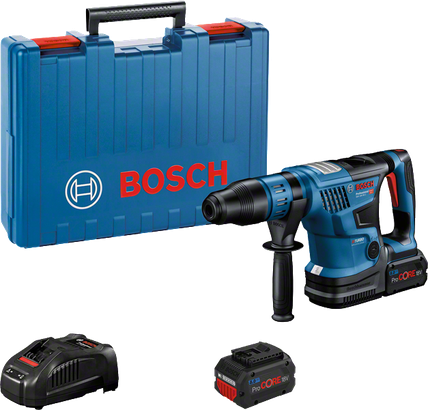

- with 2 x 8.0 Ah ProCORE18V Li-ion battery, auxiliary handle, Bluetooth module
with 2 x 8.0 Ah ProCORE18V Li-ion battery, auxiliary handle, Bluetooth module
0 611 915 072
Select a variant
Your Selection
with 2 x 8.0 Ah ProCORE18V Li-ion battery, auxiliary handle, Bluetooth module
Part Number: 0 611 915 072
available at Bosch Partner
Available from our partnersIncluded in all variants
-
1 x Bluetooth Low Energy module GCY 42 ProfessionalPart Number: 1 600 A01 3WF
-
Carrying case (spare part number 1 605 438 1G2)
-
Grease tube (spare part number 1 615 430 010)
-
Auxiliary handlePart Number: 2 608 000 702
Additional in this variant
-
Quick charger GAL 1880 CVPart Number: 1 600 A00 B8H
-
Machine cloth (spare part number 1 619 200 413)
-
2 x battery ProCORE18V 8.0AhPart Number: 1 600 A01 6GK
Your Selection

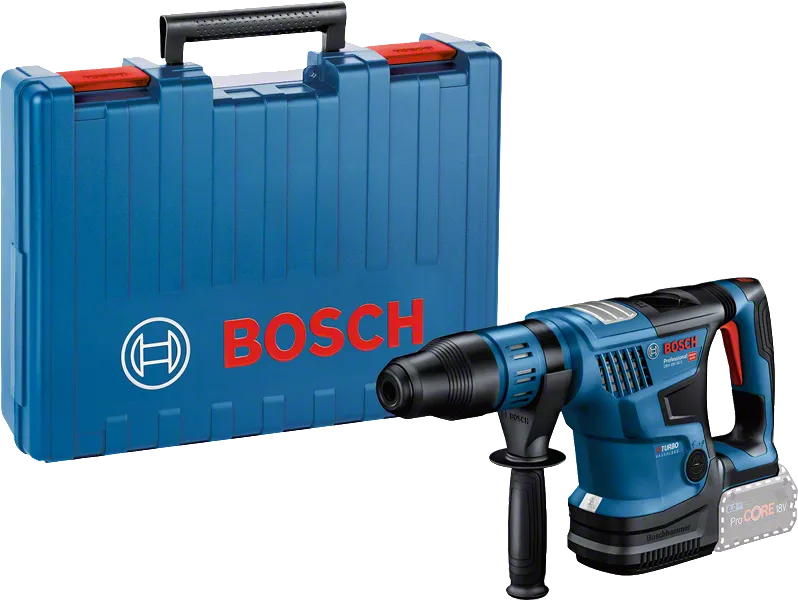

with auxiliary handle, Bluetooth module
Part Number: 0 611 915 001
546.00 GBP
Including VAT
in stock
Included in all variants
-
1 x Bluetooth Low Energy module GCY 42 ProfessionalPart Number: 1 600 A01 3WF
-
Carrying case (spare part number 1 605 438 1G2)
-
Grease tube (spare part number 1 615 430 010)
-
Auxiliary handlePart Number: 2 608 000 702
Additional in this variant
-
Machine cloth (spare part number 1 619 200 413)
Your Selection
with 2x 5.5 Ah ProCORE18V Li-ion battery, auxiliary handle, Bluetooth module
Part Number: 0 611 915 073
950.00 GBP
Including VAT
in stock
Included in all variants
-
1 x Bluetooth Low Energy module GCY 42 ProfessionalPart Number: 1 600 A01 3WF
-
Carrying case (spare part number 1 605 438 1G2)
-
Grease tube (spare part number 1 615 430 010)
-
Auxiliary handlePart Number: 2 608 000 702
Additional in this variant
-
Quick charger GAL 1880 CVPart Number: 1 600 A00 B8H
-
2 x battery ProCORE18V 5.5AhPart Number: 1 600 A02 149
-
Machine cloth (spare part number: 1 619 200 413)
Technical data
The most important data |
|
|---|---|
| Impact energy (according to EPTA 05/2016)* | 7 J |
| Impact rate at rated speed* | 0 – 2,900 bpm |
| Rated speed* | 0 – 500 rpm |
| Battery voltage* | 18.0 V |
| Weight excl. battery* | 5.1 kg |
| Tool holder | SDS max |
| Packaging dimensions (width x length x height)** | 405 x 608 x 145 mm |
* You can find more information about the deviations in the following link:
** May have small deviations because of variations during production process. You can find more information about the deviations in the following link:
GBH 18V-36 C Professional: Further information
Product Highlights
The GBH 18V-36 C Professional combines extreme compactness and high power for tough jobs in concrete. Lightweight at 6.1 kg, its design is significantly more compact and lighter than any other cordless SDS max hammer on the market.
Equipment & Application
The hammer's BITURBO Brushless technology delivers an outstanding performance of 7.0 J max. It is compatible with all Bosch Professional 18 V batteries and chargers (Professional 18V System). For maximum power, use ProCORE18V = 8.0 Ah. Also compatible with AMPShare, the multi-brand battery alliance.
Additional Information
It has a user interface with Bluetooth connectivity for real-time tool status and different tool modes, as well as new electronic features like soft start when drilling and chiselling and a lock-on button for chiselling, making it the smartest hammer available.
Fits to GBH 18V-36 C Professional
Product Guidance
EPTA Procedure 05: Single Impact Energy
European Power Tool Association (EPTA) Procedure 05 provides a common method for the determination of the single impact energy for rotary hammers and breakers.
It defines a standardized measurement method, which ensures comparability between different tools and member companies.
The parameters defined in this procedure are standardized, whereas the real parameters can vary, e.g. due to different working conditions, bit dimensions, condition of work piece.
