Cordless rotary hammers
![GBH 18V-34 CF]( "GBH 18V-34 CF")
![GBH 18V-34 CF]( "GBH 18V-34 CF")
![GBH 18V-34 CF]( "GBH 18V-34 CF")
![GBH 18V-34 CF]( "GBH 18V-34 CF")
![GBH 18V-34 CF]( "GBH 18V-34 CF")
![GBH 18V-34 CF]( "GBH 18V-34 CF")
![GBH 18V-34 CF]( "GBH 18V-34 CF")

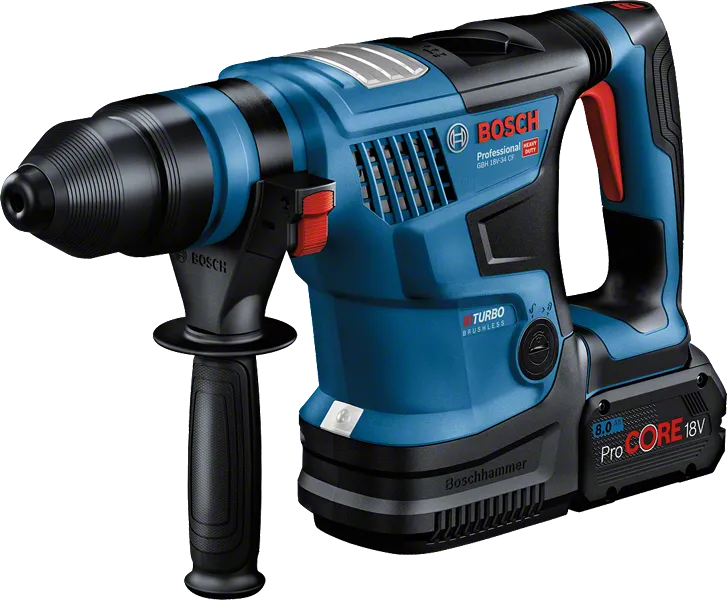

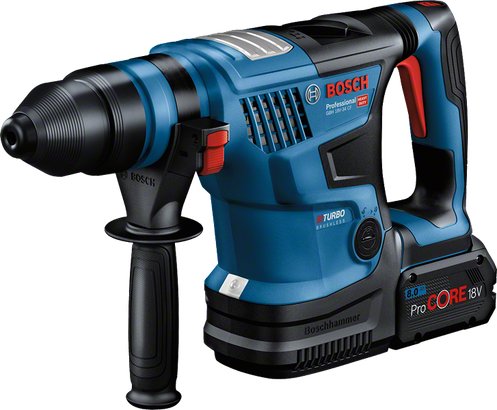

GBH 18V-34 CF Professional
Cordless Rotary Hammer BITURBO with SDS plus
The market´s most powerful cordless SDS plus hammer
- Paramount performance with 5.8 J – the most powerful cordless SDS plus hammer in its range for tough jobs in concrete
- Perfect control – soft start for precise chiselling and 3 different working modes to ensure the right setting for any job
- Smartest SDS plus hammer – real-time tool status via user interface, individual adjustments by Bluetooth via Bosch Toolbox app
Functions & key features

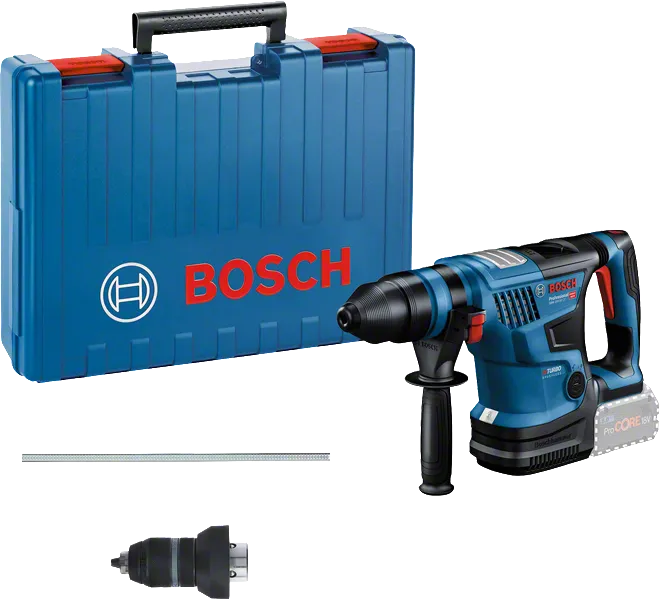

with depth stop, Bluetooth module
0 611 914 001
Select a variant
Your Selection
with depth stop, Bluetooth module
Part Number: 0 611 914 001
526.00 GBP
Including VAT
in stock
Included in all variants
-
Depth stop (spare part number 1 613 001 009)
-
1 x Bluetooth Low Energy module GCY 42 ProfessionalPart Number: 1 600 A01 3WF
-

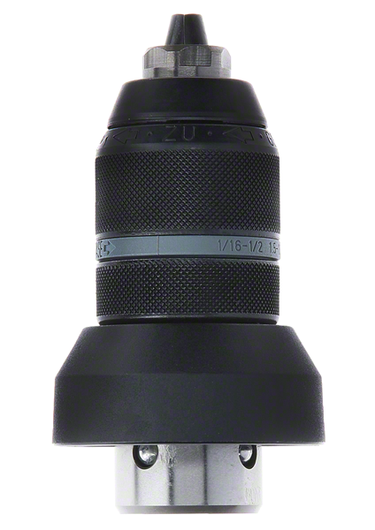

Quick-change chuck 1.5 - 13 mmPart Number: 2 608 000 710
-

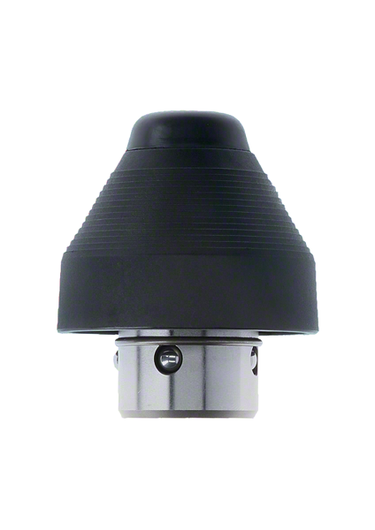

SDS plus quick-change chuckPart Number: 2 608 000 704
-
Carrying case (spare part number 1 605 438 1G2)
-
Grease tube (spare part number 1 615 430 010)
-
Auxiliary handlePart Number: 2 608 000 703
Additional in this variant
-
Machine cloth (spare part number 1 619 200 413)
Your Selection

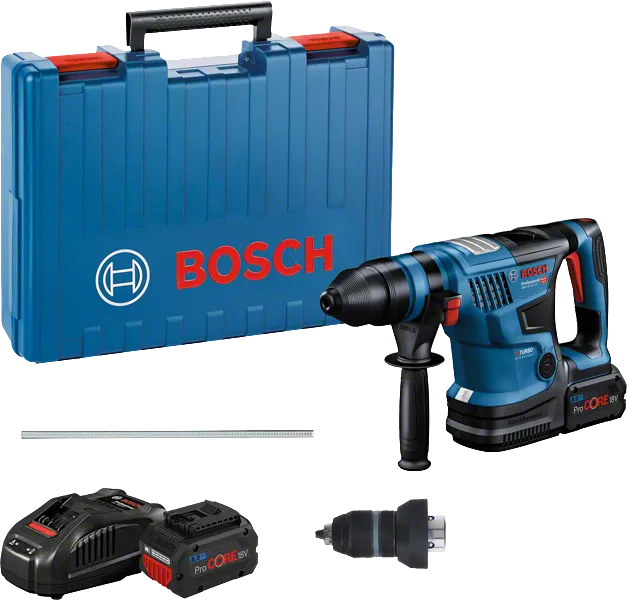

with 2 x 8.0 Ah ProCORE18V Li-ion battery, depth stop, Bluetooth module
Part Number: 0 611 914 072
available at Bosch Partner
Available from our partnersIncluded in all variants
-
Depth stop (spare part number 1 613 001 009)
-
1 x Bluetooth Low Energy module GCY 42 ProfessionalPart Number: 1 600 A01 3WF
-
Quick-change chuck 1.5 - 13 mmPart Number: 2 608 000 710
-
SDS plus quick-change chuckPart Number: 2 608 000 704
-
Carrying case (spare part number 1 605 438 1G2)
-
Grease tube (spare part number 1 615 430 010)
-
Auxiliary handlePart Number: 2 608 000 703
Additional in this variant
-
Quick charger GAL 1880 CVPart Number: 1 600 A00 B8H
-
Machine cloth (spare part number 1 619 200 413)
-
2 x battery ProCORE18V 8.0AhPart Number: 1 600 A01 6GK
Your Selection
with 2x 5.5 Ah ProCORE18V Li-ion battery, depth stop, Bluetooth module
Part Number: 0 611 914 073
759.00 GBP
Including VAT
in stock
Included in all variants
-
Depth stop (spare part number 1 613 001 009)
-
1 x Bluetooth Low Energy module GCY 42 ProfessionalPart Number: 1 600 A01 3WF
-
Quick-change chuck 1.5 - 13 mmPart Number: 2 608 000 710
-
SDS plus quick-change chuckPart Number: 2 608 000 704
-
Carrying case (spare part number 1 605 438 1G2)
-
Grease tube (spare part number 1 615 430 010)
-
Auxiliary handlePart Number: 2 608 000 703
Additional in this variant
-
Quick charger GAL 1880 CVPart Number: 1 600 A00 B8H
-
2 x battery ProCORE18V 5.5AhPart Number: 1 600 A02 149
-
Machine cloth (spare part number: 1 619 200 413)

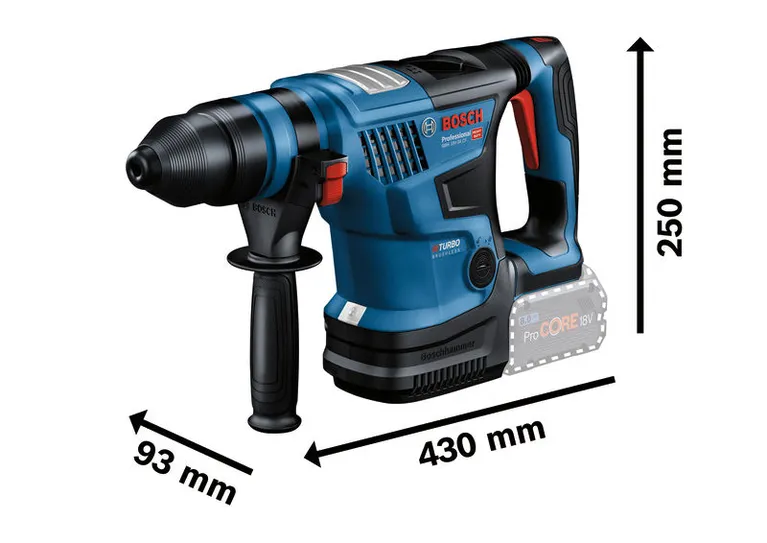

Technical data
The most important data |
|
|---|---|
| Impact energy (according to EPTA 05/2016)* | 5.8 J |
| Impact rate at rated speed* | 0 – 2,900 bpm |
| Rated speed* | 0 – 500 rpm |
| Battery voltage* | 18.0 V |
| Weight excl. battery* | 4.9 kg |
| Tool holder | SDS plus |
| Packaging dimensions (width x length x height)** | 499 x 618 x 147 mm |
* You can find more information about the deviations in the following link:
** May have small deviations because of variations during production process. You can find more information about the deviations in the following link:
GBH 18V-34 CF Professional: Further information
Product Highlights
Perfect for demanding jobs in concrete – Bosch´s GBH 18V-34 CF Professional is the most powerful cordless SDS plus hammer, ideal for tough applications. This powerhouse´s BITURBO Brushless technology with ProCORE18V battery delivers an outstanding performance of 5.8 J, making it the most powerful cordless SDS plus hammer in its range.
Equipment & Application

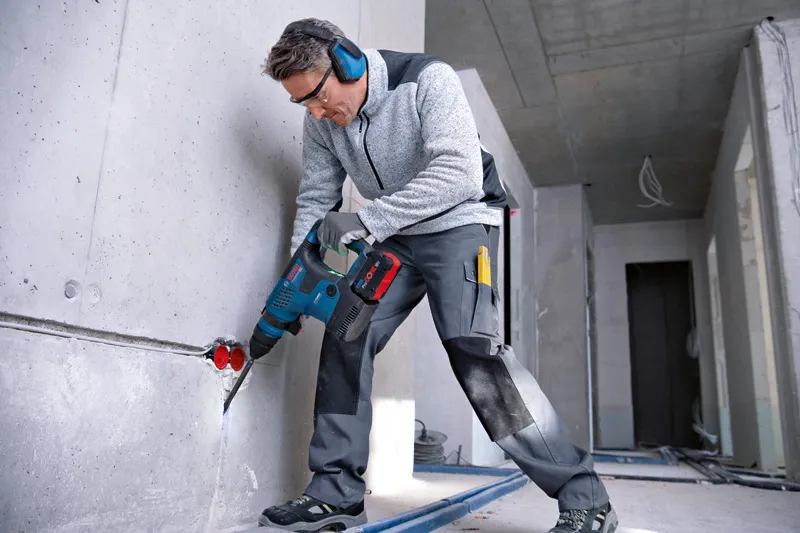

Perfect tool control is ensured by its soft start function for precise chiselling during use and three different working modes (Auto, Favorite, Soft) that provide the right setting for every job.
Additional Information

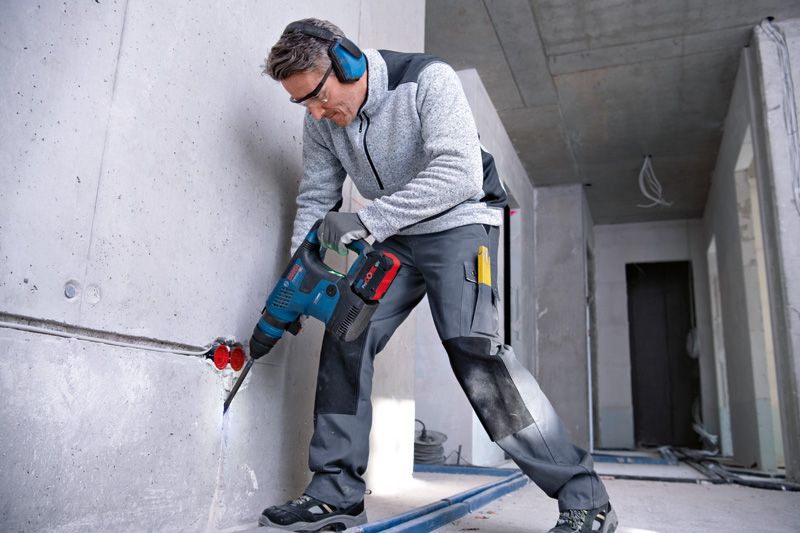

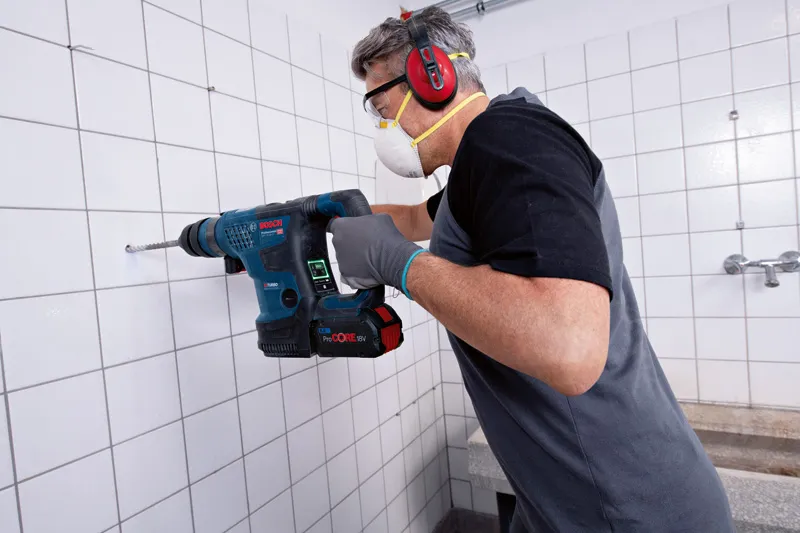

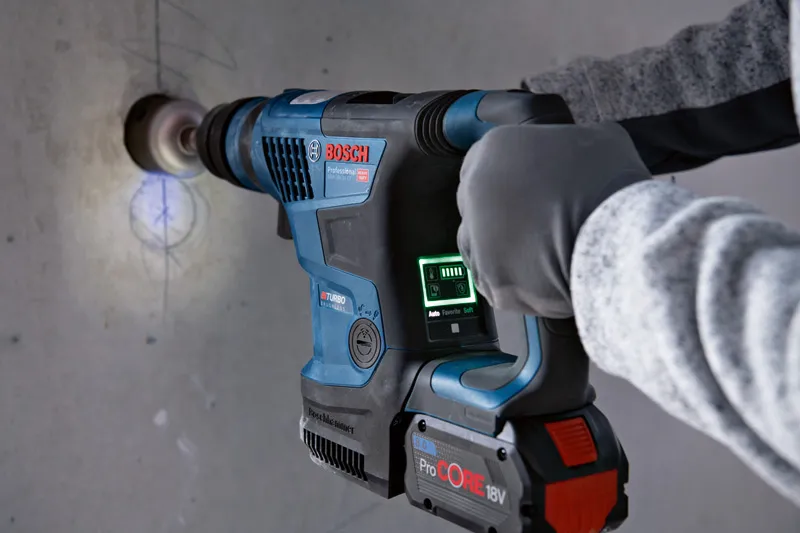

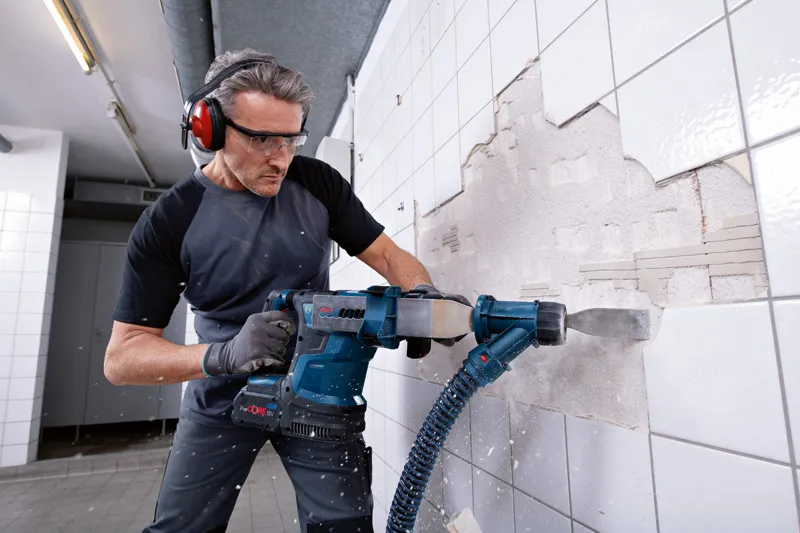

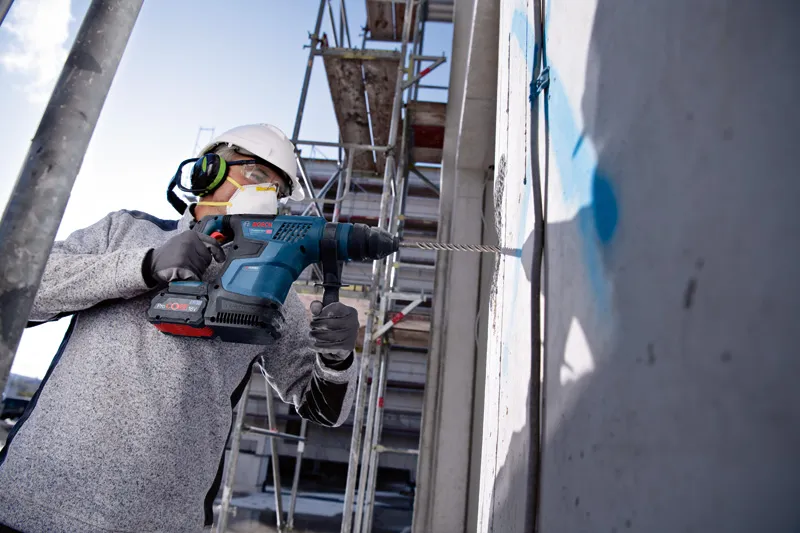

The 18V-34 CF is also the smartest SDS plus hammer, displaying real-time tool status via its user interface and allowing for individual adjustments through Bluetooth connectivity to the Bosch Toolbox app. This tool is ideal for hammer drilling and chiselling in concrete, brick, and stone. It is compatible with all Bosch Professional 18V batteries and chargers (Professional 18V System). For maximum power, use ProCORE18V ≥ 8.0 Ah. Also compatible with AMPShare, the multi-brand battery alliance.
Downloads
Fits to GBH 18V-34 CF Professional
Product Guidance
18V rotary hammers
EPTA Procedure 05: Single Impact Energy
European Power Tool Association (EPTA) Procedure 05 provides a common method for the determination of the single impact energy for rotary hammers and breakers.
It defines a standardized measurement method, which ensures comparability between different tools and member companies.
The parameters defined in this procedure are standardized, whereas the real parameters can vary, e.g. due to different working conditions, bit dimensions, condition of work piece.
