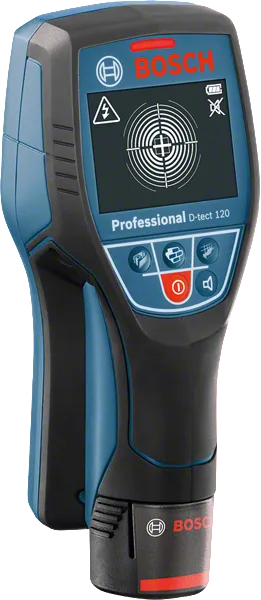

D-tect 120 wallscanner Professional
Detector
Intuitive radar scanner for almost all materials
- Spot measurement provides accurate detection on narrow surfaces
- Centre finder offers visual guidance, to clearly identify the precise location of the object's centre
- Dual Power Source allows for use with a 12 V Li-ion battery or with standard alkaline batteries
Functions & key features
Your Selection

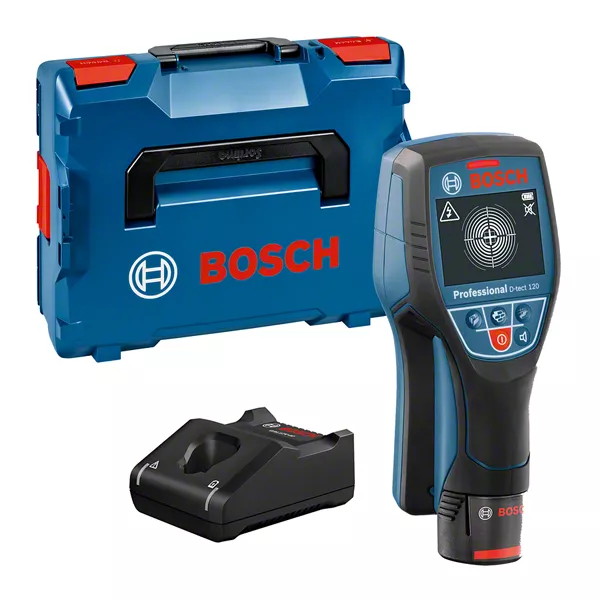

- in L-BOXX 136 with 1 x battery GBA 12V 2.0Ah, Quick-start card
Select a variant
Your Selection
Part Number: 0 601 081 370
available at Bosch Partner
Available from our partnersIncluded in this variant
-
L-BOXX 136Part Number: 1 600 A01 2G0
-
Quick-start card
-
Quick charger GAL 12V-40 ProfessionalPart Number: 1 600 A01 9R4
-
1 x battery GBA 12V 2.0AhPart Number: 1 600 Z00 02X
Your Selection
Part Number: 0 601 081 303
available at Bosch Partner
Available from our partnersIncluded in this variant
-
AA1 alkaline battery adapterPart Number: 1 608 M00 C1B
-
4 x 1.5 V LR6 battery (AA)
-
Pouch
Your Selection
Part Number: 0 601 081 308
available at Bosch Partner
Available from our partnersIncluded in this variant
-
L-BOXX 136Part Number: 1 600 A01 2G0
-
Quick-start card
Technical data
The most important data |
|
|---|---|
| Battery voltage | 12.0 V |
| Bosch Radar Technology | yes |
| Detectable objects | magnetic metals (e.g. iron), non-magnetic metals (e.g. copper), live cables, non-live cables, water-filled plastic pipes, wooden substructures |
| Max. detection depth | 120 mm |
| Detection depth, magnetic metal, max. | 120 mm |
| Detection depth, non-magnetic metal, max. | 120 mm |
| Detection depth, live cables, max. | 60 mm |
| Detection depth, wooden substructures, max. | 38 mm |
| Accuracy* | ± 10 mm* (*plus use-dependent deviation) |
| Views | Spot view |
| Wall types | Concrete, Drywall, Universal |
| Material identification | Live cable |

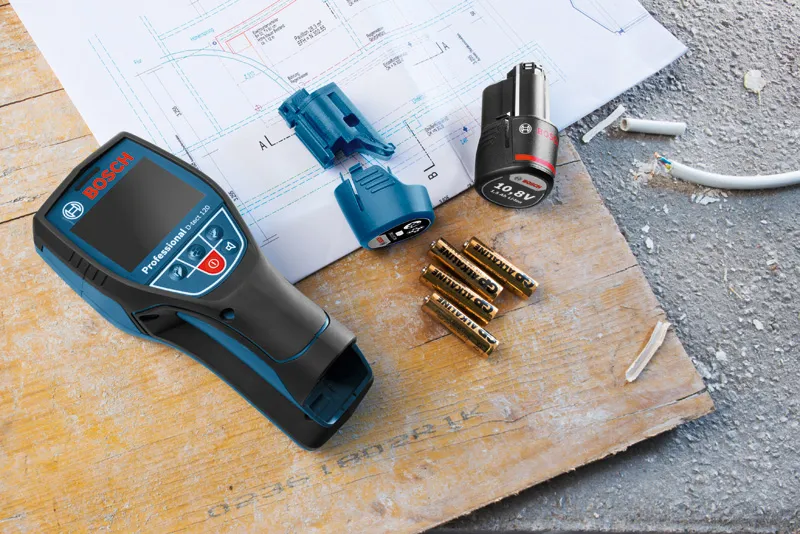

| Power supply | 12 V Li-ion or 4 x 1.5 V LR6 (AA) |
| Automatic deactivation, approx. | 5 minutes |
| Weight, approx.** | 0.5 kg |
| Additional function | Dual Power (10.8 V/4 x 1.5 V LR6 AA); Centre finder with object direction indicator |
* Plus use-dependent deviation. You can find more information about the deviations in the following link:
** You can find more information about the deviations in the following link:
D-tect 120 wallscanner Professional: Further information
Product Highlights
The detector D-tect 120 Professional is an intuitive radar scanner developed for almost all materials. Spot measurement provides accurate detection on narrow surfaces, while the centre finder shows the precise location of an object's centre. Additionally, Dual Power Source technology allows for use with both a 12 V Li-ion battery or standard alkaline batteries.
Equipment & Application

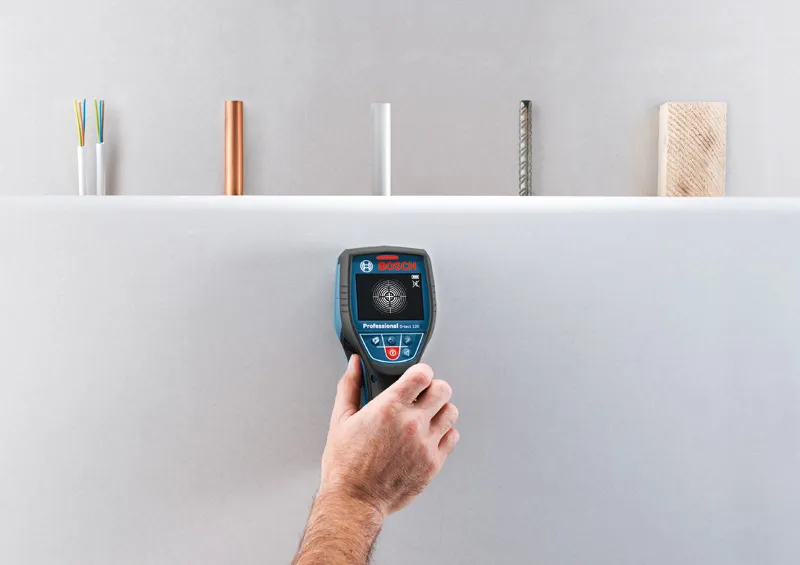

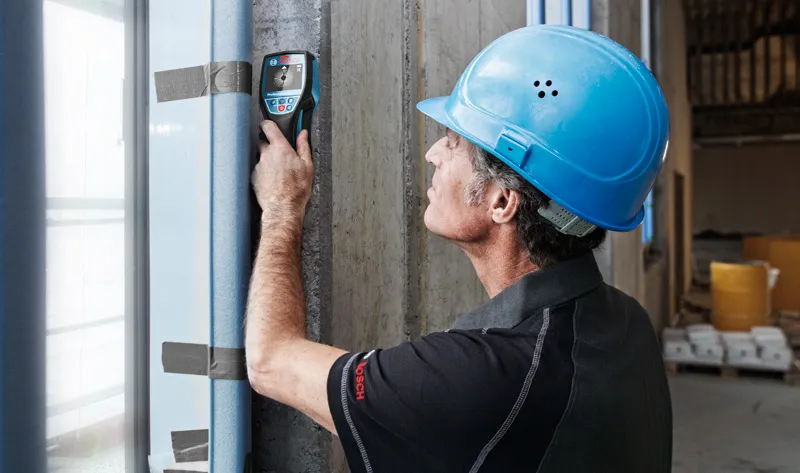

It is suitable for a range of craftsmanship disciplines to locate pipes filled with water and cables as well as to avoid drilling mishaps when performing carpentry, plumbing, electrical, and HVAC applications.
Additional Information
The D-tect 120 Professional offers a simple user interface with three self-explanatory selection buttons for adjusting to various applications and it is able to detect objects at depths of up to 12 cm. Audio and visual signals notify the user when objects are detected in the wall.
