For hand-held circular saws
Outer diameter mm
Number of teeth
Width of cut (b1) mm
Choose a pack size
Outer diameter mm 85
Number of teeth 20
Width of cut (b1) mm 1.1
Choose a pack size 1 Pcs
Your Selection

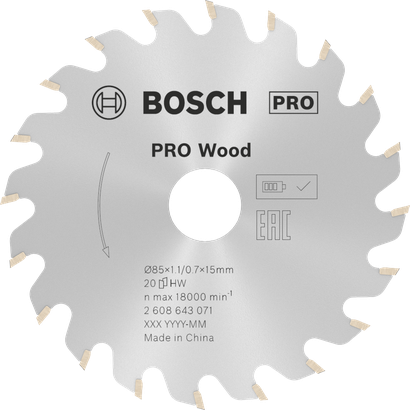

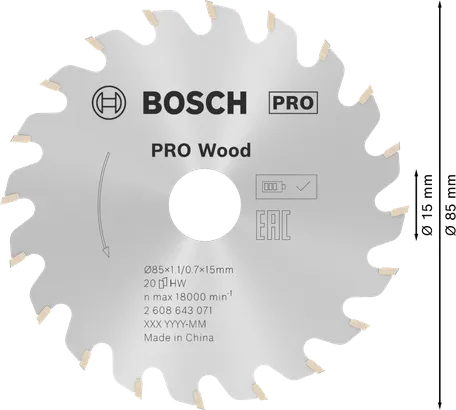

PRO Wood Circular Saw Blade, 85 x 1.1 x 15 mm
(2608643071)
in stock
Estimated delivery time 2-5 working days
Ground and sharpened fine carbide teeth for strength, durability, and precision
Expansion slots reduce heat for a longer lifetime
The PRO Wood Circular Saw Blade is designed to solve your challenges cutting all types of solid wood and wood-based panel materials. We made it strong and well-balanced to ensure you get clean and accurate cuts – for a long time.
The PRO Wood Circular Saw Blade is a great choice for woodworkers working on all types of solid wood and wood-based panel materials. Our wood circular saw blade features precision-ground carbide teeth for strength and durability. Its hardened steel base keeps it stable and ensures it cuts with precision. The expansion slots reduce heat build-ups for long-lasting performance.
Available product options: 71
Part number | Outer diameter mm | Bore size mm | Width of cut (b1) mm / Base bl. thickness (b2) mm | Number of teeth | Pack quantity | Price | ||
---|---|---|---|---|---|---|---|---|
2 608 640 582 | 130 | 20 | 2.4/1.4 | 20 | 1 Pcs | 24.00 GBP | ||
2 608 640 583 | 130 | 20 | 2.4/1.4 | 30 | 1 Pcs | 27.00 GBP | ||
2 608 640 586 | 140 | 20 | 2.4/1.4 | 20 | 1 Pcs | 24.00 GBP | ||
2 608 640 592 | 150 | 20 | 2.4/1.4 | 24 | 1 Pcs | 25.00 GBP | ||
2 608 640 593 | 150 | 20 | 2.4/1.4 | 36 | 1 Pcs | 28.00 GBP | ||
2 608 640 596 | 160 | 20 | 2.6/1.6 | 24 | 1 Pcs | 26.00 GBP | ||
2 608 640 597 | 160 | 20 | 2.6/1.6 | 36 | 1 Pcs | 29.00 GBP | ||
2 608 640 602 | 165 | 30 | 2.6/1.6 | 24 | 1 Pcs | 27.00 GBP | ||
2 608 640 603 | 165 | 30 | 2.6/1.6 | 36 | 1 Pcs | 30.00 GBP | ||
2 608 640 608 | 180 | 30 | 2.6/1.6 | 24 | 1 Pcs | 28.00 GBP | ||
2 608 640 609 | 180 | 30 | 2.6/1.6 | 36 | 1 Pcs | 31.00 GBP | ||
2 608 640 610 | 184 | 30 | 2.6/1.6 | 24 | 1 Pcs | 28.00 GBP | ||
2 608 640 611 | 184 | 30 | 2.6/1.6 | 36 | 1 Pcs | 31.00 GBP | ||
2 608 640 612 | 190 | 20 | 2.6/1.6 | 24 | 1 Pcs | 29.00 GBP | ||
2 608 640 613 | 190 | 20 | 2.6/1.6 | 36 | 1 Pcs | 31.00 GBP | ||
2 608 640 614 | 190 | 20 | 2.6/1.6 | 48 | 1 Pcs | 34.00 GBP | ||
2 608 640 615 | 190 | 30 | 2.6/1.6 | 24 | 1 Pcs | 29.00 GBP | ||
2 608 640 616 | 190 | 30 | 2.6/1.6 | 36 | 1 Pcs | 31.00 GBP | ||
2 608 640 617 | 190 | 30 | 2.6/1.6 | 48 | 1 Pcs | 34.00 GBP | ||
2 608 640 618 | 200 | 30 | 2.8/1.8 | 24 | 1 Pcs | 29.00 GBP | ||
2 608 640 620 | 200 | 30 | 2.8/1.8 | 48 | 1 Pcs | 34.00 GBP | ||
2 608 640 621 | 210 | 30 | 2.8/1.8 | 24 | 1 Pcs | 29.00 GBP | ||
2 608 640 622 | 210 | 30 | 2.8/1.8 | 36 | 1 Pcs | 32.00 GBP | ||
2 608 640 623 | 210 | 30 | 2.8/1.8 | 48 | 1 Pcs | 34.00 GBP | ||
2 608 640 627 | 230 | 30 | 2.8/1.8 | 24 | 1 Pcs | 33.00 GBP | ||
2 608 640 628 | 230 | 30 | 2.8/1.8 | 36 | 1 Pcs | 36.00 GBP | ||
2 608 640 629 | 230 | 30 | 2.8/1.8 | 48 | 1 Pcs | 38.00 GBP | ||
2 608 640 725 | 235 | 30 | 2.8/1.8 | 24 | 1 Pcs | 34.00 GBP | ||
2 608 640 727 | 235 | 30 | 2.8/1.8 | 48 | 1 Pcs | 40.00 GBP | ||
2 608 640 728 | 250 | 30 | 3.2/2.2 | 40 | 1 Pcs | 39.00 GBP | ||
2 608 640 729 | 250 | 30 | 3.2/2.2 | 60 | 1 Pcs | 44.00 GBP | ||
2 608 640 732 | 160 | 20 | 2.6/1.6 | 48 | 1 Pcs | 31.00 GBP | ||
2 608 640 774 | 130 | 16 | 2/1.4 | 9 | 1 Pcs | 21.00 GBP | ||
2 608 640 775 | 130 | 16 | 2/1.4 | 18 | 1 Pcs | 23.00 GBP | ||
2 608 640 781 | 150 | 20 | 2/1.4 | 18 | 1 Pcs | 23.00 GBP | ||
2 608 640 784 | 160 | 16 | 2.2/1.6 | 12 | 1 Pcs | 22.00 GBP | ||
2 608 640 785 | 160 | 16 | 2.2/1.6 | 18 | 1 Pcs | 24.00 GBP | ||
2 608 640 786 | 160 | 20 | 2.2/1.6 | 12 | 1 Pcs | 22.00 GBP | ||
2 608 640 787 | 160 | 20 | 2.2/1.6 | 18 | 1 Pcs | 24.00 GBP | ||
2 608 640 789 | 165 | 30 | 2.2/1.6 | 18 | 1 Pcs | 25.00 GBP | ||
2 608 640 795 | 184 | 16 | 2.2/1.6 | 24 | 1 Pcs | 28.00 GBP | ||
2 608 640 799 | 190 | 20 | 2.4/1.6 | 24 | 1 Pcs | 29.00 GBP | ||
2 608 640 800 | 190 | 30 | 2.4/1.8 | 12 | 1 Pcs | 24.00 GBP | ||
2 608 640 801 | 190 | 30 | 2.4/1.8 | 24 | 1 Pcs | 29.00 GBP | ||
2 608 640 803 | 210 | 30 | 2.4/1.8 | 30 | 1 Pcs | 31.00 GBP | ||
2 608 640 804 | 230 | 30 | 2.4/1.8 | 18 | 1 Pcs | 30.00 GBP | ||
2 608 640 805 | 230 | 30 | 2.4/1.8 | 30 | 1 Pcs | 35.00 GBP | ||
2 608 640 807 | 235 | 30 | 2.4/1.8 | 30 | 1 Pcs | 36.00 GBP | ||
2 608 640 817 | 184 | 16 | 2.6/1.6 | 24 | 1 Pcs | 28.00 GBP | ||
2 608 640 818 | 184 | 16 | 2.6/1.6 | 36 | 1 Pcs | 31.00 GBP | ||
2 608 641 167 | 130 | 20 | 2.4/1.4 | 12 | 1 Pcs | 22.00 GBP | Available from our partners | |
2 608 641 168 | 140 | 20 | 2.4/1.4 | 12 | 1 Pcs | 22.00 GBP | Available from our partners | |
2 608 641 169 | 150 | 20 | 2.4/1.4 | 12 | 1 Pcs | 22.00 GBP | ||
2 608 641 170 | 160 | 20 | 1.8/1.2 | 12 | 1 Pcs | 22.00 GBP | ||
2 608 641 171 | 160 | 20 | 1.8/1.2 | 24 | 1 Pcs | 26.00 GBP | ||
2 608 641 172 | 160 | 20 | 1.8/1.2 | 48 | 1 Pcs | 31.00 GBP | ||
2 608 641 173 | 160 | 20 | 2.6/1.6 | 12 | 1 Pcs | 22.00 GBP | ||
2 608 641 175 | 165 | 30 | 2.6/1.6 | 48 | 1 Pcs | 32.00 GBP | ||
2 608 641 181 | 184 | 16 | 2.6/1.6 | 48 | 1 Pcs | 33.00 GBP | ||
2 608 641 184 | 190 | 30 | 2/1.3 | 16 | 1 Pcs | 26.00 GBP | ||
2 608 641 185 | 190 | 30 | 2/1.3 | 24 | 1 Pcs | 29.00 GBP | ||
2 608 641 186 | 190 | 30 | 2/1.3 | 48 | 1 Pcs | 34.00 GBP | ||
2 608 641 187 | 190 | 30 | 2.6/1.6 | 12 | 1 Pcs | 24.00 GBP | ||
2 608 641 188 | 190 | 30 | 2.6/1.6 | 60 | 1 Pcs | 36.00 GBP | ||
2 608 641 190 | 210 | 30 | 2.8/1.8 | 60 | 1 Pcs | 36.00 GBP | ||
2 608 641 192 | 235 | 30 | 2.8/1.8 | 60 | 1 Pcs | 42.00 GBP | ||
2 608 642 600 | 165 | 20 | 1.7/1.2 | 12 | 1 Pcs | 23.00 GBP | ||
2 608 642 601 | 165 | 20 | 1.7/1.2 | 24 | 1 Pcs | 27.00 GBP | ||
2 608 642 602 | 165 | 20 | 1.7/1.2 | 36 | 1 Pcs | 30.00 GBP | ||
2 608 643 071 | 85 | 15 | 1.1/0.7 | 20 | 1 Pcs | 19.00 GBP | ||
2 608 901 595 | 85 | 15 | 1.1/0.7 | 20 | 1 Pcs | Find a local dealer |
out of products
Part number 2608640582 | |
---|---|
Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
Pack quantity | 1 Pcs |
Details | |
---|---|
Outer diameter mm | 130 |
Bore size mm | 20 |
Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.4/1.4 |
Number of teeth | 20 |
Tooth shape | ATB |
Max. rotation speed (RPM) | 11500 |
Cutting result | Coarse cut |
Hook angle ° α | 15 |
Relief angle ° β | 15 |
Bore with reduction ring mm | 16 |
in stock
Part number 2608640583 | |
---|---|
Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
Pack quantity | 1 Pcs |
Details | |
---|---|
Outer diameter mm | 130 |
Bore size mm | 20 |
Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.4/1.4 |
Number of teeth | 30 |
Tooth shape | ATB |
Max. rotation speed (RPM) | 11500 |
Cutting result | Fine Cut |
Hook angle ° α | 15 |
Relief angle ° β | 15 |
Bore with reduction ring mm | 16 |
in stock
Part number 2608640586 | |
---|---|
Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
Pack quantity | 1 Pcs |
Details | |
---|---|
Outer diameter mm | 140 |
Bore size mm | 20 |
Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.4/1.4 |
Number of teeth | 20 |
Tooth shape | ATB |
Max. rotation speed (RPM) | 10500 |
Cutting result | Coarse cut |
Hook angle ° α | 15 |
Relief angle ° β | 15 |
Bore with reduction ring mm | 12.75 |
in stock
Part number 2608640592 | |
---|---|
Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
Pack quantity | 1 Pcs |
Details | |
---|---|
Outer diameter mm | 150 |
Bore size mm | 20 |
Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.4/1.4 |
Number of teeth | 24 |
Tooth shape | ATB |
Max. rotation speed (RPM) | 10000 |
Cutting result | Coarse cut |
Hook angle ° α | 15 |
Relief angle ° β | 15 |
Bore with reduction ring mm | 16 |
Pin hole/Pitch circle diameter | 7/42 |
in stock
Part number 2608640593 | |
---|---|
Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
Pack quantity | 1 Pcs |
Details | |
---|---|
Outer diameter mm | 150 |
Bore size mm | 20 |
Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.4/1.4 |
Number of teeth | 36 |
Tooth shape | ATB |
Max. rotation speed (RPM) | 10000 |
Cutting result | Fine Cut |
Hook angle ° α | 17 |
Relief angle ° β | 13 |
Bore with reduction ring mm | 16 |
Pin hole/Pitch circle diameter | 7/42 |
in stock
Part number 2608640596 | |
---|---|
Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
Pack quantity | 1 Pcs |
Details | |
---|---|
Outer diameter mm | 160 |
Bore size mm | 20 |
Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.6/1.6 |
Number of teeth | 24 |
Tooth shape | ATB |
Max. rotation speed (RPM) | 9500 |
Cutting result | Coarse cut |
Hook angle ° α | 15 |
Relief angle ° β | 15 |
Bore with reduction ring mm | 16 |
Pin hole/Pitch circle diameter | 6/32 |
in stock
Part number 2608640597 | |
---|---|
Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
Pack quantity | 1 Pcs |
Details | |
---|---|
Outer diameter mm | 160 |
Bore size mm | 20 |
Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.6/1.6 |
Number of teeth | 36 |
Tooth shape | ATB |
Max. rotation speed (RPM) | 9500 |
Cutting result | Fine Cut |
Hook angle ° α | 15 |
Relief angle ° β | 15 |
Bore with reduction ring mm | 16 |
Pin hole/Pitch circle diameter | 6/32 |
in stock
Part number 2608640602 | |
---|---|
Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
Pack quantity | 1 Pcs |
Details | |
---|---|
Outer diameter mm | 165 |
Bore size mm | 30 |
Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.6/1.6 |
Number of teeth | 24 |
Tooth shape | ATB |
Max. rotation speed (RPM) | 9500 |
Cutting result | Very coarse cut |
Hook angle ° α | 15 |
Relief angle ° β | 15 |
in stock
Part number 2608640603 | |
---|---|
Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
Pack quantity | 1 Pcs |
Details | |
---|---|
Outer diameter mm | 165 |
Bore size mm | 30 |
Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.6/1.6 |
Number of teeth | 36 |
Tooth shape | ATB |
Max. rotation speed (RPM) | 9500 |
Cutting result | Fine Cut |
Hook angle ° α | 15 |
Relief angle ° β | 15 |
in stock
Part number 2608640608 | |
---|---|
Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
Pack quantity | 1 Pcs |
Details | |
---|---|
Outer diameter mm | 180 |
Bore size mm | 30 |
Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.6/1.6 |
Number of teeth | 24 |
Tooth shape | ATB |
Max. rotation speed (RPM) | 8500 |
Cutting result | Coarse cut |
Hook angle ° α | 15 |
Relief angle ° β | 15 |
Bore with reduction ring mm | 20 |
in stock
Part number 2608640609 | |
---|---|
Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
Pack quantity | 1 Pcs |
Details | |
---|---|
Outer diameter mm | 180 |
Bore size mm | 30 |
Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.6/1.6 |
Number of teeth | 36 |
Tooth shape | ATB |
Max. rotation speed (RPM) | 8500 |
Cutting result | Fine Cut |
Hook angle ° α | 15 |
Relief angle ° β | 15 |
Bore with reduction ring mm | 20 |
in stock
Part number 2608640610 | |
---|---|
Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
Pack quantity | 1 Pcs |
Details | |
---|---|
Outer diameter mm | 184 |
Bore size mm | 30 |
Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.6/1.6 |
Number of teeth | 24 |
Tooth shape | ATB |
Max. rotation speed (RPM) | 8000 |
Cutting result | Coarse cut |
Hook angle ° α | 17 |
Relief angle ° β | 13 |
in stock
Part number 2608640611 | |
---|---|
Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
Pack quantity | 1 Pcs |
Details | |
---|---|
Outer diameter mm | 184 |
Bore size mm | 30 |
Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.6/1.6 |
Number of teeth | 36 |
Tooth shape | ATB |
Max. rotation speed (RPM) | 8000 |
Cutting result | Fine Cut |
Hook angle ° α | 15 |
Relief angle ° β | 15 |
in stock
Part number 2608640612 | |
---|---|
Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
Pack quantity | 1 Pcs |
Details | |
---|---|
Outer diameter mm | 190 |
Bore size mm | 20 |
Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.6/1.6 |
Number of teeth | 24 |
Tooth shape | ATB |
Max. rotation speed (RPM) | 8000 |
Cutting result | Coarse cut |
Hook angle ° α | 15 |
Relief angle ° β | 15 |
Bore with reduction ring mm | 16 |
Outer diameter inch | 7 1/2 |
in stock
Part number 2608640613 | |
---|---|
Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
Pack quantity | 1 Pcs |
Details | |
---|---|
Outer diameter mm | 190 |
Bore size mm | 20 |
Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.6/1.6 |
Number of teeth | 36 |
Tooth shape | ATB |
Max. rotation speed (RPM) | 8000 |
Cutting result | Fine Cut |
Hook angle ° α | 15 |
Relief angle ° β | 15 |
Bore with reduction ring mm | 16 |
in stock
Part number 2608640614 | |
---|---|
Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
Pack quantity | 1 Pcs |
Details | |
---|---|
Outer diameter mm | 190 |
Bore size mm | 20 |
Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.6/1.6 |
Number of teeth | 48 |
Tooth shape | ATB |
Max. rotation speed (RPM) | 8000 |
Cutting result | Fine Cut |
Hook angle ° α | 15 |
Relief angle ° β | 15 |
Bore with reduction ring mm | 16 |
Outer diameter inch | 7 1/2 |
in stock
Part number 2608640615 | |
---|---|
Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
Pack quantity | 1 Pcs |
Details | |
---|---|
Outer diameter mm | 190 |
Bore size mm | 30 |
Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.6/1.6 |
Number of teeth | 24 |
Tooth shape | ATB |
Max. rotation speed (RPM) | 8000 |
Cutting result | Coarse cut |
Hook angle ° α | 15 |
Relief angle ° β | 15 |
Pin hole/Pitch circle diameter | 7/42 |
in stock
Part number 2608640616 | |
---|---|
Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
Pack quantity | 1 Pcs |
Details | |
---|---|
Outer diameter mm | 190 |
Bore size mm | 30 |
Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.6/1.6 |
Number of teeth | 36 |
Tooth shape | ATB |
Max. rotation speed (RPM) | 8000 |
Cutting result | Fine Cut |
Hook angle ° α | 15 |
Relief angle ° β | 15 |
Pin hole/Pitch circle diameter | 7/42 |
Outer diameter inch | 7 1/2 |
in stock
Part number 2608640617 | |
---|---|
Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
Pack quantity | 1 Pcs |
Details | |
---|---|
Outer diameter mm | 190 |
Bore size mm | 30 |
Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.6/1.6 |
Number of teeth | 48 |
Tooth shape | ATB |
Max. rotation speed (RPM) | 8000 |
Cutting result | Fine Cut |
Hook angle ° α | 15 |
Relief angle ° β | 15 |
Pin hole/Pitch circle diameter | 7/42 |
Outer diameter inch | 7 1/2 |
in stock
Part number 2608640618 | |
---|---|
Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
Pack quantity | 1 Pcs |
Details | |
---|---|
Outer diameter mm | 200 |
Bore size mm | 30 |
Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.8/1.8 |
Number of teeth | 24 |
Tooth shape | ATB |
Max. rotation speed (RPM) | 7500 |
Cutting result | Coarse cut |
Hook angle ° α | 17 |
Relief angle ° β | 10 |
Pin hole/Pitch circle diameter | 7/42 |
in stock
Part number 2608640620 | |
---|---|
Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
Pack quantity | 1 Pcs |
Details | |
---|---|
Outer diameter mm | 200 |
Bore size mm | 30 |
Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.8/1.8 |
Number of teeth | 48 |
Tooth shape | ATB |
Max. rotation speed (RPM) | 7500 |
Cutting result | Fine Cut |
Hook angle ° α | 15 |
Relief angle ° β | 15 |
Pin hole/Pitch circle diameter | 7/42 |
in stock
Part number 2608640621 | |
---|---|
Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
Pack quantity | 1 Pcs |
Details | |
---|---|
Outer diameter mm | 210 |
Bore size mm | 30 |
Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.8/1.8 |
Number of teeth | 24 |
Tooth shape | ATB |
Max. rotation speed (RPM) | 7500 |
Cutting result | Coarse cut |
Hook angle ° α | 15 |
Relief angle ° β | 15 |
in stock
Part number 2608640622 | |
---|---|
Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
Pack quantity | 1 Pcs |
Details | |
---|---|
Outer diameter mm | 210 |
Bore size mm | 30 |
Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.8/1.8 |
Number of teeth | 36 |
Tooth shape | ATB |
Max. rotation speed (RPM) | 7000 |
Cutting result | Fine Cut |
Hook angle ° α | 15 |
Relief angle ° β | 15 |
in stock
Part number 2608640623 | |
---|---|
Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
Pack quantity | 1 Pcs |
Details | |
---|---|
Outer diameter mm | 210 |
Bore size mm | 30 |
Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.8/1.8 |
Number of teeth | 48 |
Tooth shape | ATB |
Max. rotation speed (RPM) | 7500 |
Cutting result | Fine Cut |
Hook angle ° α | 15 |
Relief angle ° β | 15 |
in stock
Part number 2608640627 | |
---|---|
Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
Pack quantity | 1 Pcs |
Details | |
---|---|
Outer diameter mm | 230 |
Bore size mm | 30 |
Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.8/1.8 |
Number of teeth | 24 |
Tooth shape | ATB |
Max. rotation speed (RPM) | 6500 |
Cutting result | Coarse cut |
Hook angle ° α | 15 |
Relief angle ° β | 15 |
Pin hole/Pitch circle diameter | 7/42 |
in stock
Part number 2608640628 | |
---|---|
Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
Pack quantity | 1 Pcs |
Details | |
---|---|
Outer diameter mm | 230 |
Bore size mm | 30 |
Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.8/1.8 |
Number of teeth | 36 |
Tooth shape | ATB |
Max. rotation speed (RPM) | 6500 |
Cutting result | Fine Cut |
Hook angle ° α | 15 |
Relief angle ° β | 15 |
Pin hole/Pitch circle diameter | 7/42 |
in stock
Part number 2608640629 | |
---|---|
Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
Pack quantity | 1 Pcs |
Details | |
---|---|
Outer diameter mm | 230 |
Bore size mm | 30 |
Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.8/1.8 |
Number of teeth | 48 |
Tooth shape | ATB |
Max. rotation speed (RPM) | 6500 |
Cutting result | Fine Cut |
Hook angle ° α | 15 |
Relief angle ° β | 15 |
Pin hole/Pitch circle diameter | 7/42 |
in stock
Part number 2608640725 | |
---|---|
Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
Pack quantity | 1 Pcs |
Details | |
---|---|
Outer diameter mm | 235 |
Bore size mm | 30 |
Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.8/1.8 |
Number of teeth | 24 |
Tooth shape | ATB |
Max. rotation speed (RPM) | 6500 |
Cutting result | Coarse cut |
Hook angle ° α | 15 |
Relief angle ° β | 15 |
Bore with reduction ring mm | 25 |
in stock
Part number 2608640727 | |
---|---|
Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
Pack quantity | 1 Pcs |
Details | |
---|---|
Outer diameter mm | 235 |
Bore size mm | 30 |
Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.8/1.8 |
Number of teeth | 48 |
Tooth shape | ATB |
Max. rotation speed (RPM) | 6500 |
Cutting result | Fine Cut |
Hook angle ° α | 15 |
Relief angle ° β | 15 |
Bore with reduction ring mm | 25 |
in stock
Part number 2608640728 | |
---|---|
Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
Pack quantity | 1 Pcs |
Details | |
---|---|
Outer diameter mm | 250 |
Bore size mm | 30 |
Width of cut (b1) mm / Base bl. thickness (b2) mm | 3.2/2.2 |
Number of teeth | 40 |
Tooth shape | ATB |
Max. rotation speed (RPM) | 6000 |
Cutting result | Fine Cut |
Hook angle ° α | 15 |
Relief angle ° β | 15 |
Pin hole/Pitch circle diameter | 7/42 |
in stock
Part number 2608640729 | |
---|---|
Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
Pack quantity | 1 Pcs |
Details | |
---|---|
Outer diameter mm | 250 |
Bore size mm | 30 |
Width of cut (b1) mm / Base bl. thickness (b2) mm | 3.2/2.2 |
Number of teeth | 60 |
Tooth shape | ATB |
Max. rotation speed (RPM) | 6000 |
Cutting result | Fine Cut |
Hook angle ° α | 15 |
Relief angle ° β | 15 |
Pin hole/Pitch circle diameter | 7/42 |
in stock
Part number 2608640732 | |
---|---|
Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
Pack quantity | 1 Pcs |
Details | |
---|---|
Outer diameter mm | 160 |
Bore size mm | 20 |
Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.6/1.6 |
Number of teeth | 48 |
Tooth shape | ATB |
Max. rotation speed (RPM) | 9500 |
Cutting result | Fine Cut |
Hook angle ° α | 15 |
Relief angle ° β | 15 |
Bore with reduction ring mm | 16 |
Pin hole/Pitch circle diameter | 6/32 |
in stock
Part number 2608640774 | |
---|---|
Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
Pack quantity | 1 Pcs |
Details | |
---|---|
Outer diameter mm | 130 |
Bore size mm | 16 |
Width of cut (b1) mm / Base bl. thickness (b2) mm | 2/1.4 |
Number of teeth | 9 |
Tooth shape | ATB/FT |
Max. rotation speed (RPM) | 11500 |
Cutting result | Very coarse cut |
Hook angle ° α | 16 |
Relief angle ° β | 15 |
in stock
Part number 2608640775 | |
---|---|
Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
Pack quantity | 1 Pcs |
Details | |
---|---|
Outer diameter mm | 130 |
Bore size mm | 16 |
Width of cut (b1) mm / Base bl. thickness (b2) mm | 2/1.4 |
Number of teeth | 18 |
Tooth shape | ATB/FT |
Max. rotation speed (RPM) | 11500 |
Cutting result | Coarse cut |
Hook angle ° α | 16 |
Relief angle ° β | 15 |
in stock
Part number 2608640781 | |
---|---|
Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
Pack quantity | 1 Pcs |
Details | |
---|---|
Outer diameter mm | 150 |
Bore size mm | 20 |
Width of cut (b1) mm / Base bl. thickness (b2) mm | 2/1.4 |
Number of teeth | 18 |
Tooth shape | ATB/FT |
Max. rotation speed (RPM) | 10000 |
Cutting result | Coarse cut |
Hook angle ° α | 16 |
Relief angle ° β | 15 |
in stock
Part number 2608640784 | |
---|---|
Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
Pack quantity | 1 Pcs |
Details | |
---|---|
Outer diameter mm | 160 |
Bore size mm | 16 |
Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.2/1.6 |
Number of teeth | 12 |
Tooth shape | ATB/FT |
Max. rotation speed (RPM) | 9500 |
Cutting result | Very coarse cut |
Hook angle ° α | 16 |
Relief angle ° β | 15 |
in stock
Part number 2608640785 | |
---|---|
Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
Pack quantity | 1 Pcs |
Details | |
---|---|
Outer diameter mm | 160 |
Bore size mm | 16 |
Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.2/1.6 |
Number of teeth | 18 |
Tooth shape | ATB/FT |
Max. rotation speed (RPM) | 9500 |
Cutting result | Coarse cut |
Hook angle ° α | 16 |
Relief angle ° β | 15 |
in stock
Part number 2608640786 | |
---|---|
Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
Pack quantity | 1 Pcs |
Details | |
---|---|
Outer diameter mm | 160 |
Bore size mm | 20 |
Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.2/1.6 |
Number of teeth | 12 |
Tooth shape | ATB/FT |
Max. rotation speed (RPM) | 9500 |
Cutting result | Very coarse cut |
Hook angle ° α | 16 |
Relief angle ° β | 15 |
in stock
Part number 2608640787 | |
---|---|
Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
Pack quantity | 1 Pcs |
Details | |
---|---|
Outer diameter mm | 160 |
Bore size mm | 20 |
Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.2/1.6 |
Number of teeth | 18 |
Tooth shape | ATB/FT |
Max. rotation speed (RPM) | 9500 |
Cutting result | Coarse cut |
Hook angle ° α | 16 |
Relief angle ° β | 15 |
in stock
Part number 2608640789 | |
---|---|
Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
Pack quantity | 1 Pcs |
Details | |
---|---|
Outer diameter mm | 165 |
Bore size mm | 30 |
Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.2/1.6 |
Number of teeth | 18 |
Tooth shape | ATB/FT |
Max. rotation speed (RPM) | 9000 |
Cutting result | Coarse cut |
Hook angle ° α | 16 |
Relief angle ° β | 15 |
in stock
Part number 2608640795 | |
---|---|
Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
Pack quantity | 1 Pcs |
Details | |
---|---|
Outer diameter mm | 184 |
Bore size mm | 16 |
Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.2/1.6 |
Number of teeth | 24 |
Tooth shape | ATB/FT |
Max. rotation speed (RPM) | 8000 |
Cutting result | Coarse cut |
Hook angle ° α | 16 |
Relief angle ° β | 15 |
in stock
Part number 2608640799 | |
---|---|
Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
Pack quantity | 1 Pcs |
Details | |
---|---|
Outer diameter mm | 190 |
Bore size mm | 20 |
Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.4/1.6 |
Number of teeth | 24 |
Tooth shape | ATB/FT |
Max. rotation speed (RPM) | 8000 |
Cutting result | Coarse cut |
Hook angle ° α | 16 |
Relief angle ° β | 15 |
Bore with reduction ring mm | 16 |
in stock
Part number 2608640800 | |
---|---|
Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
Pack quantity | 1 Pcs |
Details | |
---|---|
Outer diameter mm | 190 |
Bore size mm | 30 |
Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.4/1.8 |
Number of teeth | 12 |
Tooth shape | ATB/FT |
Max. rotation speed (RPM) | 8000 |
Cutting result | Very coarse cut |
Hook angle ° α | 17 |
Relief angle ° β | 15 |
in stock
Part number 2608640801 | |
---|---|
Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
Pack quantity | 1 Pcs |
Details | |
---|---|
Outer diameter mm | 190 |
Bore size mm | 30 |
Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.4/1.8 |
Number of teeth | 24 |
Tooth shape | ATB/FT |
Max. rotation speed (RPM) | 8000 |
Cutting result | Coarse cut |
Hook angle ° α | 16 |
Relief angle ° β | 15 |
in stock
Part number 2608640803 | |
---|---|
Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
Pack quantity | 1 Pcs |
Details | |
---|---|
Outer diameter mm | 210 |
Bore size mm | 30 |
Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.4/1.8 |
Number of teeth | 30 |
Tooth shape | ATB/FT |
Max. rotation speed (RPM) | 7000 |
Cutting result | Coarse cut |
Hook angle ° α | 16 |
Relief angle ° β | 15 |
in stock
Part number 2608640804 | |
---|---|
Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
Pack quantity | 1 Pcs |
Details | |
---|---|
Outer diameter mm | 230 |
Bore size mm | 30 |
Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.4/1.8 |
Number of teeth | 18 |
Tooth shape | ATB/FT |
Max. rotation speed (RPM) | 6500 |
Cutting result | Very coarse cut |
Hook angle ° α | 16 |
Relief angle ° β | 15 |
in stock
Part number 2608640805 | |
---|---|
Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
Pack quantity | 1 Pcs |
Details | |
---|---|
Outer diameter mm | 230 |
Bore size mm | 30 |
Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.4/1.8 |
Number of teeth | 30 |
Tooth shape | ATB/FT |
Max. rotation speed (RPM) | 6500 |
Cutting result | Coarse cut |
Hook angle ° α | 16 |
Relief angle ° β | 15 |
in stock
Part number 2608640807 | |
---|---|
Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
Pack quantity | 1 Pcs |
Details | |
---|---|
Outer diameter mm | 235 |
Bore size mm | 30 |
Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.4/1.8 |
Number of teeth | 30 |
Tooth shape | ATB/FT |
Max. rotation speed (RPM) | 6000 |
Cutting result | Coarse cut |
Hook angle ° α | 16 |
Relief angle ° β | 15 |
Bore with reduction ring mm | 25 |
in stock
Part number 2608640817 | |
---|---|
Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
Pack quantity | 1 Pcs |
Details | |
---|---|
Outer diameter mm | 184 |
Bore size mm | 16 |
Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.6/1.6 |
Number of teeth | 24 |
Tooth shape | ATB |
Max. rotation speed (RPM) | 8000 |
Cutting result | Coarse cut |
Hook angle ° α | 17 |
Relief angle ° β | 13 |
in stock
Part number 2608640818 | |
---|---|
Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
Pack quantity | 1 Pcs |
Details | |
---|---|
Outer diameter mm | 184 |
Bore size mm | 16 |
Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.6/1.6 |
Number of teeth | 36 |
Tooth shape | ATB |
Max. rotation speed (RPM) | 8000 |
Cutting result | Fine Cut |
Hook angle ° α | 15 |
Relief angle ° β | 15 |
in stock
Part number 2608641167 | |
---|---|
Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
Pack quantity | 1 Pcs |
Details | |
---|---|
Outer diameter mm | 130 |
Bore size mm | 20 |
Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.4/1.4 |
Number of teeth | 12 |
Tooth shape | ATB |
Max. rotation speed (RPM) | 11500 |
Cutting result | Very coarse cut |
Hook angle ° α | 15 |
Relief angle ° β | 15 |
Bore with reduction ring mm | 16 |
Part number 2608641168 | |
---|---|
Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
Pack quantity | 1 Pcs |
Details | |
---|---|
Outer diameter mm | 140 |
Bore size mm | 20 |
Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.4/1.4 |
Number of teeth | 12 |
Tooth shape | ATB |
Max. rotation speed (RPM) | 10500 |
Cutting result | Very coarse cut |
Hook angle ° α | 15 |
Relief angle ° β | 15 |
Bore with reduction ring mm | 12.75 |
Part number 2608641169 | |
---|---|
Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
Pack quantity | 1 Pcs |
Details | |
---|---|
Outer diameter mm | 150 |
Bore size mm | 20 |
Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.4/1.4 |
Number of teeth | 12 |
Tooth shape | ATB |
Max. rotation speed (RPM) | 10000 |
Cutting result | Very coarse cut |
Hook angle ° α | 15 |
Relief angle ° β | 15 |
Bore with reduction ring mm | 16 |
Pin hole/Pitch circle diameter | 7/42 |
in stock
Part number 2608641170 | |
---|---|
Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
Pack quantity | 1 Pcs |
Details | |
---|---|
Outer diameter mm | 160 |
Bore size mm | 20 |
Width of cut (b1) mm / Base bl. thickness (b2) mm | 1.8/1.2 |
Number of teeth | 12 |
Tooth shape | ATB |
Max. rotation speed (RPM) | 9500 |
Cutting result | Very coarse cut |
Hook angle ° α | 15 |
Relief angle ° β | 15 |
Bore with reduction ring mm | 16 |
Pin hole/Pitch circle diameter | 6/32 |
in stock
Part number 2608641171 | |
---|---|
Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
Pack quantity | 1 Pcs |
Details | |
---|---|
Outer diameter mm | 160 |
Bore size mm | 20 |
Width of cut (b1) mm / Base bl. thickness (b2) mm | 1.8/1.2 |
Number of teeth | 24 |
Tooth shape | ATB |
Max. rotation speed (RPM) | 9500 |
Cutting result | Coarse cut |
Hook angle ° α | 15 |
Relief angle ° β | 15 |
Bore with reduction ring mm | 16 |
Pin hole/Pitch circle diameter | 6/32 |
in stock
Part number 2608641172 | |
---|---|
Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
Pack quantity | 1 Pcs |
Details | |
---|---|
Outer diameter mm | 160 |
Bore size mm | 20 |
Width of cut (b1) mm / Base bl. thickness (b2) mm | 1.8/1.2 |
Number of teeth | 48 |
Tooth shape | ATB |
Max. rotation speed (RPM) | 9500 |
Cutting result | Fine Cut |
Hook angle ° α | 15 |
Relief angle ° β | 15 |
Bore with reduction ring mm | 16 |
Pin hole/Pitch circle diameter | 6/32 |
in stock
Part number 2608641173 | |
---|---|
Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
Pack quantity | 1 Pcs |
Details | |
---|---|
Outer diameter mm | 160 |
Bore size mm | 20 |
Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.6/1.6 |
Number of teeth | 12 |
Tooth shape | ATB |
Max. rotation speed (RPM) | 9500 |
Cutting result | Very coarse cut |
Hook angle ° α | 15 |
Relief angle ° β | 15 |
Bore with reduction ring mm | 16 |
Pin hole/Pitch circle diameter | 6/32 |
in stock
Part number 2608641175 | |
---|---|
Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
Pack quantity | 1 Pcs |
Details | |
---|---|
Outer diameter mm | 165 |
Bore size mm | 30 |
Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.6/1.6 |
Number of teeth | 48 |
Tooth shape | ATB |
Max. rotation speed (RPM) | 9500 |
Cutting result | Fine Cut |
Hook angle ° α | 15 |
Relief angle ° β | 15 |
in stock
Part number 2608641181 | |
---|---|
Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
Pack quantity | 1 Pcs |
Details | |
---|---|
Outer diameter mm | 184 |
Bore size mm | 16 |
Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.6/1.6 |
Number of teeth | 48 |
Tooth shape | ATB |
Max. rotation speed (RPM) | 8000 |
Cutting result | Fine Cut |
Hook angle ° α | 15 |
Relief angle ° β | 15 |
in stock
Part number 2608641184 | |
---|---|
Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
Pack quantity | 1 Pcs |
Details | |
---|---|
Outer diameter mm | 190 |
Bore size mm | 30 |
Width of cut (b1) mm / Base bl. thickness (b2) mm | 2/1.3 |
Number of teeth | 16 |
Tooth shape | ATB |
Max. rotation speed (RPM) | 8000 |
Cutting result | Very coarse cut |
Hook angle ° α | 15 |
Relief angle ° β | 15 |
Pin hole/Pitch circle diameter | 7/42 |
in stock
Part number 2608641185 | |
---|---|
Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
Pack quantity | 1 Pcs |
Details | |
---|---|
Outer diameter mm | 190 |
Bore size mm | 30 |
Width of cut (b1) mm / Base bl. thickness (b2) mm | 2/1.3 |
Number of teeth | 24 |
Tooth shape | ATB |
Max. rotation speed (RPM) | 8000 |
Cutting result | Coarse cut |
Hook angle ° α | 15 |
Relief angle ° β | 15 |
Pin hole/Pitch circle diameter | 7/42 |
Outer diameter inch | 7 1/2 |
in stock
Part number 2608641186 | |
---|---|
Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
Pack quantity | 1 Pcs |
Details | |
---|---|
Outer diameter mm | 190 |
Bore size mm | 30 |
Width of cut (b1) mm / Base bl. thickness (b2) mm | 2/1.3 |
Number of teeth | 48 |
Tooth shape | ATB |
Max. rotation speed (RPM) | 8000 |
Cutting result | Fine Cut |
Hook angle ° α | 15 |
Relief angle ° β | 15 |
Pin hole/Pitch circle diameter | 7/42 |
Outer diameter inch | 7 1/2 |
in stock
Part number 2608641187 | |
---|---|
Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
Pack quantity | 1 Pcs |
Details | |
---|---|
Outer diameter mm | 190 |
Bore size mm | 30 |
Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.6/1.6 |
Number of teeth | 12 |
Tooth shape | ATB |
Max. rotation speed (RPM) | 8000 |
Cutting result | Very coarse cut |
Hook angle ° α | 15 |
Relief angle ° β | 15 |
Pin hole/Pitch circle diameter | 7/42 |
in stock
Part number 2608641188 | |
---|---|
Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
Pack quantity | 1 Pcs |
Details | |
---|---|
Outer diameter mm | 190 |
Bore size mm | 30 |
Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.6/1.6 |
Number of teeth | 60 |
Tooth shape | ATB |
Max. rotation speed (RPM) | 8000 |
Cutting result | Fine Cut |
Hook angle ° α | 15 |
Relief angle ° β | 15 |
Pin hole/Pitch circle diameter | 7/42 |
Outer diameter inch | 7 1/2 |
in stock
Part number 2608641190 | |
---|---|
Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
Pack quantity | 1 Pcs |
Details | |
---|---|
Outer diameter mm | 210 |
Bore size mm | 30 |
Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.8/1.8 |
Number of teeth | 60 |
Tooth shape | ATB |
Max. rotation speed (RPM) | 7500 |
Cutting result | Fine Cut |
Hook angle ° α | 15 |
Relief angle ° β | 15 |
in stock
Part number 2608641192 | |
---|---|
Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
Pack quantity | 1 Pcs |
Details | |
---|---|
Outer diameter mm | 235 |
Bore size mm | 30 |
Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.8/1.8 |
Number of teeth | 60 |
Tooth shape | ATB |
Max. rotation speed (RPM) | 6500 |
Cutting result | Fine Cut |
Hook angle ° α | 15 |
Relief angle ° β | 15 |
Bore with reduction ring mm | 25 |
in stock
Part number 2608642600 | |
---|---|
Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
Pack quantity | 1 Pcs |
Details | |
---|---|
Outer diameter mm | 165 |
Bore size mm | 20 |
Width of cut (b1) mm / Base bl. thickness (b2) mm | 1.7/1.2 |
Number of teeth | 12 |
Tooth shape | ATB/FT |
Max. rotation speed (RPM) | 9000 |
Cutting result | Very coarse cut |
Hook angle ° α | 15 |
Relief angle ° β | 15 |
Bore with reduction ring mm | 16 |
in stock
Part number 2608642601 | |
---|---|
Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
Pack quantity | 1 Pcs |
Details | |
---|---|
Outer diameter mm | 165 |
Bore size mm | 20 |
Width of cut (b1) mm / Base bl. thickness (b2) mm | 1.7/1.2 |
Number of teeth | 24 |
Tooth shape | ATB/FT |
Max. rotation speed (RPM) | 9000 |
Cutting result | Coarse cut |
Hook angle ° α | 15 |
Relief angle ° β | 15 |
Bore with reduction ring mm | 16 |
in stock
Part number 2608642602 | |
---|---|
Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
Pack quantity | 1 Pcs |
Details | |
---|---|
Outer diameter mm | 165 |
Bore size mm | 20 |
Width of cut (b1) mm / Base bl. thickness (b2) mm | 1.7/1.2 |
Number of teeth | 36 |
Tooth shape | ATB |
Max. rotation speed (RPM) | 9000 |
Cutting result | Fine Cut |
Hook angle ° α | 15 |
Relief angle ° β | 15 |
Bore with reduction ring mm | 16 |
in stock
Part number 2608643071 | |
---|---|
Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
Pack quantity | 1 Pcs |
Details | |
---|---|
Outer diameter mm | 85 |
Bore size mm | 15 |
Width of cut (b1) mm / Base bl. thickness (b2) mm | 1.1/0.7 |
Number of teeth | 20 |
Tooth shape | ATB |
Max. rotation speed (RPM) | 18000 |
Cutting result | Fine Cut |
Hook angle ° α | 15 |
Relief angle ° β | 13 |
in stock
Part number 2608901595 | |
---|---|
Packaging type | Paper / Cardboard / Corrugated board - Packaging, folded carton, with Euro hole |
Pack quantity | 1 Pcs |
Details | |
---|---|
Outer diameter mm | 85 |
Bore size mm | 15 |
Width of cut (b1) mm / Base bl. thickness (b2) mm | 1.1/0.7 |
Number of teeth | 20 |
Tooth shape | ATB |
Max. rotation speed (RPM) | 18000 |
In order for the page to be displayed optimally, it must be reloaded. Please click the button below to reload the page.
Reload now
