For mitre saws
Outer diameter mm
Number of teeth
Width of cut (b1) mm
Choose a pack size
Outer diameter mm 305
Number of teeth 96
Width of cut (b1) mm 2.4
Choose a pack size 1 Pcs
available at Bosch Partner
Available from our partnersGround and sharpened fine carbide teeth for strength, durability, and precision
Extra-thin kerf for a long battery lifetime
Expansion slots reduce heat for a longer lifetime

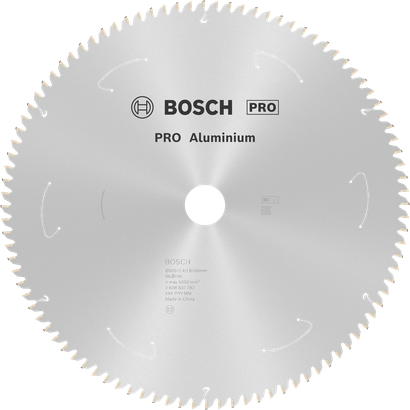

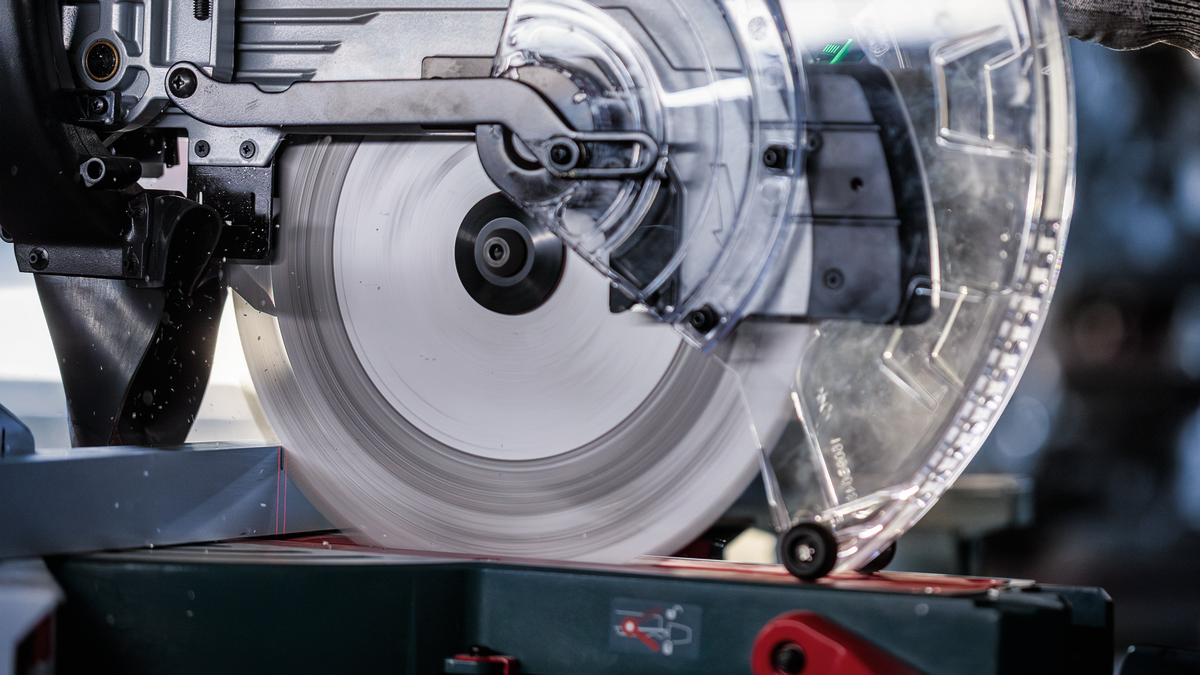

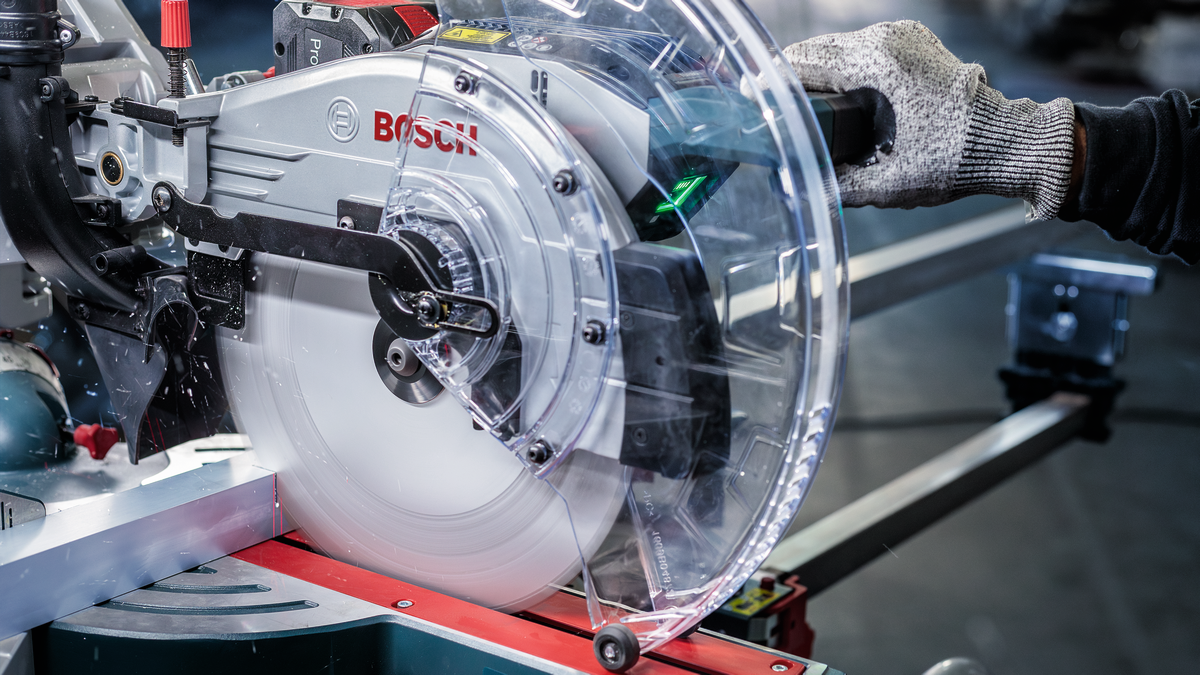

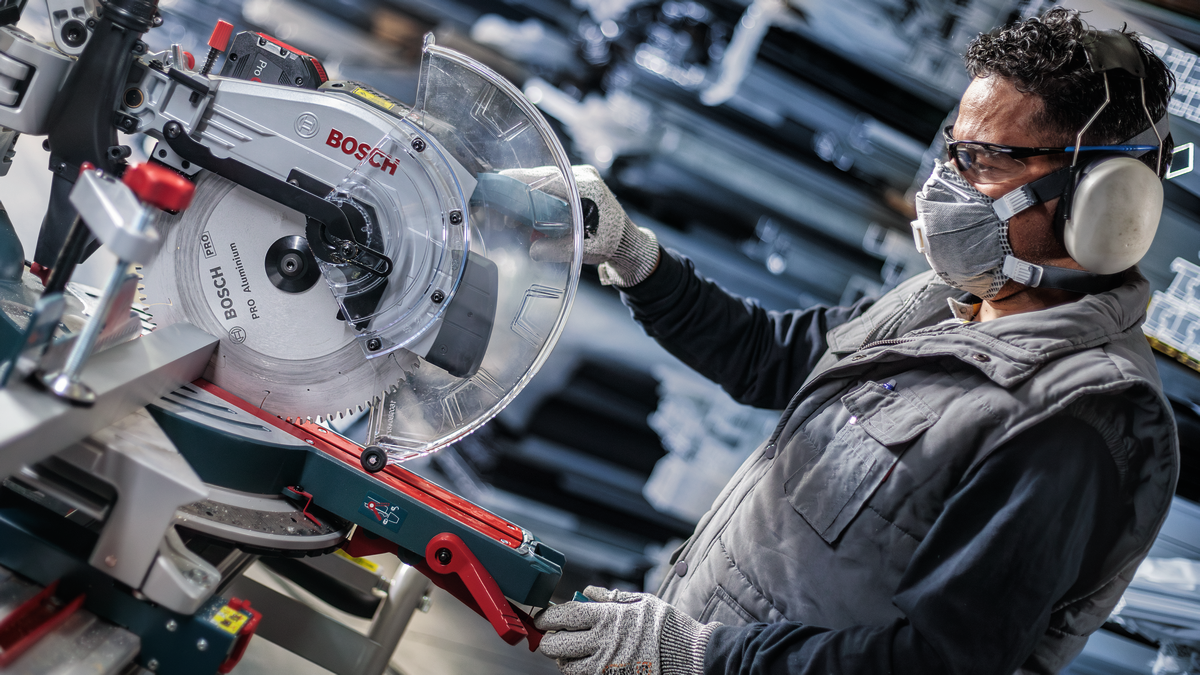

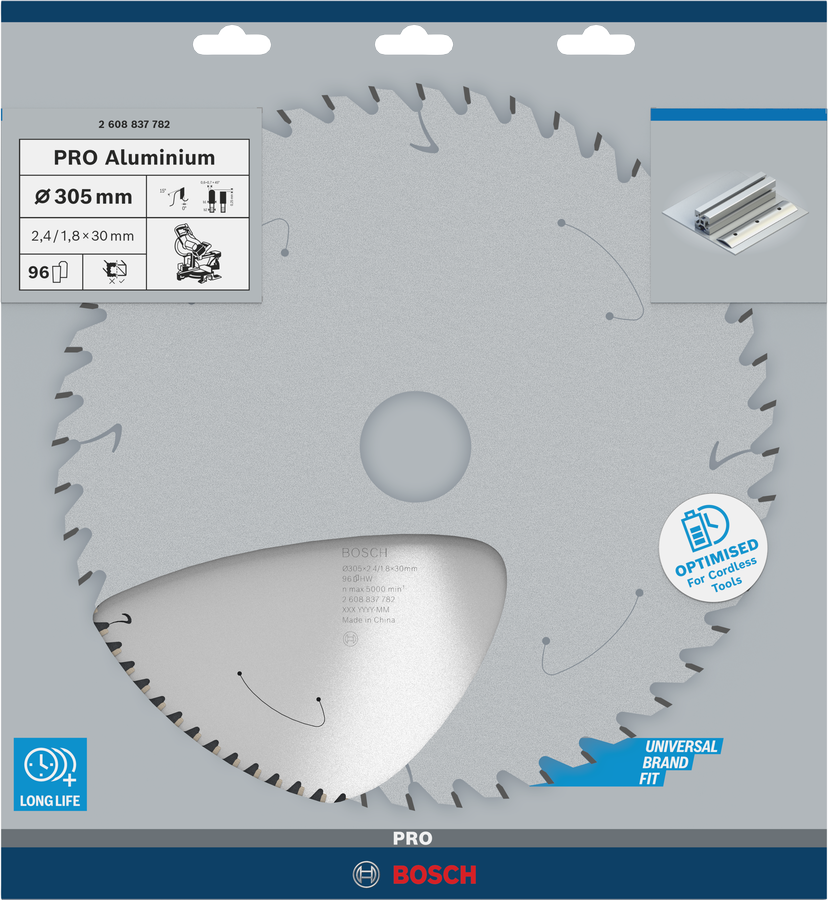

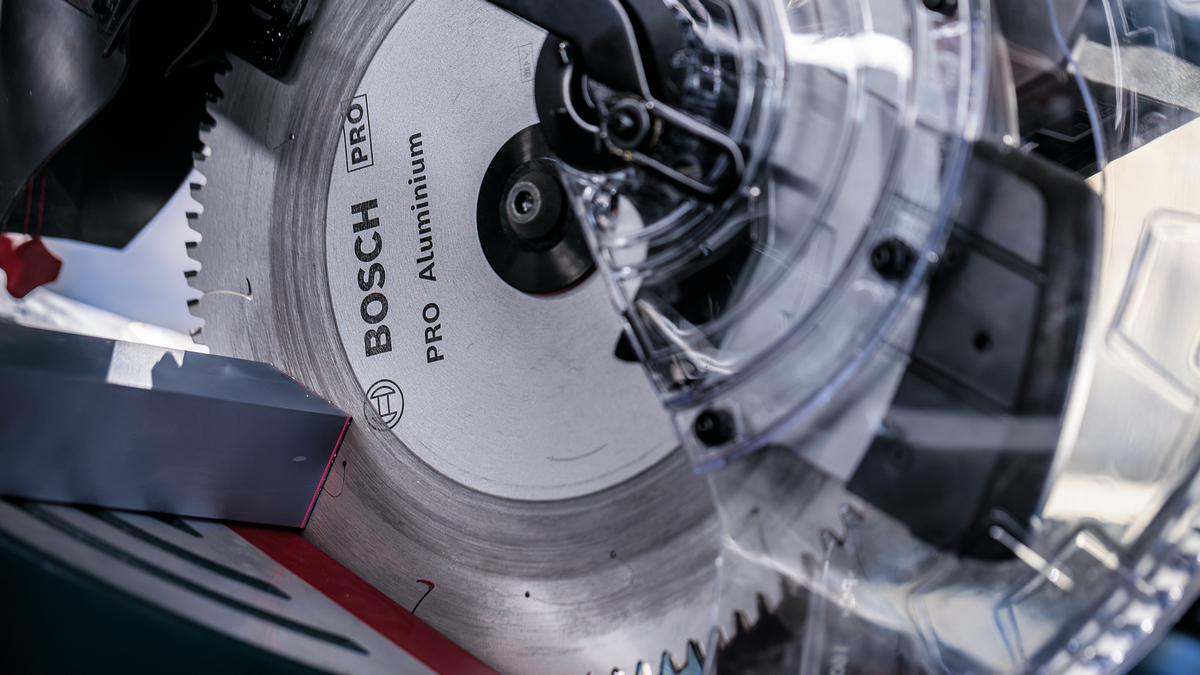

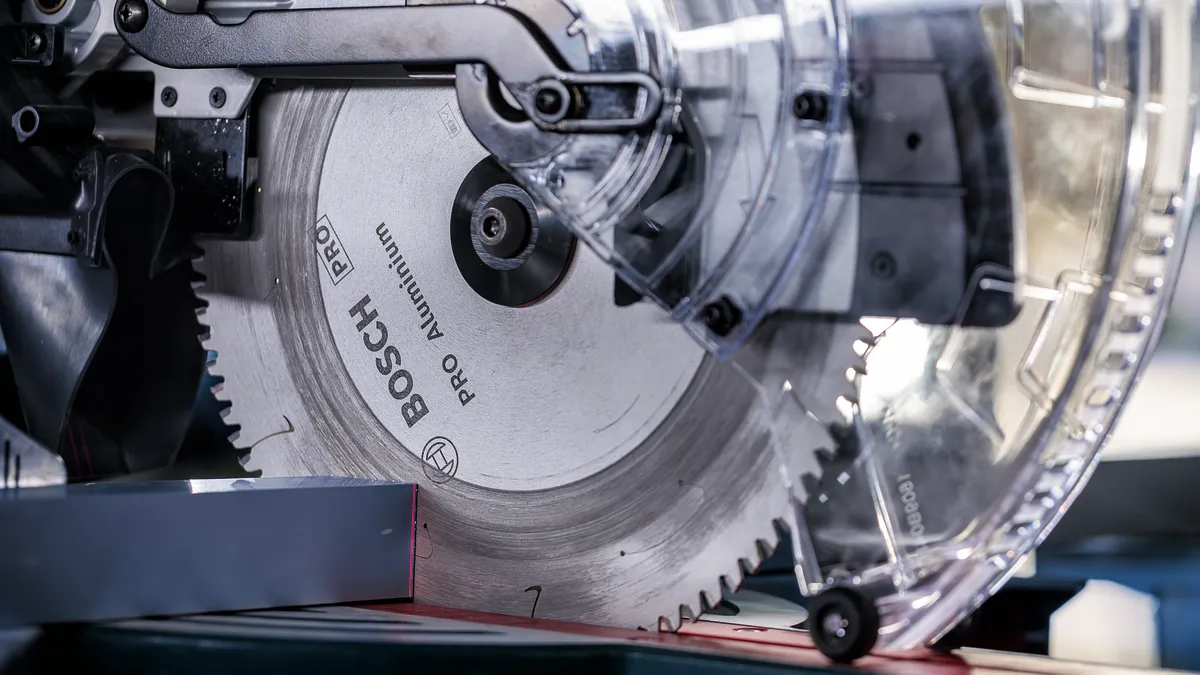

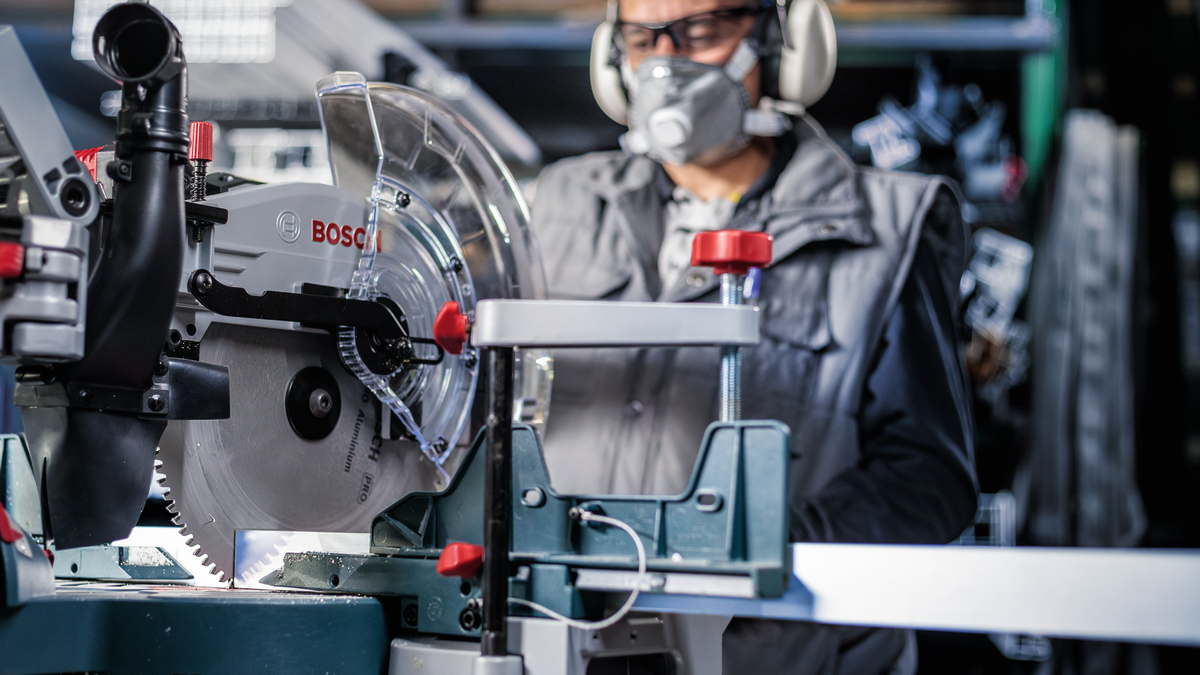

Running out of power when cutting aluminium with your cordless mitre saw? Try the PRO Aluminium cordless. We made its kerf extra thin so that it consumes less power. The blade’s carbide teeth ensure you can cut aluminium sheets and extrusion profiles effectively – while your battery lasts.
Available product options: 6
|
Part number
|
Outer diameter mm
|
Bore size mm
|
Width of cut (b1) mm / Base bl. thickness (b2) mm
|
Number of teeth
|
Pack quantity
|
Price
|
|
|---|---|---|---|---|---|---|---|---|
| 2 608 837 767 | 184 | 16 | 2/1.5 | 56 | 1 Pcs | 46.00 GBP | Available from our partners | |
| 2 608 837 770 | 190 | 20 | 2/1.5 | 56 | 1 Pcs | 47.00 GBP | Available from our partners | |
| 2 608 837 776 | 216 | 30 | 2.2/1.6 | 64 | 1 Pcs | 50.00 GBP | ||
| 2 608 837 778 | 250 | 30 | 2.4/1.8 | 68 | 1 Pcs | 61.00 GBP | Available from our partners | |
| 2 608 837 782 | 305 | 30 | 2.4/1.8 | 96 | 1 Pcs | 78.00 GBP | Available from our partners | |
| 2 608 842 242 | 254 | 30 | 2.4/1.8 | 68 | 1 Pcs | 63.00 GBP |
out of products
| Part number 2608837767 | |
|---|---|
| Packaging type | Combined cardboard / plastic packaging, blister, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 184 |
| Bore size mm | 16 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2/1.5 |
| Number of teeth | 56 |
| Tooth shape | HLTCG |
| Max. rotation speed (RPM) | 7900 |
| Cutting result | Fine Cut |
| Hook angle ° α | 0 |
| Relief angle ° β | 15 |
| Part number 2608837770 | |
|---|---|
| Packaging type | Combined cardboard / plastic packaging, blister, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 190 |
| Bore size mm | 20 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2/1.5 |
| Number of teeth | 56 |
| Tooth shape | HLTCG |
| Max. rotation speed (RPM) | 7900 |
| Cutting result | Fine Cut |
| Hook angle ° α | 0 |
| Relief angle ° β | 15 |
| Part number 2608837776 | |
|---|---|
| Packaging type | Combined cardboard / plastic packaging, blister, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 216 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.2/1.6 |
| Number of teeth | 64 |
| Tooth shape | HLTCG |
| Max. rotation speed (RPM) | 7000 |
| Cutting result | Fine Cut |
| Hook angle ° α | 0 |
| Relief angle ° β | 15 |
in stock
| Part number 2608837778 | |
|---|---|
| Packaging type | Combined cardboard / plastic packaging, blister, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 250 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.4/1.8 |
| Number of teeth | 68 |
| Tooth shape | HLTCG |
| Max. rotation speed (RPM) | 6000 |
| Cutting result | Fine Cut |
| Hook angle ° α | 0 |
| Relief angle ° β | 15 |

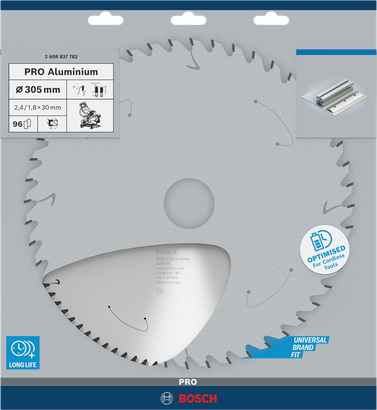

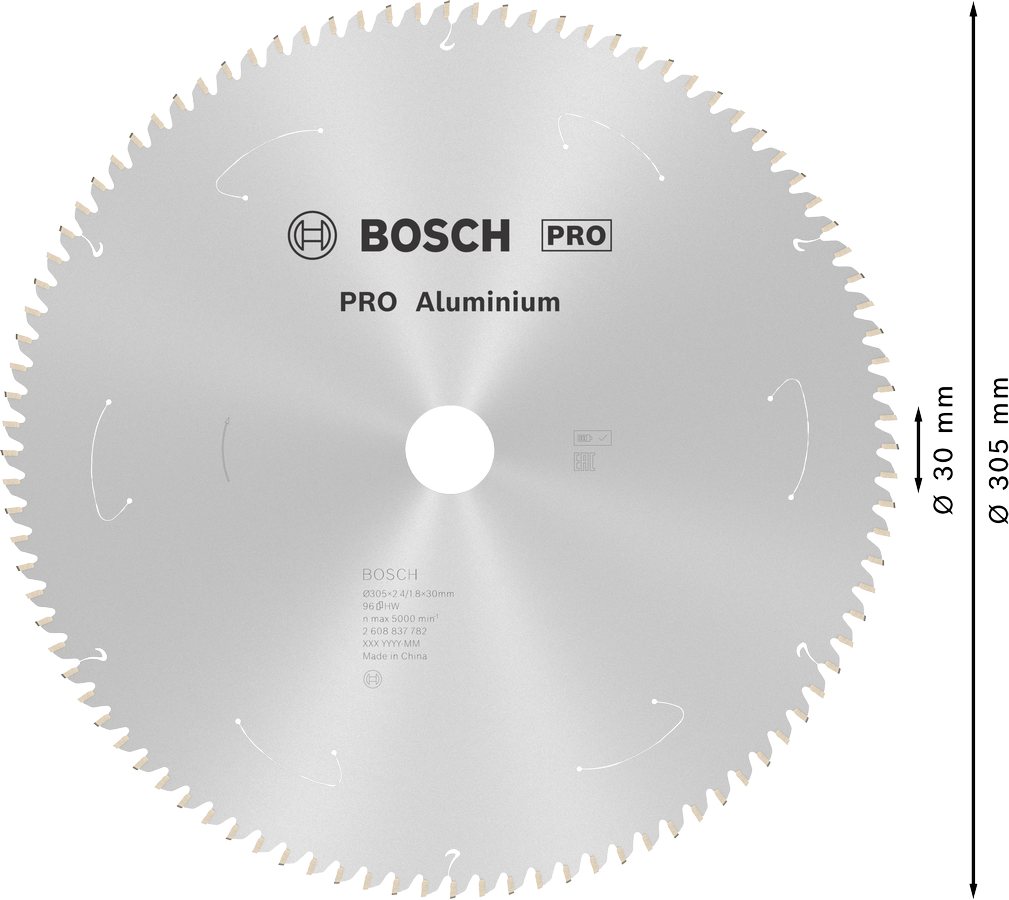

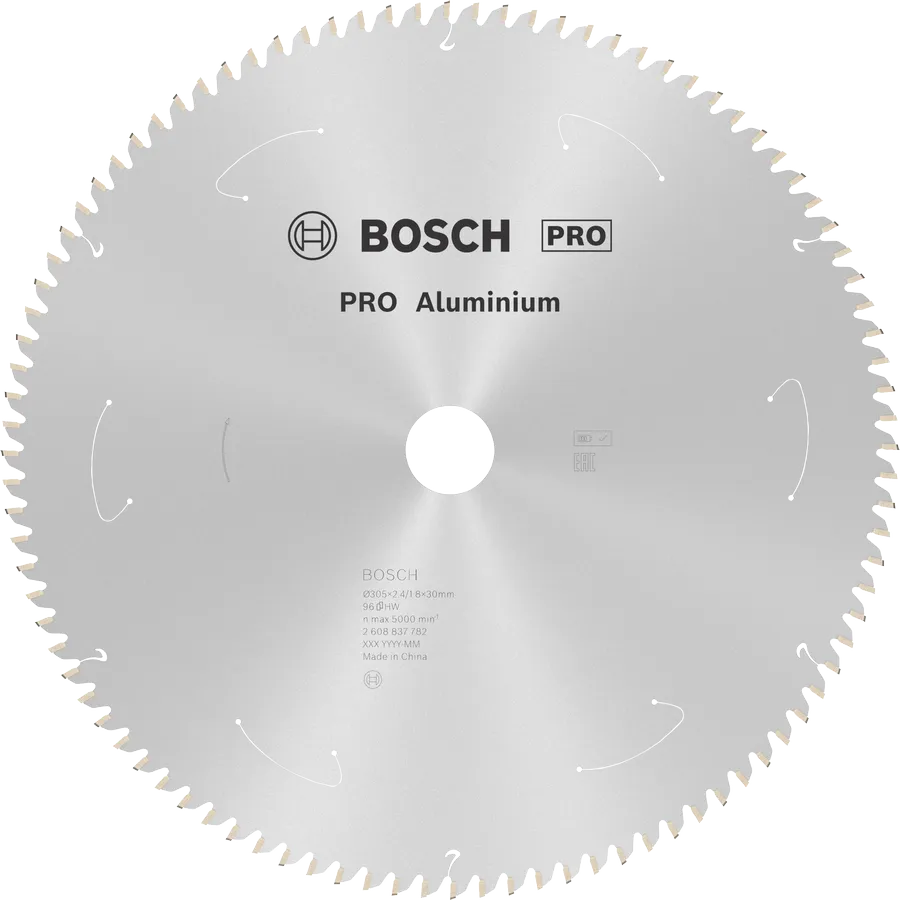

| Part number 2608837782 | |
|---|---|
| Packaging type | Combined cardboard / plastic packaging, blister, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|

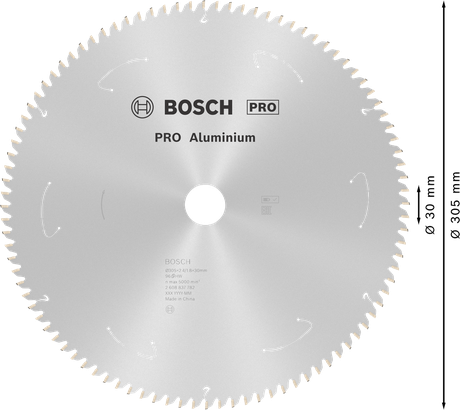

| Outer diameter mm | 305 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.4/1.8 |
| Number of teeth | 96 |
| Tooth shape | HLTCG |
| Max. rotation speed (RPM) | 5000 |
| Cutting result | Fine Cut |
| Hook angle ° α | 0 |
| Relief angle ° β | 15 |
| Part number 2608842242 | |
|---|---|
| Packaging type | Combined cardboard / plastic packaging, blister, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 254 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.4/1.8 |
| Number of teeth | 68 |
| Tooth shape | HLTCG |
| Max. rotation speed (RPM) | 6000 |
| Cutting result | Fine Cut |
| Hook angle ° α | 0 |
| Relief angle ° β | 15 |
| Bore with reduction ring inch | - |
| Pin hole/Pitch circle diameter | no |
in stock
