HSS TiN Step Drill Bit, 3-Flat Shank
For rotary drills/drivers

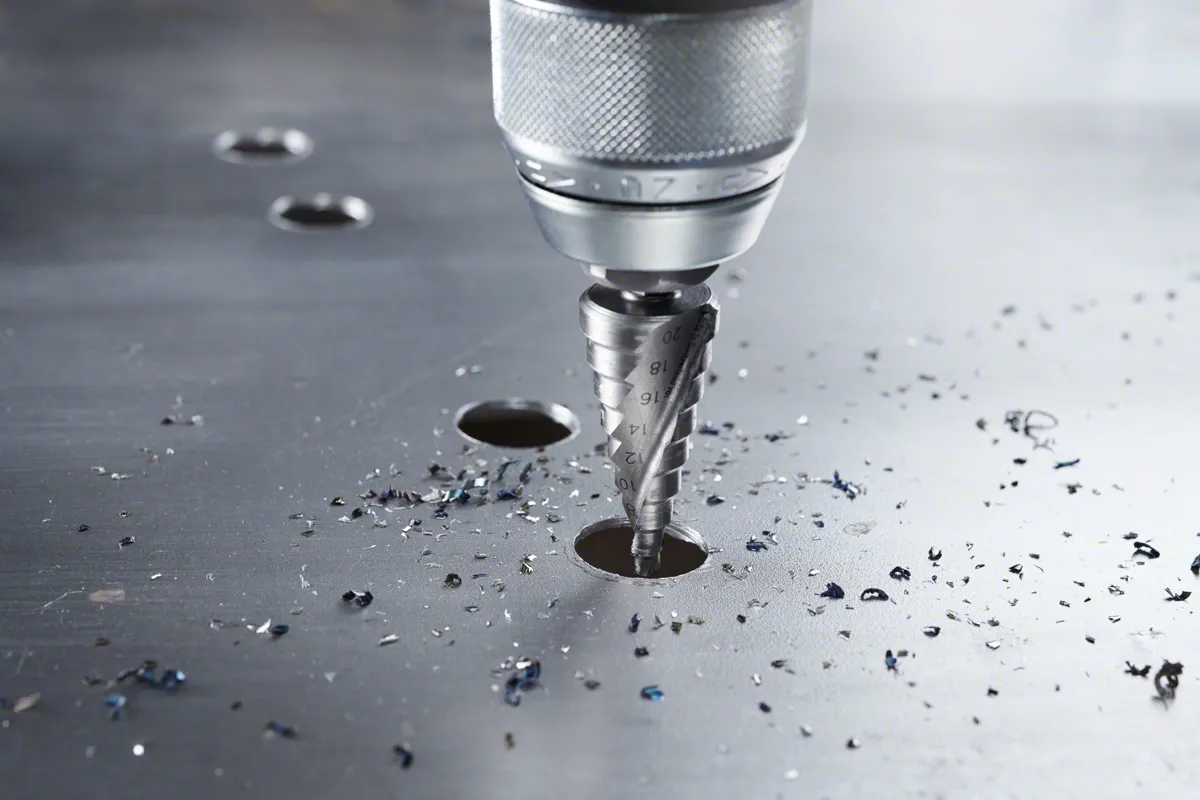

HSS TiN Step Drill Bit performs smooth drilling of several diameters with one drill bit
- Pre-punching is not necessary as the split-point tip allows for an easy start
- CNC ground spiral flute enables optimised chip removal and less vibration for even drilling
- 3-flat shank prevents slipping in the chuck of rotary drills and drivers
Materials
Select options
Step diameter (range) mm
Select one option from the listed items below
Step height mm
Select one option from the listed items below
Shank diameter mm
Select one option from the listed items below
Choose a pack size
Select one option from the listed items below
inStock
Select options
Step diameter (range) mm 4 options
Step height mm 4
Shank diameter mm 3 options
Choose a pack size 1 Pcs
Available product options
(5)
from
£44.00
Including VAT
HSS TiN Step Drill Bit, 3-Flat Shank
Smooth Drilling in Several Diameters with One Drill Bit
HSS TiN Step Drill Bit performs smooth drilling of several diameters with one drill bit
- CNC ground spiral flute enables optimised chip removal and less vibration for even drilling
- Highest cutting smoothness due to axial and radial relief grinding
- Made of HSS for a long lifetime. Laser-markings for hole diameters.
- TiN coating for exceptionally long lifetime. Laser-markings for hole diameters. 3-flat shank for high-torque transmission
View more
Product Options
Available product options: 5
|
Part number
|
Version
|
Step diameter (range) mm
|
Step height mm
|
Shank diameter mm
|
Pack quantity
|
Price
|
|
|---|---|---|---|---|---|---|---|---|
| 2 608 587 429 | HSS-TiN | 4-12 | 4 | 6.0 | 1 Pcs | £44.00 | Available from our partners | |
| 2 608 587 430 | HSS-TiN | 6-30 | 4 | 10.0 | 1 Pcs | £112.00 | Available from our partners | |
| 2 608 587 431 | HSS-TiN | 6-39 | 4 | 10.0 | 1 Pcs | £110.00 | Available from our partners | |
| 2 608 597 525 | HSS-TiN | 4-12 | 4 | 6.0 | 1 Pcs | £60.00 | Available from our partners | |
| 2 608 597 526 | HSS-TiN | 4-20 | 4 | 8.0 | 1 Pcs | £83.00 | Available from our partners |
out of products

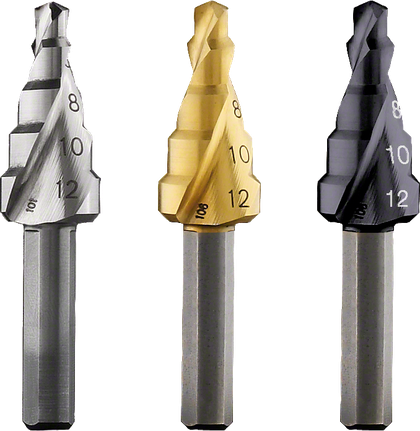

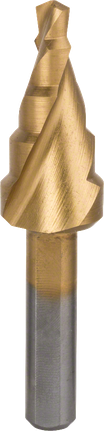

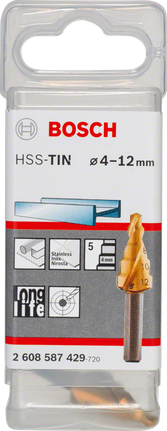

Step drill bit HSS-TiN
Part number 2608587429
Packaging type
Plastic packaging, box, with Euro hole
Pack quantity
1 Pcs
Details
Version
HSS-TiN
Step diameter (range) mm
4-12
Step height mm
4
Shank diameter mm
6.0
Total length mm
50.0

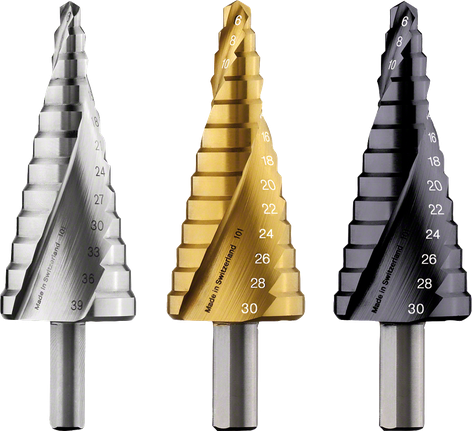

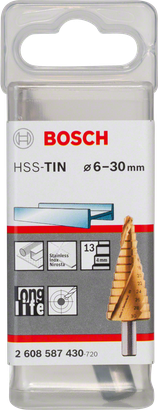

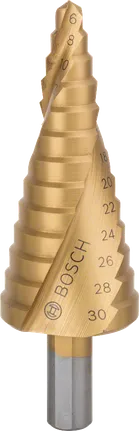

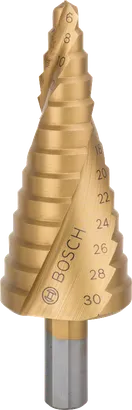

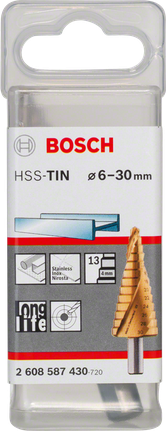

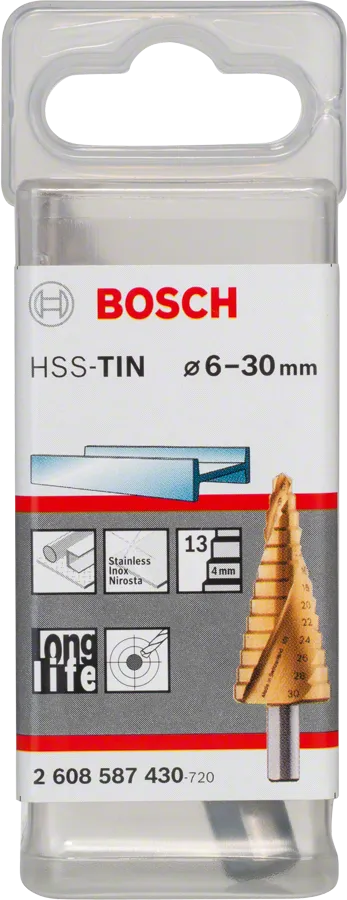

Step drill bit HSS-TiN

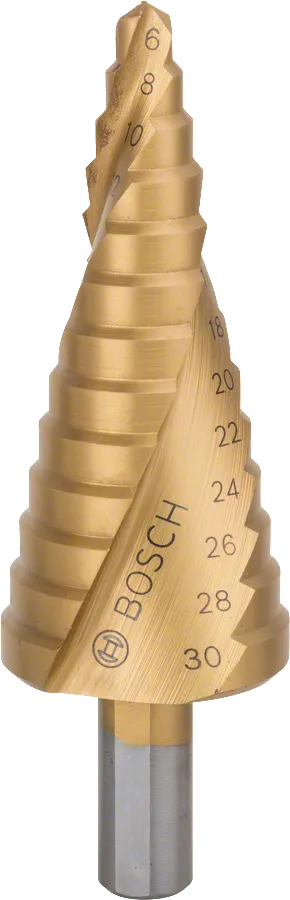

Part number 2608587430
Packaging type
Plastic packaging, box, with Euro hole
Pack quantity
1 Pcs
Details
Version
HSS-TiN
Step diameter (range) mm
6-30
Step height mm
4
Shank diameter mm
10.0
Total length mm
93.5

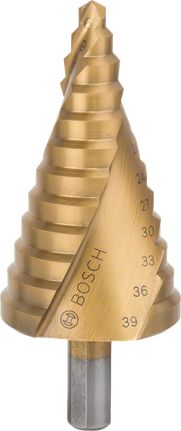

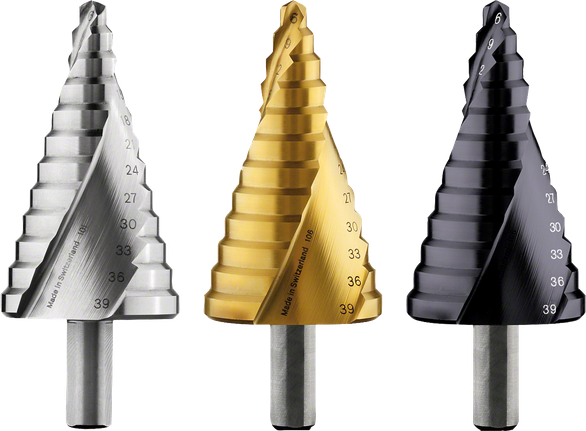

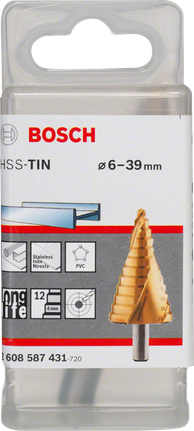

Step drill bit HSS-TiN
Part number 2608587431
Packaging type
Plastic packaging, box, with Euro hole
Pack quantity
1 Pcs
Details
Version
HSS-TiN
Step diameter (range) mm
6-39
Step height mm
4
Shank diameter mm
10.0
Total length mm
93.5

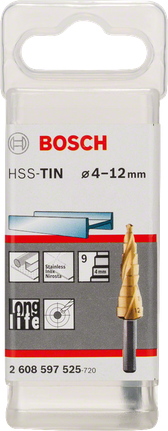

Step drill bit HSS-TiN
Part number 2608597525
Packaging type
Plastic packaging, box, with Euro hole
Pack quantity
1 Pcs
Details
Version
HSS-TiN
Step diameter (range) mm
4-12
Step height mm
4
Shank diameter mm
6.0
Total length mm
66.5

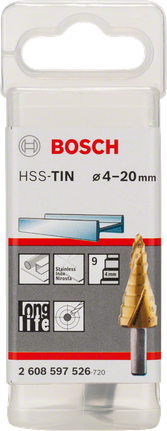

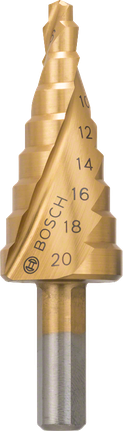

Step drill bit HSS-TiN
Part number 2608597526
Packaging type
Plastic packaging, box, with Euro hole
Pack quantity
1 Pcs
Details
Version
HSS-TiN
Step diameter (range) mm
4-20
Step height mm
4
Shank diameter mm
8.0
Total length mm
70.5
