For hand-held dry cutters
Outer diameter mm
Number of teeth
Width of cut (b1) mm
Choose a pack size
Outer diameter mm 4 options
Number of teeth 3 options
Width of cut (b1) mm 2 options
Choose a pack size 1 Pcs
Expert for Stainless Steel Circular Saw Blade for cordless handheld dry-cutters maximises battery runtime
Available product options: 4
|
Part number
|
Outer diameter mm
|
Bore size mm
|
Bore with reduction ring mm
|
Width of cut (b1) mm / Base bl. thickness (b2) mm
|
Pack quantity
|
Price
|
|
|---|---|---|---|---|---|---|---|---|
| 2 608 644 530 | 136 | 20 | 15.875 | 1.5/1.2 | 1 Pcs | 50.00 GBP | ||
| 2 608 644 531 | 140 | 20 | - | 1.5/1.2 | 1 Pcs | 63.00 GBP | Available from our partners | |
| 2 608 644 532 | 150 | 20 | 15.875 | 1.6/1.3 | 1 Pcs | 65.00 GBP | Available from our partners | |
| 2 608 644 533 | 160 | 20 | 15.875 | 1.6/1.3 | 1 Pcs | 67.00 GBP |
out of products

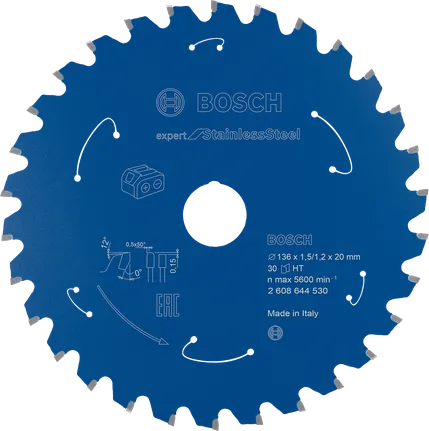

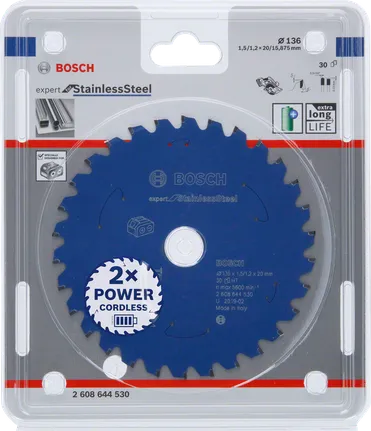

| Part number 2608644530 | |
|---|---|
| Packaging type | Combined cardboard / plastic packaging, folding blister, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 136 |
| Bore size mm | 20 |
| Bore with reduction ring mm | 15.875 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 1.5/1.2 |
| Number of teeth | 30 |
| Tooth shape | HLTCG |
| Max. rotation speed (RPM) | 5600 |
| Cutting result | Fine Cut |
| Hook angle ° α | 0 |
| Relief angle ° β | 12 |
in stock

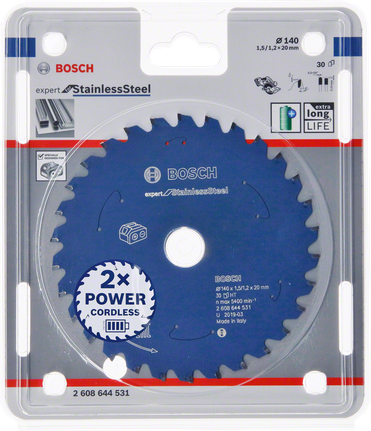

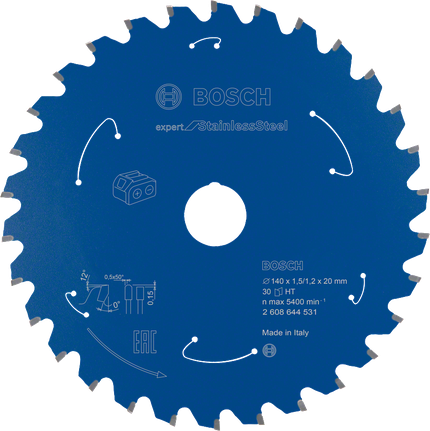

| Part number 2608644531 | |
|---|---|
| Packaging type | Combined cardboard / plastic packaging, folding blister, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 140 |
| Bore size mm | 20 |
| Bore with reduction ring mm | - |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 1.5/1.2 |
| Number of teeth | 30 |
| Tooth shape | HLTCG |
| Max. rotation speed (RPM) | 5400 |
| Cutting result | Fine Cut |
| Hook angle ° α | 0 |
| Relief angle ° β | 12 |

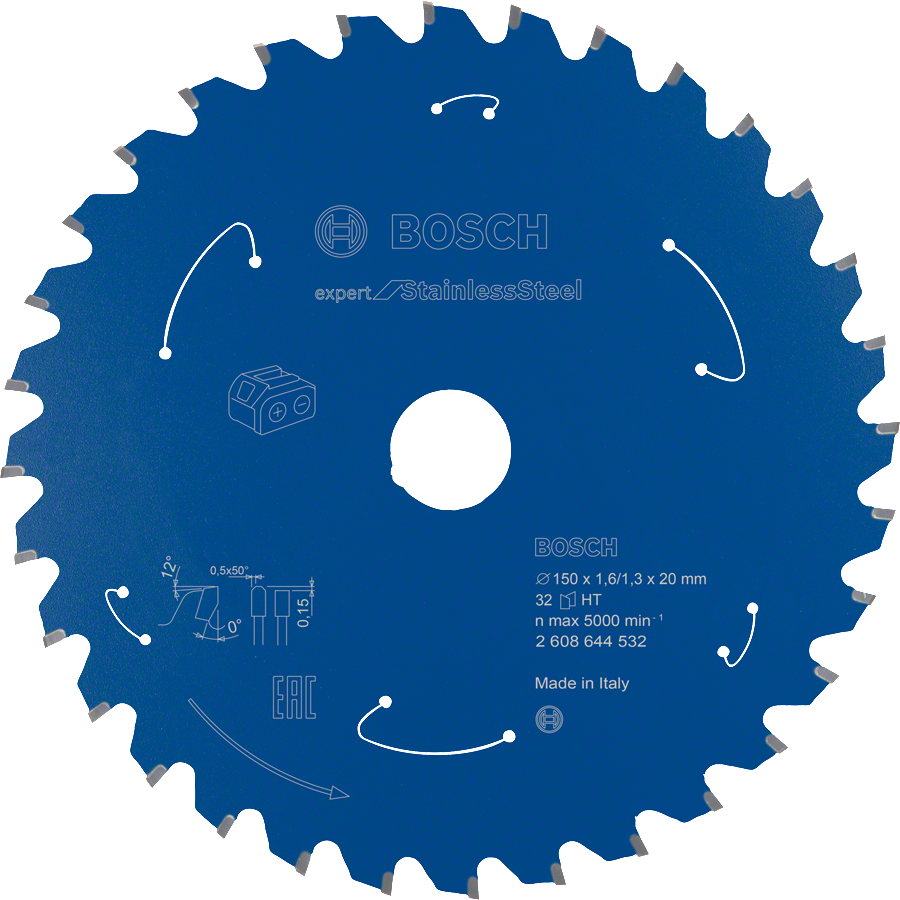

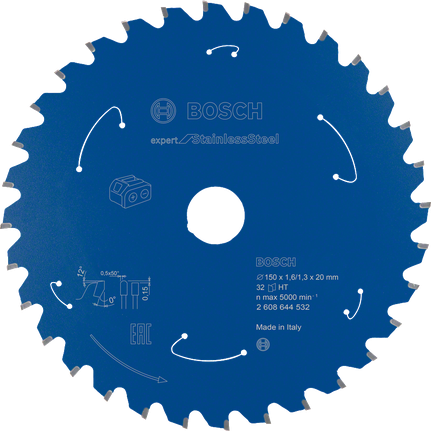

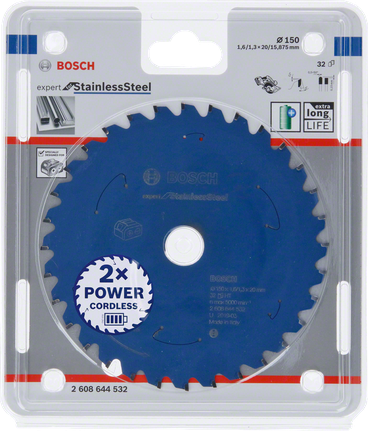

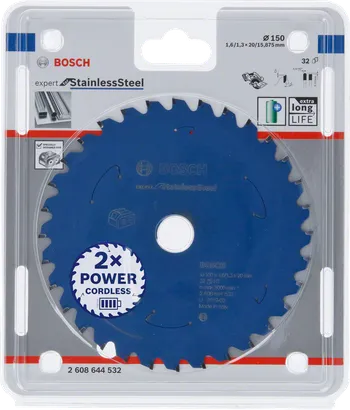

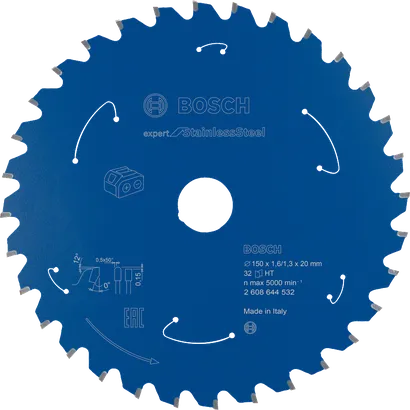

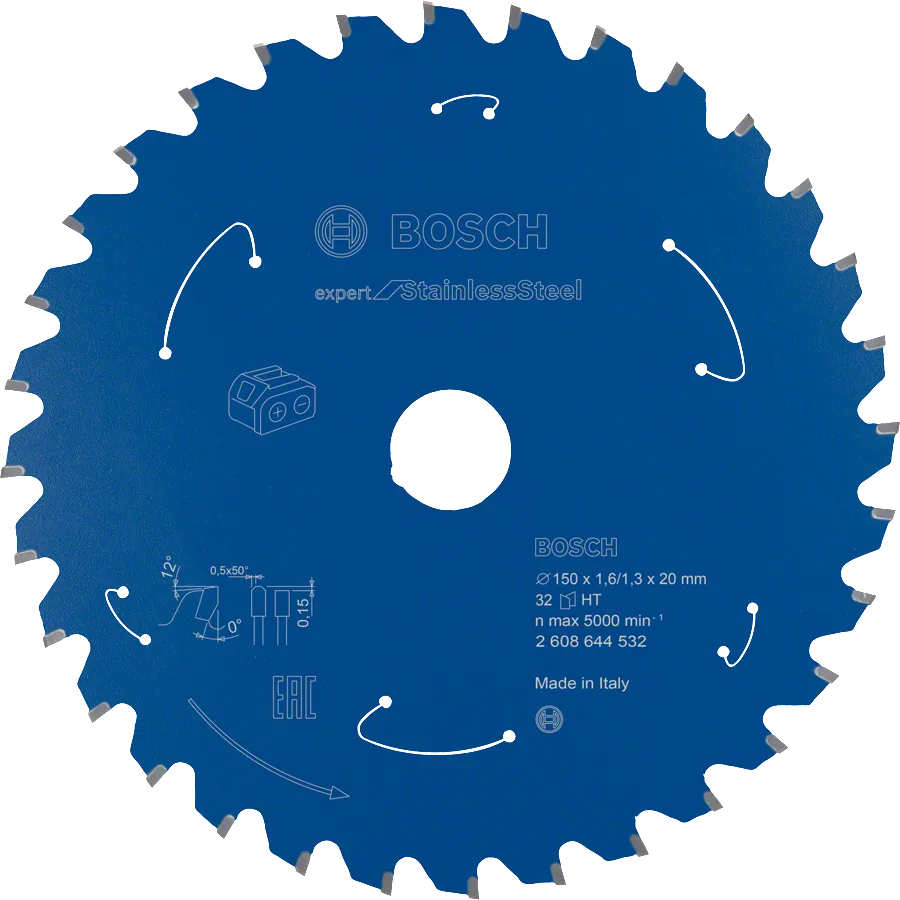

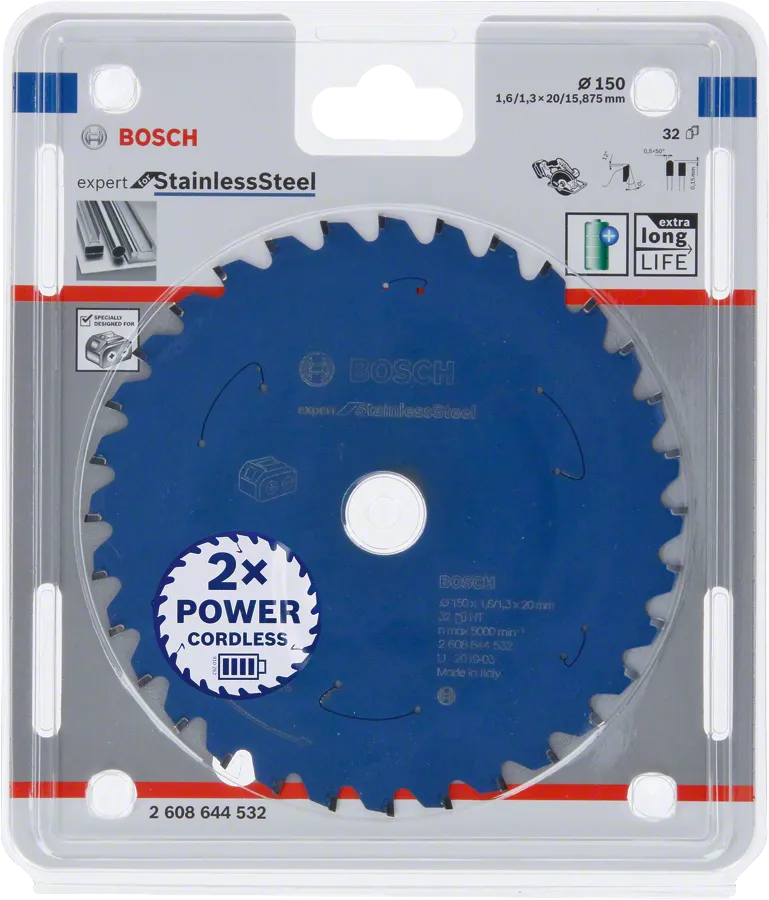

| Part number 2608644532 | |
|---|---|
| Packaging type | Combined cardboard / plastic packaging, folding blister, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 150 |
| Bore size mm | 20 |
| Bore with reduction ring mm | 15.875 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 1.6/1.3 |
| Number of teeth | 32 |
| Tooth shape | HLTCG |
| Max. rotation speed (RPM) | 5000 |
| Cutting result | Fine Cut |
| Hook angle ° α | 0 |
| Relief angle ° β | 12 |

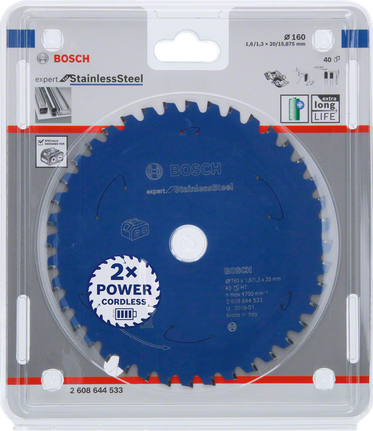

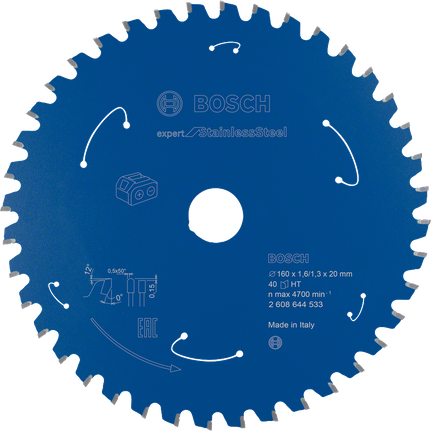

| Part number 2608644533 | |
|---|---|
| Packaging type | Combined cardboard / plastic packaging, folding blister, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 160 |
| Bore size mm | 20 |
| Bore with reduction ring mm | 15.875 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 1.6/1.3 |
| Number of teeth | 40 |
| Tooth shape | HLTCG |
| Max. rotation speed (RPM) | 4700 |
| Cutting result | Fine Cut |
| Hook angle ° α | 0 |
| Relief angle ° β | 12 |
in stock
