For hand-held circular saws
Outer diameter mm
Number of teeth
Width of cut (b1) mm
Choose a pack size
Outer diameter mm 12 options
Number of teeth 8 options
Width of cut (b1) mm 6 options
Choose a pack size 1 Pcs

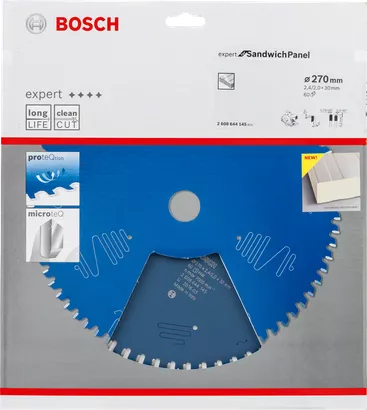

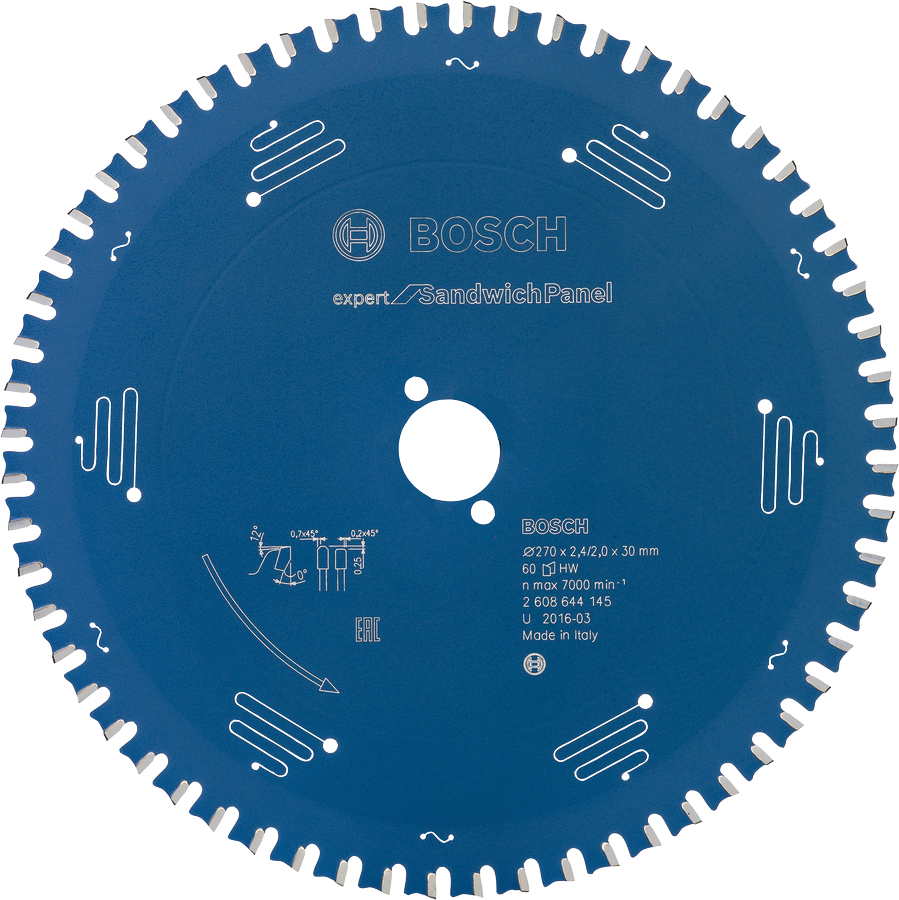

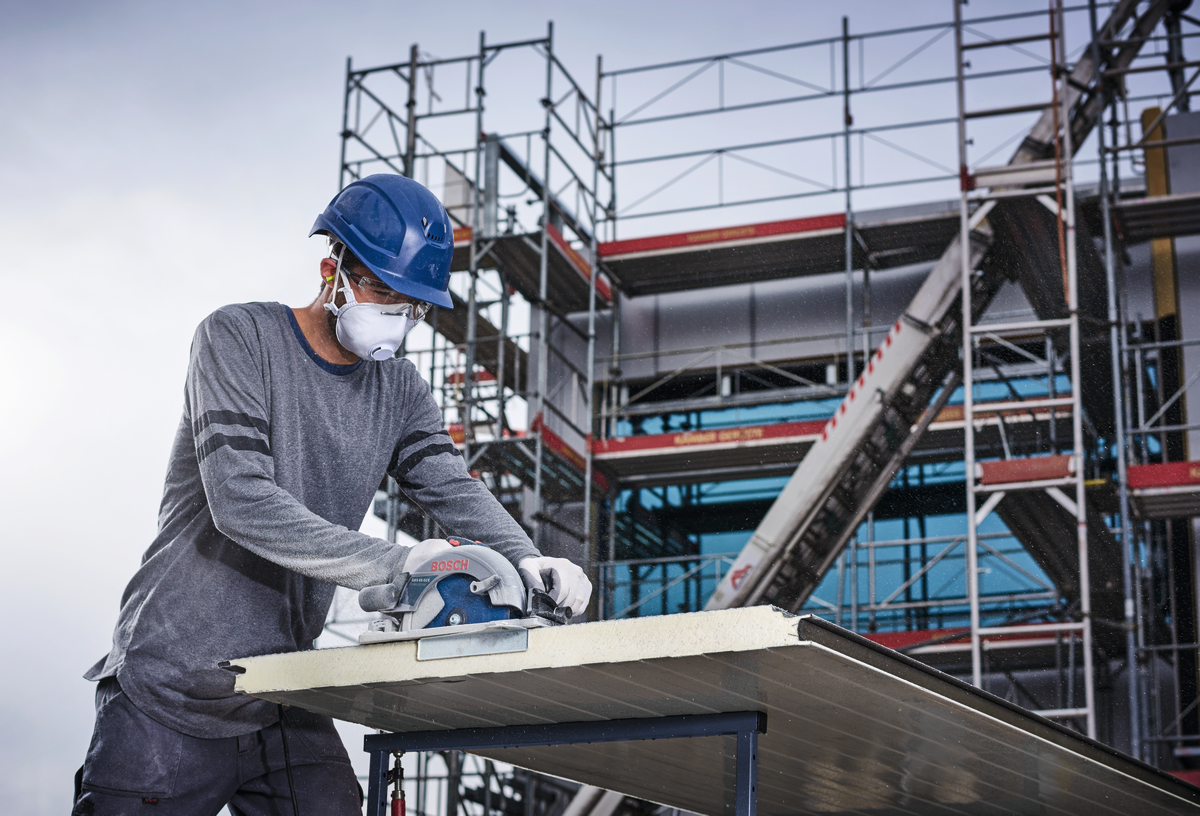

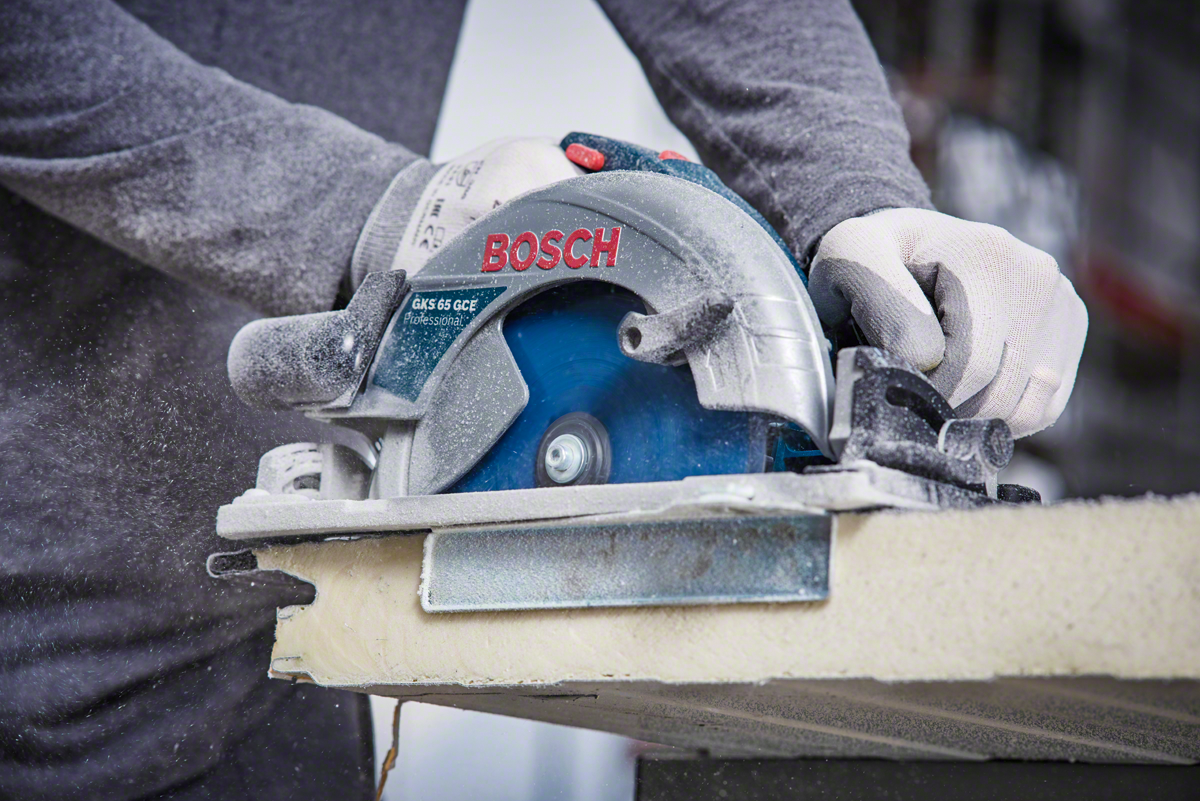

Expert for Sandwich Panel Circular Saw Blade offers a smooth performance in sandwich panel materials
Available product options: 12
|
Part number
|
Outer diameter mm
|
Bore size mm
|
Width of cut (b1) mm / Base bl. thickness (b2) mm
|
Number of teeth
|
Pack quantity
|
Price
|
|
|---|---|---|---|---|---|---|---|---|
| 2 608 644 142 | 210 | 30 | 2.4/2 | 36 | 1 Pcs | £68.59 | Available at 4 BOSCH Partners | |
| 2 608 644 143 | 235 | 30 | 2.2/1.8 | 50 | 1 Pcs | £103.48 | Available at 3 BOSCH Partners | |
| 2 608 644 144 | 240 | 30 | 2.6/1.6 | 48 | 1 Pcs | £105.86 | ||
| 2 608 644 145 | 270 | 30 | 2.4/2 | 60 | 1 Pcs | £122.27 | Available at 4 BOSCH Partners | |
| 2 608 644 146 | 330 | 30 | 2.6/2.2 | 54 | 1 Pcs | £134.05 | ||
| 2 608 644 147 | 355 | 30 | 2.6/2.2 | 80 | 1 Pcs | £153.47 | ||
| 2 608 644 148 | 450 | 30 | 3.4/3 | 86 | 1 Pcs | £178.09 | Available at 4 BOSCH Partners | |
| 2 608 644 165 | 350 | 30 | 2.9/2.5 | 60 | 1 Pcs | £143.35 | Available at 4 BOSCH Partners | |
| 2 608 644 365 | 160 | 20 | 2/1.6 | 30 | 1 Pcs | £72.85 | ||
| 2 608 644 366 | 165 | 20 | 2/1.6 | 30 | 1 Pcs | £76.50 | Available at 4 BOSCH Partners | |
| 2 608 644 367 | 190 | 30 | 2/1.6 | 36 | 1 Pcs | £81.62 | ||
| 2 608 644 368 | 230 | 30 | 2.2/1.8 | 48 | 1 Pcs | £82.12 |
out of products

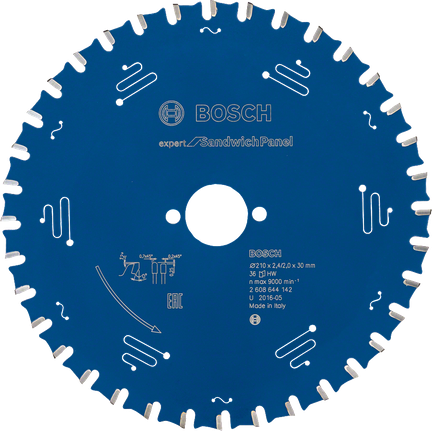

| Part number 2608644142 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 210 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.4/2 |
| Number of teeth | 36 |
| Tooth shape | HLTCG |
| Max. rotation speed (RPM) | 9000 |
| Cutting result | Fine Cut |
| Pin hole/Pitch circle diameter | 2/7/42 |
| Hook angle ° α | 0 |
| Relief angle ° β | 12 |
| Part number 2608644143 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 235 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.2/1.8 |
| Number of teeth | 50 |
| Tooth shape | HLTCG |
| Max. rotation speed (RPM) | 8100 |
| Cutting result | Fine Cut |
| Pin hole/Pitch circle diameter | 2/7/42 |
| Hook angle ° α | 0 |
| Relief angle ° β | 12 |
| Part number 2608644144 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 240 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.6/1.6 |
| Number of teeth | 48 |
| Tooth shape | HLTCG |
| Max. rotation speed (RPM) | 7900 |
| Cutting result | Fine Cut |
| Pin hole/Pitch circle diameter | 2/7/42 |
| Hook angle ° α | 0 |
| Relief angle ° β | 12 |
in stock
| Part number 2608644145 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 270 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.4/2 |
| Number of teeth | 60 |
| Tooth shape | HLTCG |
| Max. rotation speed (RPM) | 7000 |
| Cutting result | Fine Cut |
| Pin hole/Pitch circle diameter | 2/7/42 |
| Hook angle ° α | 0 |
| Relief angle ° β | 12 |
| Part number 2608644146 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 330 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.6/2.2 |
| Number of teeth | 54 |
| Tooth shape | HLTCG |
| Max. rotation speed (RPM) | 5700 |
| Cutting result | Fine Cut |
| Pin hole/Pitch circle diameter | 2/7/42 |
| Hook angle ° α | 0 |
| Relief angle ° β | 12 |
in stock
| Part number 2608644147 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 355 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.6/2.2 |
| Number of teeth | 80 |
| Tooth shape | HLTCG |
| Max. rotation speed (RPM) | 5300 |
| Cutting result | Fine Cut |
| Pin hole/Pitch circle diameter | 2/7/42 |
| Hook angle ° α | 0 |
| Relief angle ° β | 12 |
in stock
| Part number 2608644148 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 450 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 3.4/3 |
| Number of teeth | 86 |
| Tooth shape | HLTCG |
| Max. rotation speed (RPM) | 4200 |
| Cutting result | Fine Cut |
| Pin hole/Pitch circle diameter | 2/7/42 |
| Hook angle ° α | 0 |
| Relief angle ° β | 12 |
| Part number 2608644165 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 350 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.9/2.5 |
| Number of teeth | 60 |
| Tooth shape | HLTCG |
| Max. rotation speed (RPM) | 5400 |
| Cutting result | Fine Cut |
| Pin hole/Pitch circle diameter | 2/7/42 |
| Hook angle ° α | 0 |
| Relief angle ° β | 12 |
| Part number 2608644365 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, folded carton, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 160 |
| Bore size mm | 20 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2/1.6 |
| Number of teeth | 30 |
| Tooth shape | HLTCG |
| Max. rotation speed (RPM) | 11900 |
| Cutting result | Fine Cut |
| Pin hole/Pitch circle diameter | 2/6/32.5 |
| Hook angle ° α | 0 |
| Relief angle ° β | 12 |
in stock
| Part number 2608644366 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 165 |
| Bore size mm | 20 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2/1.6 |
| Number of teeth | 30 |
| Tooth shape | HLTCG |
| Max. rotation speed (RPM) | 11500 |
| Cutting result | Fine Cut |
| Pin hole/Pitch circle diameter | 2/6/32.5 |
| Hook angle ° α | 0 |
| Relief angle ° β | 12 |
| Part number 2608644367 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, folded carton, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 190 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2/1.6 |
| Number of teeth | 36 |
| Tooth shape | HLTCG |
| Max. rotation speed (RPM) | 10000 |
| Cutting result | Fine Cut |
| Pin hole/Pitch circle diameter | 2/7/42 |
| Hook angle ° α | 0 |
| Relief angle ° β | 12 |
in stock

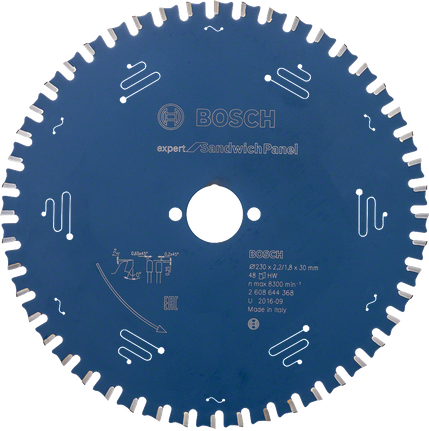

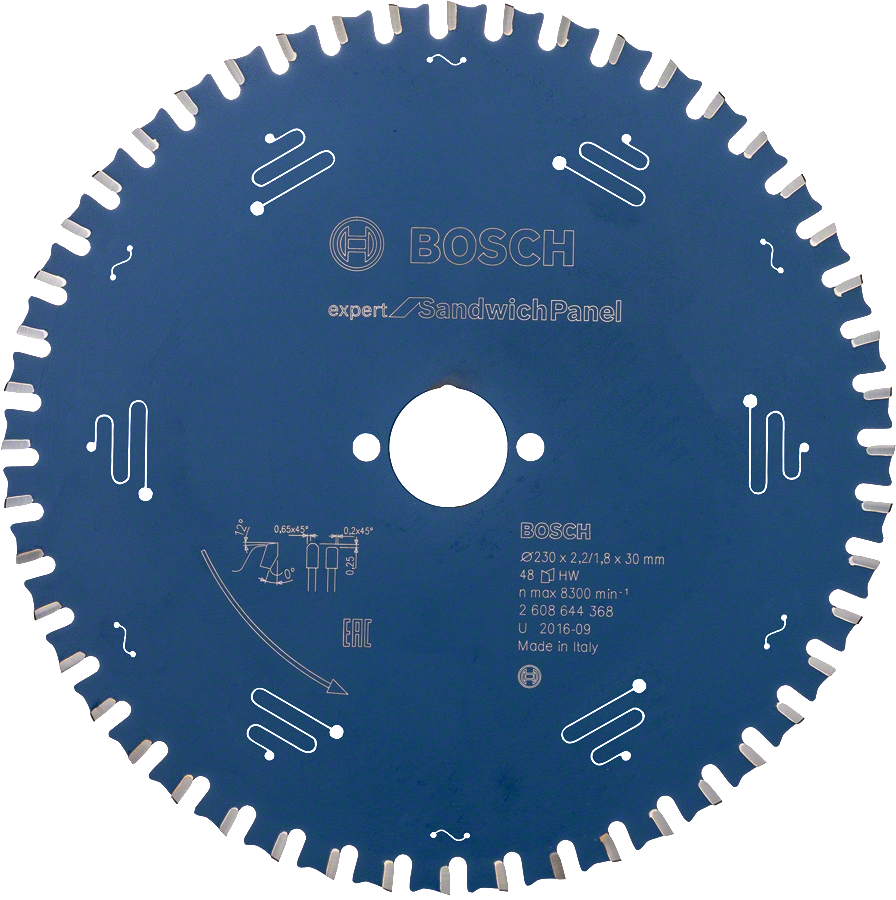

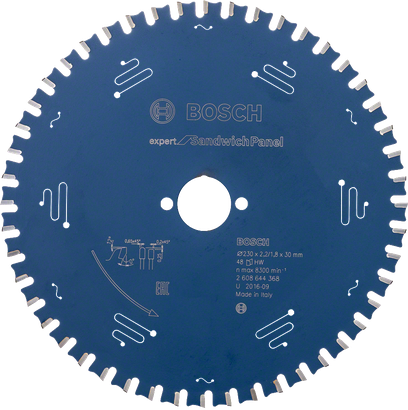

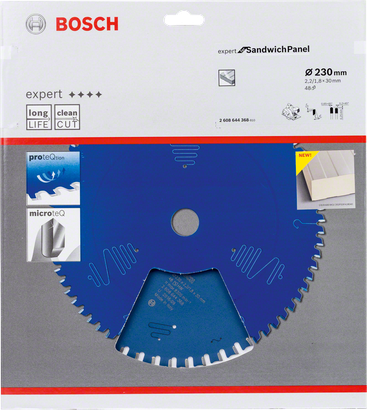

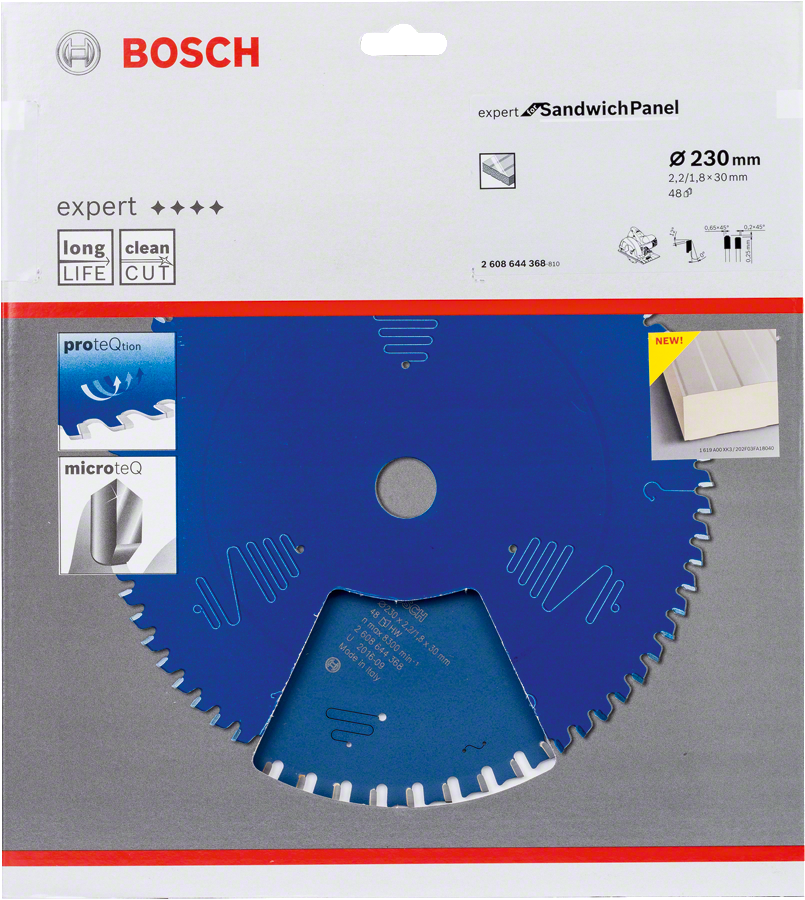

| Part number 2608644368 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, folded carton, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 230 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.2/1.8 |
| Number of teeth | 48 |
| Tooth shape | HLTCG |
| Max. rotation speed (RPM) | 8300 |
| Cutting result | Fine Cut |
| Pin hole/Pitch circle diameter | 2/7/42 |
| Hook angle ° α | 0 |
| Relief angle ° β | 12 |
in stock
