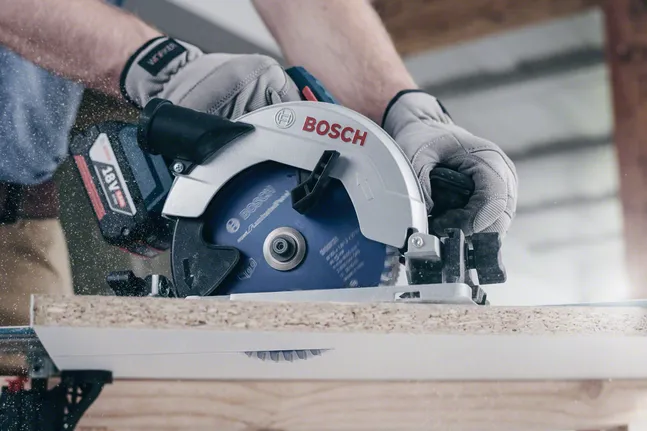

For hand-held circular saws
Outer diameter mm
Number of teeth
Width of cut (b1) mm
Choose a pack size
Outer diameter mm 3 options
Number of teeth 2 options
Width of cut (b1) mm 2 options
Choose a pack size 1 Pcs

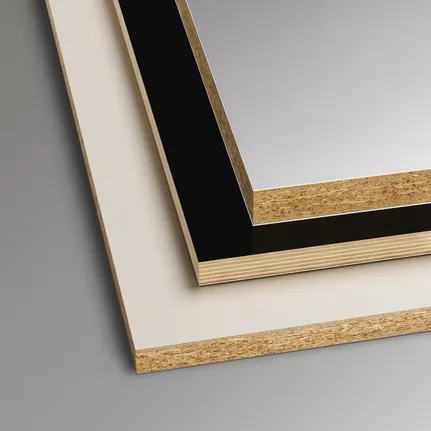

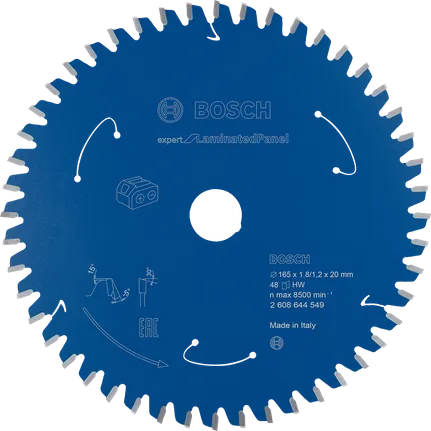

Expert for Laminated Panel Circular Saw Blade for cordless saws maximises battery runtime
Available product options: 3
|
Part number
|
Outer diameter mm
|
Bore size mm
|
Bore with reduction ring mm
|
Width of cut (b1) mm / Base bl. thickness (b2) mm
|
Pack quantity
|
Price
|
|
|---|---|---|---|---|---|---|---|---|
| 2 608 644 548 | 160 | 20 | 15.875 | 1.8/1.2 | 1 Pcs | 56.00 GBP | ||
| 2 608 644 549 | 165 | 20 | 15.875 | 1.8/1.2 | 1 Pcs | 59.00 GBP | ||
| 2 608 644 550 | 190 | 30 | 20 | 2.1/1.4 | 1 Pcs | 66.00 GBP |
out of products

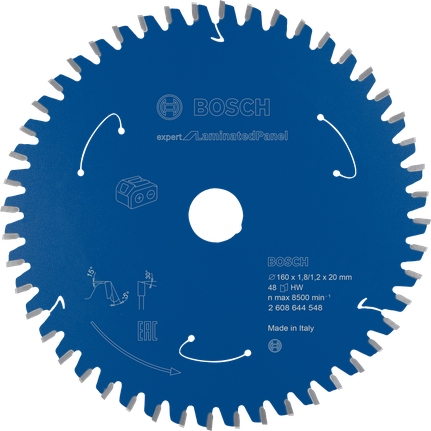

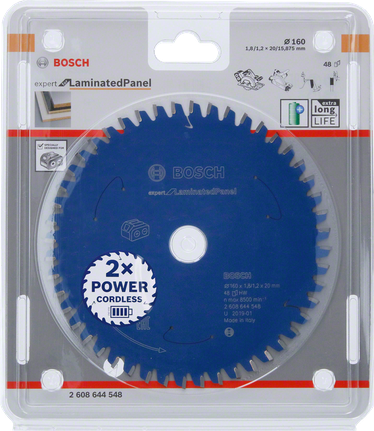

| Part number 2608644548 | |
|---|---|
| Packaging type | Combined cardboard / plastic packaging, folding blister, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 160 |
| Bore size mm | 20 |
| Bore with reduction ring mm | 15.875 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 1.8/1.2 |
| Number of teeth | 48 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 8500 |
| Cutting result | Fine Cut |
| Hook angle ° α | -5 |
| Relief angle ° β | 15 |
in stock

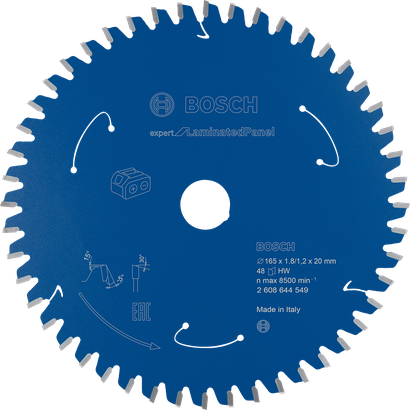

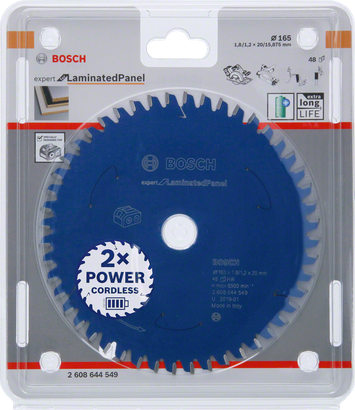

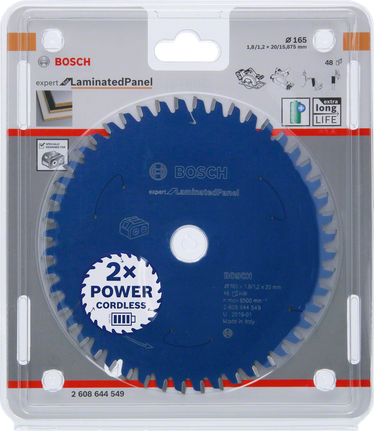

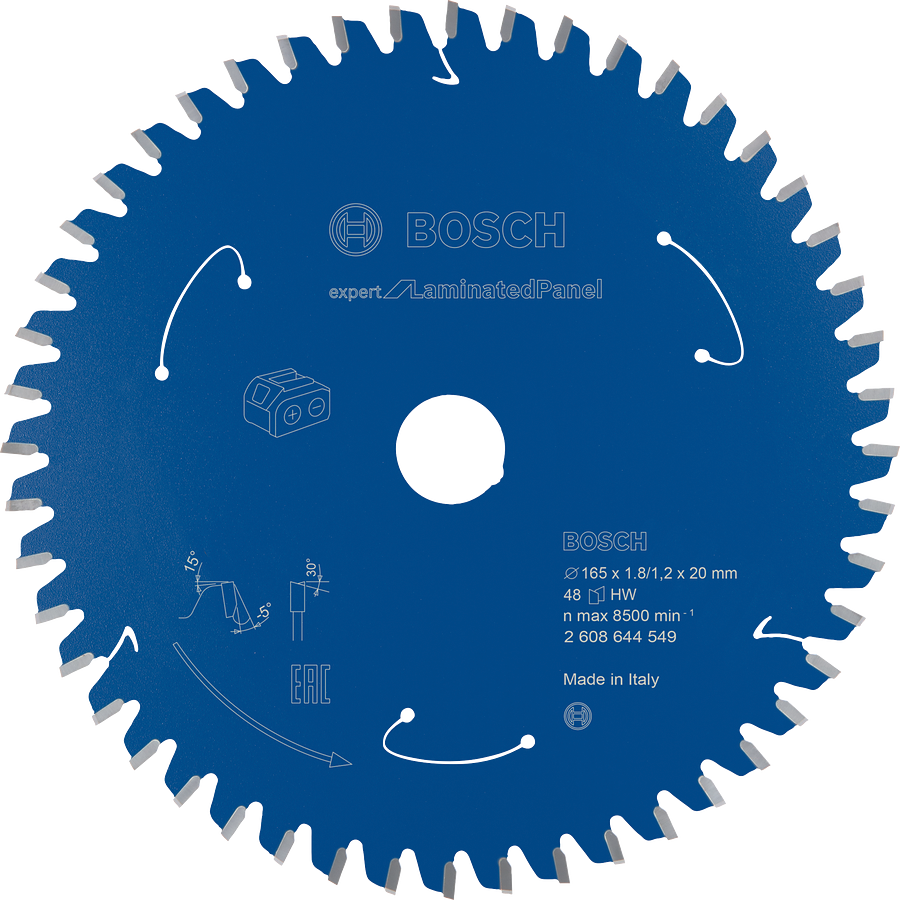

| Part number 2608644549 | |
|---|---|
| Packaging type | Combined cardboard / plastic packaging, folding blister, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 165 |
| Bore size mm | 20 |
| Bore with reduction ring mm | 15.875 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 1.8/1.2 |
| Number of teeth | 48 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 8500 |
| Cutting result | Fine Cut |
| Hook angle ° α | -5 |
| Relief angle ° β | 15 |
in stock

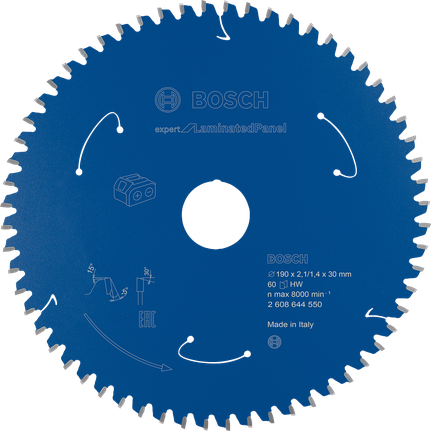

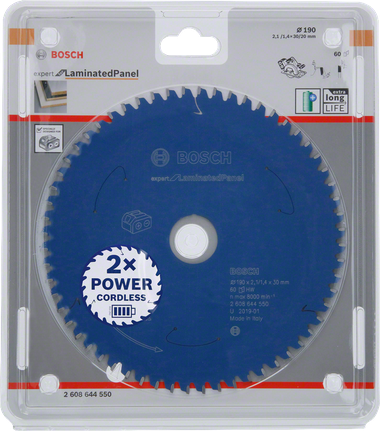

| Part number 2608644550 | |
|---|---|
| Packaging type | Combined cardboard / plastic packaging, folding blister, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 190 |
| Bore size mm | 30 |
| Bore with reduction ring mm | 20 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.1/1.4 |
| Number of teeth | 60 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 8000 |
| Cutting result | Fine Cut |
| Hook angle ° α | -5 |
| Relief angle ° β | 15 |
in stock
