For hand-held circular saws
Outer diameter mm
Number of teeth
Width of cut (b1) mm
Choose a pack size
Outer diameter mm 190
Number of teeth 4
Width of cut (b1) mm 1.8
Choose a pack size 1 Pcs
available at Bosch Partner

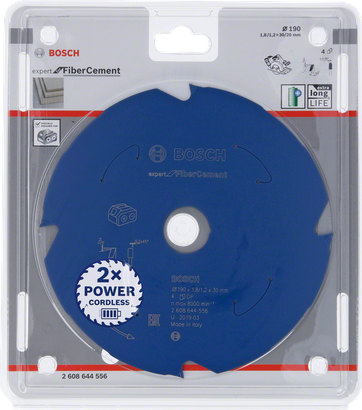

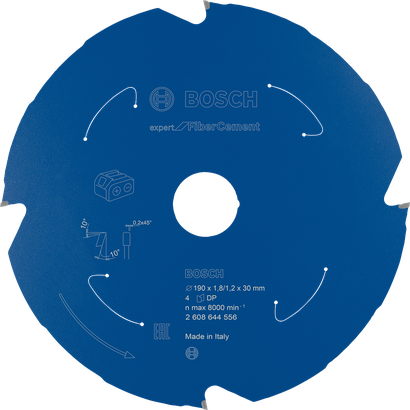

Available from our partnersExpert for Fibre Cement Circular Saw Blade for cordless saws maximises battery runtime
Available product options: 3
|
Part number
|
Outer diameter mm
|
Bore size mm
|
Bore with reduction ring mm
|
Width of cut (b1) mm / Base bl. thickness (b2) mm
|
Pack quantity
|
Price
|
|
|---|---|---|---|---|---|---|---|---|
| 2 608 644 554 | 160 | 20 | 15.875 | 1.8/1.2 | 1 Pcs | 70.00 GBP | Available from our partners | |
| 2 608 644 555 | 165 | 20 | 15.875 | 1.8/1.2 | 1 Pcs | 72.00 GBP | ||
| 2 608 644 556 | 190 | 30 | 20 | 1.8/1.2 | 1 Pcs | 87.00 GBP | Available from our partners |
out of products
| Part number 2608644554 | |
|---|---|
| Packaging type | Combined cardboard / plastic packaging, folding blister, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 160 |
| Bore size mm | 20 |
| Bore with reduction ring mm | 15.875 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 1.8/1.2 |
| Number of teeth | 4 |
| Tooth shape | TCG |
| Max. rotation speed (RPM) | 8500 |
| Cutting result | Coarse cut |
| Hook angle ° α | 10 |
| Relief angle ° β | 10 |
| Part number 2608644555 | |
|---|---|
| Packaging type | Combined cardboard / plastic packaging, folding blister, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 165 |
| Bore size mm | 20 |
| Bore with reduction ring mm | 15.875 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 1.8/1.2 |
| Number of teeth | 4 |
| Tooth shape | TCG |
| Max. rotation speed (RPM) | 8500 |
| Cutting result | Coarse cut |
| Hook angle ° α | 10 |
| Relief angle ° β | 10 |
in stock
| Part number 2608644556 | |
|---|---|
| Packaging type | Combined cardboard / plastic packaging, folding blister, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 190 |
| Bore size mm | 30 |
| Bore with reduction ring mm | 20 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 1.8/1.2 |
| Number of teeth | 4 |
| Tooth shape | TCG |
| Max. rotation speed (RPM) | 8000 |
| Cutting result | Coarse cut |
| Hook angle ° α | 10 |
| Relief angle ° β | 10 |
