Straight grinders
GGS 18 H
GGS 18 H
GGS 18 H
GGS 18 H
1/3

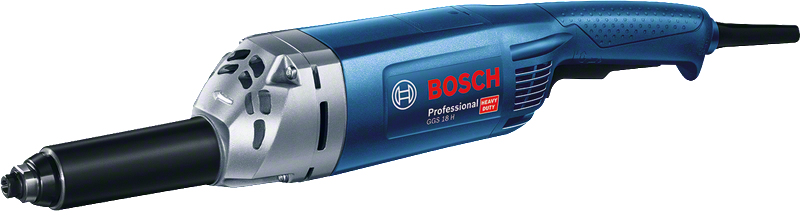

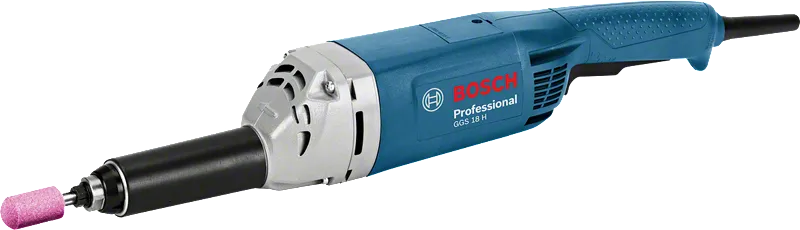

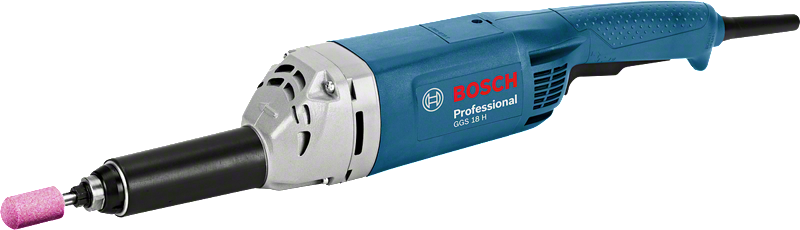

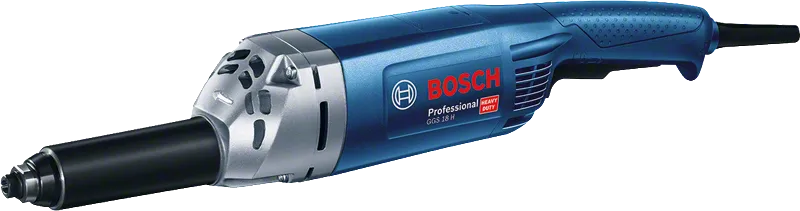

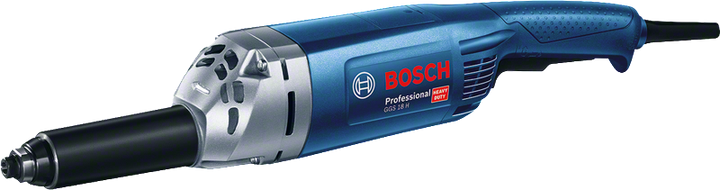

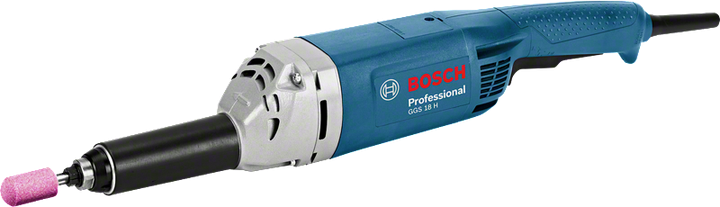

GGS 18 H Professional

Straight Grinder

The most powerful model from Bosch with collet clamping

  • Powerful 1.050 watt motor
  • Suitable for all grinding accessories with shank diameter of 6, 8, 10 mm and 1/4"
  • Particularly precise true running due to collet clamping

Your Selection

  • with collet
Show variant
Check availability on location
Find a local dealer
with collet 0 601 209 200
Find a local dealer

GGS 18 H Professional

Your Selection

GGS 18 H
with collet

Order number: 0 601 209 200

Find a local dealer

Included in this variant

  • Collet with clamping nut 8 mm
    Order number: 1 608 570 041
  • Open-ended spanner KW 22 (spare part number 1 607 950 505)
  • Open-ended spanner KW 14
    Order number: 1 607 950 511
Your selection

Technical data

Additional data

Rated input power
1050 W
No-load speed
18,000 rpm
Tool holder
Collet
Voltage, electrical
230 V
Spindle collar diameter
43 mm
Weight
3 kg
Max. grinding tool diameter
50 mm
Tools
Grinding stones for min. 45 m/s up to 50 mm diameter x width
Power output
500 W
Max. collet diameter
10 mm
Switch
Lockable Switch
Show more
GGS 18 H

* You can find more information about the deviations in the following link: Technical features of products

GGS 18 H Professional: Further information

Product Highlights

The GGS 18 H Professional corded straight grinder with collet clamping offers the most powerful performance in its category. Its strong 1,050 W motor and soft start feature ensure fast work progress. A special collet clamping makes it suitable for all grinding accessories with a shank diameter of 6, 8, 10 mm and 1/4''. Additionally, its restart protection feature increases user protection during operation. This tool is intended for grinding metal.

Equipment & Application

The GGS 18 H Professional also includes features such as direct motor cooling.

Downloads

User Manual

Insert | EU-Entsorgung /EU-Disposal (PDF 0.1 MB) Instruction manual | GGS 18 H (PDF 6.1 MB) Insert | GGS 18 H (PDF 0.2 MB) Insert | Herstellergarantie | Manufacturer's guarantee (EU) (PDF 0.2 MB) Insert | Entsorgungstext Deutschland (PDF 0.1 MB)
Product data sheet Product data sheet | GGS 18 H (PDF 1.5 MB)
