Nibblers

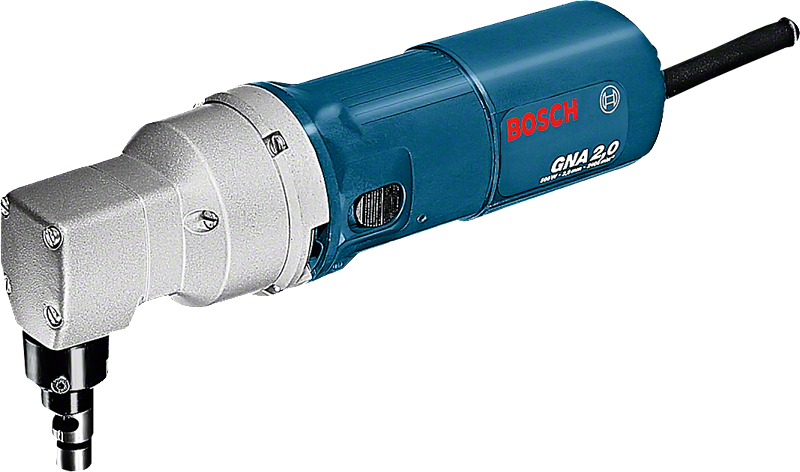

GNA 2,0 Professional
Nibbler
The handy tool for cut-outs of all kinds
- 500 watts of power
- Slim, narrow design for optimum handling
- Swivel-mounted die plate for better manoeuvrability in corners
Functions & key features
with hex key
0 601 530 103
GNA 2,0 Professional
Your Selection
with hex key
Order number: 0 601 530 103
Find a local dealerIncluded in this variant
-
Die plateOrder number: 2 608 639 900
-
Hex key WAF 2.5 (spare part number 1 907 950 003)
-
PunchOrder number: 2 608 639 013
Technical data
Additional data |
|
|---|---|
| Cutting capacity in steel (400 N/mm²), max. | 2 mm |
| No-load stroke rate | 2,400 spm |
| Material that can be processed | Steel up to 400 N/mm² at 2.0 mm |
| Cutting track width | 6 mm |
| Pre-drilling for interior cut-outs | 16 mm |
| Smallest radius | 3 mm |
| Stroke rate under load | 1,500 spm |
| Weight | 2.1 kg |
| Cutting capacity in steel (600 N/mm²), max. | 1.4 mm |
| Cutting capacity in steel (800 N/mm²), max. | 1 mm |
| Cutting capacity in aluminium (200 N/mm²), max. | 2.5 mm |
The A-rated noise level of the power tool is typically as follows: Sound pressure level 86 dB(A); Sound power level 97 dB(A). Uncertainty K= 3 dB.
* You can find more information about the deviations in the following link:
