For hand-held circular saws
Outer diameter mm
Number of teeth
Width of cut (b1) mm
Choose a pack size
Outer diameter mm 7 options
Number of teeth 6 options
Width of cut (b1) mm 6 options
Choose a pack size 1 Pcs
Ground and sharpened fine carbide teeth for strength and durability

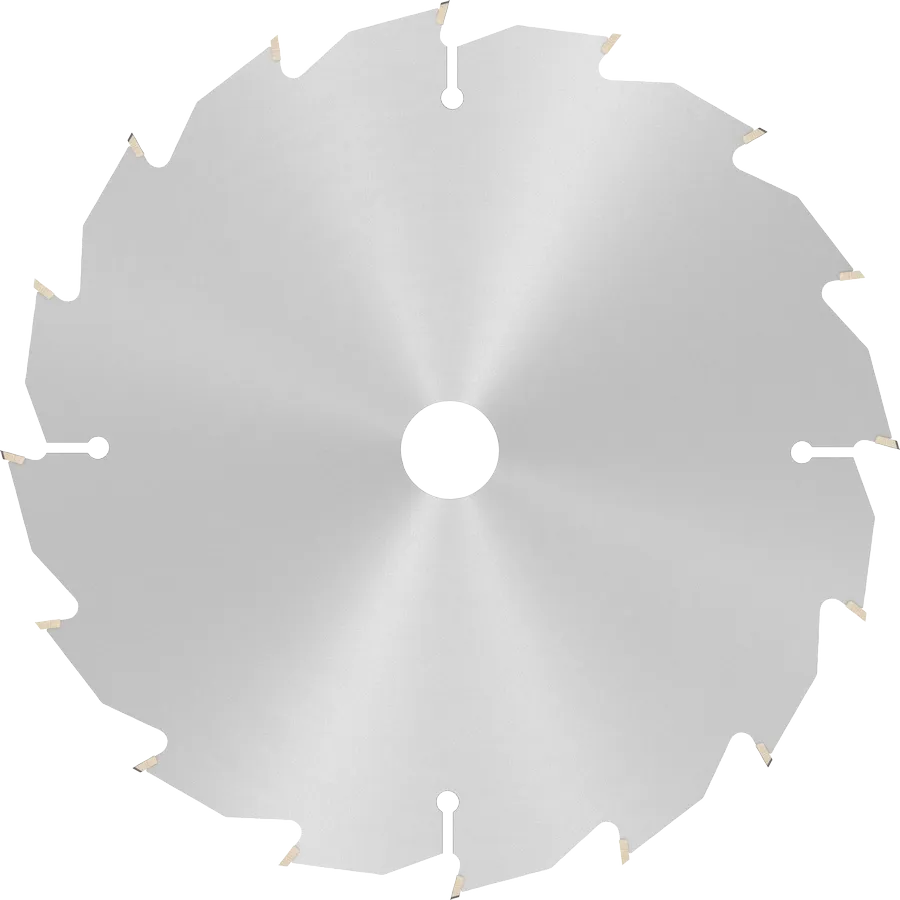

Expansion slots reduce heat for a longer lifetime

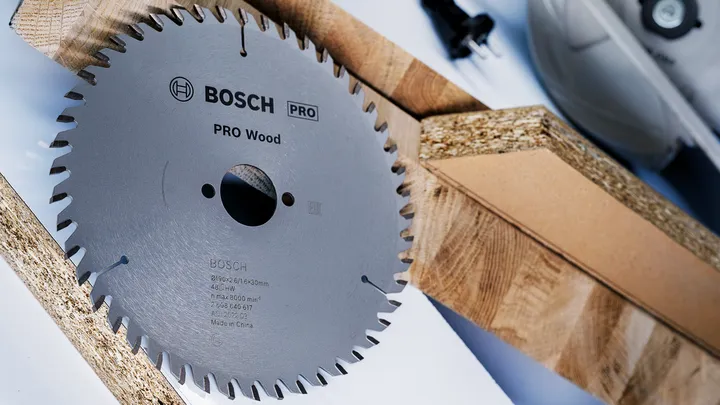

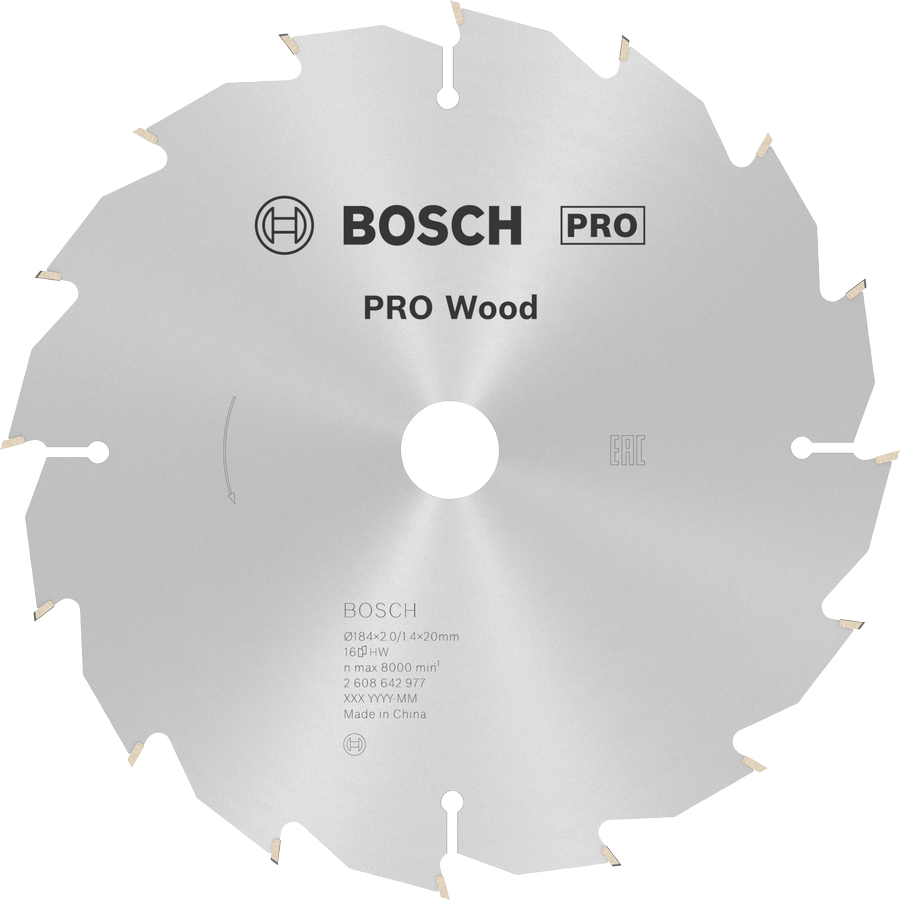

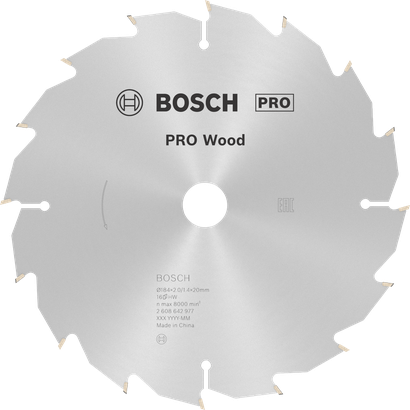

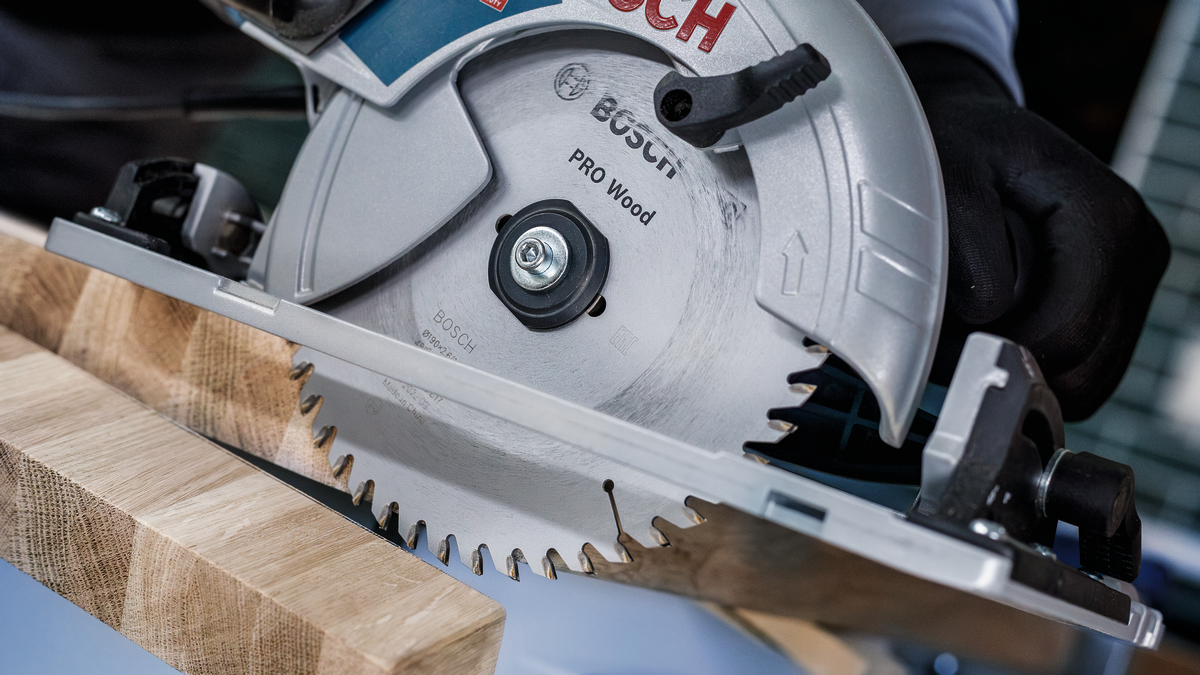

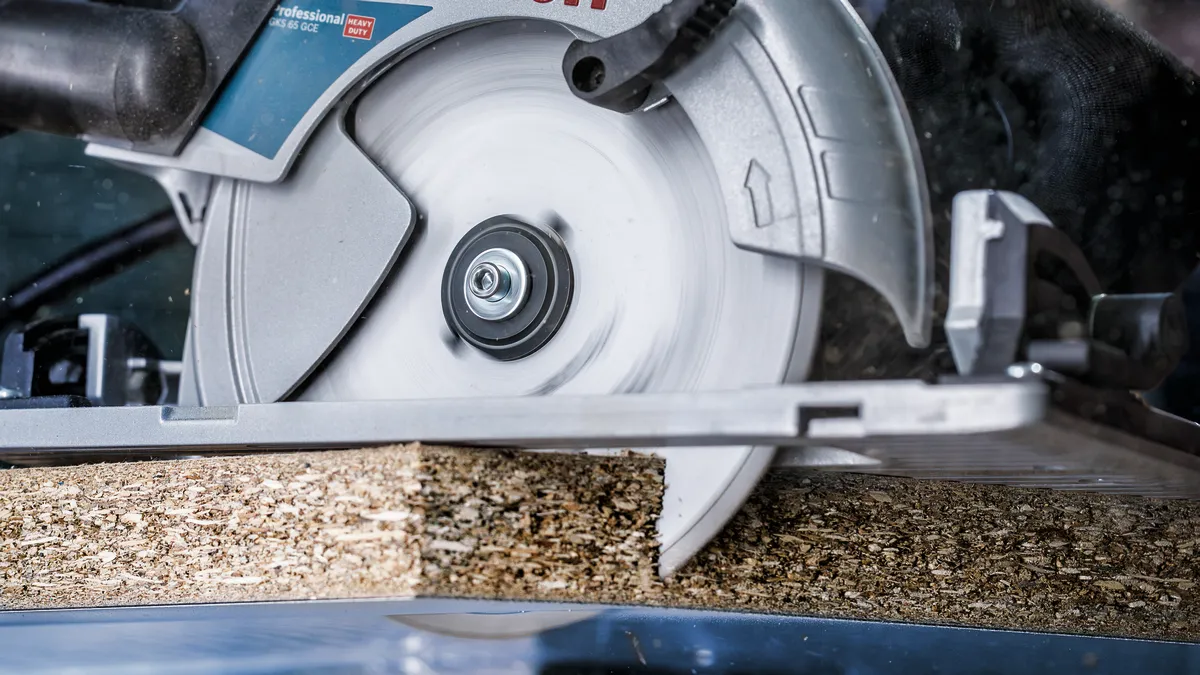

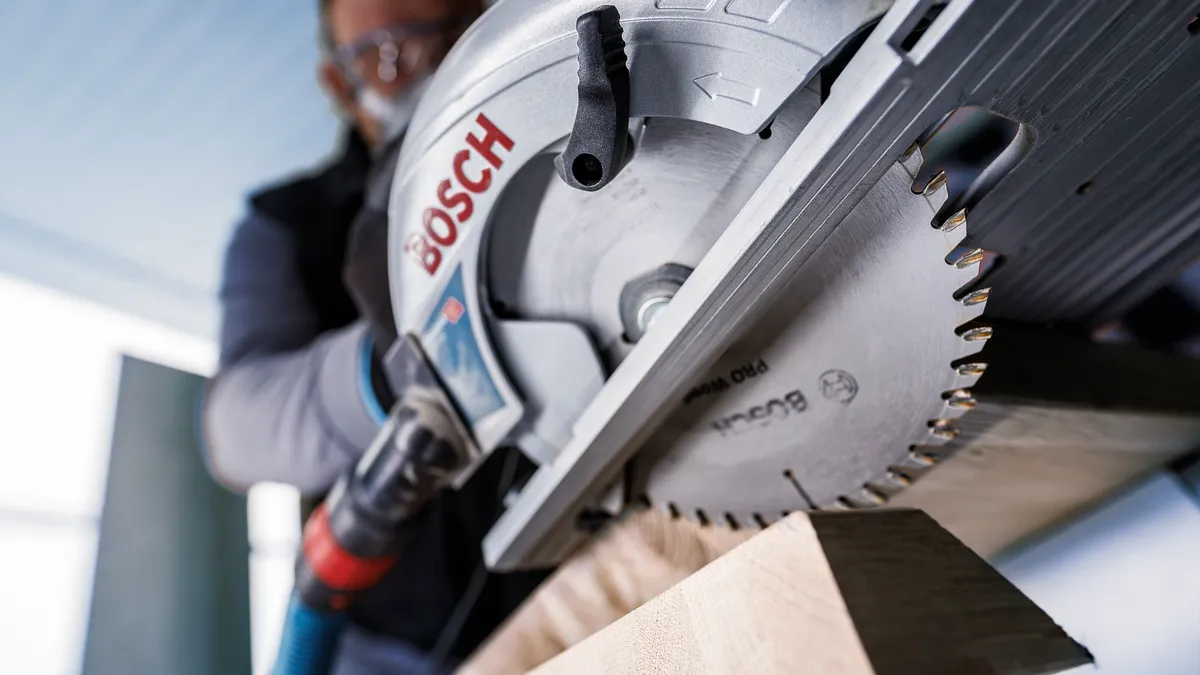

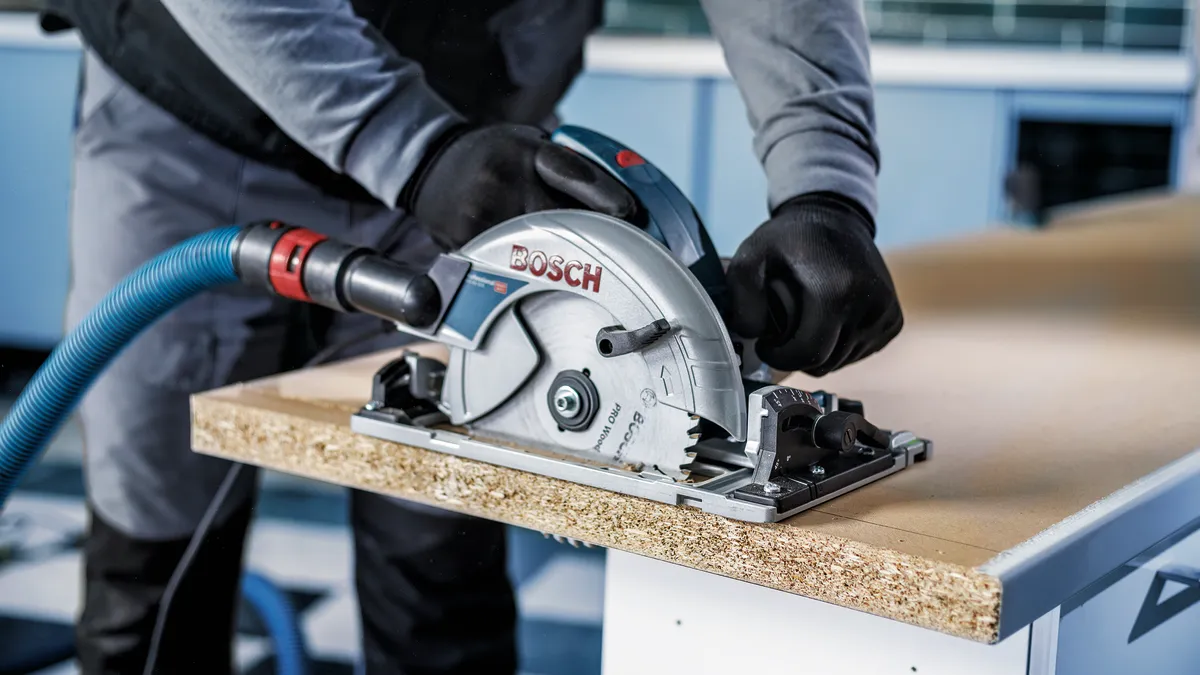

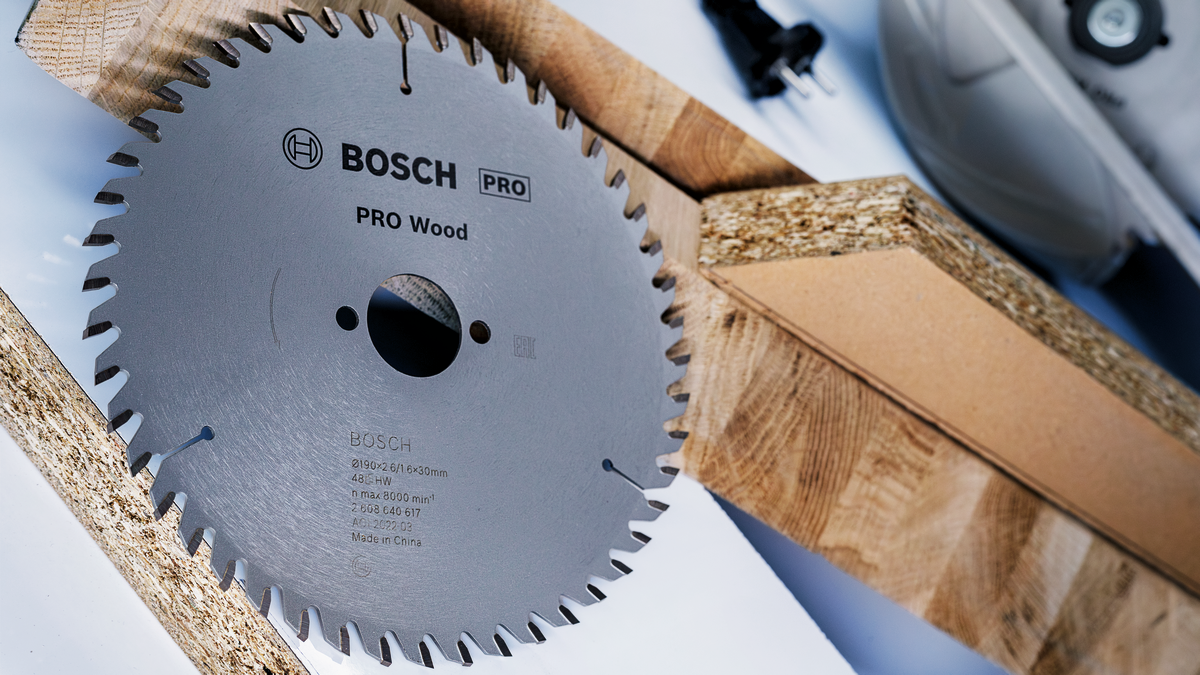

The PRO Wood Circular Saw Blade is designed to solve your challenges cutting all types of solid wood and wood-based panel materials. We made it strong and well-balanced to ensure you get clean and accurate cuts – for a long time.
Available product options: 13
|
Part number
|
Outer diameter mm
|
Bore size mm
|
Width of cut (b1) mm / Base bl. thickness (b2) mm
|
Number of teeth
|
Pack quantity
|
|
|---|---|---|---|---|---|---|---|
| 2 608 640 596 | 160 | 20 | 2.6/1.6 | 24 | 1 Pcs | Find a local dealer | |
| 2 608 640 610 | 184 | 30 | 2.6/1.6 | 24 | 1 Pcs | Find a local dealer | |
| 2 608 640 725 | 235 | 30 | 2.8/1.8 | 24 | 1 Pcs | Find a local dealer | |
| 2 608 640 732 | 160 | 20 | 2.6/1.6 | 48 | 1 Pcs | Find a local dealer | |
| 2 608 640 795 | 184 | 16 | 2.2/1.6 | 24 | 1 Pcs | Find a local dealer | |
| 2 608 640 799 | 190 | 20 | 2.4/1.6 | 24 | 1 Pcs | Find a local dealer | |
| 2 608 640 801 | 190 | 30 | 2.4/1.8 | 24 | 1 Pcs | Find a local dealer | |
| 2 608 640 805 | 230 | 30 | 2.4/1.8 | 30 | 1 Pcs | Find a local dealer | |
| 2 608 640 817 | 184 | 16 | 2.6/1.6 | 24 | 1 Pcs | Find a local dealer | |
| 2 608 640 818 | 184 | 16 | 2.6/1.6 | 36 | 1 Pcs | Find a local dealer | |
| 2 608 641 175 | 165 | 30 | 2.6/1.6 | 48 | 1 Pcs | Find a local dealer | |
| 2 608 641 184 | 190 | 30 | 2/1.3 | 16 | 1 Pcs | Find a local dealer | |
| 2 608 643 071 | 85 | 15 | 1.1/0.7 | 20 | 1 Pcs | Find a local dealer |
out of products

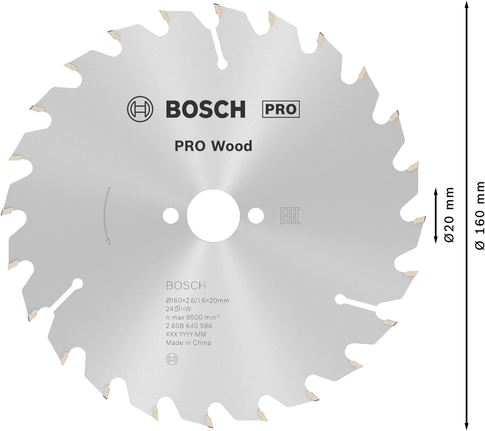

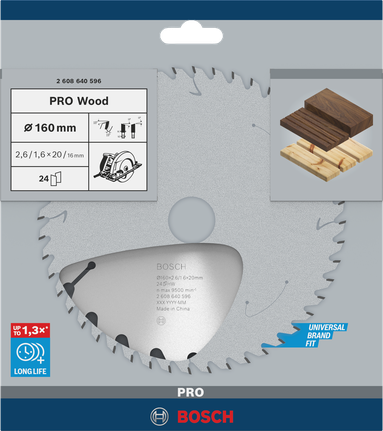

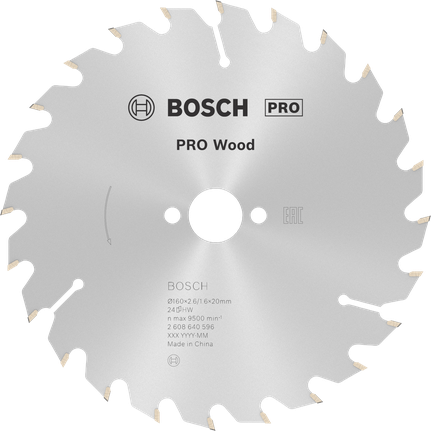

| Part number 2608640596 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 160 |
| Bore size mm | 20 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.6/1.6 |
| Number of teeth | 24 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 9500 |
| Cutting result | Coarse cut |
| Hook angle ° α | 15 |
| Relief angle ° β | 15 |
| Bore with reduction ring mm | 16 |
| Pin hole/Pitch circle diameter | 6/32 |

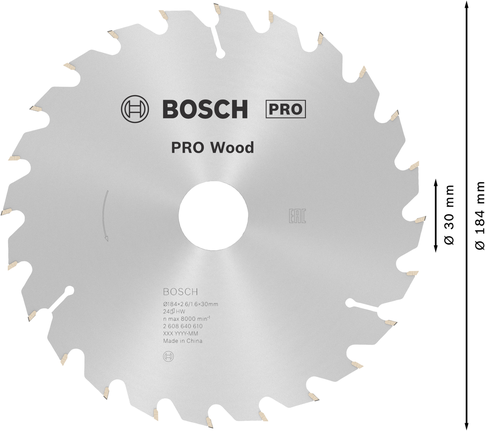

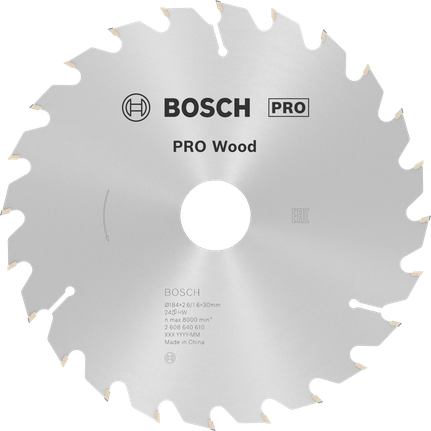

| Part number 2608640610 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 184 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.6/1.6 |
| Number of teeth | 24 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 8000 |
| Cutting result | Coarse cut |
| Hook angle ° α | 17 |
| Relief angle ° β | 13 |

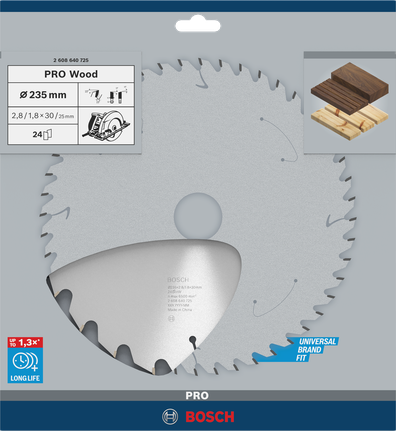

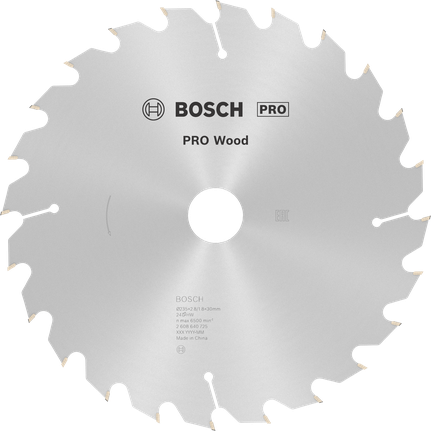

| Part number 2608640725 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 235 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.8/1.8 |
| Number of teeth | 24 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 6500 |
| Cutting result | Coarse cut |
| Hook angle ° α | 15 |
| Relief angle ° β | 15 |
| Bore with reduction ring mm | 25 |

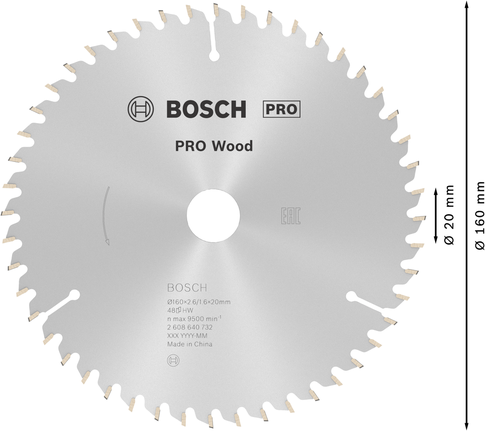

| Part number 2608640732 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 160 |
| Bore size mm | 20 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.6/1.6 |
| Number of teeth | 48 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 9500 |
| Cutting result | Fine Cut |
| Hook angle ° α | 15 |
| Relief angle ° β | 15 |
| Bore with reduction ring mm | 16 |
| Pin hole/Pitch circle diameter | 6/32 |

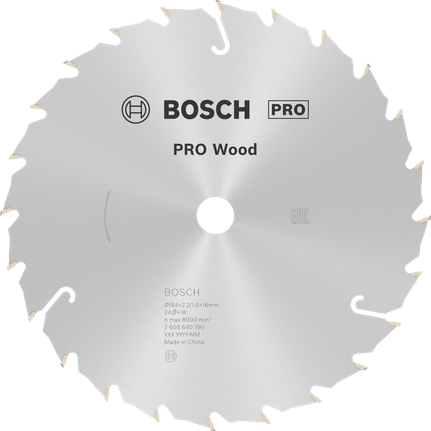

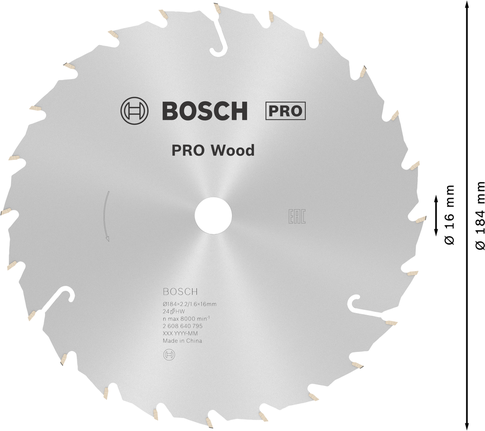

| Part number 2608640795 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 184 |
| Bore size mm | 16 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.2/1.6 |
| Number of teeth | 24 |
| Tooth shape | ATB/FT |
| Max. rotation speed (RPM) | 8000 |
| Cutting result | Coarse cut |
| Hook angle ° α | 16 |
| Relief angle ° β | 15 |

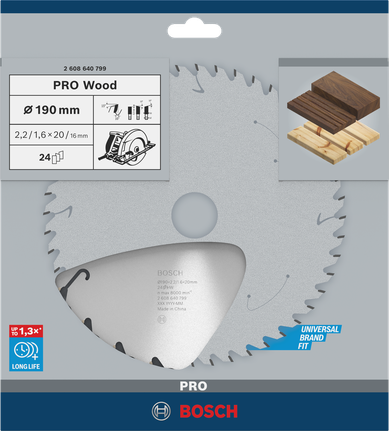

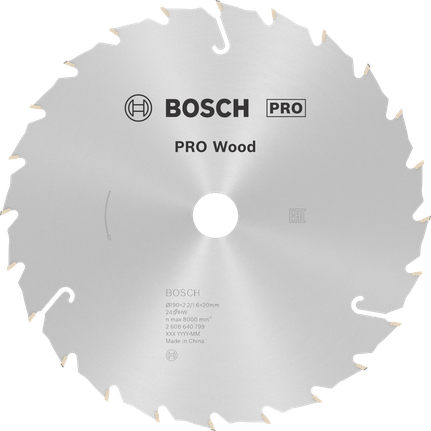

| Part number 2608640799 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 190 |
| Bore size mm | 20 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.4/1.6 |
| Number of teeth | 24 |
| Tooth shape | ATB/FT |
| Max. rotation speed (RPM) | 8000 |
| Cutting result | Coarse cut |
| Hook angle ° α | 16 |
| Relief angle ° β | 15 |
| Bore with reduction ring mm | 16 |

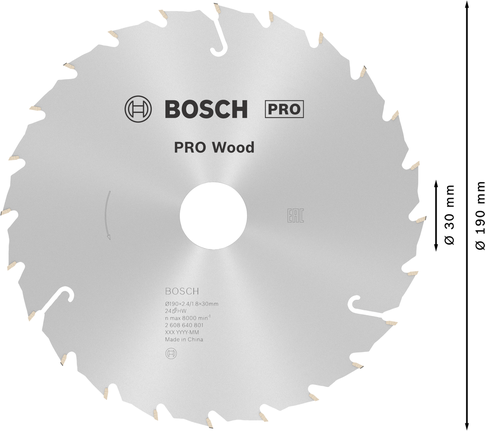

| Part number 2608640801 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 190 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.4/1.8 |
| Number of teeth | 24 |
| Tooth shape | ATB/FT |
| Max. rotation speed (RPM) | 8000 |
| Cutting result | Coarse cut |
| Hook angle ° α | 16 |
| Relief angle ° β | 15 |

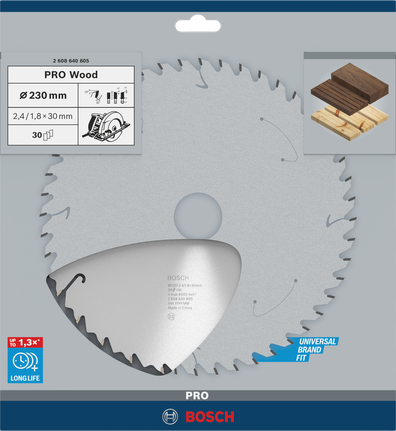

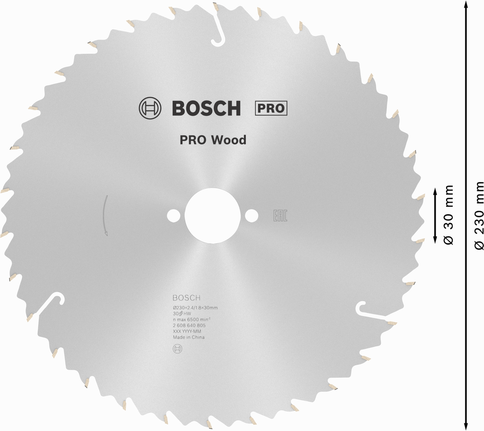

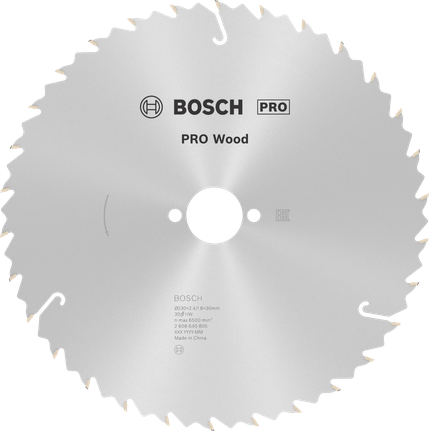

| Part number 2608640805 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 230 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.4/1.8 |
| Number of teeth | 30 |
| Tooth shape | ATB/FT |
| Max. rotation speed (RPM) | 6500 |
| Cutting result | Coarse cut |
| Hook angle ° α | 16 |
| Relief angle ° β | 15 |

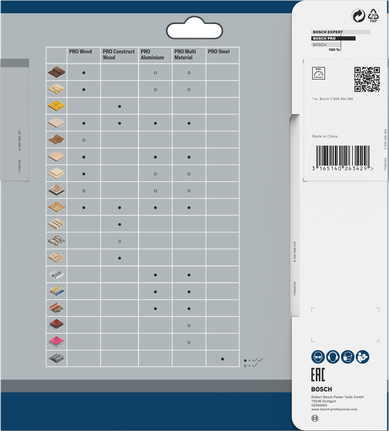

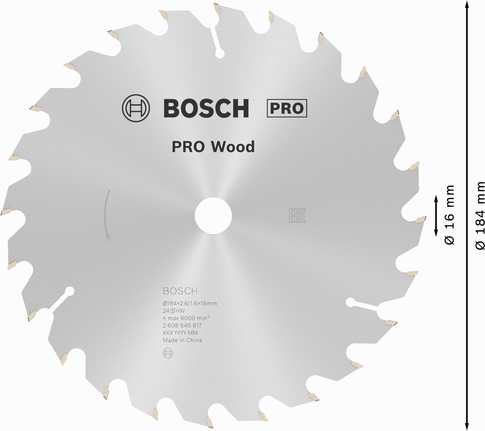

| Part number 2608640817 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 184 |
| Bore size mm | 16 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.6/1.6 |
| Number of teeth | 24 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 8000 |
| Cutting result | Coarse cut |
| Hook angle ° α | 17 |
| Relief angle ° β | 13 |

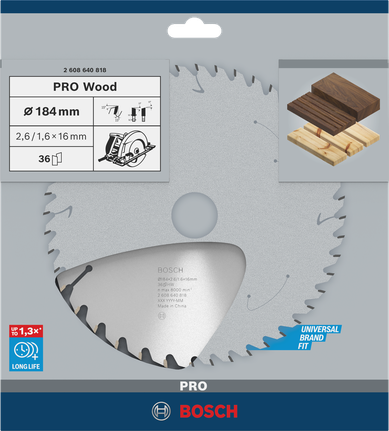

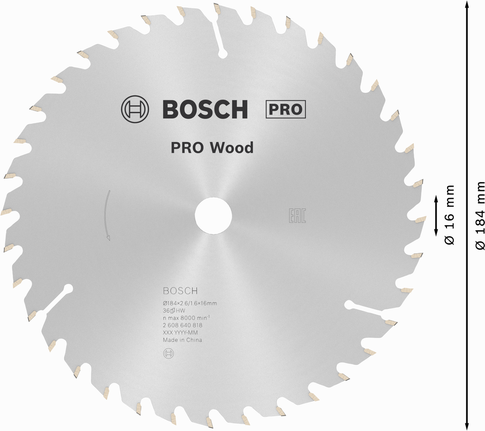

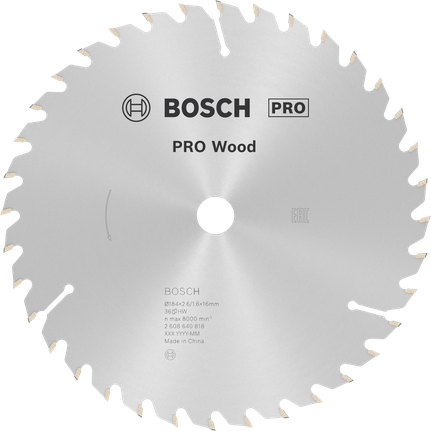

| Part number 2608640818 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 184 |
| Bore size mm | 16 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.6/1.6 |
| Number of teeth | 36 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 8000 |
| Cutting result | Fine Cut |
| Hook angle ° α | 15 |
| Relief angle ° β | 15 |

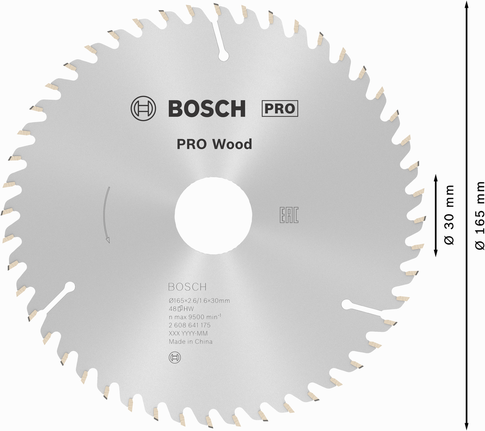

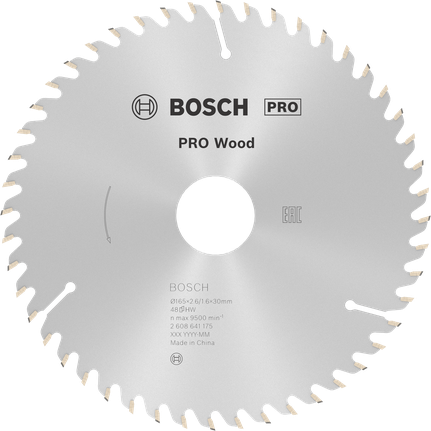

| Part number 2608641175 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 165 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.6/1.6 |
| Number of teeth | 48 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 9500 |
| Cutting result | Fine Cut |
| Hook angle ° α | 15 |
| Relief angle ° β | 15 |

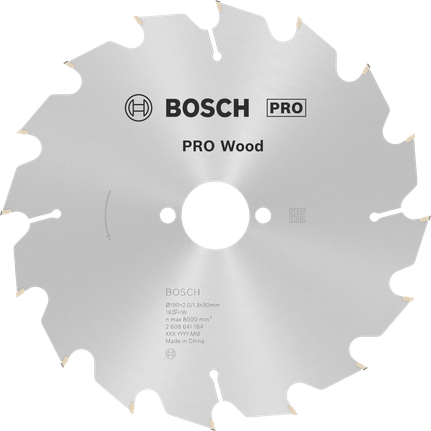

| Part number 2608641184 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 190 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2/1.3 |
| Number of teeth | 16 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 8000 |
| Cutting result | Very coarse cut |
| Hook angle ° α | 15 |
| Relief angle ° β | 15 |
| Pin hole/Pitch circle diameter | 7/42 |

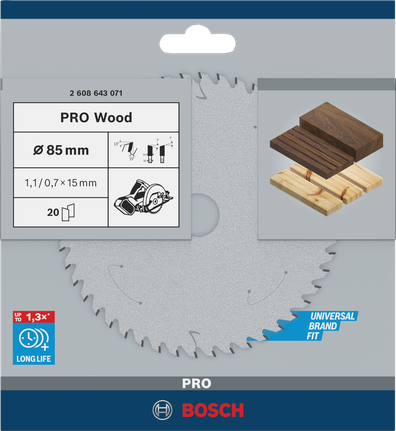

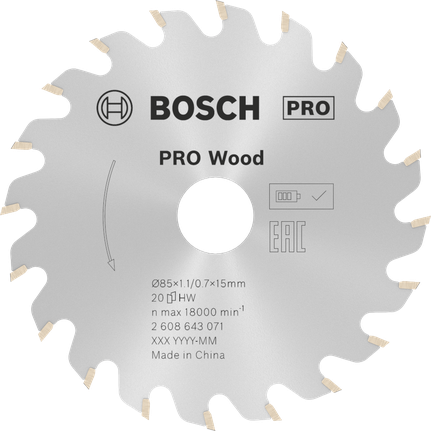

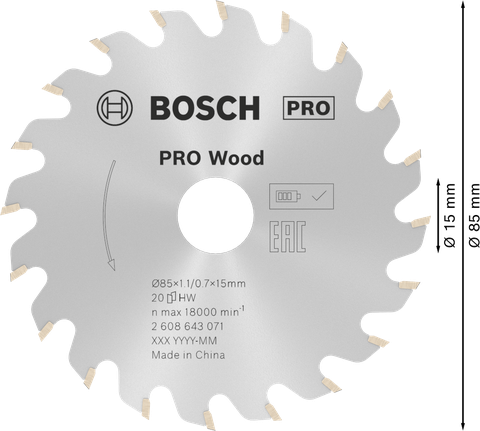

| Part number 2608643071 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 85 |
| Bore size mm | 15 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 1.1/0.7 |
| Number of teeth | 20 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 18000 |
| Cutting result | Fine Cut |
| Hook angle ° α | 15 |
| Relief angle ° β | 13 |
