For hand-held circular saws
Outer diameter mm
Number of teeth
Width of cut (b1) mm
Choose a pack size
Outer diameter mm 3 options
Number of teeth 3 options
Width of cut (b1) mm 2 options
Choose a pack size 1 Pcs

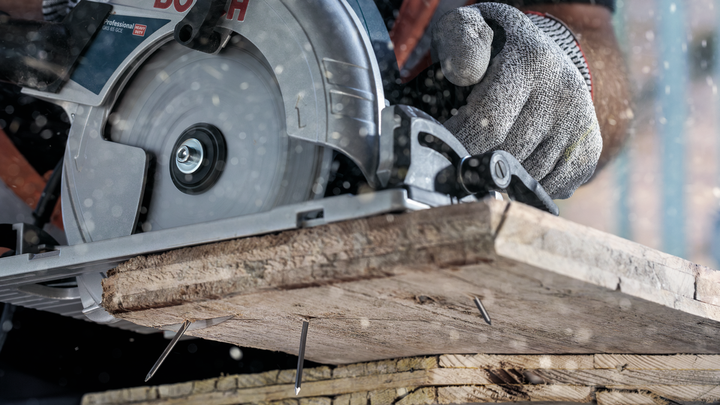

Need a reliable circular saw blade to cut construction wood? A saw blade that won’t stop when you hit a nail or concrete residue? Try the PRO Construct Wood Circular Saw Blade. We made it strong and accurate so that you can use it for tough jobs – for a long time.
Available product options: 3
|
Part number
|
Outer diameter mm
|
Bore size mm
|
Bore with reduction ring mm
|
Width of cut (b1) mm / Base bl. thickness (b2) mm
|
Pack quantity
|
|
|---|---|---|---|---|---|---|---|
| 2 608 640 630 | 160 | 20 | 16 | 2.6/1.6 | 1 Pcs | Find a local dealer | |
| 2 608 640 634 | 210 | 30 | - | 2.8/1.8 | 1 Pcs | Find a local dealer | |
| 2 608 640 636 | 235 | 30 | 25 | 2.8/1.8 | 1 Pcs | Find a local dealer |
out of products
| Part number 2608640630 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 160 |
| Bore size mm | 20 |
| Bore with reduction ring mm | 16 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.6/1.6 |
| Number of teeth | 12 |
| Tooth shape | HB |
| Max. rotation speed (RPM) | 9500 |
| Cutting result | Very coarse cut |
| Hook angle ° α | 12 |
| Relief angle ° β | 10 |
| Part number 2608640634 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 210 |
| Bore size mm | 30 |
| Bore with reduction ring mm | - |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.8/1.8 |
| Number of teeth | 14 |
| Tooth shape | HB |
| Max. rotation speed (RPM) | 7500 |
| Cutting result | Very coarse cut |
| Hook angle ° α | 12 |
| Relief angle ° β | 10 |
| Outer diameter inch | 8 1/4 |
| Part number 2608640636 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 235 |
| Bore size mm | 30 |
| Bore with reduction ring mm | 25 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.8/1.8 |
| Number of teeth | 16 |
| Tooth shape | HB |
| Max. rotation speed (RPM) | 6500 |
| Cutting result | Very coarse cut |
| Hook angle ° α | 10 |
| Relief angle ° β | 12 |
| Outer diameter inch | 9 1/4 |
