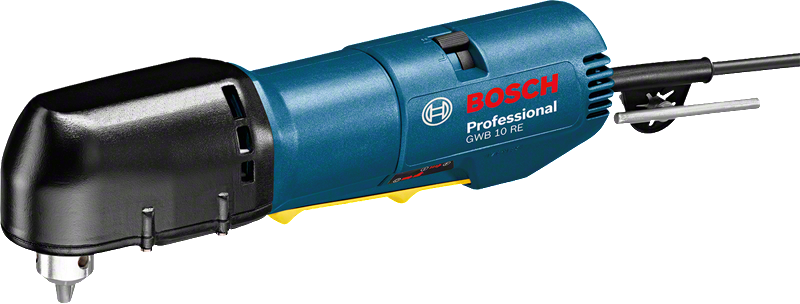

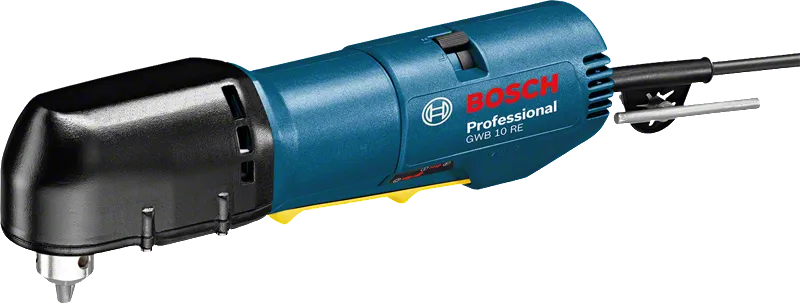

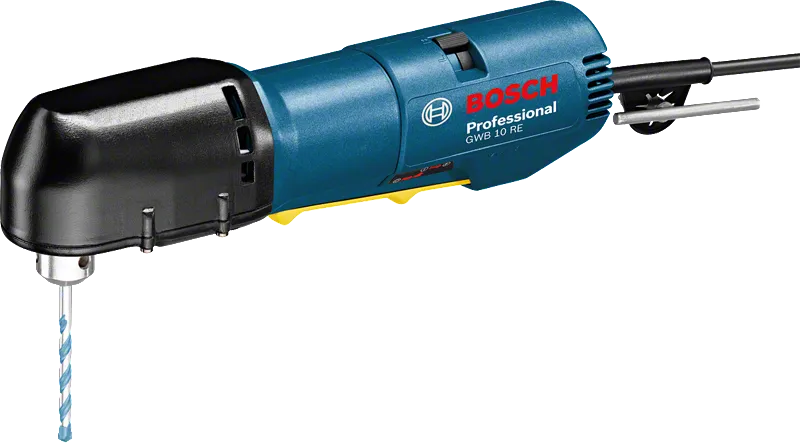

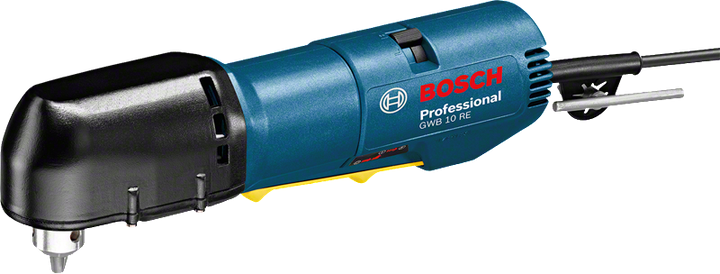

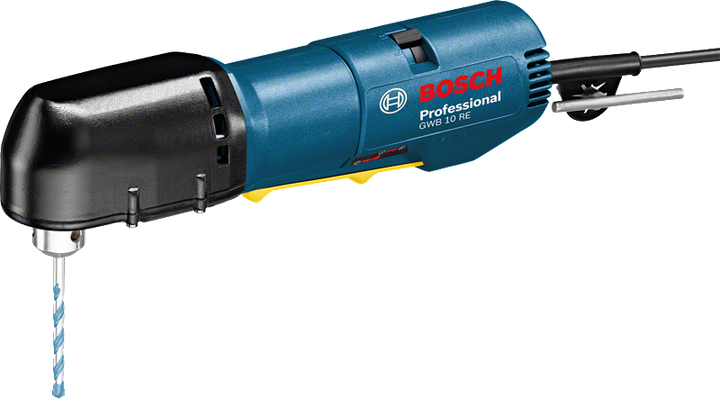

Angle Drill
Your Selection
Your Selection
Order number: 0 601 132 703
Included in this variant
Additional data |
|
---|---|
Rated input power | 400 W |
Drill chuck, version | Keyed chuck |
Voltage, electrical | 230 V |
No-load speed, 1st gear | 1,300 rpm |
Power output | 170 W |
Weight | 1.7 kg |
Rated speed | 750 rpm |
Rated torque | 2.2 Nm |
Max. torque | 5.5 Nm |
Drilling range |
|
---|---|
Drilling diameter in wood | 22 mm |
Drilling diameter in steel | 10 mm |
Drilling diameter in aluminium | 12 mm |
Total vibration values (Drilling in metal) |
|
---|---|
Vibration emission value ah | 2 m/s² |
Uncertainty K | 1.5 m/s² |
Total vibration values (Screwdriving) |
|
---|---|
Vibration emission value ah | 2.9 m/s² |
Uncertainty K | 1.5 m/s² |
Drilling in metal |
|
---|---|
Vibration emission value ah | 2 m/s² |
Uncertainty K | 1.5 m/s² |
Screwdriving |
|
---|---|
Vibration emission value ah | 2.9 m/s² |
Uncertainty K | 1.5 m/s² |
The A-rated noise level of the power tool is typically as follows: Sound pressure level 81 dB(A); Sound power level 91 dB(A). Uncertainty K= 5 dB.
* You can find more information about the deviations in the following link: Technical features of products
