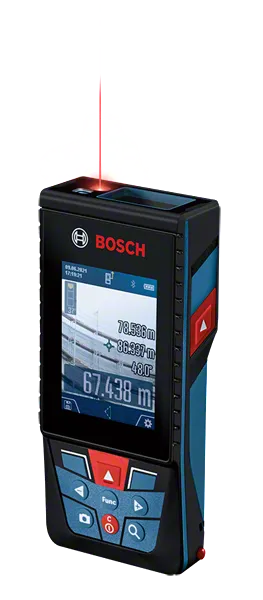

GLM 150-27 C Professional
Laser Measure
Advanced laser measure for long distances even outdoors with smart documentation
- Precise, long-distance laser measuring thanks to digital camera viewfinder with zoom function
- Optimal reading on large, high-contrast IPS colour display with flip screen capability
- Connects via Bluetooth or USB cable for easy data documentation
Functions & key features
Your Selection
- with protective acc.
447,900.00 KZ
Recommended retail price including VAT
with protective acc.
0 601 072 Z00
GLM 150-27 C Professional
Your Selection
with protective acc.
Order number: 0 601 072 Z00
447,900.00 KZ
Recommended retail price including VAT
Included in this variant
-
Micro USB cableOrder number: 2 609 120 670
-
Protective Bag
-
Carrying Strap
Technical data
Additional data |
|
|---|---|
| Data transfer | Bluetooth™ 4.2 Low Energy |
| Laser colour | Red |
| Measurement time, typical | < 0.5 s |
| Laser diode | 650 nm, < 1 mW |
| Measurement range | 0.08 – 150.00 m |
| Laser class | 2 |
| Measurement accuracy, typical | ± 1.5 mmᵈ |
| Measurement range of incline measurement | 0 – 360° (4 x 90°) |
| Measuring accuracy (typical) | ± 0.2°ᶜ |
| Measurement time, max. | 4 s |
| Power supply | 1 x 3.6 V Li-Ion battery (3120 mAh) |
| Automatic deactivation | 5 min |
| Weight, approx. | 0.21 kg |
| Units of measurement | m/cm/mm/ft/inch/ft-inch |
| Memory capacity (values) | 50 |
| Dust and splash protection | IP 54 |
| Tripod thread | 1/4" |
| Digital viewfinder | integrated |
| Measuring range, up to | 150 m |
* Plus use-dependent deviation. You can find more information about the deviations in the following link:
** You can find more information about the deviations in the following link:
ᶜ At >0°C, <100°C, for other surface temperatures, see
ᵈ Plus deviations depending on application and distance, see
GLM 150-27 C Professional: Further information
Product Highlights

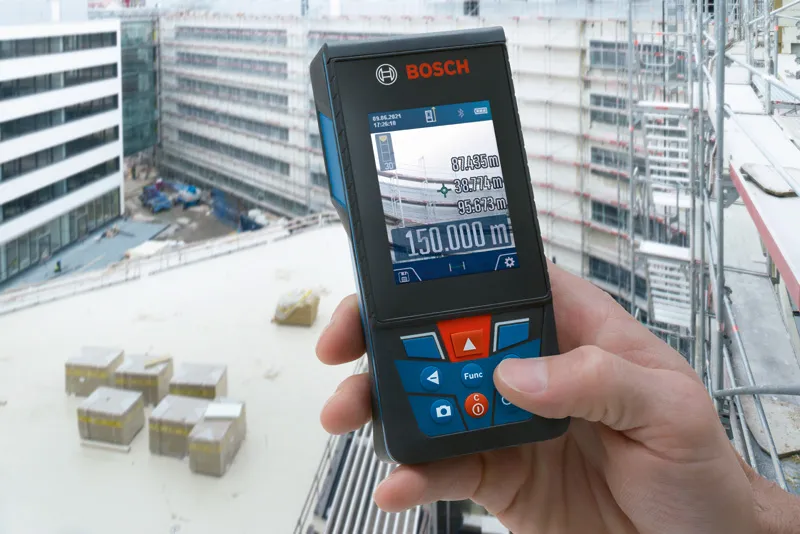

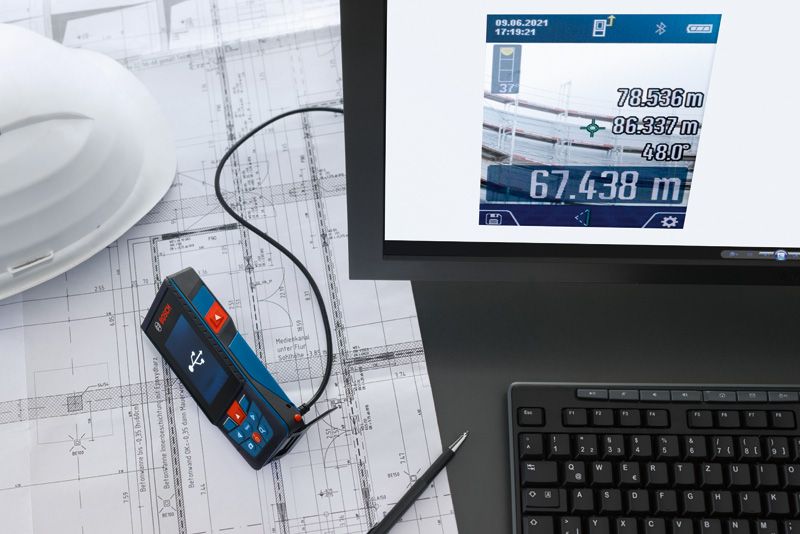

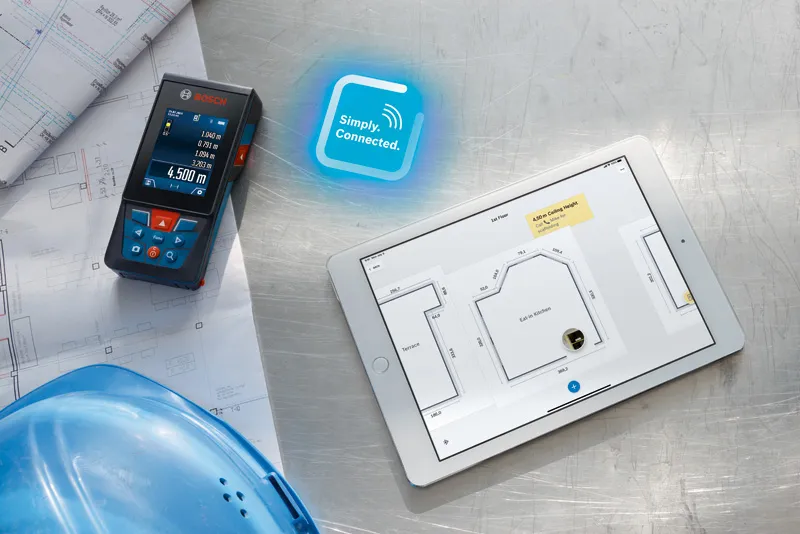

This robust outdoor laser measure has a digital camera viewfinder with a zoom function for accurately measuring distances up to 150 m. Measurements and pictures are automatically saved and easy to read thanks to a large, high-contrast 2.8" IPS colour display that rotates between portrait and landscape view. For convenient documentation, all data can be transferred via Bluetooth to the Bosch MeasureOn App or via USB connection to a PC. With IP54 protection, scratch-resistant display glass, and user-friendly interface, this laser measure is the handy all-rounder for demanding jobsites.
Equipment & Application
Architects, construction managers, or HVAC installation professionals will reach for this smart laser measure for its long-distance capability, easy readability, and convenient documentation.
Additional Information
The GLM 150-27 C laser measure has an integrated lithium-ion battery, ensuring long operating time and more flexibility.
