For corded table saws
Outer diameter mm 2 options
Number of teeth 2 options
Width of cut (b1) mm 2 options
Choose a pack size 1 Pcs
Industrial Quality for Highly Demanding Applications in Wood
Available product options: 2
|
Part number
|
Outer diameter mm
|
Bore size mm
|
Width of cut (b1) mm / Base bl. thickness (b2) mm
|
Number of teeth
|
Pack quantity
|
|
|---|---|---|---|---|---|---|---|
| 2 608 642 114 | 300 | 30 | 3=2/2=2 | 48 | 1 Pcs | Find a local dealer | |
| 2 608 642 122 | 400 | 30 | 4/2=8 | 60 | 1 Pcs | Find a local dealer |
out of products

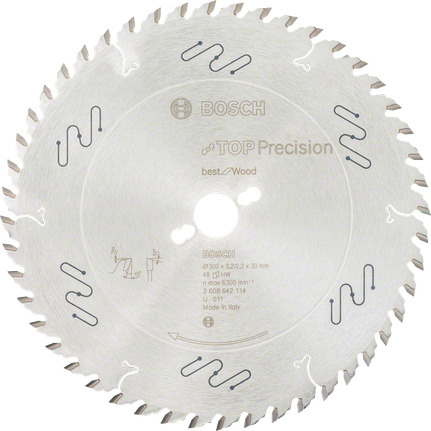

| Part number 2608642114 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, pocket, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 300 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 3=2/2=2 |
| Number of teeth | 48 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 6300 |
| Cutting result | Coarse cut |
| Pin hole/Pitch circle diameter | 7/42; 9/46.4; 10/60 |
| Hook angle ° α | 15 |
| Relief angle ° β | 15 |

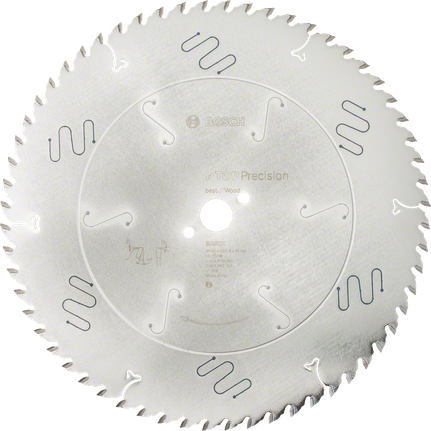

| Part number 2608642122 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, box, no Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 400 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 4/2=8 |
| Number of teeth | 60 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 4700 |
| Cutting result | Fine Cut |
| Pin hole/Pitch circle diameter | 10/60 |
| Hook angle ° α | 15 |
| Relief angle ° β | 15 |
