GTS 10 J Professional

Table Saw

The powerful tool with large cutting capacity

  • Extremely compact and powerful
  • Powerful 1,800 W motor with soft start and overload protection for fast working progress
  • Optimal for transport due to compact design and different carrying handles

Functions & key features

Easy disc / tool change thanks to spindle lock
Two layers of insulating material surrounding live parts or reinforced insulation. Does not require a connection to electrical earth (ground)
Click & Clean System – 3 great benefits A clear view of the work surface: You work more precisely and faster
Harmful dust is extracted immediately: Protects your health
Less dust: Longer lifetime of tool and accessories
 Soft start as the load and torque of the motor are temporarily reduced during start-up.
Dust extraction directly into the integral dust bag on the tool and/or using an all-purpose dust extractor

Your Selection

  • with guide rail system accessory, Accessory
Change variant Find a local dealer

with guide rail system accessory, Accessory 0 601 B30 570

Select a variant

Your Selection

GTS 10 J
with guide rail system accessory, Accessory

Order number: 0 601 B30 570

Find a local dealer

Included in all variants

  • Parallel guide
    Order number: 2 610 016 853
  • Angle guide
    Order number: 2 610 015 507
  • Dust extraction adapter
    Order number: 2 610 015 509
  • Push stick
    Order number: 2 610 015 022
  • 1 x circular saw blade, Optiline Wood, 254 x 2.8/1.8 x 30 mm, 24
    Order number: 2 608 838 412

Additional in this variant

  • Voltage 240 V

Your Selection

GTS 10 J
with guide rail system accessory

Order number: 0 601 B30 500

Find a local dealer

Included in all variants

  • Parallel guide
    Order number: 2 610 016 853
  • Angle guide
    Order number: 2 610 015 507
  • Dust extraction adapter
    Order number: 2 610 015 509
  • Push stick
    Order number: 2 610 015 022
  • 1 x circular saw blade, Optiline Wood, 254 x 2.8/1.8 x 30 mm, 24
    Order number: 2 608 838 412

Technical data

Additional data

Saw blade diameter 254 mm
Incline setting 47 ° L / 2 ° R
Table size 642 x 634 mm
Voltage 240 V
Rated input power 1,800 W
No-load speed 3,650 rpm
Saw blade bore diameter 30 mm
Weight 27 kg

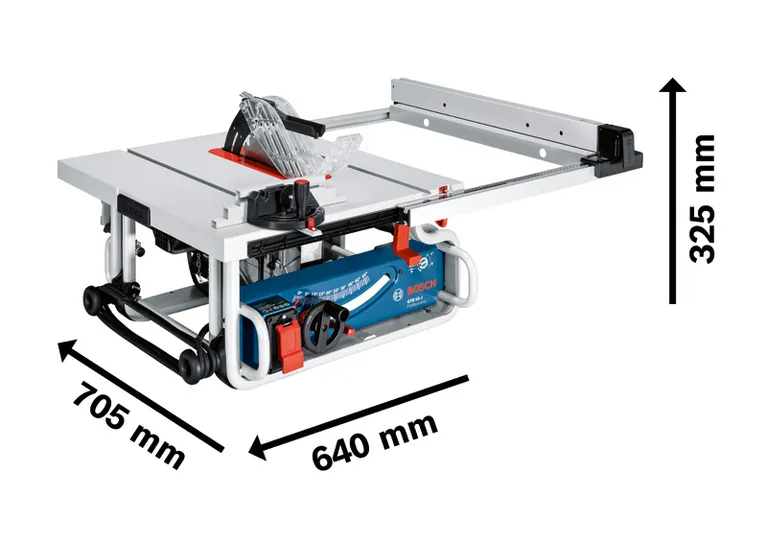

Tool dimensions (width x length x height) 705 x 640 x 325 mm
Cutting height 90° 79 mm
Max. cutting capacity on the right 635 mm
Max. cutting capacity on the left 255 mm

The A-rated noise level of the power tool is typically as follows: Sound pressure level 103 dB(A); Sound power level 116 dB(A). Uncertainty K= 3 dB.

GTS 10 J

* You can find more information about the deviations in the following link: Technical features of products
