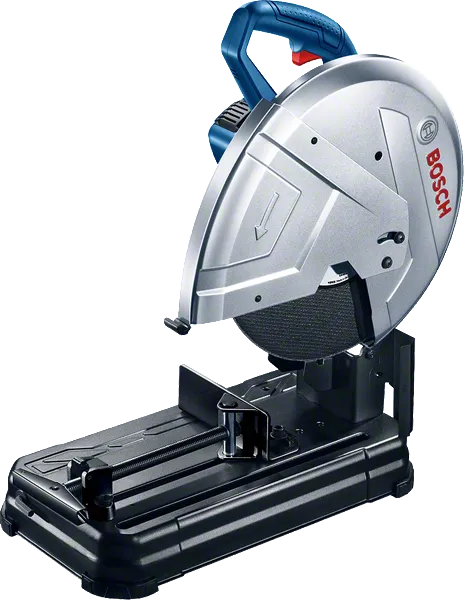

Metal Cut-off Saw
Additional data |
|
---|---|
Cutting disc diameter | 355 mm |
Cutting disc bore | 25.4 mm |
No-load speed | 3,800 rpm |
Cutting capacity at rectangle 0º | 100 x 196 mm |
Cutting capacity at square 0º | 119 x 119 mm |
Cutting capacity at L-profile 0º | 130 x 130 mm |
Weight | 15 kg |
Rated input power | 2,200 W |
Cutting capacity at rectangle 45º mitre | 107 x 115 mm |
Cutting capacity at square 45º mitre | 110 x 110 mm |
Cutting capacity at L-profile 45º mitre | 115 x 115 mm |
Tool dimensions (width x length x height) | 256 x 520 x 400 mm |
The A-rated noise level of the power tool is typically as follows: Sound pressure level 100=5 dB(A); Sound power level 113 dB(A). Uncertainty K= 3 dB.
* You can find more information about the deviations in the following link:
