For mitre saws
Outer diameter mm
Number of teeth
Width of cut (b1) mm
Choose a pack size
Outer diameter mm 3 options
Number of teeth 2 options
Width of cut (b1) mm 2 options
Choose a pack size 1 Pcs
Ground and sharpened fine carbide teeth for strength, durability and precision
Expansion slots reduce heat for a longer lifetime

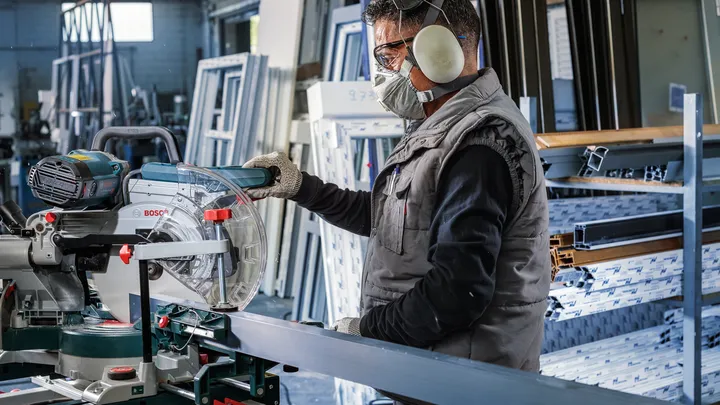

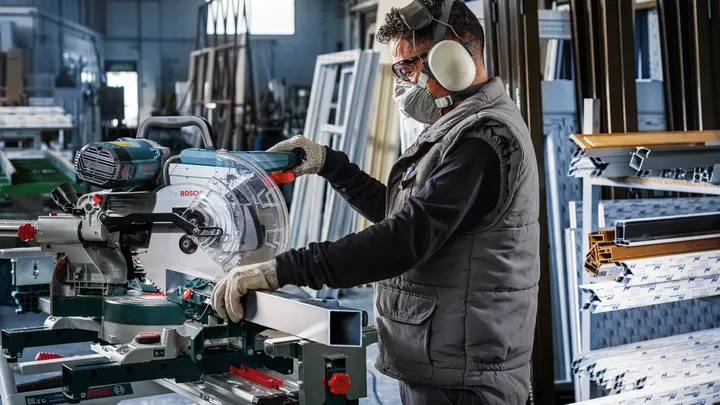

Installing window frames often means you need to cut various materials. You want a circular saw blade that cuts aluminium and other metals as well as plastics, wooden chipboards, and MDF. Try the PRO Multi Material Circular Saw Blade for mitre saws: it will help you get the job done.
Available product options: 3
|
Part number
|
Outer diameter mm
|
Bore size mm
|
Width of cut (b1) mm / Base bl. thickness (b2) mm
|
Number of teeth
|
Pack quantity
|
|
|---|---|---|---|---|---|---|---|
| 2 608 640 516 | 250 | 30 | 3=2/2=5 | 80 | 1 Pcs | Find a local dealer | |
| 2 608 640 518 | 300 | 30 | 3=2/2=5 | 96 | 1 Pcs | Find a local dealer | |
| 2 608 642 201 | 254 | 30 | 2=7/2 | 80 | 1 Pcs | Find a local dealer |
out of products
| Part number 2608640516 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 250 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 3=2/2=5 |
| Number of teeth | 80 |
| Tooth shape | HLTCG |
| Max. rotation speed (RPM) | 6000 |
| Cutting result | Fine Cut |
| Pin hole/Pitch circle diameter | 7/42 |
| Hook angle ° α | -5 |
| Relief angle ° β | 18 |
| Part number 2608640518 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 300 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 3=2/2=5 |
| Number of teeth | 96 |
| Tooth shape | HLTCG |
| Max. rotation speed (RPM) | 5000 |
| Cutting result | Fine Cut |
| Pin hole/Pitch circle diameter | 7/42 / 10/60 |
| Hook angle ° α | -5 |
| Relief angle ° β | 18 |
| Part number 2608642201 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 254 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2=7/2 |
| Number of teeth | 80 |
| Tooth shape | TCG |
| Max. rotation speed (RPM) | 6000 |
| Cutting result | Fine Cut |
| Pin hole/Pitch circle diameter | no |
| Hook angle ° α | -5 |
| Relief angle ° β | 15 |
| Outer diameter inch | 10 |
| Bore with reduction ring mm | 25 |
| Bore with reduction ring inch | 1 |
