Receivers

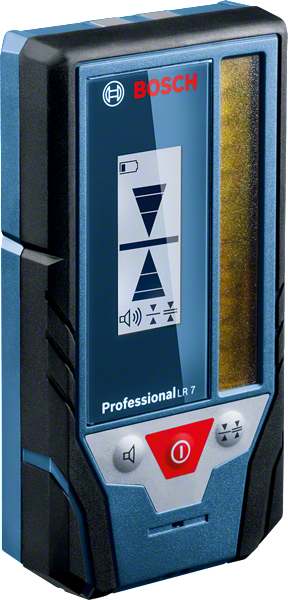

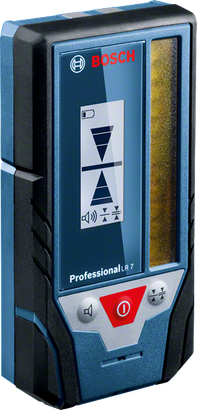

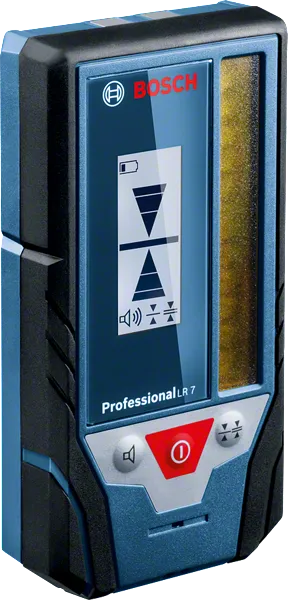

LR 7 Professional

Laser Receiver

  • Ability to detect green and red laser lines
  • Large 8cm reception area for fast detection of laser line
  • Alignment of the laser beam plane, visual (display and LEDs) and audible signals, for working in various lighting conditions

Functions & key features

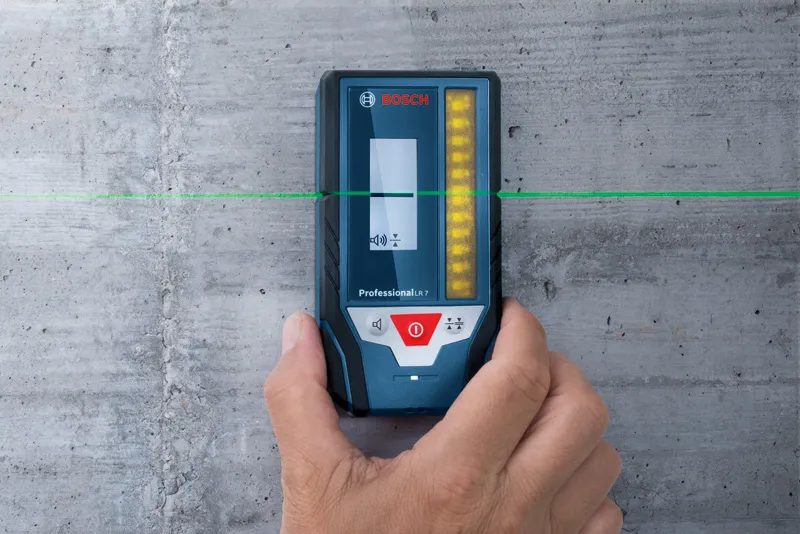

Green and red beam detection
Reception area 80 mm
Display Illumination
Easy attachment due to magnets on the top of the receiver
IP54 dust and splash water protection

Your Selection

  • with 2 x battery (AA), accessory set
Show variant
449.00 AED
Recommended retail price excluding VAT
Find a local dealer

with 2 x battery (AA), accessory set 0 601 069 J00
449.00 AED
Recommended retail price excluding VAT

LR 7 Professional

Your Selection

LR 7
with 2 x battery (AA), accessory set

Order number: 0 601 069 J00

449.00 AED
Recommended retail price excluding VAT
Find a local dealer

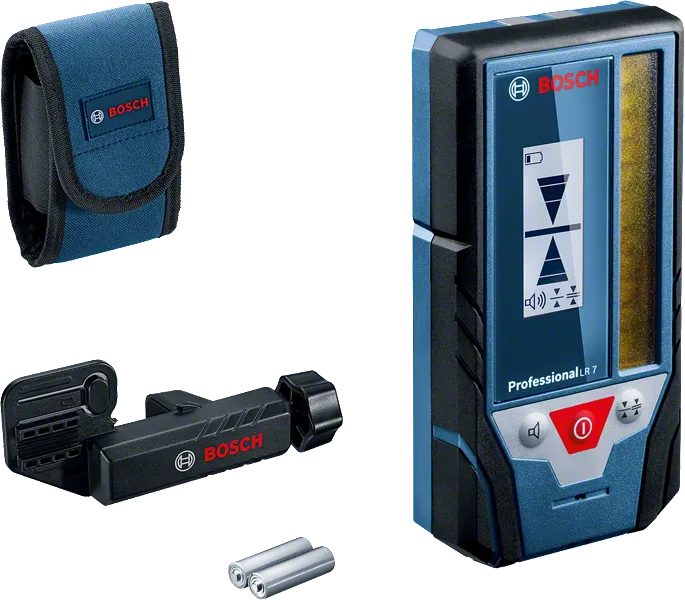

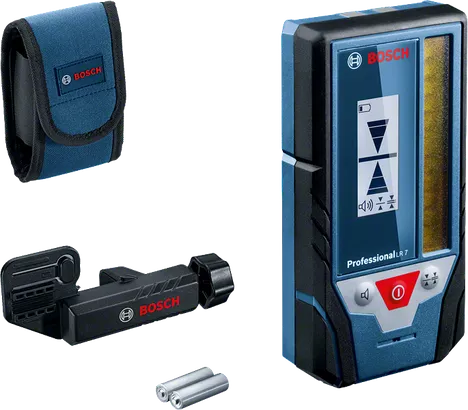

Included in this variant

  • Protective Bag

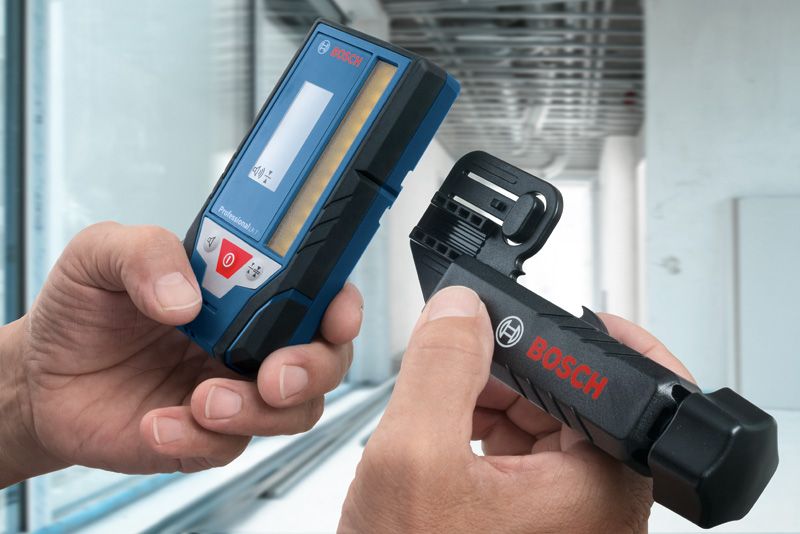

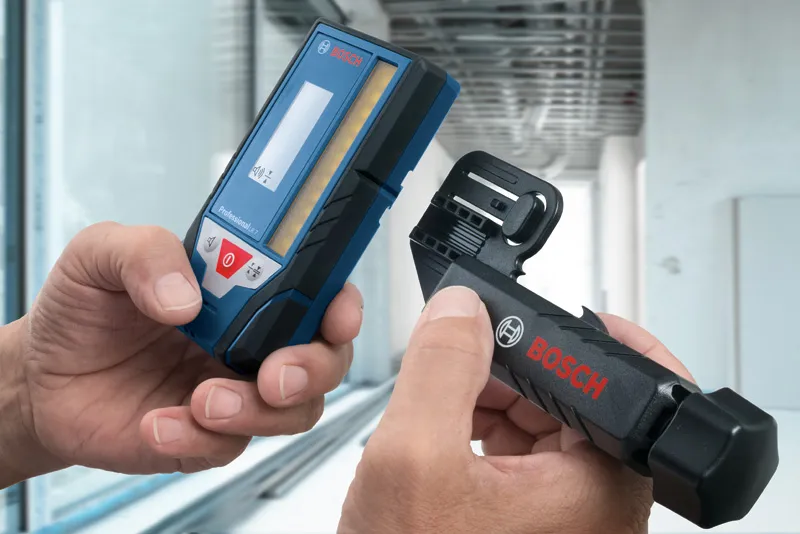

  • Bracket for laser receiver LR 6/7
    Order number: 1 608 M00 C1L
  • 2 x 1.5 V LR6 battery (AA)

Technical data

Additional data

Range of 5 – X m (Maximum working range for operation with laser receiver according to the operating instructions for the Bosch line laser or Bosch point and line laser that is used)
Power supply 2 x 1.5 V LR6 (AA)
Dust and splash protection IP 54
Weight, approx. 0.15 kg
Measuring accuracy (fine/rough) ± 1 mm/± 3 mm

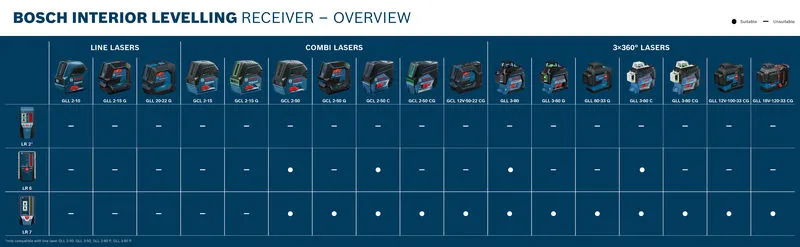

Type of receiver Combi- and line lasers

LR 7

* You can find more information about the deviations in the following link: Technical features of products
