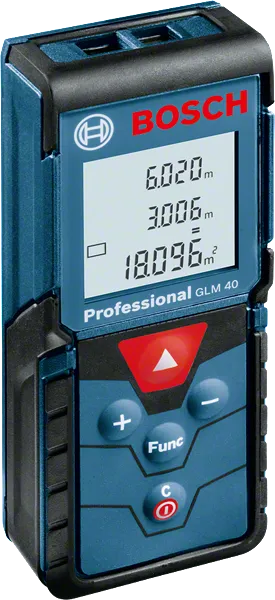

GLM 40 Professional
Laser Measure
All in one – all relevant measurement modes in one compact design
- All significant modes: standard length, surface, and volume calculation as well as indirect height measurements
- Easy to read thanks to illuminated display that showcases last three results
- Memory function saves the last 10 measurements automatically for quick reference
Functions & key features
Select a variant
Your Selection
Order number: 0 601 072 902

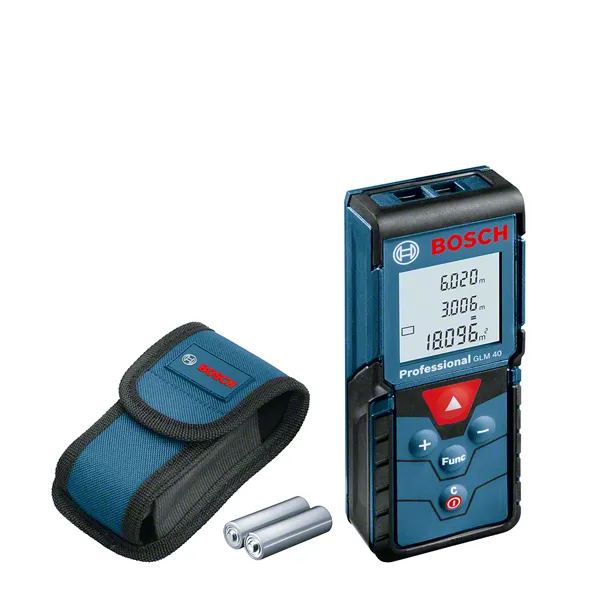

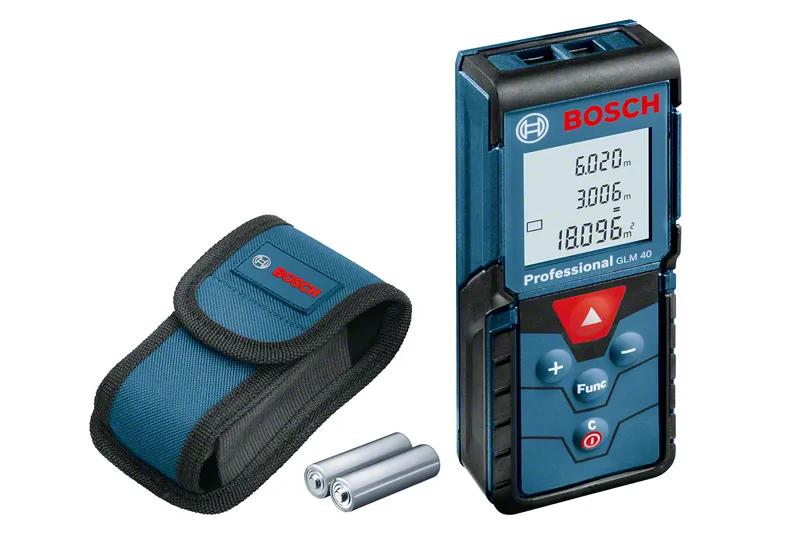

Find a local dealerIncluded in all variants
-
Manufacturer’s certificate
-
Protective Bag
-
2 x 1.5 V LR03 battery (AAA)
Your Selection
Order number: 0 601 072 900
Find a local dealerIncluded in all variants
-
Manufacturer’s certificate
-
Protective Bag
-
2 x 1.5 V LR03 battery (AAA)
Technical data
Additional data |
|
|---|---|
| Laser diode | 635 nm, < 1 mW |
| Measurement range | 0.15 – 40.00 m |
| Laser colour | Red |
| Weight, approx. | 0.09 kg |
| Dust and splash protection | IP 54 |
| Measuring range, up to | 40 m |
| Measurement time, typical | < 0.5 s |
| Laser class | 2 |
| Measurement accuracy, typical | ± 1.5 mmᵈ |
| Measurement time, max. | 4 s |
| Power supply | 2 x 1.5 V LR03 (AAA) |
| Automatic deactivation | 5 min |
| Units of measurement | m/cm, ft/inch |
| Memory capacity (values) | 10 |
* Plus use-dependent deviation. You can find more information about the deviations in the following link:
** You can find more information about the deviations in the following link:
ᵈ Plus deviations depending on application and distance, see
GLM 40 Professional: Further information
Product Highlights
Take advantage of a wide range of measurement modes in a single compact design with the Laser Measure GLM 40 Professional. This intuitive tool provides all significant measurement modes in one: standard length, surface and, volume calculation as well as indirect height measurements. It features an easy-to-read illuminated screen that displays the last three measurement results for quick reference. The laser measure also has a memory function that saves the last 10 measurements for time-efficient use.
Equipment & Application
This tool is ideal for indoor installations including electrical, tiling, carpentry, drywall fittings, construction painting, and HVAC jobs.
Additional Information
In addition to its built-in dust and splash water protection, the Laser Measure GLM 40 Professional also features a sturdy, shockproof housing that protects the tool from damage when dropped from a height of up to 1 metre.
