GLL 2-20 G Professional
Line Laser
Line laser with 360° horizontal green line
- Highly visible 360° horizontal green laser line
- Sturdy, rubberised housing with recessed glass that meets IP64 dust and splash water protection standards
- Easy operation on/off switch and one-button keypad for changing laser line configuration
Functions & key features
Select a variant
Your Selection
Order number: 0 601 065 001

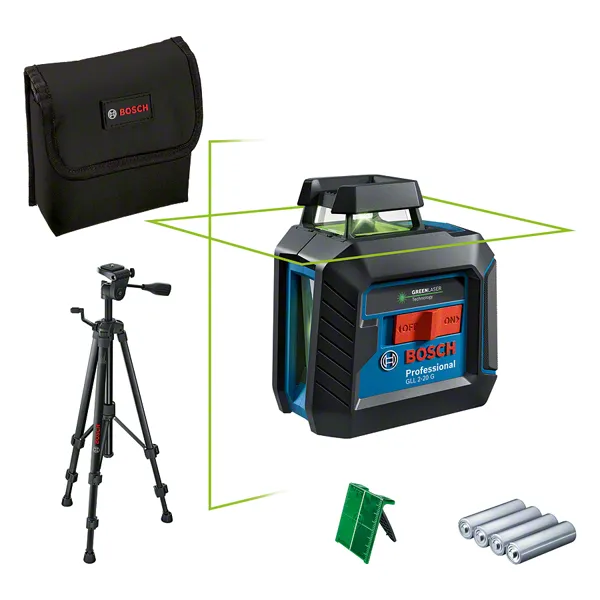

Find a local dealerIncluded in all variants
-
4 x 1.5 V LR6 battery (AA)
-
Pouch
-
Laser target plate
Additional in this variant
-

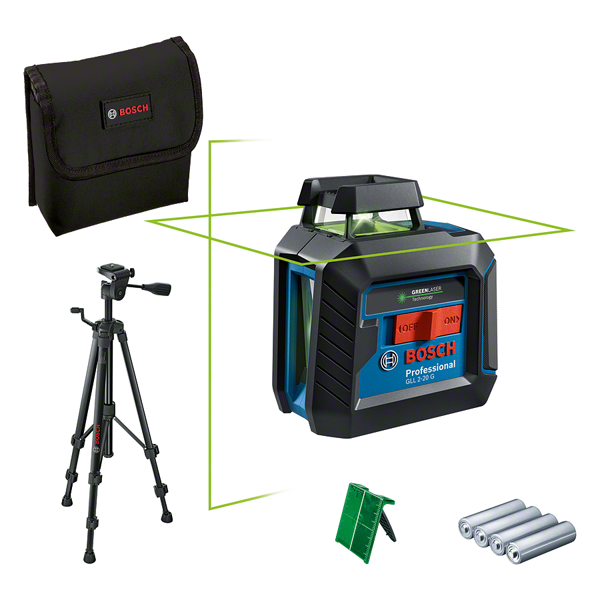

Building tripod BT 150 ProfessionalOrder number: 0 601 096 B00
Your Selection
Order number: 0 601 065 000
Find a local dealerIncluded in all variants
-
4 x 1.5 V LR6 battery (AA)
-
Pouch
-
Laser target plate
Additional in this variant
-

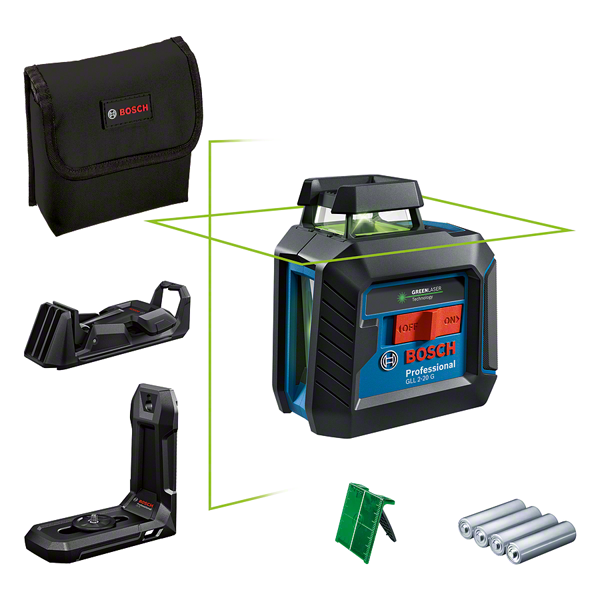

Universal Mount LB 10 & Ceiling Clip DK 10 ProfessionalOrder number: 0 601 092 C00
Technical data
Additional data |
|
|---|---|
| Tripod thread | 1/4" |
| Colour of laser line | green |
| Working range | up to 10 (radius) m |
| Accuracy | ± 0.4 mm/m* (*plus use-dependent deviation) |
| Dust and splash protection | IP 64 |
| Laser diode | 500 – 540 nm, < 10 mW |
| Operating temperature | -5 – 40 °C |
| Storage temperature | -20 – 70 °C |
| Laser class | 2 |
| Self-levelling range | ± 4° |
| Levelling time | 4 s |
| Power supply | 4 x 1.5 V LR6 (AA) |
| Operating time (max.) | 5 h |
| Weight, approx. | 0.62 kg |
| Working range, value | 10 (radius) m |
* Plus use-dependent deviation. You can find more information about the deviations in the following link:
** You can find more information about the deviations in the following link:
GLL 2-20 G Professional: Further information
Product Highlights

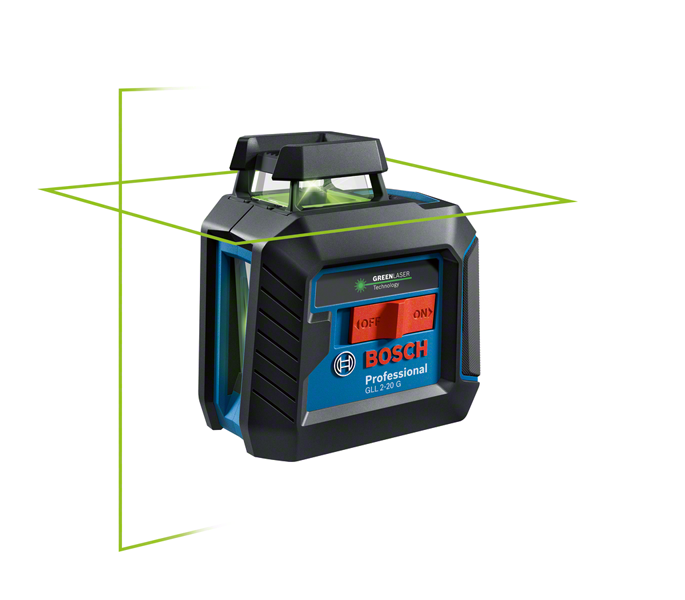

The GLL 2-20 G Professional is a robust line laser that is simple to use and projects both a vertical line and 360° horizontal line. These green lines are highly visible. Built to handle rough conditions, the line laser comes in a sturdy, rubberised housing with recessed glass that meets IP64 dust and splash water protection standards. Intuitive operation is provided by an on/off switch and a one-button keypad for easy selection of horizontal, vertical, or cross line configuration.
Equipment & Application

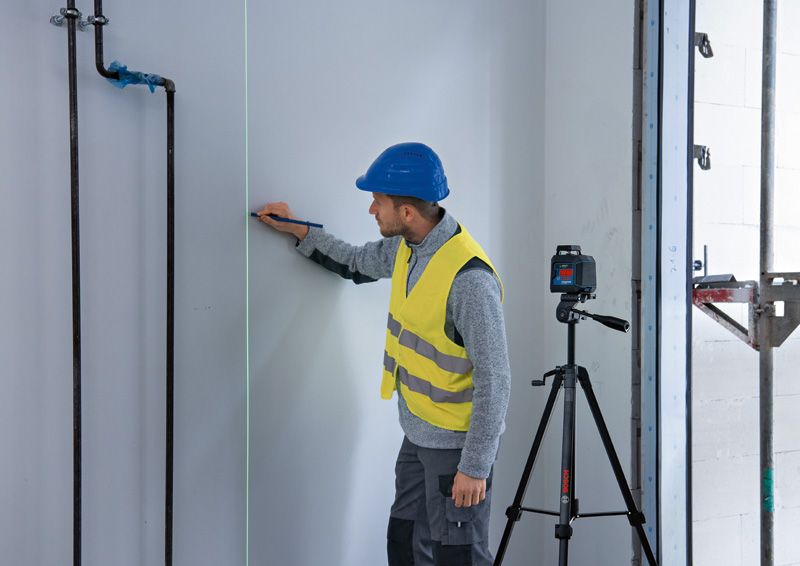

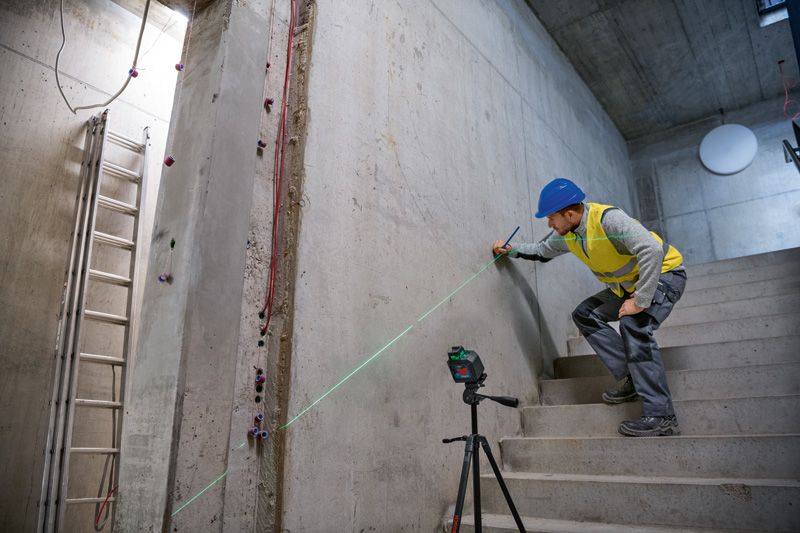

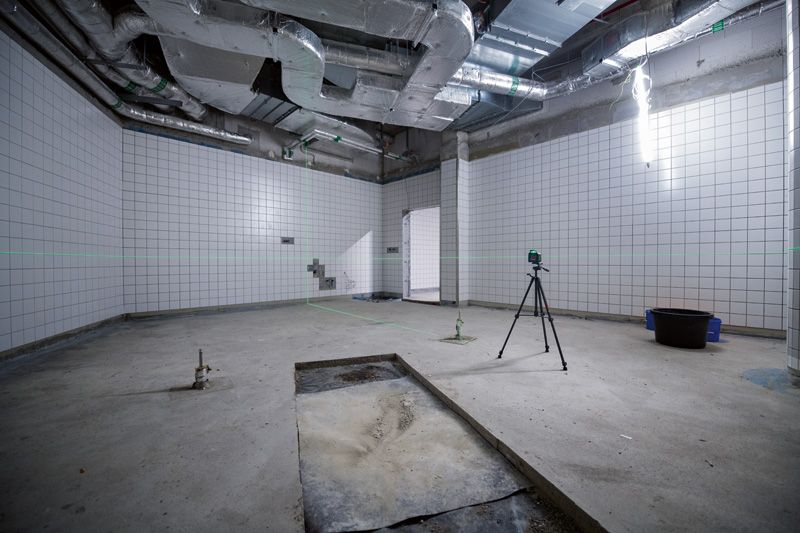

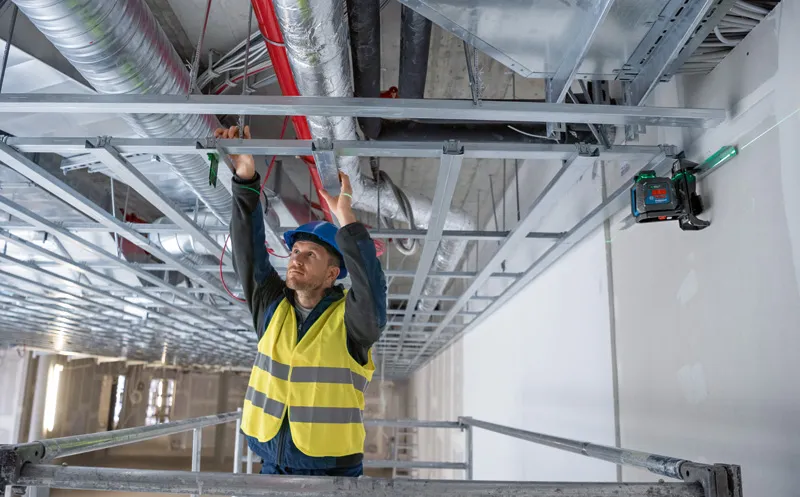

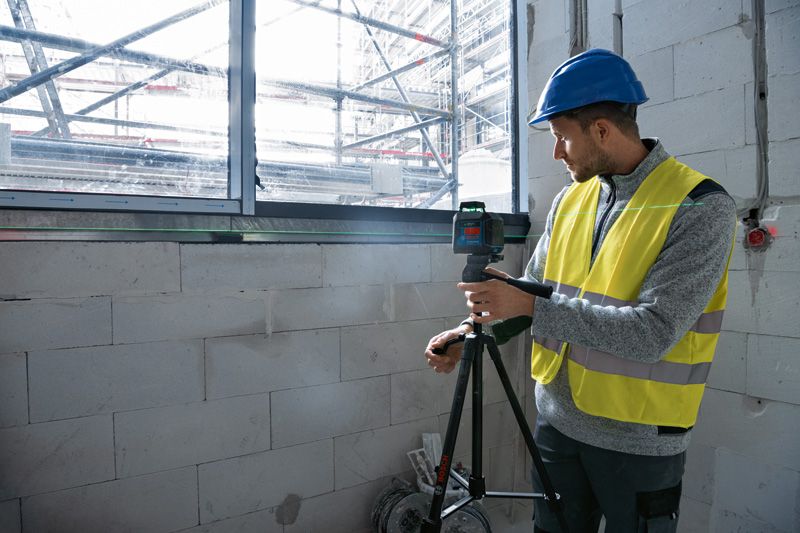

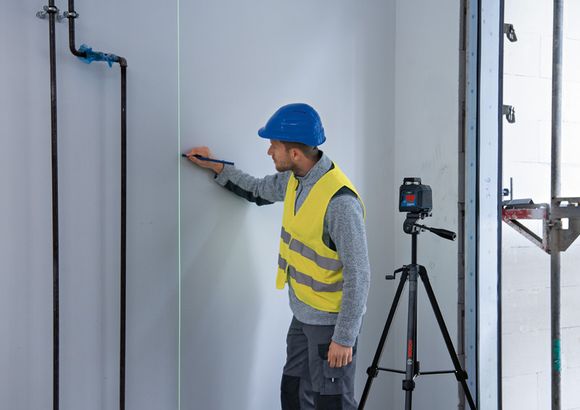

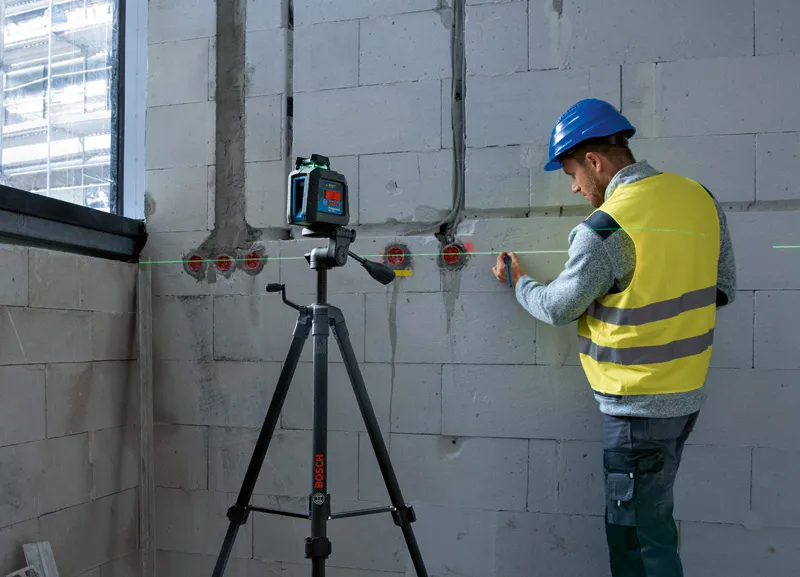

The GLL 2-20 G Professional line laser is the right tool for fast, accurate levelling on indoor jobs like bathroom and kitchen tiling, lining up electrical sockets and switches, installing suspended ceilings, or precise hanging of shelves.
Additional Information
The line laser offers a convenient working range radius of up to 10 m and self-levels up to ± 4° in less than 4 seconds. When switching off the tool, the pendulum is locked for safe transport.
