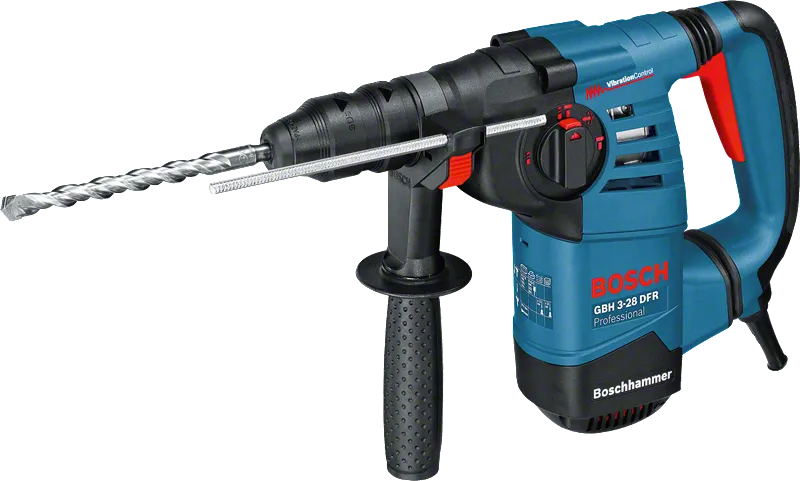

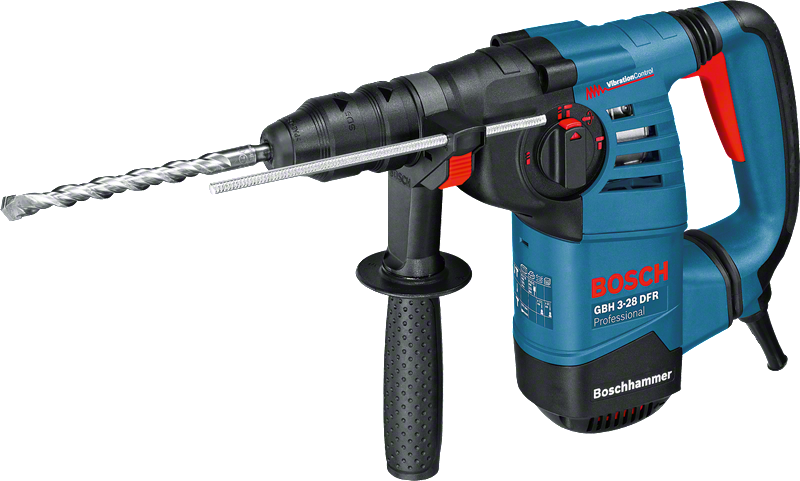

GBH 3-28 DFR Professional
Rotary Hammer with SDS plus
Top performance with 20% less vibration
- High drilling rate and 20% higher chiselling power than other rotary hammers in its class
- 20% less vibration than other hammers in its class for more comfortable working due to Bosch Vibration Control
- Quick change chuck for fast changes between drilling with impact in concrete and drilling without impact in wood and metal
Functions & key features
Your Selection

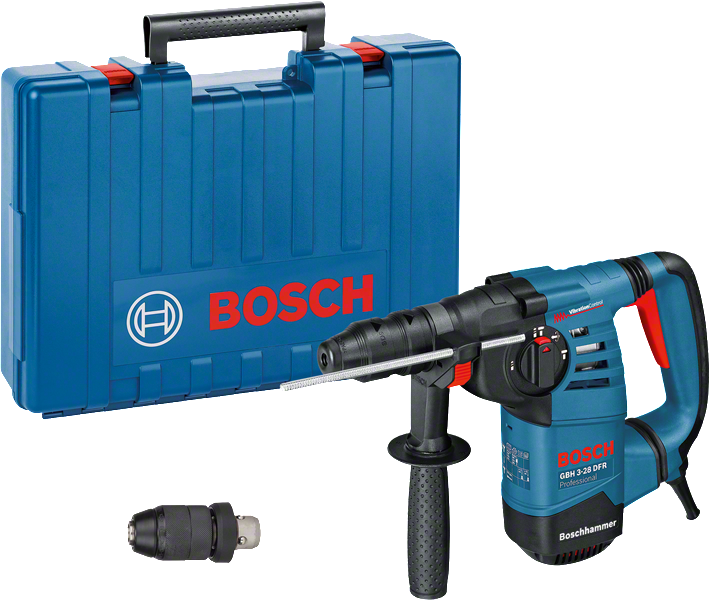

- in carrying case with chuck, Accessory
Select a variant
Your Selection
Order number: 0 611 23A 000
Included in all variants
-
Carrying caseOrder number: 2 605 438 651
-
Depth stop 210 mmOrder number: 1 613 001 010
-
Auxiliary handleOrder number: 2 602 025 191
Additional in this variant
-
Grease tube (spare part number 1 615 430 010)
-
Machine cloth
Your Selection
Order number: 0 611 24A 060
Included in all variants
-
Carrying caseOrder number: 2 605 438 651
-
Depth stop 210 mmOrder number: 1 613 001 010
-
Auxiliary handleOrder number: 2 602 025 191
Additional in this variant
-
Quick change chuck 13 mmOrder number: 2 608 572 212
-
SDS plus quick-change chuckOrder number: 2 608 572 213
-
Voltage 110 V
Your Selection
Order number: 0 611 24A 070
Included in all variants
-
Carrying caseOrder number: 2 605 438 651
-
Depth stop 210 mmOrder number: 1 613 001 010
-
Auxiliary handleOrder number: 2 602 025 191
Additional in this variant
-
Quick change chuck 13 mmOrder number: 2 608 572 212
-
SDS plus quick-change chuckOrder number: 2 608 572 213
-
Voltage 240 V
Technical data
Performance data |
|
|---|---|
| Impact rate at rated speed | 0 – 4,000 bpm |
| Rated speed | 0 – 900 rpm |
The A-rated noise level of the power tool is typically as follows: Sound pressure level 91 dB(A); Sound power level 102 dB(A). Uncertainty K= 3 dB.
GBH 3-28 DFR Professional: Further information
Product Highlights
The GBH 3-28 DFR Professional is the most versatile tool in Bosch’s SDS plus corded rotary hammer category. Its compact housing enables multiple applications in narrow and tight workspaces. Designed for convenience, its L-shaped design provides a balanced weight distribution, while its Vibration Control allows effortless continuous work. It also features a high power-to-weight ratio, with an 800 W motor and a tool weight of only 3.6 kg.
