Angle measurers and inclinometers

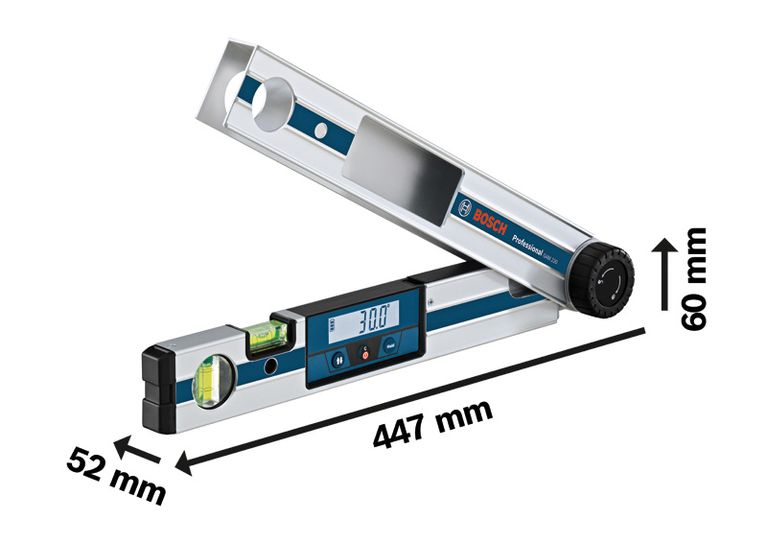

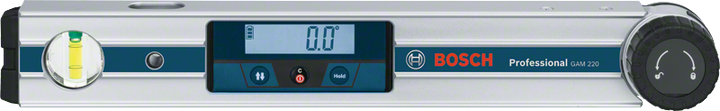

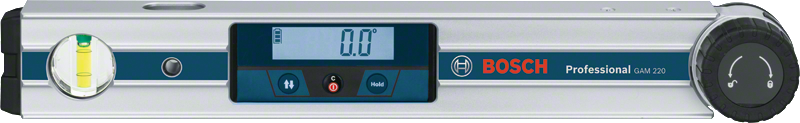

GAM 220 Professional

Angle Measurer

Precise and easy angle measurement

  • Fast and precise calculation of angles
  • Angles can be transferred precisely onto workpieces by means of a mechanical locking screw

Functions & key features

Display Illumination
IP54 dust and splash water protection
Flip Display
Storage of measuring result
Lock

Your Selection

  • with 4 x battery (AA)
Show variant
869.00 AED
Recommended retail price excluding VAT
Find a local dealer

with 4 x battery (AA) 0 601 076 500
869.00 AED
Recommended retail price excluding VAT

GAM 220 Professional

Your Selection

GAM 220
with 4 x battery (AA)

Order number: 0 601 076 500

869.00 AED
Recommended retail price excluding VAT
Find a local dealer

Included in this variant

  • 4 x 1.5 V LR6 battery (AA)

Technical data

Additional data

Measurement accuracy, angles ± 0.1°
Measurement range 0 – 220°
Arm length 40 cm
Measurement accuracy, vials ± 0.05°
Accuracy of angle calculation ± 0.1°
Power supply 4 x 1.5 V LR6 (AA)
Battery power, approx. 80 h
Automatic deactivation, approx. 30 min
Weight, approx. 1.3 kg

GAM 220

* Plus use-dependent deviation. You can find more information about the deviations in the following link: Technical features of products

** You can find more information about the deviations in the following link: Technical features of products
