Drill Bit Sets

HSS-TiN Step Drill Bit, 3-flat Shank, Set

For rotary drills/drivers

Pre-punching is not necessary as the split-point tip allows for an easy start
CNC ground spiral flute enables optimised chip removal and less vibration for even drilling
3-flat shank prevents slipping in the chuck of rotary drills and drivers

Total length mm 66.5

Shank diameter mm 6.0

Step diameter (range) mm 4-12

Choose a pack size 3 Pcs

Your Selection

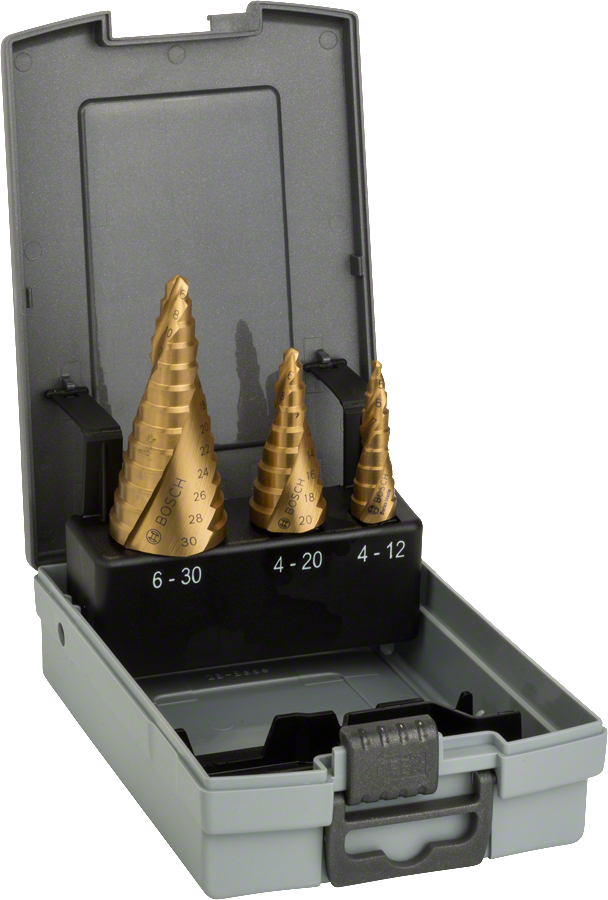

3-piece HSS-TiN step drill bit set 4-12/4-20/6-30
(2608587432)

Recommended retail price excluding VAT

Find a local dealer

3-piece HSS-TiN step drill bit set 4-12/4-20/6-30 2 608 587 432

Recommended retail price excluding VAT

Find a local dealer

Smooth Drilling in Several Diameters with One Drill Bit

HSS-TiN Step Drill Bit performs smooth drilling in several diameters with one drill bit

CNC ground spiral flute enables optimised chip removal and less vibration for even drilling
Highest cutting smoothness due to axial and radial relief grinding
TiN coating for exceptionally long lifetime. Laser-markings for hole diameters. 3-flat shank for high-torque transmission
