Metal Drill Bits

Object #200104729: <!-- language missing -->

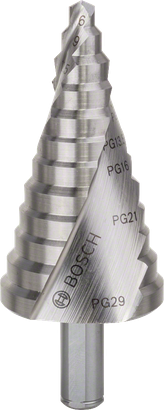

HSS Step Drill Bit, 3-flat Shank

For rotary drills/drivers

HSS Step Drill Bit performs smooth drilling in several diameters with one drill bit

Pre-punching is not necessary as the split-point tip allows for an easy start
CNC ground spiral flute enables optimised chip removal and less vibration for even drilling
3-flat shank prevents slipping in the chuck of rotary drills and drivers

Materials

Select options

Step diameter (range) mm

6-37

M10-M40

Step height mm

6/4

Shank diameter mm

10.0

Choose a pack size

1 Pcs

Step diameter (range) mm 6-37

Step height mm 4

Shank diameter mm 10.0

Choose a pack size 1 Pcs

Your Selection

Step drill bits HSS
(2608587428)

Available product options (2)

Recommended retail price excluding VAT

Find a local dealer

Your Selected Variant

Step drill bits HSS 2 608 587 428

Recommended retail price excluding VAT

Find a local dealer

Smooth Drilling in Several Diameters with One Drill Bit

HSS Step Drill Bit performs smooth drilling in several diameters with one drill bit

CNC ground spiral flute enables optimised chip removal and less vibration for even drilling
Highest cutting smoothness due to axial and radial relief grinding
Made of HSS for a long lifetime. Laser-markings for hole diameters.
Made of HSS for a long lifetime. Laser-markings for hole diameters. 3-flat shank for high-torque transmission, no slipping

Product Options

Available product options: 2

	Part number	Version	Step diameter (range) mm	Step height mm	Shank diameter mm	Pack quantity	Price
	2 608 587 427	HSS	M10-M40	6/4	10.0	1 Pcs		Find a local dealer
	2 608 587 428	HSS	6-37	4	10.0	1 Pcs		Find a local dealer

out of products

Step drill bits HSS

Part number 2608587427
Packaging type	Plastic packaging, box, with Euro hole
Pack quantity	1 Pcs

Details
Version	HSS
Step diameter (range) mm	M10-M40
Step height mm	6/4
Shank diameter mm	10.0
Total length mm	125.5

Recommended retail price excluding VAT

Find a local dealer

Step drill bits HSS

Part number 2608587428

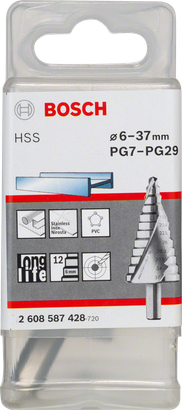

Packaging type	Plastic packaging, box, with Euro hole
Pack quantity	1 Pcs

Details
Version	HSS
Step diameter (range) mm	6-37
Step height mm	4
Shank diameter mm	10.0
Total length mm	93.0

Recommended retail price excluding VAT

Find a local dealer
