HSS Twist Drill Bit Ground Set, Mini X-Line, 7-piece

For rotary drills/drivers

135-degree self-centring split-point tip combines active cutting and perfect centring without wandering
Precision-ground bit made of HSS enables fast results

Materials

2 options

Available product options (2)

Recommended retail price excluding VAT

Find a local dealer

Your Selected Variant

Your Selected Variant

HSS Twist Drill Bit Ground Set, Mini X-Line, 7-piece

from

Recommended retail price excluding VAT

Find a local dealer

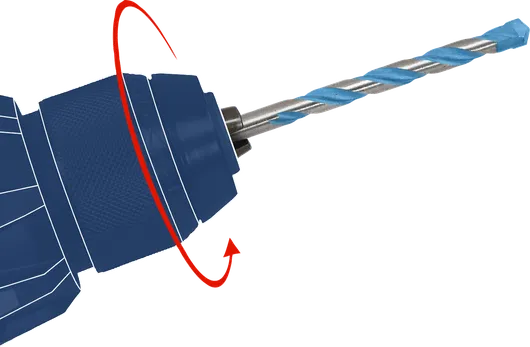

For rotary drills/drivers

Fits tools of most brands

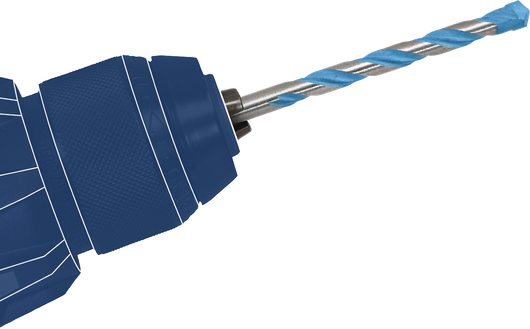

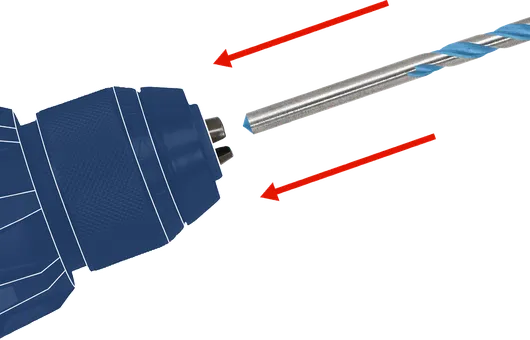

Cylindrical shank compatible with three-jaw drill chucks

Drilling with the Maximum Precision

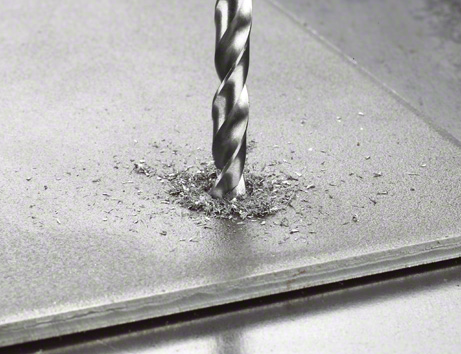

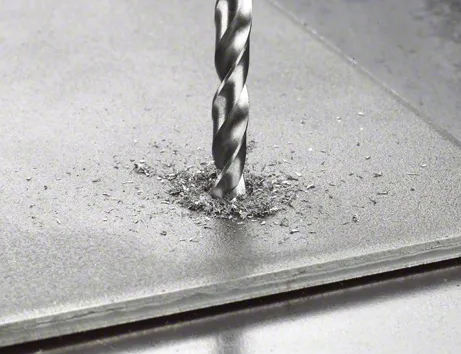

HSS Twist Drill Bit offers solid drilling for standard usage with metal

Precision-ground bit made of HSS enables fast results
No need to pre-punch or pilot drill up to 10 mm-diameter
Manufactured to DIN 338, drill bit Type N (flute angle) with a 135-degree tip, diameter tolerance h8

View more

Product Options

Available product options: 2

	Part number	Diameter mm	Working length mm	Pack quantity	Price
	2 607 018 726	1.0 / 1.5 / 2.0 / 2.5 / 3.0 / 3.5 / 4.0 / 4.5 / 5.0 / 5.5 / 6.0 / 6.5 / 7.0 / 7.5 / 8.0 / 8.5 / 9.0 / 9.5 / 10.0	12 / 18 / 24 / 30 / 33 / 39 / 43 / 47 / 52 / 57 / 57 / 63 / 69 / 69 / 75 / 75 / 81 / 81 / 87	19 Pcs		Find a local dealer
	2 607 018 727	1.0 / 1.5 / 2.0 / 2.5 / 3.0 / 3.5 / 4.0 / 4.5 / 5.0 / 5.5 / 6.0 / 6.5 / 7.0 / 7.5 / 8.0 / 8.5 / 9.0 / 9.5 / 10.0 / 10.5 / 11.0 / 11.5 / 12.0 / 12.5 / 13.0	12 / 18 / 24 / 30 / 33 / 39 / 43 / 47 / 52 / 57 / 57 / 63 / 69 / 69 / 75 / 75 / 81 / 81 / 87 / 87 / 94 / 94 / 101 / 101 / 101	25 Pcs		Find a local dealer

out of products

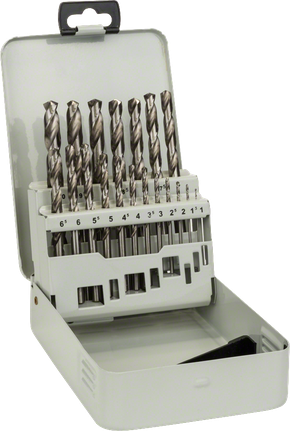

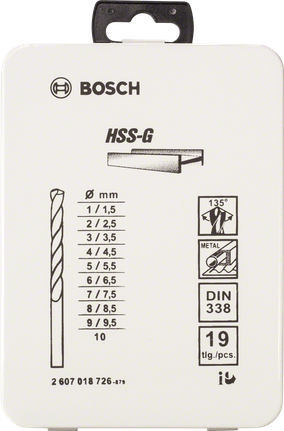

19-piece metal drill bit set HSS-G, DIN 338, 135° in metal cassette 1 - 10 mm

19-piece metal drill bit set HSS-G, DIN 338, 135° in metal cassette 1 - 10 mm

19-piece metal drill bit set HSS-G, DIN 338, 135° in metal cassette 1 - 10 mm

19-piece metal drill bit set HSS-G, DIN 338, 135° in metal cassette 1 - 10 mm

Part number 2607018726
Packaging type	Metal packaging, cassette, with Euro hole
Pack quantity	19 Pcs

Details
Diameter mm	1.0 / 1.5 / 2.0 / 2.5 / 3.0 / 3.5 / 4.0 / 4.5 / 5.0 / 5.5 / 6.0 / 6.5 / 7.0 / 7.5 / 8.0 / 8.5 / 9.0 / 9.5 / 10.0
Working length mm	12 / 18 / 24 / 30 / 33 / 39 / 43 / 47 / 52 / 57 / 57 / 63 / 69 / 69 / 75 / 75 / 81 / 81 / 87

Recommended retail price excluding VAT

Find a local dealer

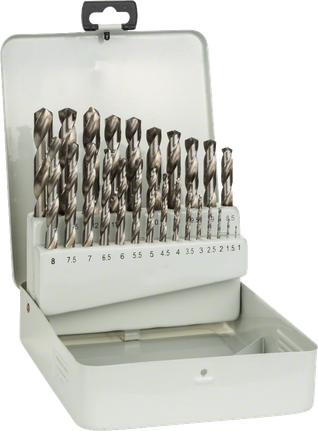

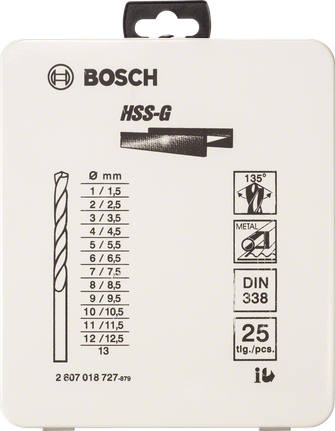

25-piece metal drill bit set HSS-G, DIN 338, 135° in metal cassette 1 - 13 mm

25-piece metal drill bit set HSS-G, DIN 338, 135° in metal cassette 1 - 13 mm

25-piece metal drill bit set HSS-G, DIN 338, 135° in metal cassette 1 - 13 mm

25-piece metal drill bit set HSS-G, DIN 338, 135° in metal cassette 1 - 13 mm

Part number 2607018727
Packaging type	Plastic packaging, cassette, with Euro hole
Pack quantity	25 Pcs

Details
Diameter mm	1.0 / 1.5 / 2.0 / 2.5 / 3.0 / 3.5 / 4.0 / 4.5 / 5.0 / 5.5 / 6.0 / 6.5 / 7.0 / 7.5 / 8.0 / 8.5 / 9.0 / 9.5 / 10.0 / 10.5 / 11.0 / 11.5 / 12.0 / 12.5 / 13.0
Working length mm	12 / 18 / 24 / 30 / 33 / 39 / 43 / 47 / 52 / 57 / 57 / 63 / 69 / 69 / 75 / 75 / 81 / 81 / 87 / 87 / 94 / 94 / 101 / 101 / 101

Recommended retail price excluding VAT

Find a local dealer
