Drill Bit Sets
1/2
HSS-AlTiN Step Drill Bit, 3-flat Shank, Set
For rotary drills/drivers
- Pre-punching is not necessary as the split-point tip allows for an easy start
- CNC ground spiral flute enables optimised chip removal and less vibration for even drilling
Materials

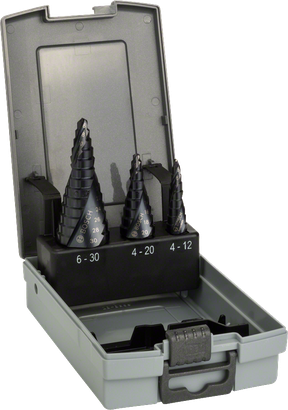

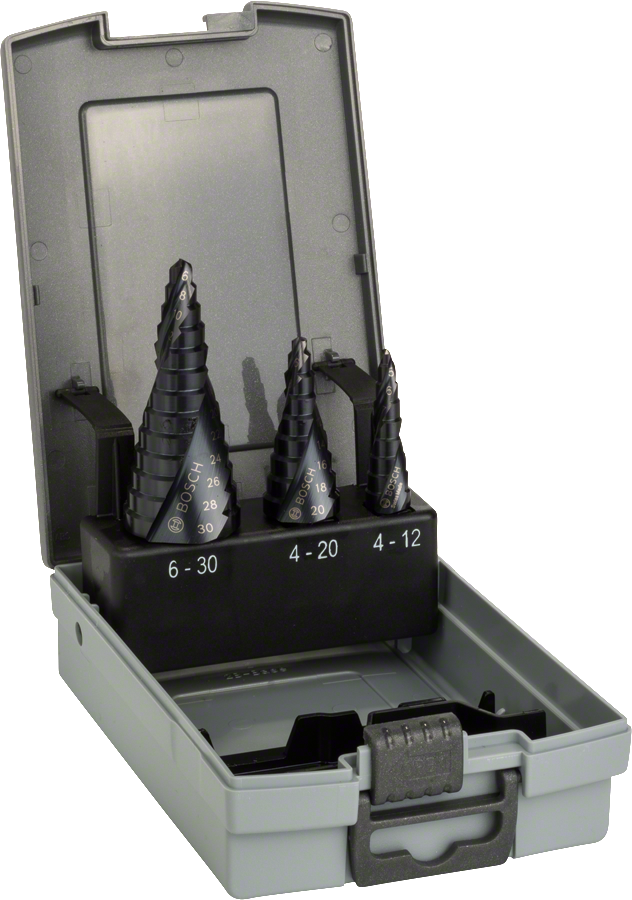

3-piece HSS-AlTiN step drill bit set 4-12/4-20/6-30
2 608 588 069
Smooth Drilling in Several Diameters with One Drill Bit
HSS-AlTiN Step Drill Bit performs smooth drilling in several diameters with one drill bit
- CNC ground spiral flute enables optimised chip removal and less vibration for even drilling
- Highest cutting smoothness due to axial and radial relief grinding
- AlTiN coating for maximum lifetime, laser-markings for hole diameters, 3-flat shank for high-torque transmission
View more
Product Options
Available product options: 1
|
Part number
|
Version
|
Step diameter (range) mm
|
Shank diameter mm
|
Step height mm
|
Pack quantity
|
|
|---|---|---|---|---|---|---|---|
| 2 608 588 069 | HSS-AlTiN | 4-12; 4-20; 6-30 | 6.0; 8.0; 10.0 | 4; 4; 4 | 3 Pcs | Find a local dealer |
out of products
3-piece HSS-AlTiN step drill bit set 4-12/4-20/6-30
Part number 2608588069
Packaging type
Plastic packaging, cassette, with Euro hole
Pack quantity
3 Pcs
Details
Version
HSS-AlTiN
Step diameter (range) mm
4-12 / 4-20 / 6-30
Shank diameter mm
6.0 / 8.0 / 10.0
Step height mm
4 / 4 / 4
Total length mm
66.5 / 70.5 / 93.5
Recommended retail price excluding VAT
