For table saws
Outer diameter mm
Number of teeth
Width of cut (b1) mm
Choose a pack size
Outer diameter mm 3 options
Number of teeth 5 options
Width of cut (b1) mm 2 options
Choose a pack size 1 Pcs

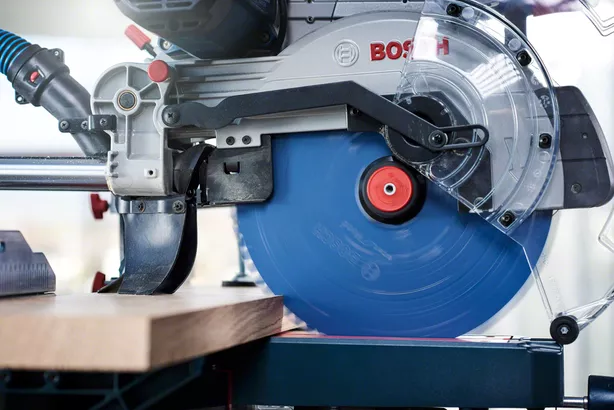

Expert for Wood Circular Saw Blade offers a long lifetime with high cutting performance in wood
Available product options: 5
|
Part number
|
Outer diameter mm
|
Bore size mm
|
Width of cut (b1) mm / Base bl. thickness (b2) mm
|
Number of teeth
|
Pack quantity
|
Price
|
|
|---|---|---|---|---|---|---|---|---|
| 2 608 642 500 | 250 | 30 | 2.5/1.8 | 80 | 1 Pcs | Find a local dealer | ||
| 2 608 642 501 | 300 | 30 | 2.5/1.8 | 100 | 1 Pcs | Find a local dealer | ||
| 2 608 644 083 | 190 | 30 | 2/1.3 | 24 | 1 Pcs | Find a local dealer | ||
| 2 608 644 084 | 190 | 30 | 2/1.3 | 40 | 1 Pcs | Find a local dealer | ||
| 2 608 644 085 | 190 | 30 | 2/1.3 | 48 | 1 Pcs | Find a local dealer |
out of products
| Part number 2608642500 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 250 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.5/1.8 |
| Number of teeth | 80 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 7600 |
| Cutting result | Fine Cut |
| Pin hole/Pitch circle diameter | 2/7/42 / 2/9.5/46.5 / 2/9/46 / 2/10/60 |
| Hook angle ° α | 5 |
| Relief angle ° β | 15 |
| Part number 2608642501 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 300 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.5/1.8 |
| Number of teeth | 100 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 6300 |
| Cutting result | Fine Cut |
| Pin hole/Pitch circle diameter | 2/7/42 / 2/9.5/46.5 / 2/9/46 / 2/10/60 |
| Hook angle ° α | 5 |
| Relief angle ° β | 15 |
| Part number 2608644083 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 190 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2/1.3 |
| Number of teeth | 24 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 10000 |
| Cutting result | Coarse cut |
| Pin hole/Pitch circle diameter | 2/7/42 |
| Hook angle ° α | 15 |
| Relief angle ° β | 15 |
| Part number 2608644084 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 190 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2/1.3 |
| Number of teeth | 40 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 10000 |
| Cutting result | Fine Cut |
| Pin hole/Pitch circle diameter | 2/7/42 |
| Hook angle ° α | 10 |
| Relief angle ° β | 15 |
| Part number 2608644085 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 190 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2/1.3 |
| Number of teeth | 48 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 10000 |
| Cutting result | Fine Cut |
| Pin hole/Pitch circle diameter | 2/7/42 |
| Hook angle ° α | 5 |
| Relief angle ° β | 15 |
