For vertical panel sizing saws
Outer diameter mm
Number of teeth
Width of cut (b1) mm
Choose a pack size
Outer diameter mm 2 options
Number of teeth 24
Width of cut (b1) mm 3.1
Choose a pack size 1 Pcs

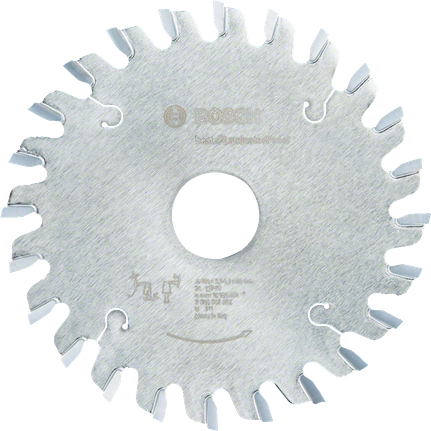

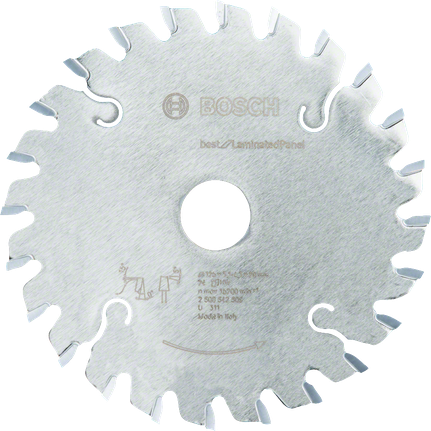

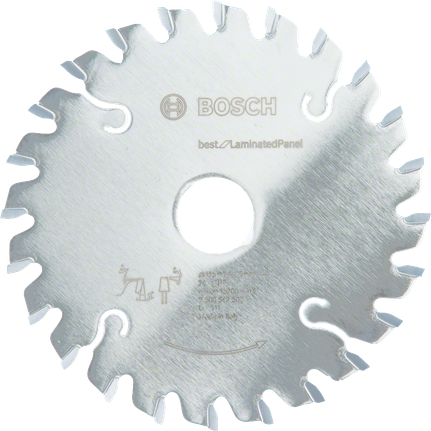

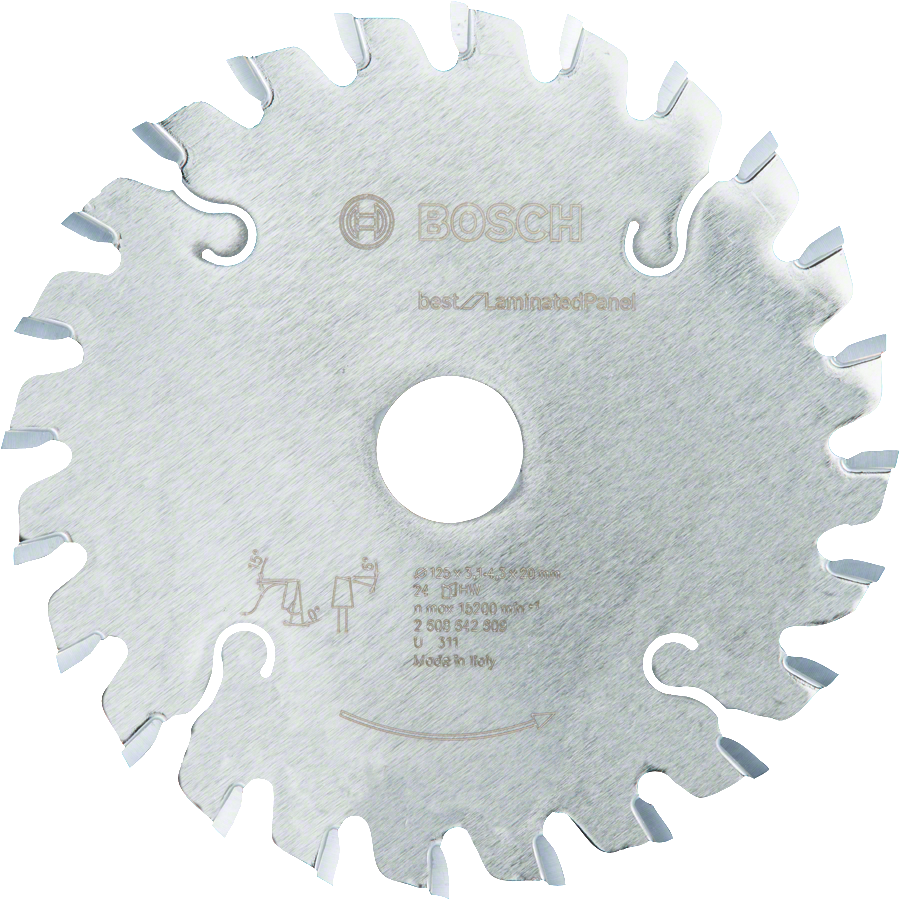

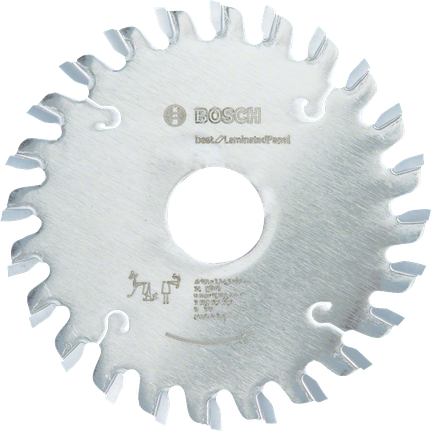

Best for Laminated Panel Conical Scoring Blade delivers industrial-quality precision for very demanding applications
Available product options: 4
|
Part number
|
Outer diameter mm
|
Bore size mm
|
Width of cut (b1) mm / Base bl. thickness (b2) mm
|
Number of teeth
|
Pack quantity
|
Price
|
|
|---|---|---|---|---|---|---|---|---|
| 2 608 642 606 | 100 | 22 | 3.1/4.3 | 24 | 1 Pcs | Find a local dealer | ||
| 2 608 642 607 | 100 | 20 | 3.1/4.3 | 24 | 1 Pcs | Find a local dealer | ||
| 2 608 642 608 | 125 | 22 | 3.1/4.3 | 24 | 1 Pcs | Find a local dealer | ||
| 2 608 642 609 | 125 | 20 | 3.1/4.3 | 24 | 1 Pcs | Find a local dealer |
out of products
| Part number 2608642606 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, pocket, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 100 |
| Bore size mm | 22 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 3.1/4.3 |
| Number of teeth | 24 |
| Tooth shape | ATB (Con) |
| Max. rotation speed (RPM) | 15300 |
| Cutting result | Fine Cut |
| Hook angle ° α | 0 |
| Relief angle ° β | 15 |
| Part number 2608642607 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, pocket, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 100 |
| Bore size mm | 20 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 3.1/4.3 |
| Number of teeth | 24 |
| Tooth shape | ATB (Con) |
| Max. rotation speed (RPM) | 15300 |
| Cutting result | Fine Cut |
| Hook angle ° α | 0 |
| Relief angle ° β | 15 |
| Part number 2608642608 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, pocket, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 125 |
| Bore size mm | 22 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 3.1/4.3 |
| Number of teeth | 24 |
| Tooth shape | ATB (Con) |
| Max. rotation speed (RPM) | 12000 |
| Cutting result | Fine Cut |
| Hook angle ° α | 0 |
| Relief angle ° β | 15 |
| Part number 2608642609 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, pocket, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 125 |
| Bore size mm | 20 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 3.1/4.3 |
| Number of teeth | 24 |
| Tooth shape | ATB (Con) |
| Max. rotation speed (RPM) | 12000 |
| Cutting result | Fine Cut |
| Hook angle ° α | 0 |
| Relief angle ° β | 15 |
